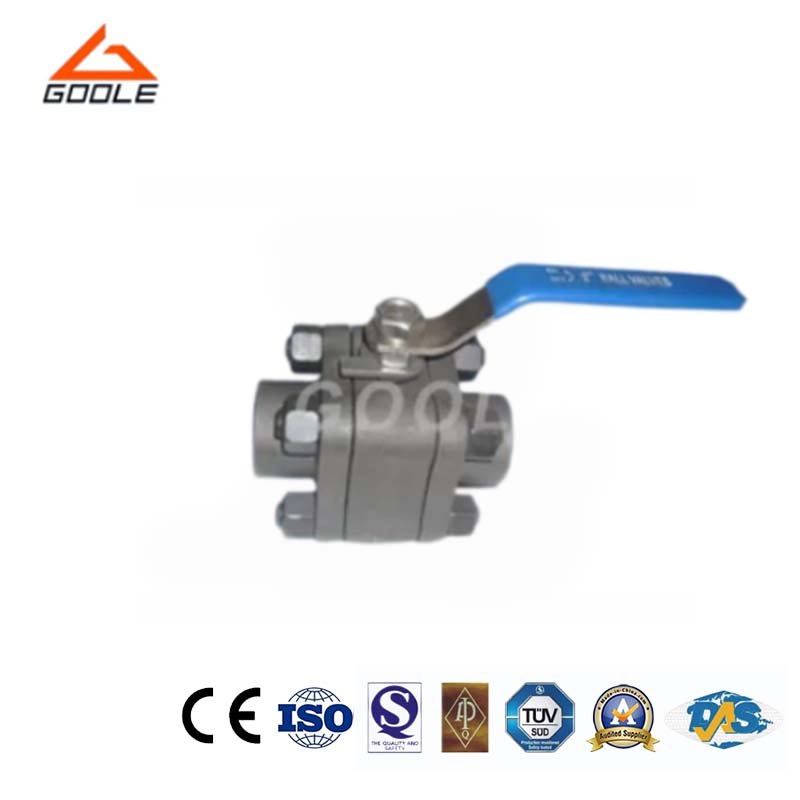

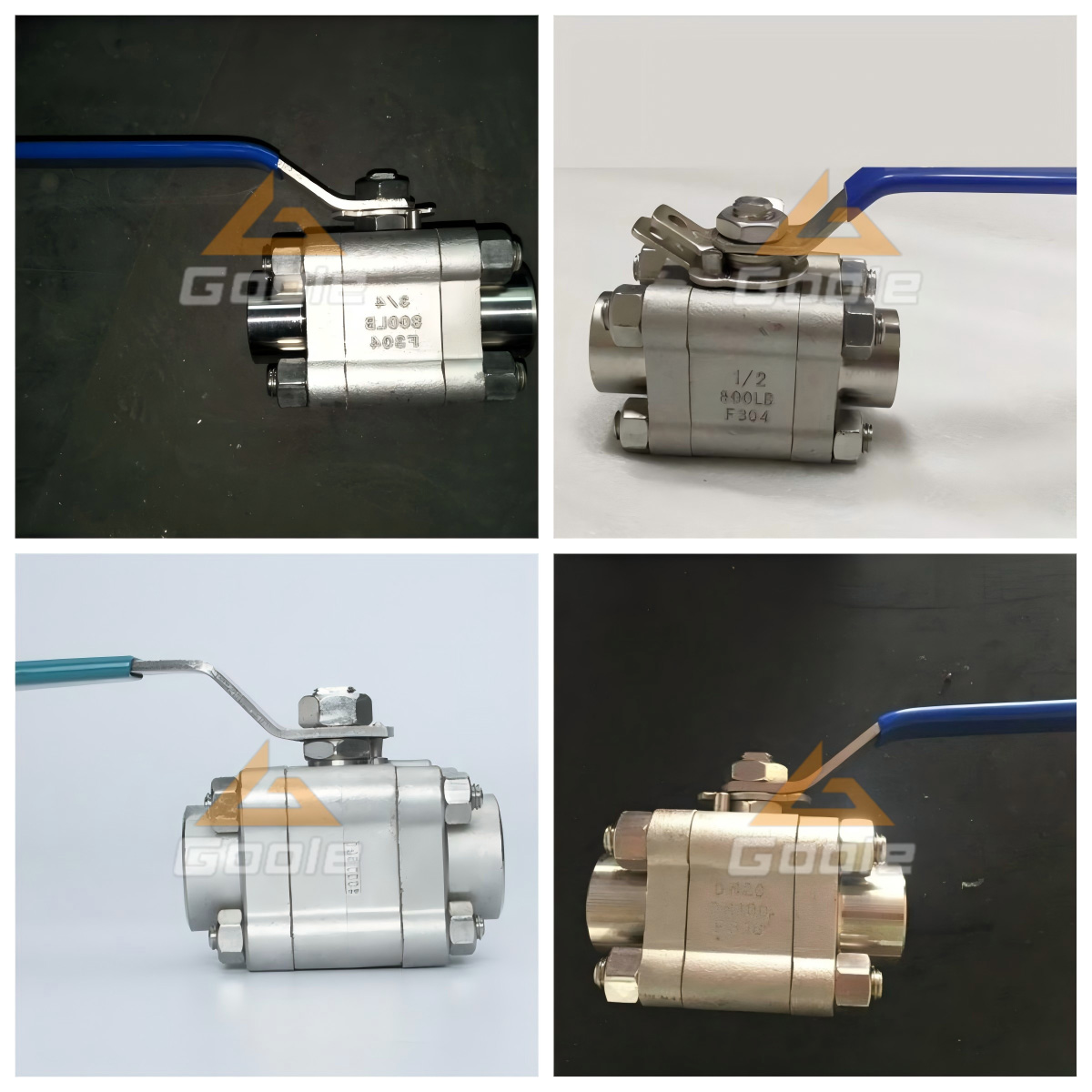

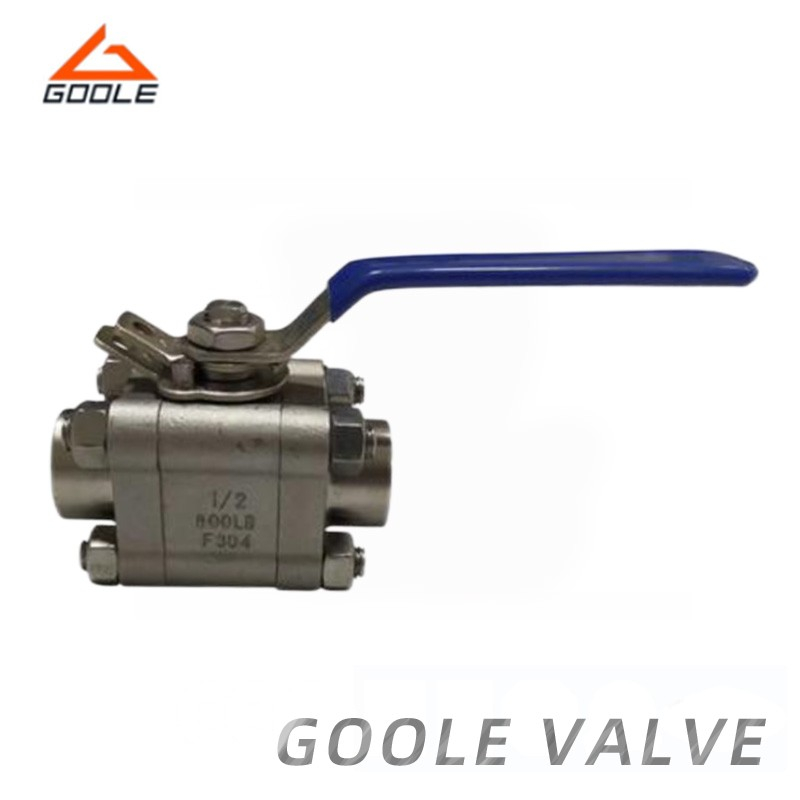

The High Pressure Forged Steel Butt Welded Ball Valve is designed for demanding industrial applications, providing reliable performance in high-pressure systems. Constructed with premium forged steel materials such as A105, F304, F316, and other alloys, this valve offers exceptional strength and durability, making it ideal for applications in harsh environments. Its three-piece design allows for easy maintenance and repair, reducing downtime. The butt-welded connections ensure a secure, leak-proof installation, providing safety and efficiency in heavy-duty pipeline systems.
● Three-Piece Design: Allows for easy maintenance and repair, reducing downtime and simplifying service.
● High Pressure Rating: Designed to perform reliably under high-pressure conditions, making it suitable for heavy-duty industrial applications.
● Butt Welded Connections: Provides a secure, leak-proof installation for enhanced safety and reliability.
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.50 | 3.38 | 4.00 | 6.00 | 7.00 | 9.25 | 9.88 | 11.00 | 12.62 | / |
| mm | 55 | 55 | 65 | 85 | 100 | 150 | 180 | 235 | 250 | 280 | 320 | / | |
| W | in | 8 | 8 | 12 | 12 | 16 | 16 | 24 | 24 | 24 | 24 | 32 | / |
| mm | 200 | 200 | 300 | 300 | 400 | 400 | 600 | 600 | 600 | 600 | 800 | / | |
| WT(Kg) | RF | 3.1 | 4.1 | 6 | 9.5 | 12.8 | 20 | 26 | 45 | 126 | 216 | 270 | / |
| BW | 2.6 | 3.9 | 5.2 | 8.7 | 11.8 | 19 | 28 | 47 | 131 | 226 | 295 | / |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q1:What is the pressure rating of this valve?
This valve is rated for high-pressure applications, with pressure ratings ranging from 150lb to 1500lb, depending on the size and material specification.
Q2:What type of connection does the valve have?
The valve features butt-welded connections, providing a secure and permanent fit in industrial piping systems.
Q3:What materials are used in the construction of the valve?
The valve is made from high-quality forged steel (A105, F304, F316, etc.), ensuring durability and resistance to high-pressure and high-temperature environments.
Our High Pressure Forged Steel Butt Welded Ball Valve for Heavy-Duty Applications is built for performance and longevity. The three-piece design ensures easy maintenance, while the forged steel construction guarantees strength and durability in demanding conditions. The butt-welded connections provide a secure, leak-proof fit, making this valve ideal for heavy-duty systems in industries such as oil and gas, petrochemicals, and power generation. With our valve, you get reliable, long-lasting fluid control in high-pressure applications.
