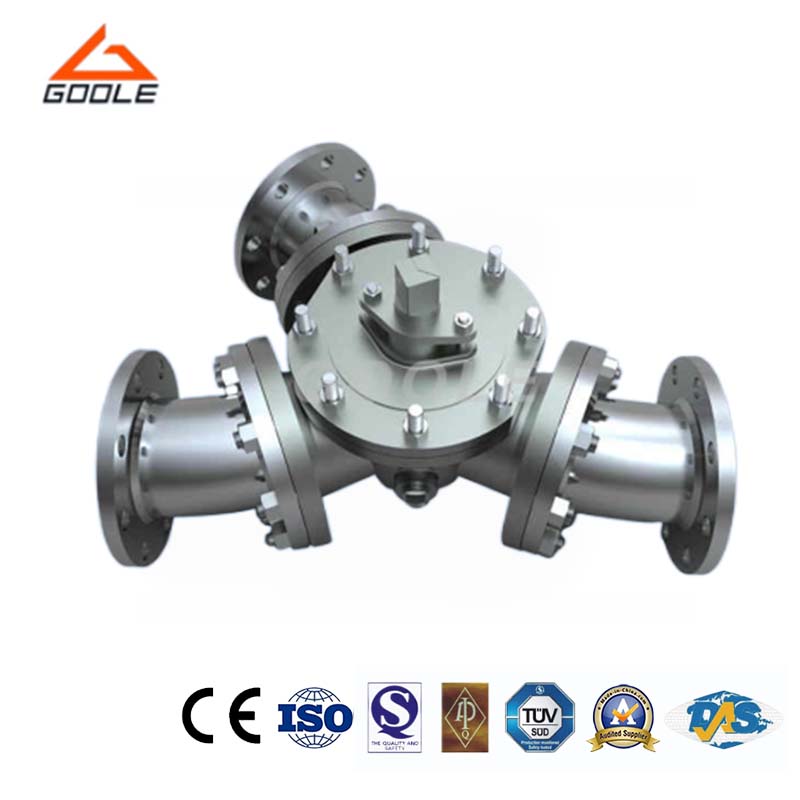

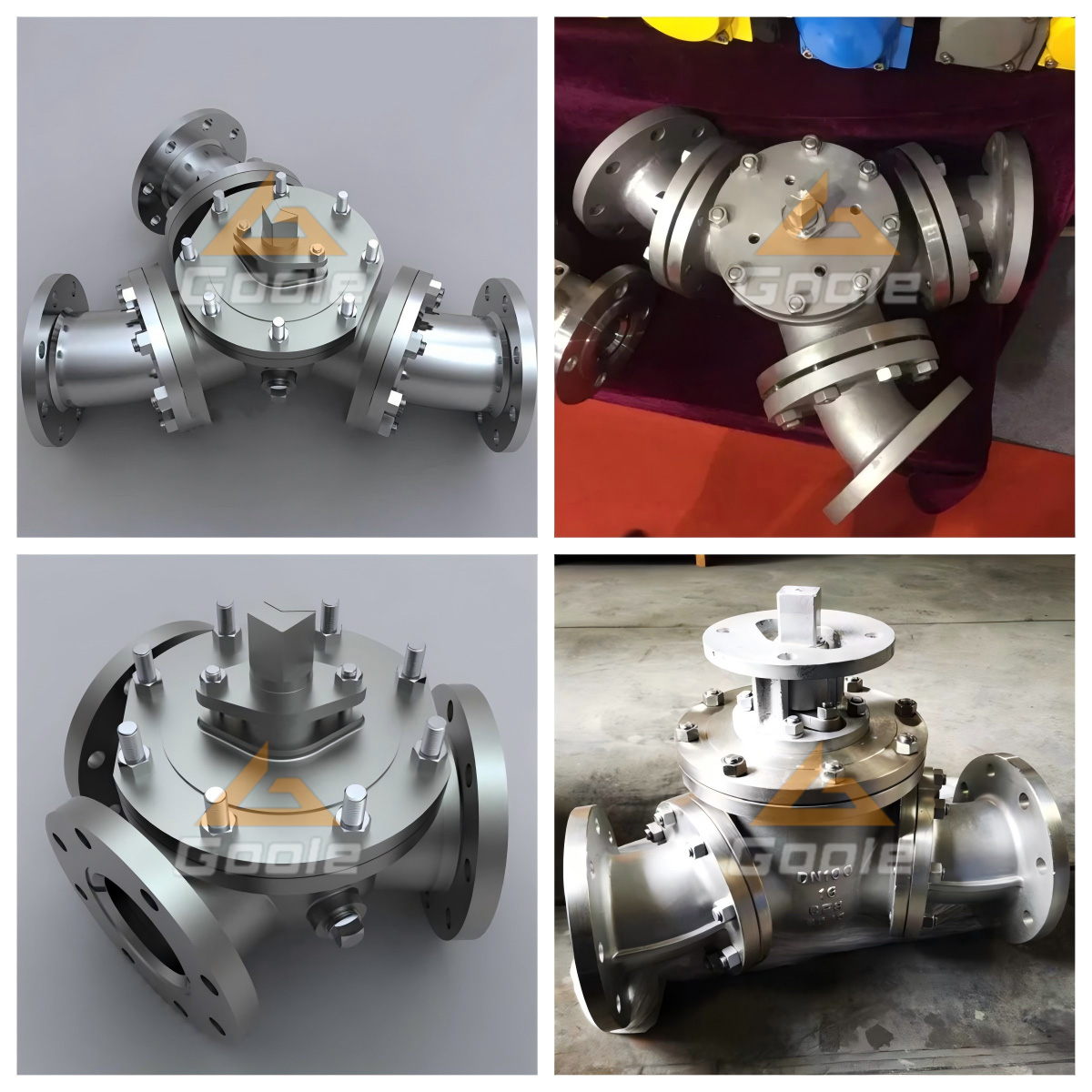

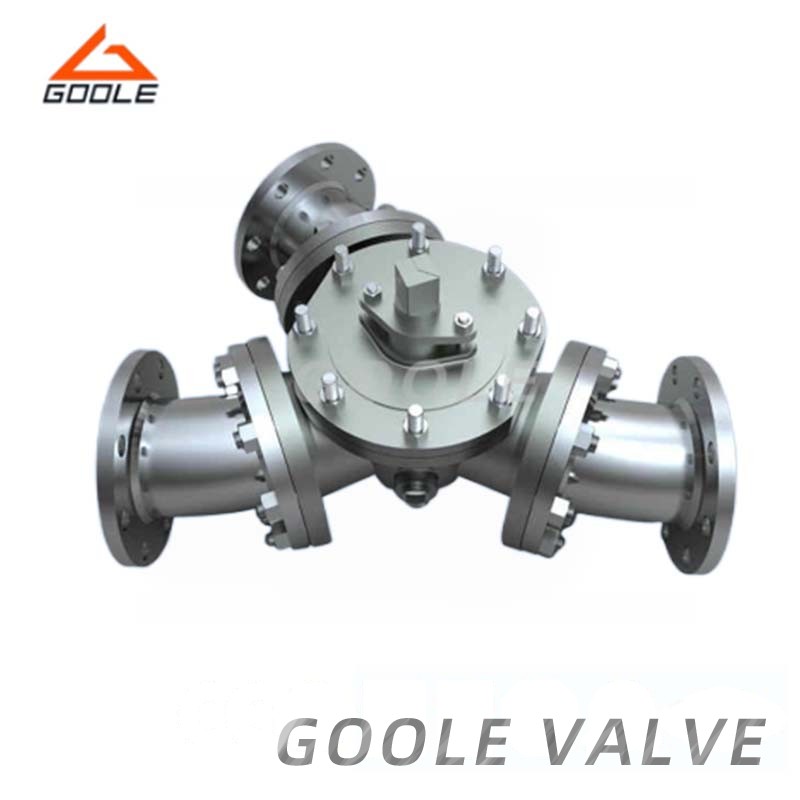

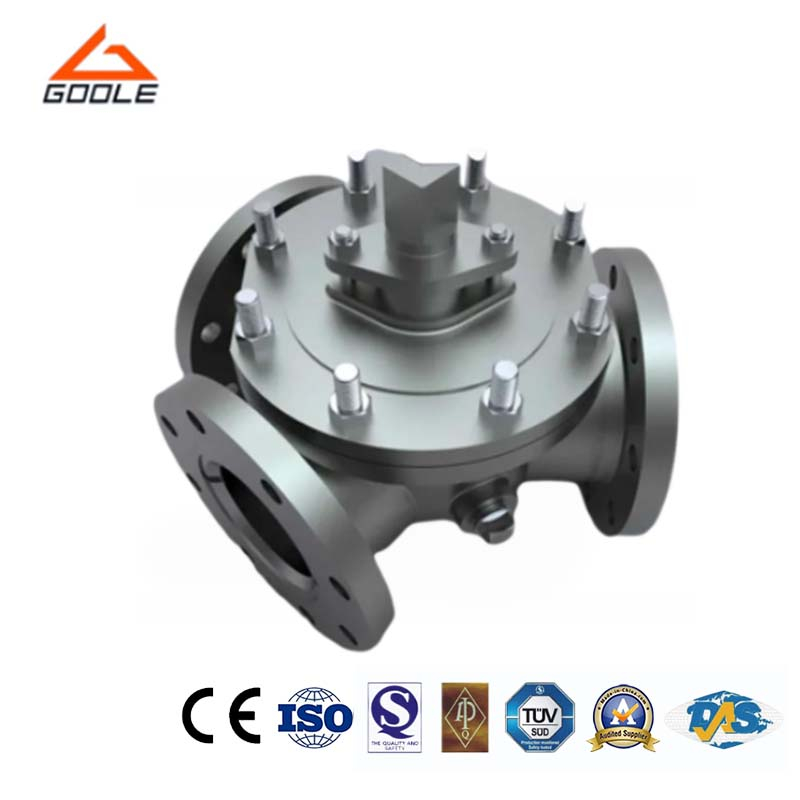

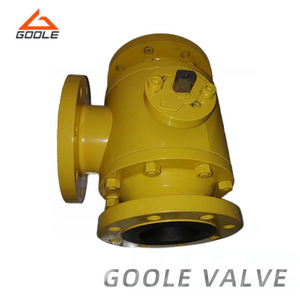

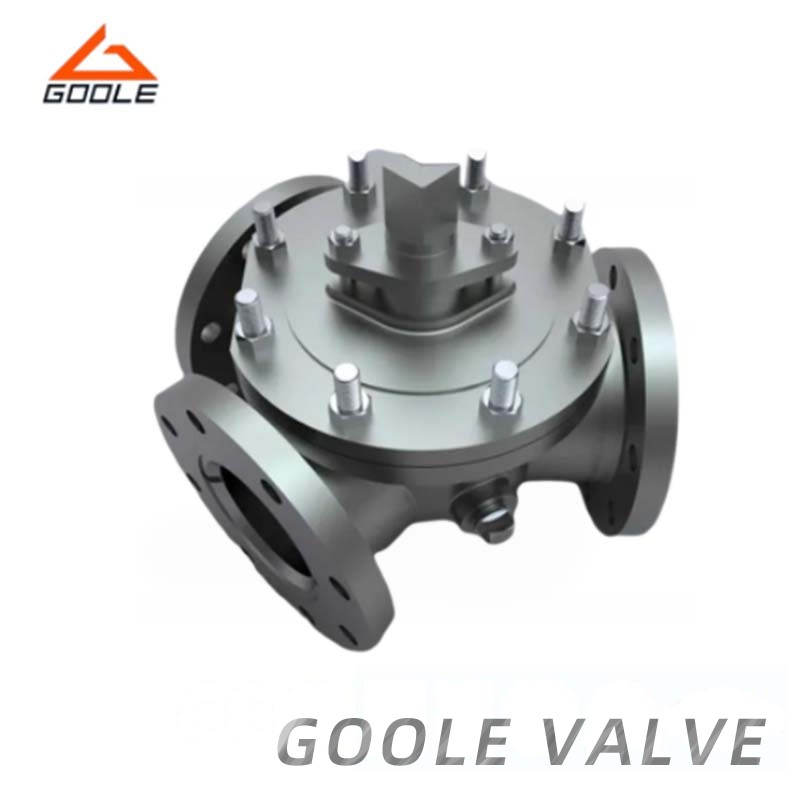

The Forged Y-shaped Three-way Ball Valve is a commonly used valve in pipeline systems where control of fluid direction is essential. Its unique Y-shaped design allows for fluid control between one inlet and two outlets, making it perfect for applications where fluid needs to be diverted or merged. The valve is designed to facilitate switching between channels, providing flexibility to either connect or shut off two perpendicular channels. This functionality enables efficient fluid diversion or distribution in medium mixing or shunting applications.
Constructed from forged steel, this valve ensures durability and strength, offering long-term reliability even under high-pressure conditions. The Y-shaped valve provides excellent sealing performance with its three- or two-seat sealing design, making it ideal for systems that require leak-proof operation and minimal flow resistance.
● Y-shaped Design: Facilitates efficient fluid diversion and distribution between one inlet and two outlets.
● Multiple Sealing Options: The valve offers flexibility with soft seals, hard seals, and fire-resistant valve seats, allowing it to meet the specific needs of different working conditions. Below DN150, the valve uses a floating ball, while above DN150, it employs a fixed ball.
● Emergency Sealing Structure: An auxiliary sealing structure can be added to the valve seat, with a grease injection valve for temporary sealing in emergency situations. The stem can also be extended to accommodate underground installations as needed.
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| L/L1(RF/BW) | in | 17.75 | 20.00 | 22.75 | 26.5 | 36.00 | 40.25 | 50.00 | 56.00 | / | / |
| mm | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | / | / | |
| L2(RTJ) | in | 17.88 | 21.25 | 23.00 | 26.88 | 36.50 | 40.88 | 50.88 | 56.88 | / | / |
| mm | 454 | 540 | 584 | 683 | 927 | 1038 | 1292 | 1445 | / | / | |
| H | in | 7.50 | 9.00 | 11.00 | 14.12 | 15.75 | 18.88 | 20.50 | 26.38 | / | / |
| mm | 190 | 230 | 280 | 360 | 400 | 480 | 520 | 670 | / | / | |
| W | in | 24 | 32 | 32 | 32 | 32 | 40 | 40 | 40 | / | / |
| mm | 600 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | / | / | |
| WT(Kg) | RF/RTJ | 68 | 95 | 120 | 185 | 675 | 1100 | 1650 | 2300 | / | / |
| BW | 54 | 74 | 91 | 122 | 555 | 918 | 1355 | 2950 | / | / |
| Form | Type T,L three way ball valve |
| Inside nominal diameter DN(mm) | DN15-DN300 |
| Nominal pressure | 1.6 2.5 4.0 6.4Mpa |
| Liquid range | Air ,water, gas ,oil and petrochemical products corrosive medium |
| Working temperature | Hard seal:-40 --300 Soft seal:-40 --180 |
| Spillage | 0 conform to ANSIB16.104standard |
| Main material | Valve body : WCB 304 316 316L Spool: 304 316 316L |
| Seat form | Stainless steel movable hard seal, PTFE soft seal |
| Surface preparation | Polishing |
Q1：Can this valve be used for both diversion and merging of fluids?
Yes, the Y-shaped design allows the valve to efficiently divert fluid from one inlet to two outlets or merge two fluid flows into a single outlet, making it versatile for various fluid control needs.
Q2:How does the Y-shaped design improve fluid control?
The Y-shaped design allows for seamless diversion and distribution of fluid, ensuring smooth flow and reducing pressure drop, which is ideal for applications requiring flexible flow direction.
Q3:What are the benefits of using this valve in medium mixing or shunting applications?
This valve provides excellent control over fluid flow, allowing for precise mixing or redirection of fluid between multiple paths, enhancing the efficiency of medium mixing or shunting processes in complex systems.
Our Forged Y-shaped Three-way Ball Valve offers superior flow control with minimal turbulence, ensuring smooth operation. The durable forged steel construction guarantees strength and longevity, making it a reliable choice for various industrial piping configurations.
