Stainless Steel Four Way Flanged Ball Valve

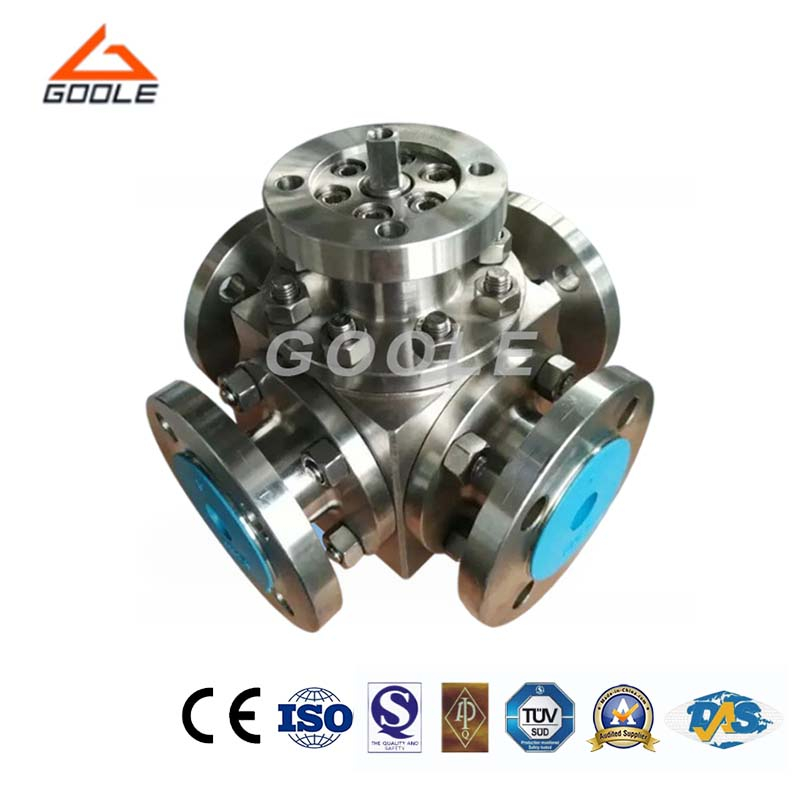

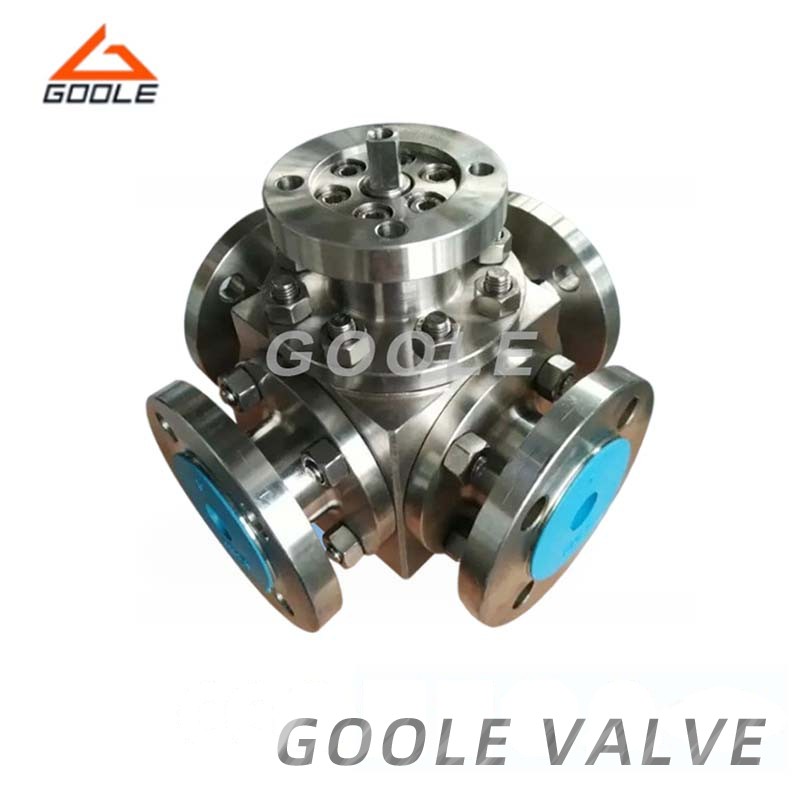

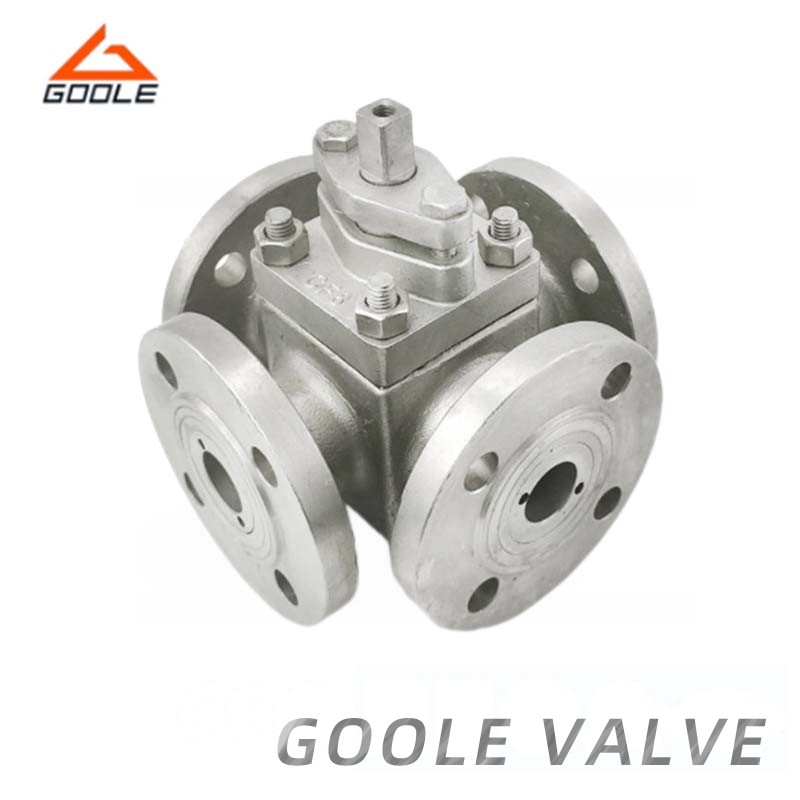

Stainless Steel Four-Way Flanged Ball Valve for High-Performance Systems

This four-way flanged ball valve is made from stainless steel and is designed for multi-directional fluid control. It provides a reliable solution for directing fluids in multiple directions, ideal for complex piping systems that require flexibility.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Introduction

The Stainless Steel Four-Way Flanged Ball Valve is designed for efficient multi-directional fluid control in complex piping systems. Constructed from high-quality stainless steel, it offers excellent corrosion resistance and is ideal for applications requiring fluid redirection or distribution across multiple paths. The four-way design provides flexibility in fluid routing, making it a versatile solution for various industries, including petrochemicals, water treatment, and natural gas systems.

Product Features

● Manual Handle with Limit Structure: The valve is equipped with steel plate pressed or stainless steel cast handles. These handles feature a limit structure that defines the open and closed positions, with a locking hole to prevent misoperation in critical systems. Clear open and close markings ensure easy operation.

● Versatile Valve Stem Connection: The valve stem connects to the handle via a flat key, spline, or square groove, offering strong versatility and ease of disassembly and assembly. The stem is also designed with an anti-blowout structure for enhanced safety.

● Anti-static Design: For added safety in critical applications, the valve can be designed with anti-static structures, featuring conductive springs between the ball, valve stem, and valve body to prevent static electricity from igniting flammable substances.

Product Details

No.	Parts Name	Material
No.	Parts Name	Carbon steel	Stainless steel	Low temperature steel
1	Body	A216 WCB	A351 CF8M	A352 LCB
2	Insert	A105+ENP	A182 F316	A350 LF3
3	O-ring	PTFE
4	Screw	A193 B7	A193 B8	A320 L7
5	End plate	A105+ENP	A182 F316	A350 LF3
6	Gasket	Flexible graphite+ss
7	Lower stem	A182 F6A	A182 F316	A182 F316
8	Ball	A105+ENP	A182 F316/A351 CF8M	A350 LF3/A352 LCB
9	Seat ring	PTFE/R.PTFE
10	Seat retainer	A105+ENP	A182 F316	A350 LF3
11	O-ring	PTFE
12	Bolt	A193 B7	A193 B8	A320 L7
13	Gasket	Flexible graphite+SS
14	Bonnet	A216 WCB	A351 CF8M	A352 LCB
15	Stem	A182 F6A	A182 F316	A182 F316
16	Thrust washer	PTFE+SS
17	Gasket	A182 F6A	/	A182 F6A
18	Stem packing	Flexible graphite/PTFE
19	Pin	A182 F6A
20	Eyebolt	A193 B7	A193 B8	A320 L7
21	Eyebolt	A194 2H	A194 8	A194 4
22	Packing gland	A216 WCB	A351 CF8M	A352 LCB
23	Key	ANSI 1215

Main Dimensions

Lever Operated Four Way Multi Port Floating Ball Valve

150 LB
DN	NPS	L	do	H	A1	H1	A2	H2	Bo	B1	B2	Weight(Kg)
DN	NPS	L	do	H	A1	H1	A2	H2	Bo	B1	B2	G.O
50	2	265	51	390	433	217	405	200	250	106	52	28.5
65	2 1/2	280	64	420	433	248	405	260	250	106	52	49
80	3	350	76	490	520	335	574	320	250	106	52	87
100	4	420	102	570	520	412	574	400	300	143	80	139
125	5	490	127	680	520	495	756	500	300	143	80	240
150	6	580	152	830	896	613	756	600	400	200	108	270
200	8	640	203	1020	896	824	756	800	400	200	108	585
250	10	740	250	1140	896	1025	1060	1000	600	200	108	765
300	12	820	305	1220	896	1176	1060	1200	600	200	108	1125
350	14	910	337	1390	910	1239	1360	1225	800	330	140	1455
400	16	1000	387	1580	910	1388	1360	1350	800	330	140	1785
450	18	1150	438	1790	910	1596	1360	1575	800	330	140	2467
500	20	1300	489	1960	936	1725	2910	1750	1000	370	220	3150

PN1.0/1.6
DN	NPS	L	do	H	A1	H1	A2	H2	Bo	B1	B2	Weight(Kg)
DN	NPS	L	do	H	A1	H1	A2	H2	Bo	B1	B2	G.O
50	2	265	51	220	433	217	405	200	250	106	52	28
65	2 1/2	280	64	295	433	248	405	260	250	106	52	48
80	3	310	76	367	433	335	574	320	250	106	52	87
100	4	370	102	440	520	412	574	400	300	143	80	137
125	5	440	127	535	520	495	756	500	300	143	80	240
150	6	510	152	660	520	613	756	600	400	200	108	270
200	8	580	203	870	520	824	756	800	400	200	108	585
250	10	665	250	1080	896	1025	1060	1000	600	200	108	1121
300	12	760	305	1200	896	1176	1060	1160	600	200	108	1121
350	14	850	337	1250	896	1239	1360	1225	800	330	140	1450
400	16	940	387	1420	910	1388	1360	1350	800	330	140	1780
450	18	1050	438	1610	910	1596	1360	1575	800	330	140	2435
500	20	1180	489	1830	910	1725	2910	1750	1000	370	220	3108

Technical Parameters

Type	Ball valve
Body Material	SS316/304,Carbon steel
Port Size	1/4"~1"
Connection Size	MALE/FEMALE/TUBE FITTING
Work Preasure	2000psi
Work Temperature	50ºC~150ºC
Thread	NPT BSPP BSPT
Medium	Gas, Water, Oil

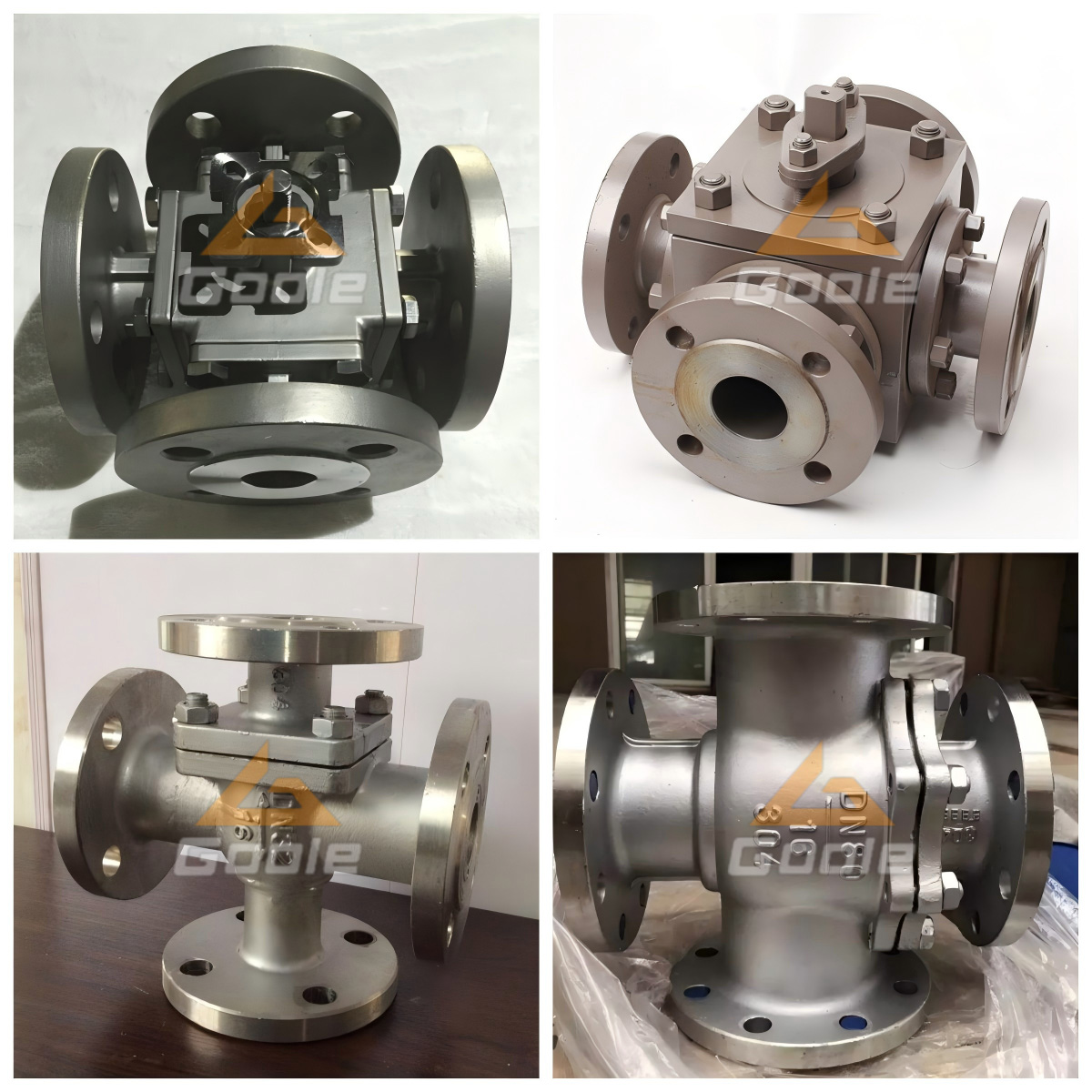

Product Display

Frequently Asked Questions（FAQs）

Q1:What is the main benefit of the four-way design?
The four-way design allows for fluid distribution in multiple directions, providing flexibility in fluid routing within a piping system.

Q2:What material is used for the valve body?
The valve body is made from high-quality stainless steel, providing excellent strength and resistance to corrosion, ensuring durability over time.

Why Choose Us?

Our Stainless Steel Four-Way Flanged Ball Valve is crafted with corrosion-resistant stainless steel, ensuring a long service life even in the most demanding environments. The versatile multi-directional design allows for flexible fluid routing, making it an ideal solution for various piping systems. We also offer custom-made solutions tailored to your unique needs, whether it's a specific material, customized design, or specialized functionality. Our experienced engineering team works closely with you to develop the most effective solution, ensuring your systems operate at peak performance.
