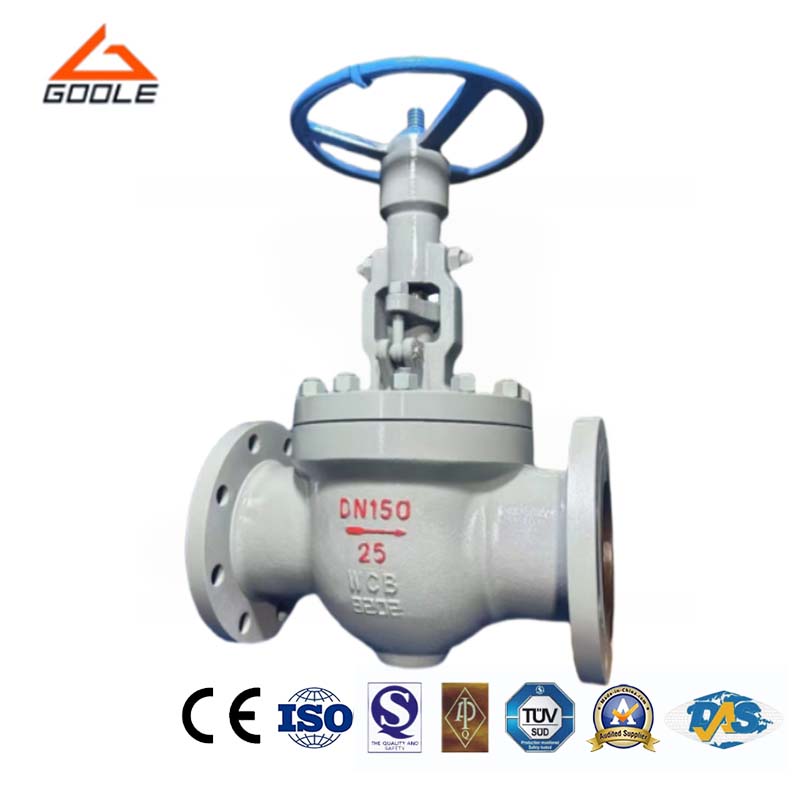

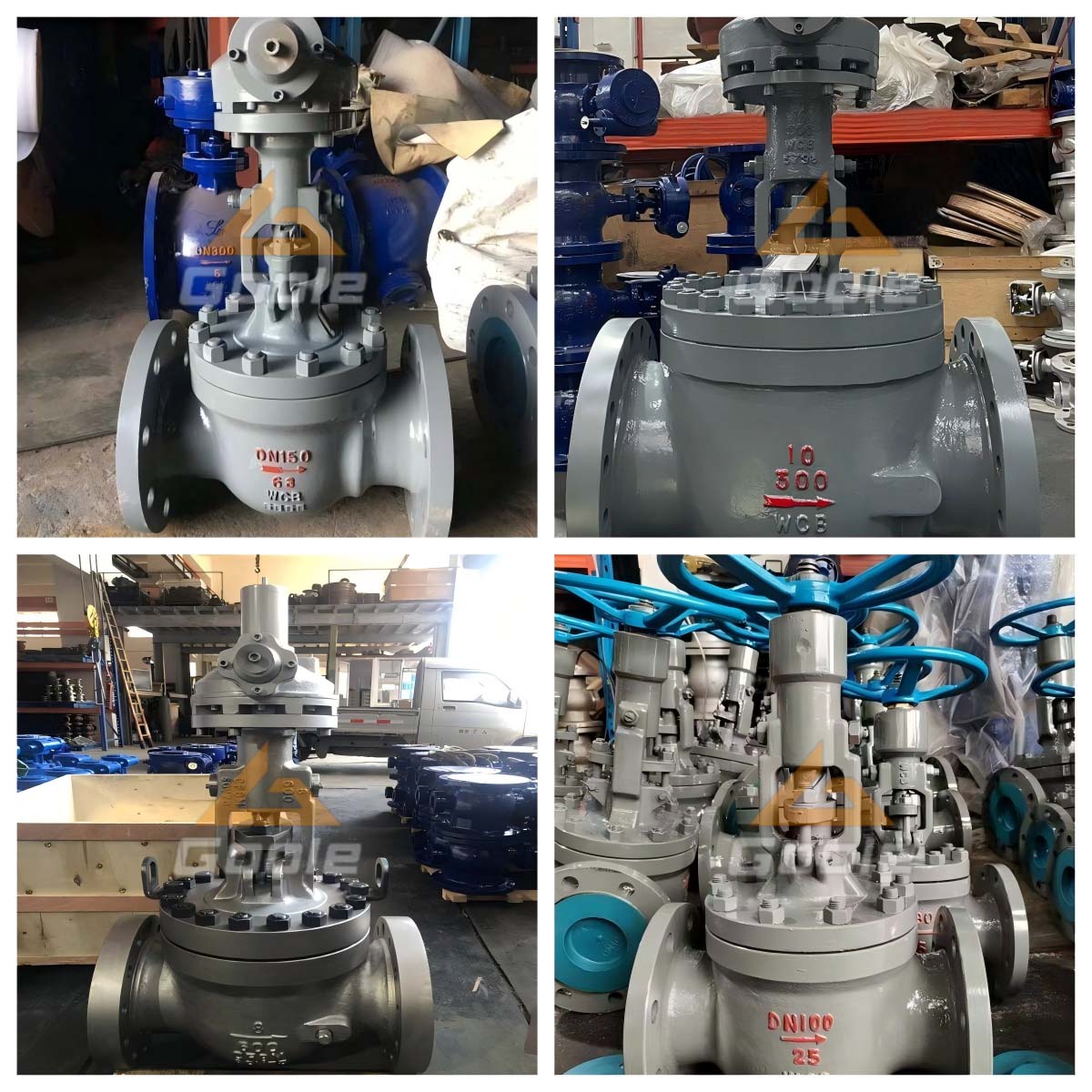

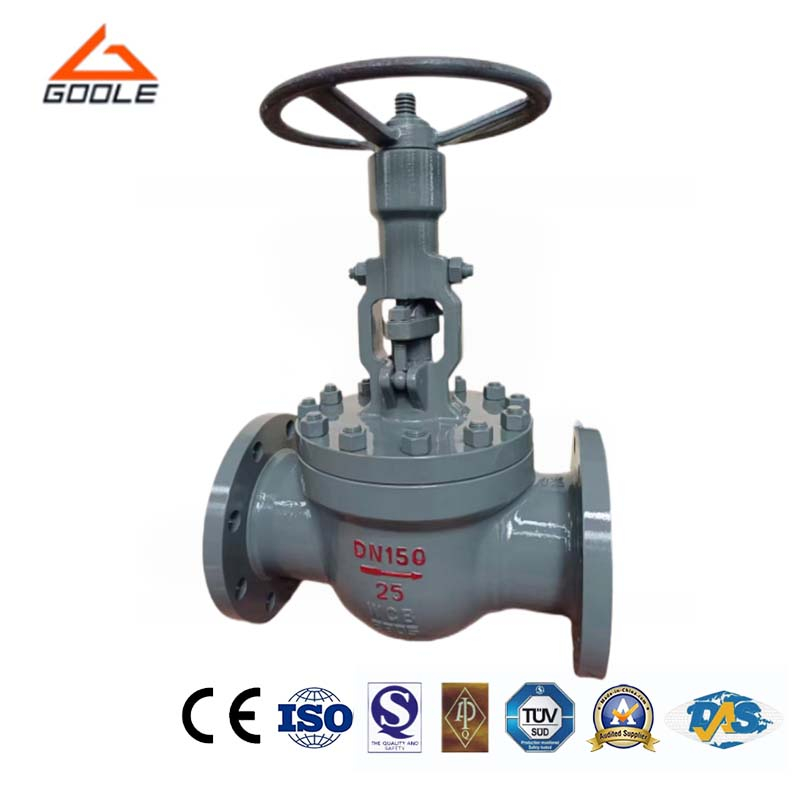

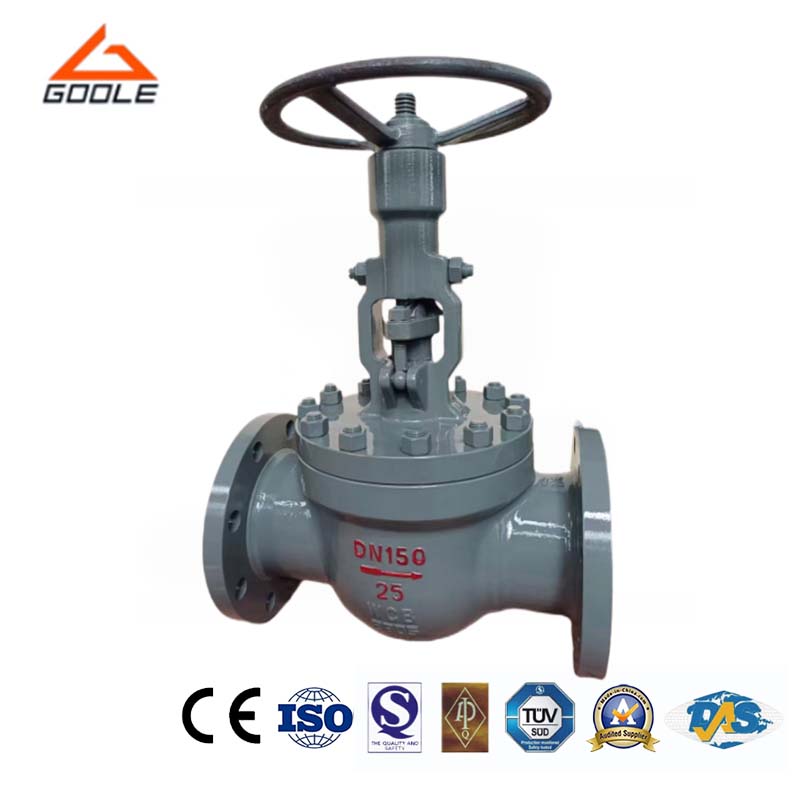

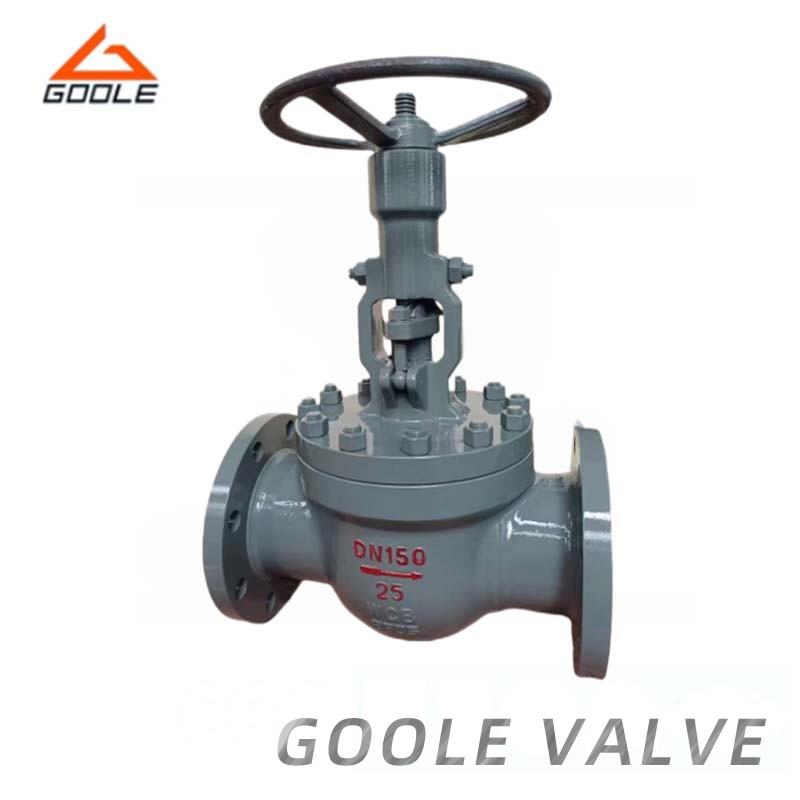

Orbital ball valves controls fluid flow by rotating the ball, mainly used to cut off, distribute, and change the direction of the medium. They open or close valves by rotating the ball. The design features of the orbital ball valve include frictionless operation, low torque design, and self-cleaning sealing surface, making it perform well in various industrial applications.
● Excellent Sealing Performance: Advanced sealing technology and materials are used to ensure strong sealing effect in high-pressure and high-temperature environments, effectively preventing leakage.
● Strong Circulation Capacity: The minimum flow resistance reduces pressure loss in the pipeline system and improves fluid transport efficiency.
● Easy to Operate: Quick start and stop function, switching action can be completed by simply rotating 90 degrees, making it convenient for automatic control and remote operation.
NO. | Part name | Material | ||||||
A216 WCB | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M | ||
1 | Body | A216 WCB | A217 WCB | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
2 | Plug | A351 CF8 | A351 CF8 | A351 CF8 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
3 | Gasket | Flexible graphite+stainless steel/PTFE | ||||||
4 | Cover | A216 WCB | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
5 | Bolt | A193 B7 | A193 B16 | A193 B16 | A1293 B8 | A193 B8M | ||
6 | Nut | A194 2H | A194 4 | A194 4 | A194 8 | A194 8M | ||
7 | Packing | Flexible graphite/PTFE | ||||||
8 | Gland | A216 WCB | A216 WC9 | A216 C5 | A351 CF8 | A351 CF8M | ||
9 | Wrench | A216 WCB | A216 WC9 | A216 C5 | A351 CF8 | A351 CF8M | ||
10 | Yoke nut | A439-D2/Cu-Allog | ||||||
11 | Hand wheel | ASTM A536 Gr.60-40-18 A216 WCB | ||||||
Main Dimensions
| Size | inch | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
L-RF | mm | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 |
H | mm | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 |
W | mm | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 300 | 300 | 340 | 400 | 450 | 450 | 500 | 500 |
Weight | Kg | 9 | 10 | 11 | 17 | 19 | 23 | 25 | 32 | 55 | 82 | 98 | 130 | 178 | 250 | 380 |
| TYPE | ORBIT BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500(1.6MPa--42.0MPa) |
| CONNECTION | THREADED, WELDED,FLANGE END | FUCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL,PNEUMATIC,ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| PRODUCTION CAPACITY | 1000000PCSNEAR | PACKAGE | PLYWOOD CASE |
| WARRANTY PERIOD | 12 MONTHS | TRADE MARK | GOOLE,OEM |
| ORIGIN | WENZHOU ZHEJIANG | HS CODE | 84819090 |
Q:What is the advantage of the top-entry design?
The design allows for in-line servicing, meaning internal parts can be accessed and replaced without having to remove the valve from the pipeline, significantly reducing maintenance time.
Q:Is this valve suitable for high-demand or critical applications?
Yes, the valve features firesafe design, double block and bleed (DBB) functionality, and self-relieving seats, making it ideal for critical and high-demand applications.
Q:How does the gear-operated mechanism benefit this valve?
The gear-operated mechanism enables precise and easy control of fluid flow, making it suitable for high-pressure systems where consistent operation is essential.
Our orbital ball valves are made of high-quality stainless steel and special alloy materials, ensuring stable operation in high-pressure, high-temperature, and corrosive environments, thereby extending their service life. Advanced manufacturing technology and precise testing equipment ensure that each valve can achieve optimal sealing performance and fluidity, minimizing leakage risks and improving system efficiency. We offer a range of ball valve specifications and configurations to meet the needs of various application scenarios. Whether on industrial production lines or in complex fluid control systems, we can determine the most suitable solution.
