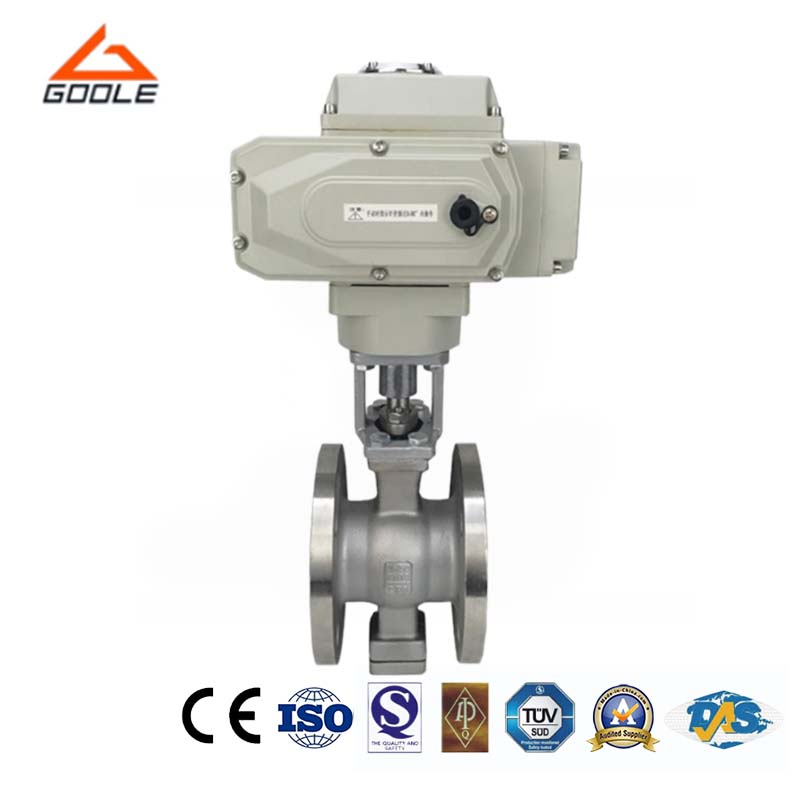

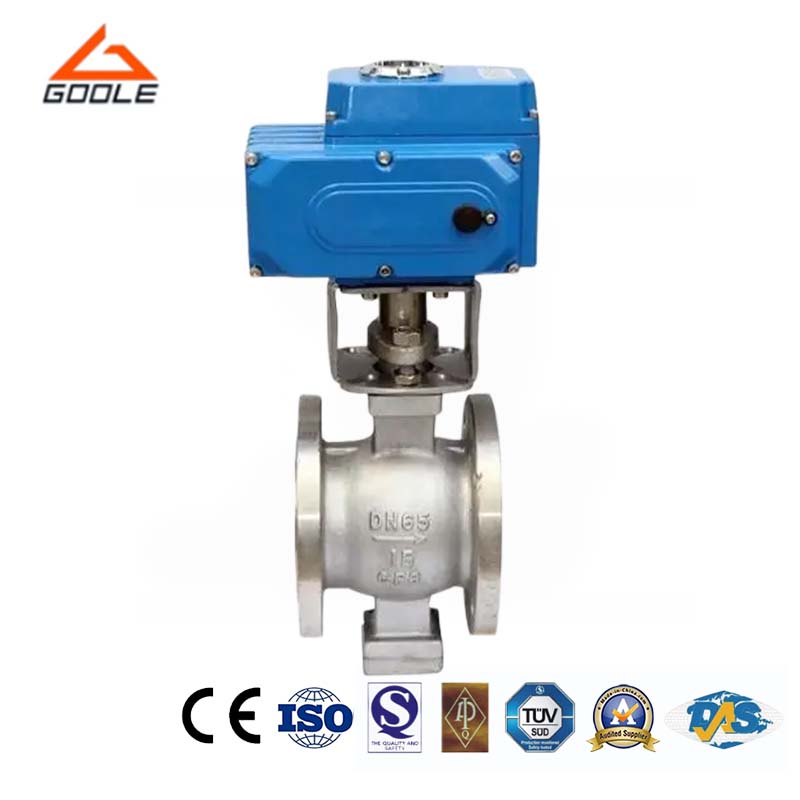

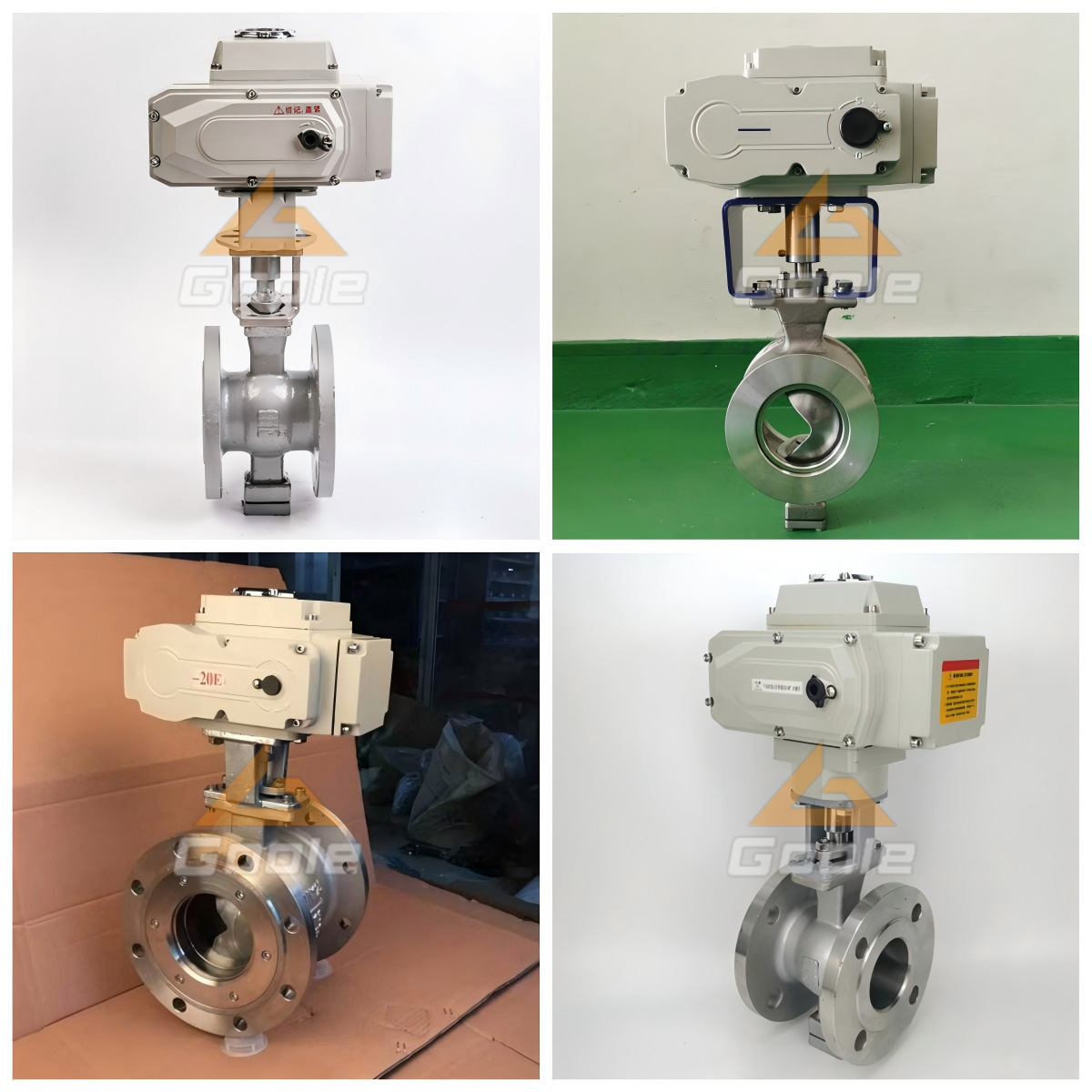

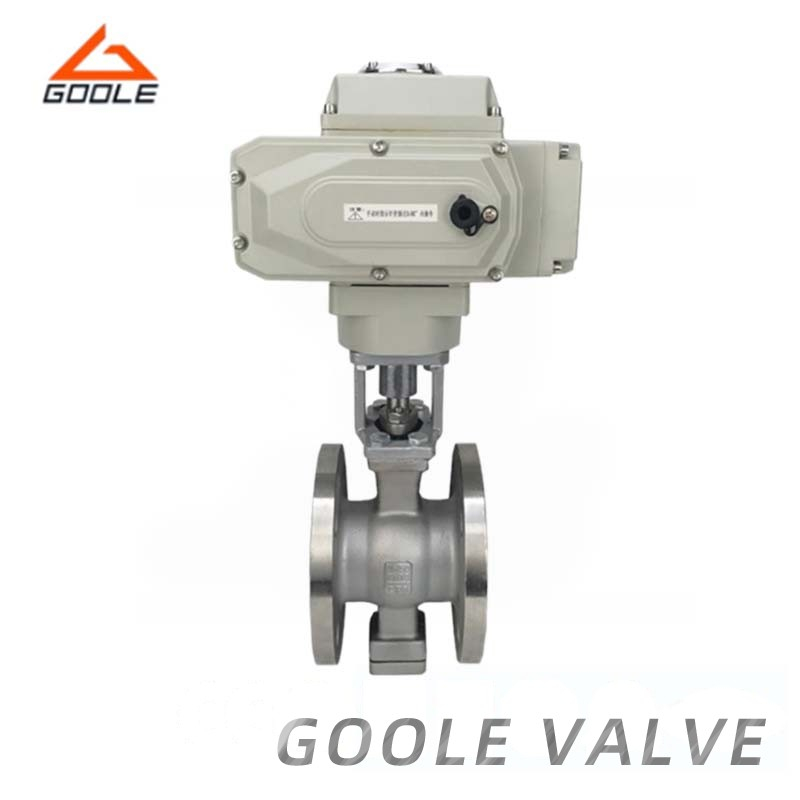

Electric V-type regulating ball valve is a rotary ball valve, its core is made of metal or metal and PTFE seal combination, combining the best control characteristics of ball valve and butterfly valve, can be used as a regulating valve, but also can be used as a shut-off valve.
●V Incision Design:The shear force V-shaped notch between the ball and the metal seat is particularly suitable for media containing fibers, small solid particles, pulp, etc.
●Small Pressure Loss:When the flow rate is fully opened, the pressure loss is small and the medium will not deposit in the body cavity.
●Long Service Life:Adopting a spring-loaded movable valve seat structure, it prevents the ball core and valve seat from jamming or other problems, with reliable sealing and long service life.
●Accurate Regulation:This valve has the advantages of precise adjustment, reliable positioning function, approximately equal flow characteristics, large adjustment range, and a maximum adjustment ratio of 100:1.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the V Incision design?
The unique V-port design not only optimizes fluid flow but also reduces pressure loss and improves the efficiency of the overall system.
Q:What types of media can this valve handle?
This type of valve is very suitable for high-viscosity media, such as heavy oil, glue, and other substances that are easily cured at room temperature.
Our company's electric V-type ball valve has been widely tested and applied in various industrial fields due to its outstanding performance and stability. Even under extremely harsh conditions, the valve can ensure precise operation, meeting the requirements for accurate flow control. The design emphasizes user-friendliness, with easy and efficient installation, maintenance, and operation. The V-shaped structure not only enhances fluid flow performance but also reduces pressure loss, thereby improving the efficiency of the entire system. We also commit to providing comprehensive after-sales service and technical support, ensuring that any issues encountered during use can be resolved quickly.
