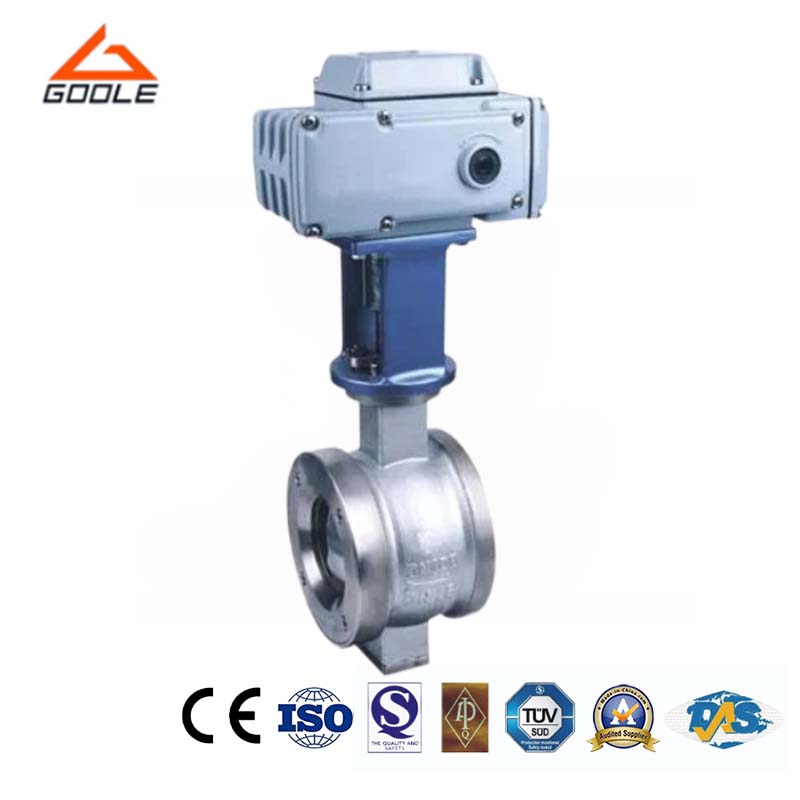

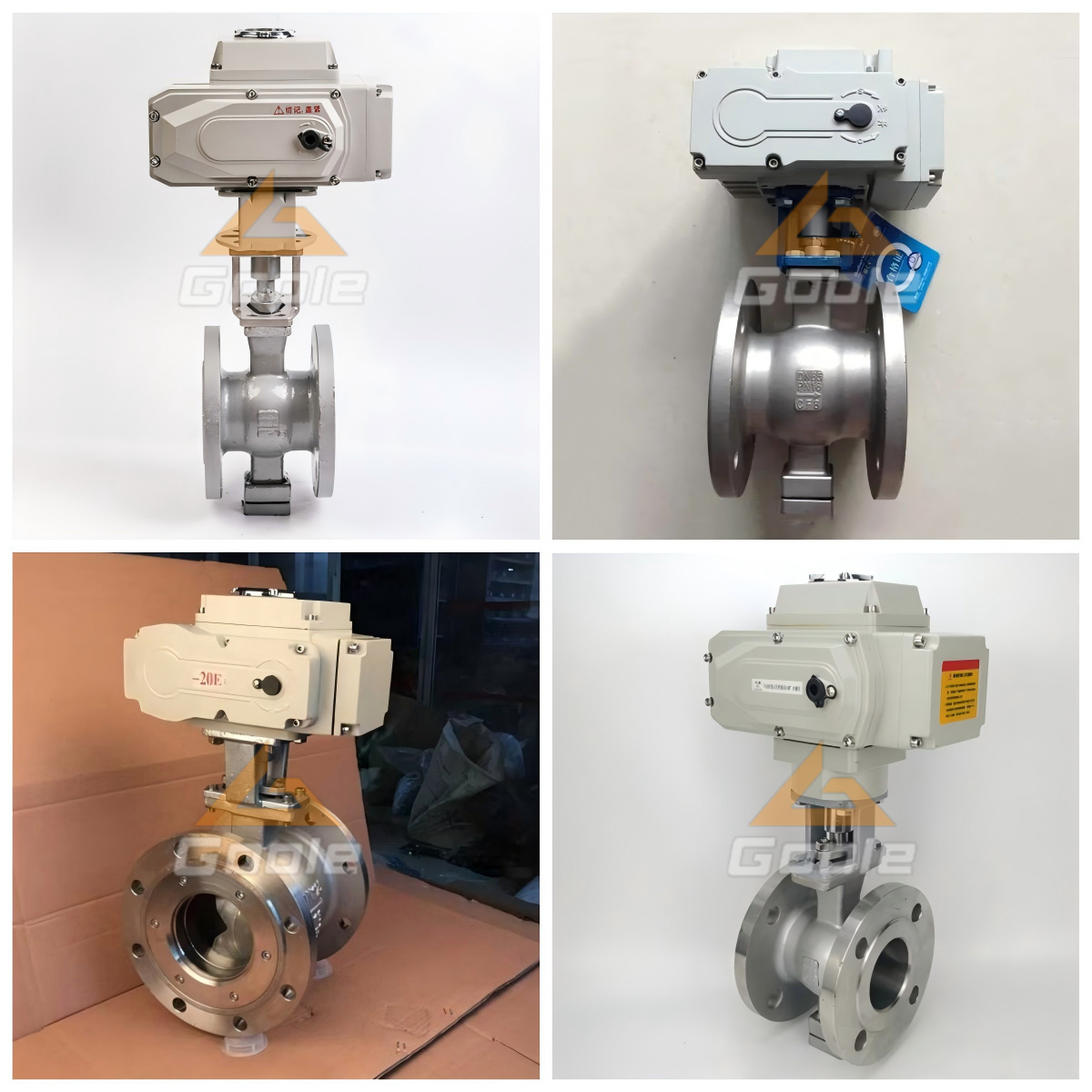

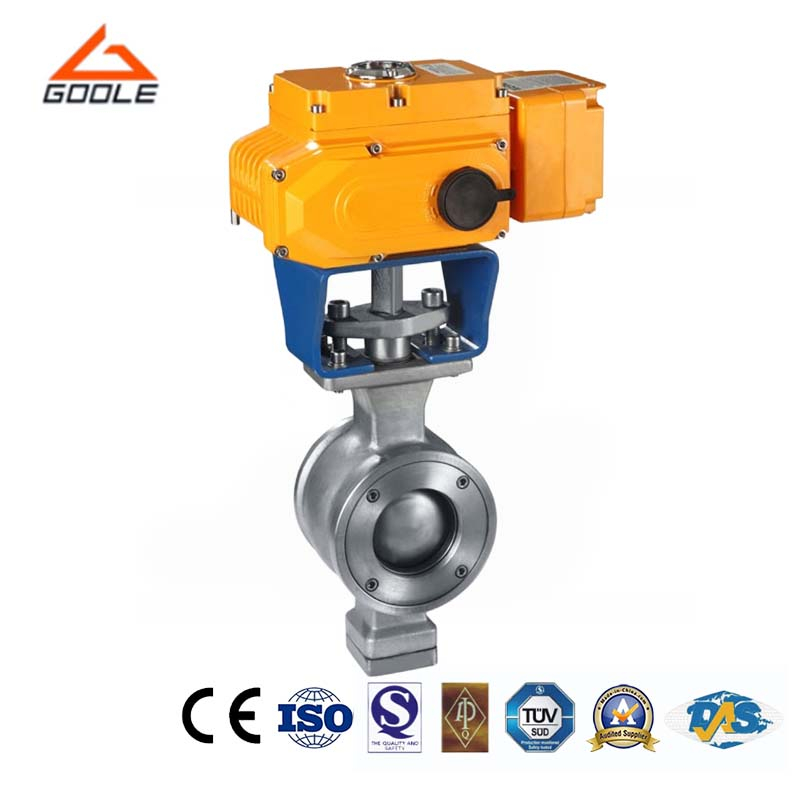

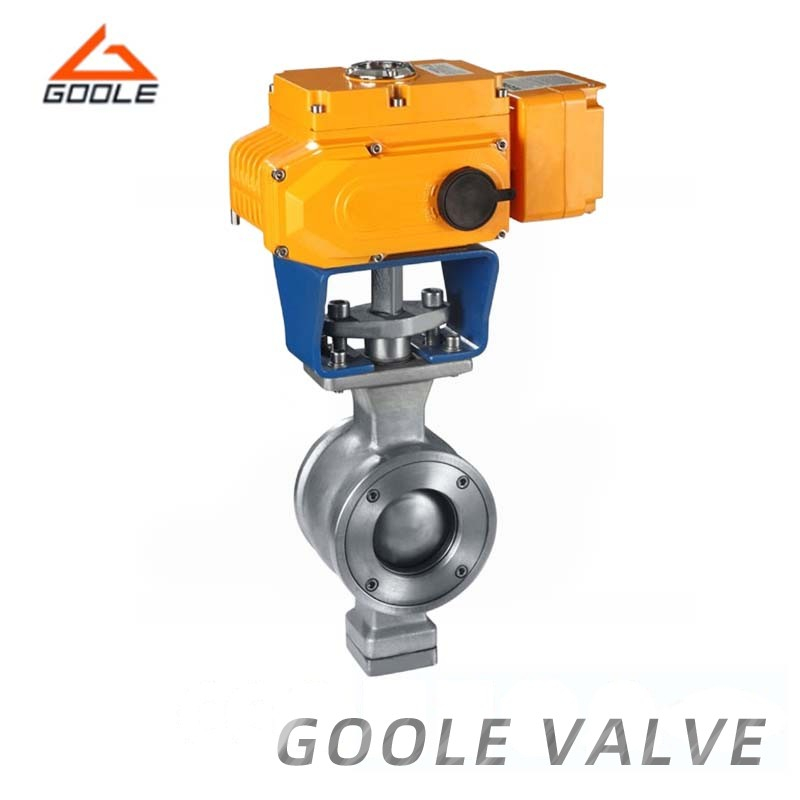

Electric V-shaped regulating ball valve is a rotary ball valve, with its core seat made of metal or metal matched with PTFE seal. It combines the optimal control characteristics of ball valves and butterfly valves, and can be used as both a control regulating valve and a globe valve.
●V Incision Design:The shear force V-shaped notch between the ball and the metal seat is particularly suitable for media containing fibers, small solid particles, pulp, etc.
●Small Pressure Loss:When the flow rate is fully opened, the pressure loss is small and the medium will not deposit in the body cavity.
●Long Service Life:Using a spring-loaded movable seat structure , Preventing the occurrence of ball core and valve seat from jamming or other issues, reliable sealing and long service life.
●Accurate Regulation:The valve has the advantages of accurate regulation and reliable positioning function, approximately equal percentage flow characteristics, large adjustable range, the maximum adjustable ratio 100:1.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the V Incision design?
The unique V-port design not only optimizes fluid flow but also reduces pressure loss and improves the efficiency of the overall system.
Q:What types of media can this valve handle?
This type of valve is very suitable for high-viscosity media, such as heavy oil, glue, and other substances that are easily cured at room temperature.
Our company's electric V-shaped ball valve has been widely tested and applied in various industrial fields due to its excellent performance and stability. Even under extremely harsh conditions, the valve can still ensure precise operation and meet the requirements of precise flow control. The design emphasizes humanization, making installation, maintenance, and operation simple and efficient. The V-shaped structure not only improves fluid flow performance, but also reduces pressure loss, thereby enhancing overall system efficiency. We also promise to provide comprehensive after-sales service and technical support to ensure that customers can quickly solve any problems encountered during use.
