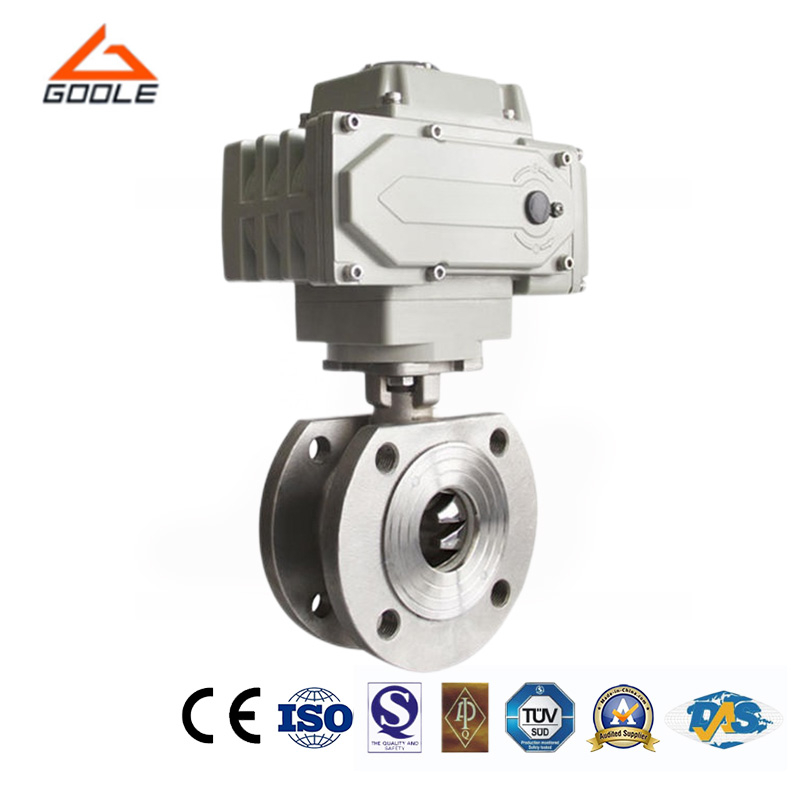

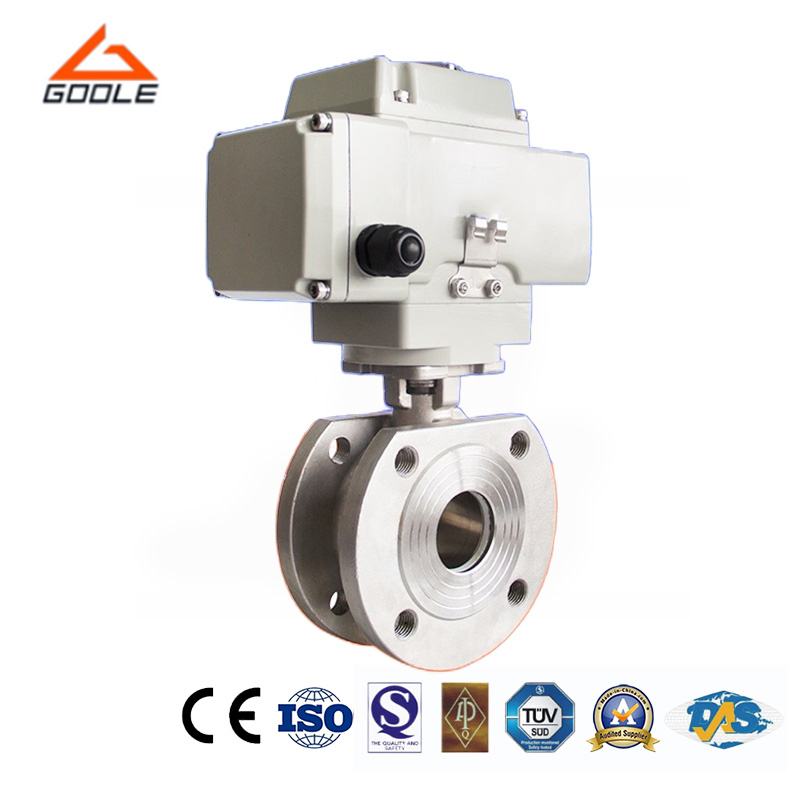

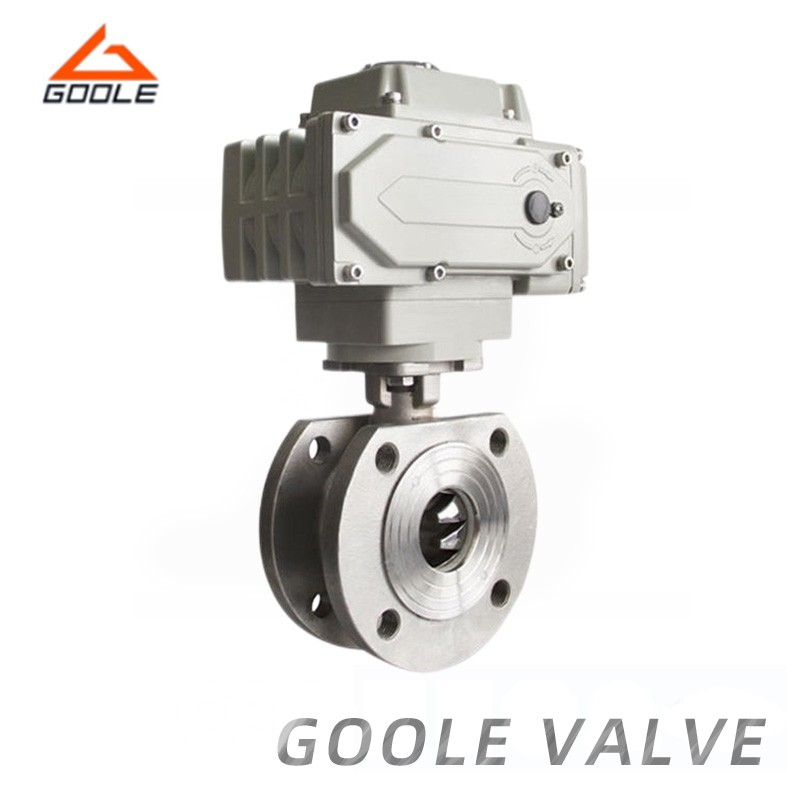

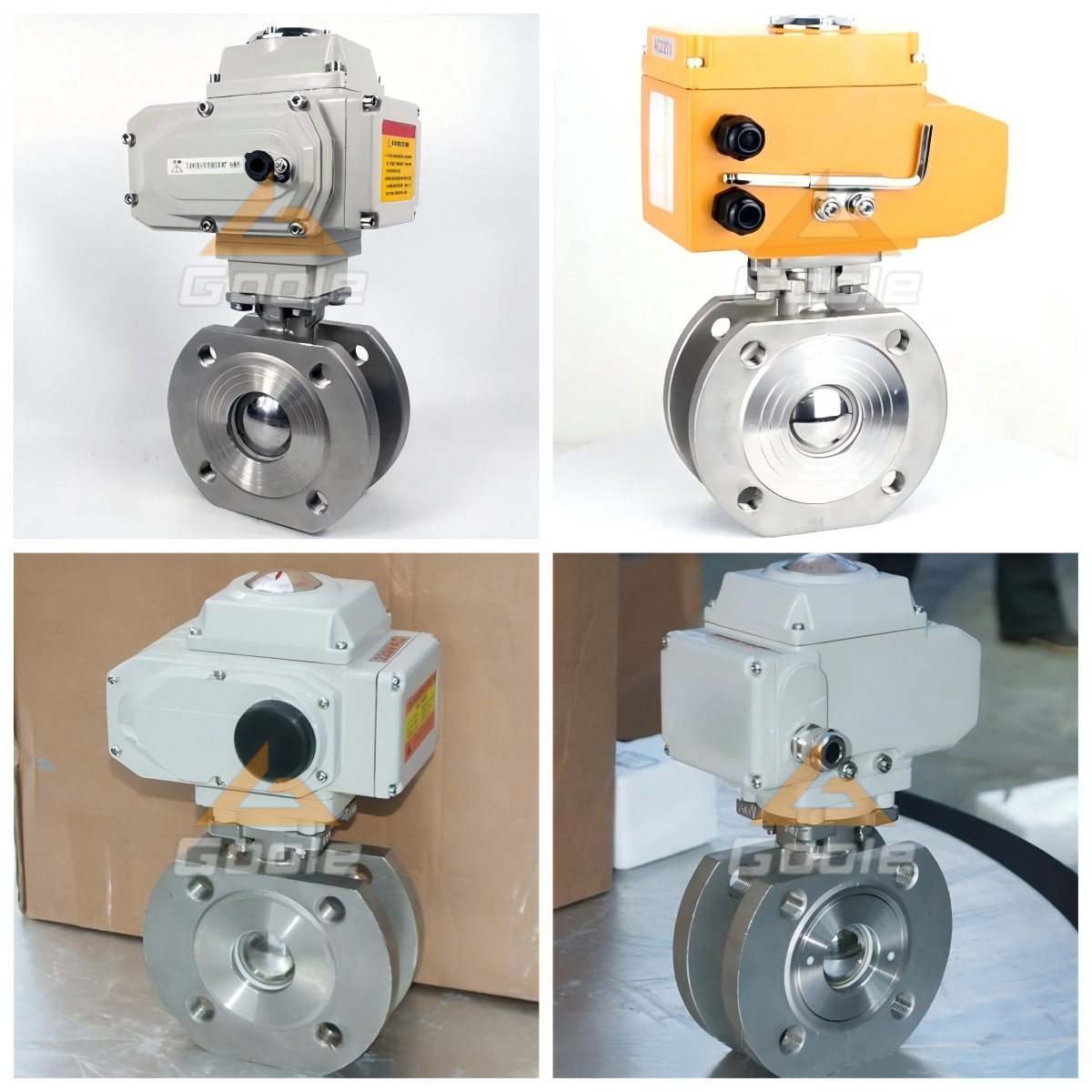

Electric wafer type ball valve integrates an electric actuator, allowing for quick operation without manual intervention, thus saving labor time. Its compact and lightweight design facilitates installation and maintenance. It boasts excellent sealing performance, preventing leaks and ensuring system stability and safety. With strong corrosion resistance and heat tolerance, it can adapt to harsh environments, enhancing industrial efficiency and reliability.
●Wafer Type Design: Provide insulation and cooling functions to ensure the stability of medium temperature during transportation.
●Flanged or Wafer Connection: Can be flexibly and safely installed in existing pipeline systems.
●Heat-Resistant Materials: Stainless steel and carbon steel are used to enhance their pressure resistance and durability.
| NO. | Part name | Materials |
| 1 | Body | A216-WCB, CF8, CF8M |
| 2 | Bonnet | A105, F304, F316 |
| 3 | Ball | SS304, SS316 |
| 4 | Stem | 1Cr13, A247-410, F430, F316 |
| 5 | Packing | Flexible graphite |
| 6 | Gland | A216-WCB, CF8, CF8M |
Notes: Major parts of the valve series and materials of sealing surface differ according to actual working condition and customer's special requirement.
| Nominal Diameter | D | Pipe thread | ||||||||
| (mm) | (in) | d | L | (mm) | (in) | E | Q | H | W | P |
| 20 | 3/4″ | 19 | 117 | 40 | 1 1/2″ | 58.5 | 147 | 101 | 170 | G3/4″ |
| 25 | 1″ | 25 | 127 | 50 | 2″ | 62.5 | 156 | 106 | 170 | G3/4″ |
| 40 | 1 1/2″ | 38 | 165 | 65 | 2 1/2″ | 63.5 | 181 | 125 | 250 | 3/4″ |
| 50 | 2″ | 51 | 178 | 80 | 3″ | 68 | 218 | 135 | 250 | G3/4″ |
| 80 | 3″ | 76 | 229 | 150 | 6″ | 82 | 275 | 193 | 350 | G3/4″ |
| 100 | 4″ | 102 | 254 | 200 | 8″ | 83 | 300 | 265 | 420 | G3/4″ |
| 150 | 6″ | 152 | 292 | 250 | 10″ | 95 | 403 | 355 | 1000 | G3/4″ |
| 200 | 8″ | 203 | 330 | 300 | 12″ | 100 | 492 | 410 | 1300 | G3/4″ |
Remarks | Flange-diameter refer to the sample book of main type and connecting diameter ,according to the corresponding diameter. | |||||||||
| Nominal Diameter | 1/2"-8" |
| Nominal pressure | Class 150 ~ 600 LB |
| Temperature | -20ºC~250ºC |
| Connecting type | flange , wafer |
| Material | SS, CS |
| Driving means | manual, pneumatic, wore gear, electric |
| Applicable medium | Heavy oil , glue and other easy-clotting medium |
Q:What is the purpose of the Wafer Type design?
The wafer type design, compact structure, easy to install and maintain, greatly reduce the cost of use.
Q:What types of media can this valve handle?
This valve is ideal for high-viscosity media such as heavy oils, glue, and other substances prone to solidifying at normal temperatures.
Our electric wafer type ball valve is made of high-quality materials to ensure durability and reliability. It has a compact design, is easy to install and maintain, and reduces operating costs. Has excellent sealing performance, can prevent leakage, and ensure system safety. We provide comprehensive pre-sales and after-sales services to ensure that customers receive timely technical support and solutions.
