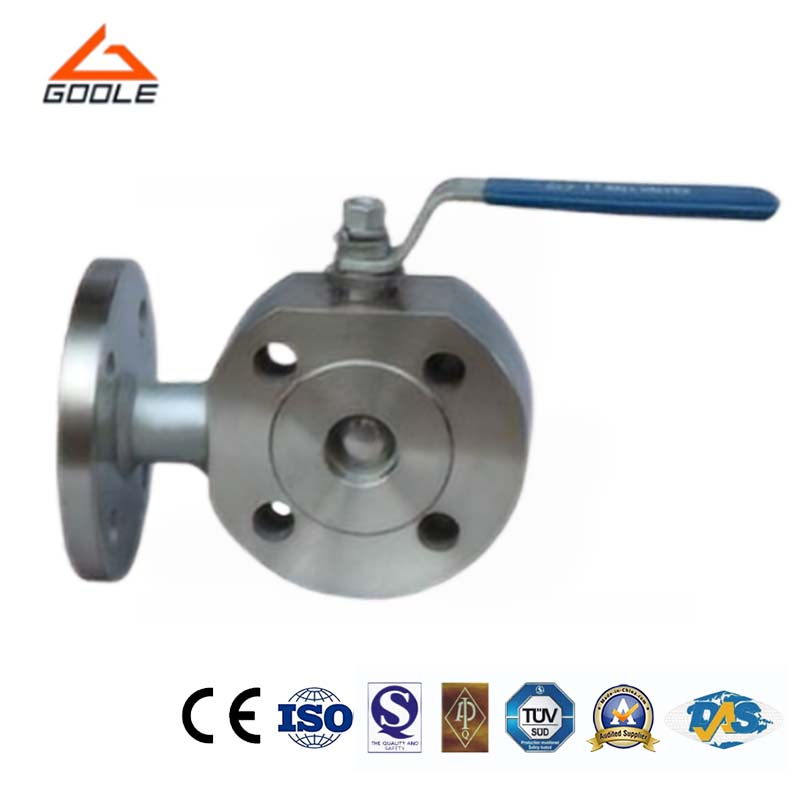

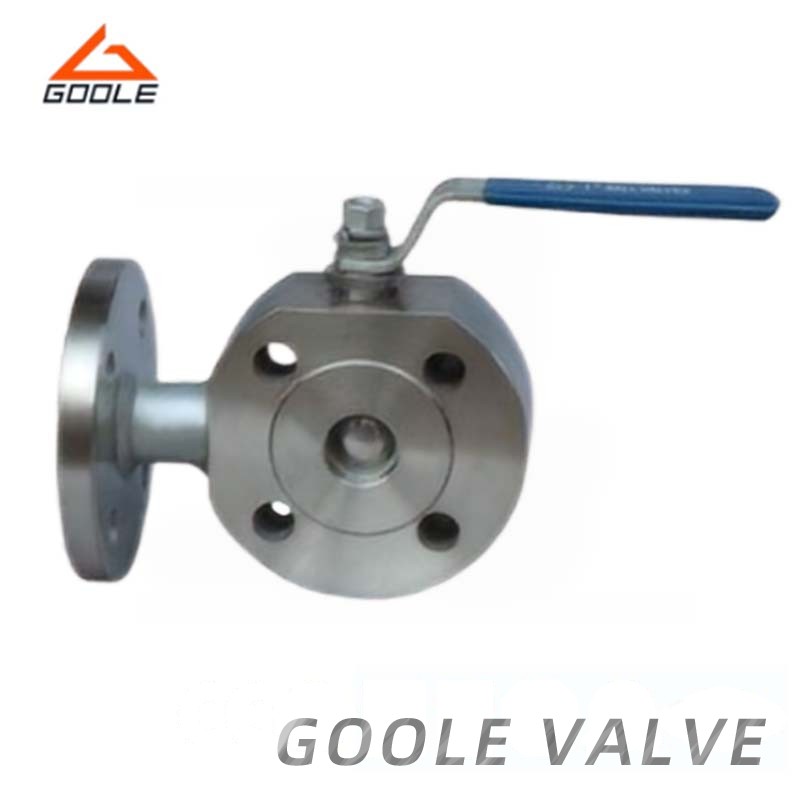

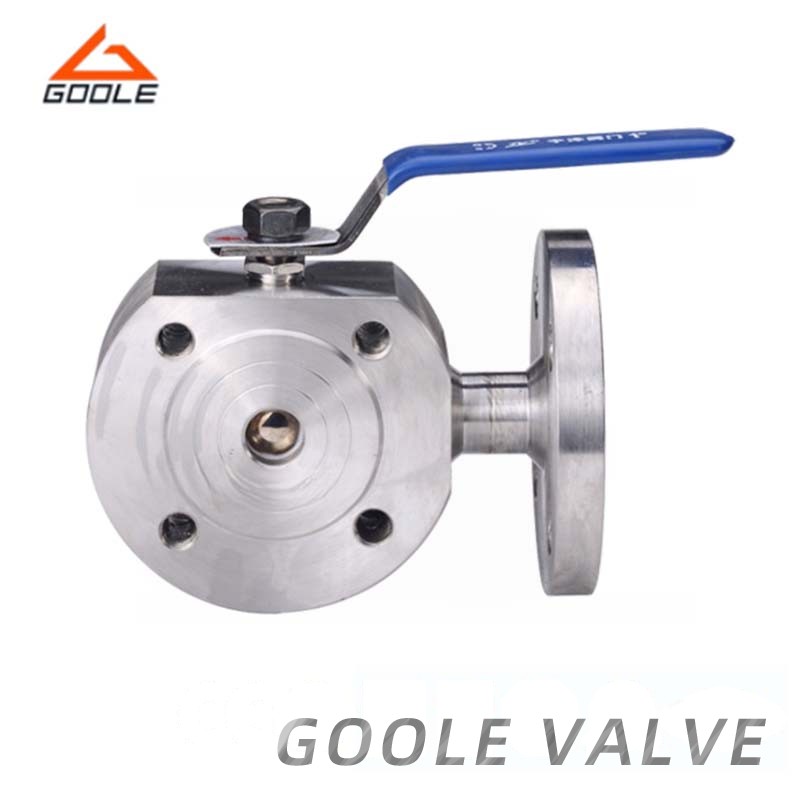

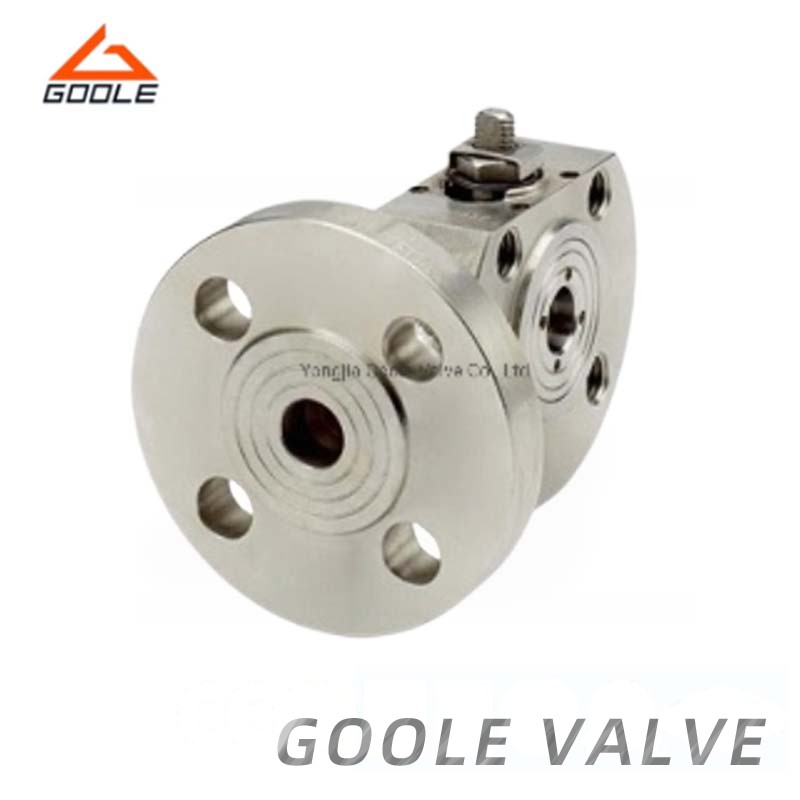

Q74F Wafer three-way ball valve The ball valve opening and closing part (ball) is driven by the valve stem and rotates around the ball valve shaft. It can also be used for fluid regulation and control, among which the V-shaped ball core of the hard-sealed V-shaped ball valve and the metal valve seat of hard alloy surfacing have strong shear force, especially suitable for media containing fibers and micro-solid particles. The multi-port ball valve can not only flexibly control the confluence, diversion and flow direction switching of the medium, but also can close any channel to connect the other two channels. Such valves should normally be installed horizontally in the pipeline. The ball valve is divided into pneumatic ball valve, electric ball valve and manual ball valve according to the driving mode.
● Compact Structure: Featuring low flow resistance, it operates efficiently within the fluid control system range, thereby minimizing energy loss.
● Easy to Operate: The switch boasts a unique spherical design that enables quick opening and closing. Merely a 90-degree rotation significantly enhances work efficiency.
● Good Sealing Performance: By employing advanced sealing materials and structures, it ensures reliable sealing under various working conditions, preventing fluid leakage.
| DN(mm) | Dimension(mm) | |||||||
| G | A | D | K | H | C | 1 | n-d | |
| 15 | 85 | 35 | 95 | 65 | 45 | 14 | 2 | 4-414 |
| 20 | 90 | 38 | 105 | 75 | 55 | 16 | 2 | 4-414 |
| 25 | 99 | 50 | 115 | 85 | 65 | 16 | 2 | 4-414 |
| 32 | 122 | 60 | 135/140 | 100 | 78 | 18 | 2 | 4-φ18 |
| 40 | 127 | 68 | 145/150 | 110 | 85 | 18 | 3 | 4-418 |
| 50 | 135 | 108 | 160/165 | 125 | 100 | 20 | 3 | 4-418 |
| 65 | 146 | 112 | 180/185 | 145 | 120 | 20 | 3 | 4-418 |
| 80 | 175 | 122 | 195/200 | 160 | 135 | 20 | 3 | 8-418 |
| 100 | 185 | 153 | 215/220 | 180 | 155 | 22 | 3 | 8-φ18 |
| Type | Ball valve |
| Body Material | SS316/304,Carbon steel |
| Port Size | 1/4"~1" |
| Connection Size | MALE/FEMALE/TUBE FITTING |
| Work Preasure | 2000psi |
| Work Temperature | 50ºC~150ºC |
| Thread | NPT BSPP BSPT |
| Medium | Gas, Water, Oil |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valve is crafted from premium materials, ensuring exceptional durability and reliability. Its innovative design allows for more precise and efficient fluid control, catering to the needs of a wide range of industrial applications. We provide comprehensive after-sales service to ensure that any issues encountered during use are promptly and effectively resolved. By choosing our three-way ball valve, you will experience superior product performance and a worry-free user experience.
