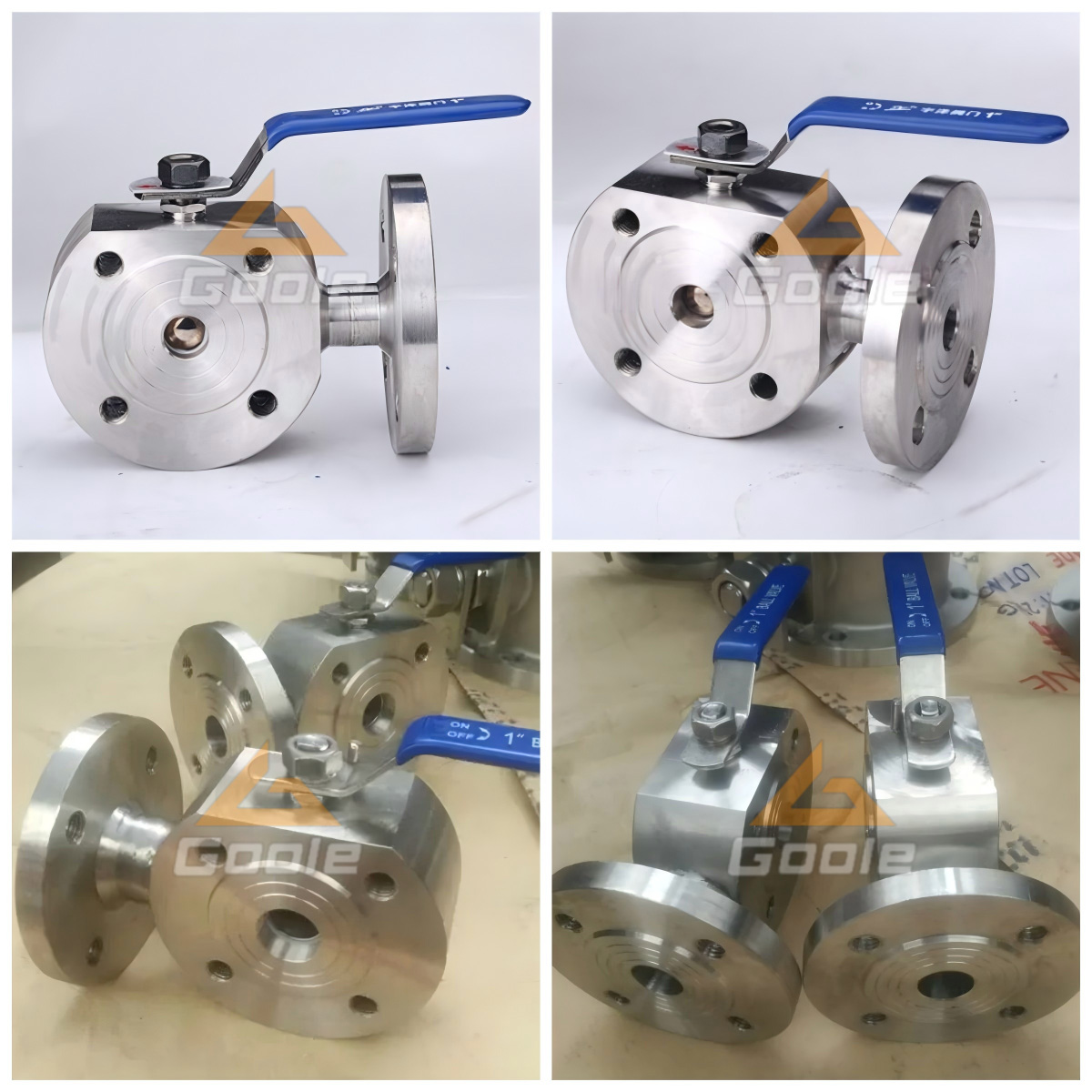

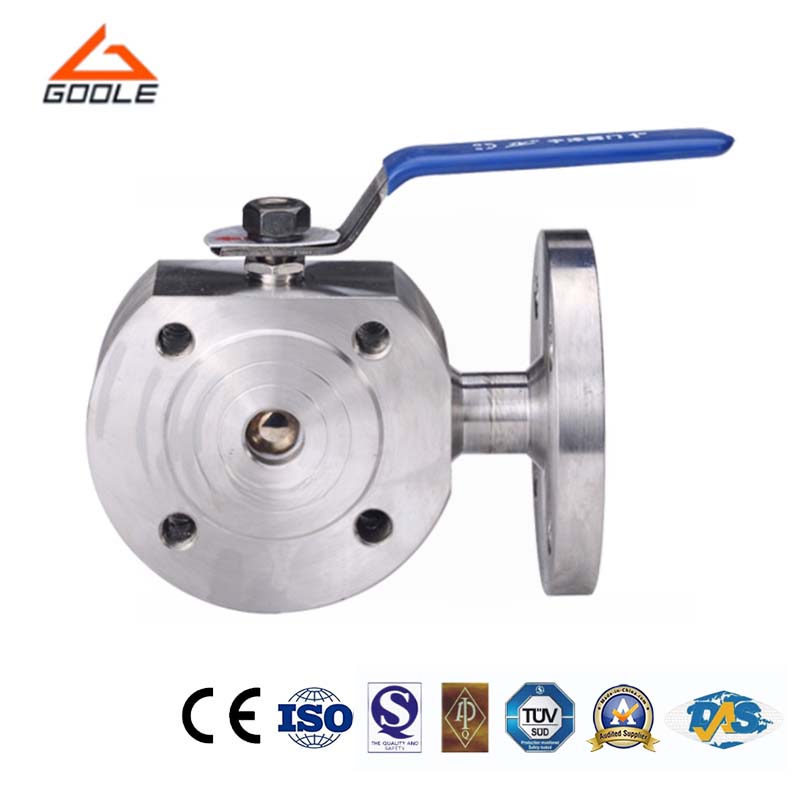

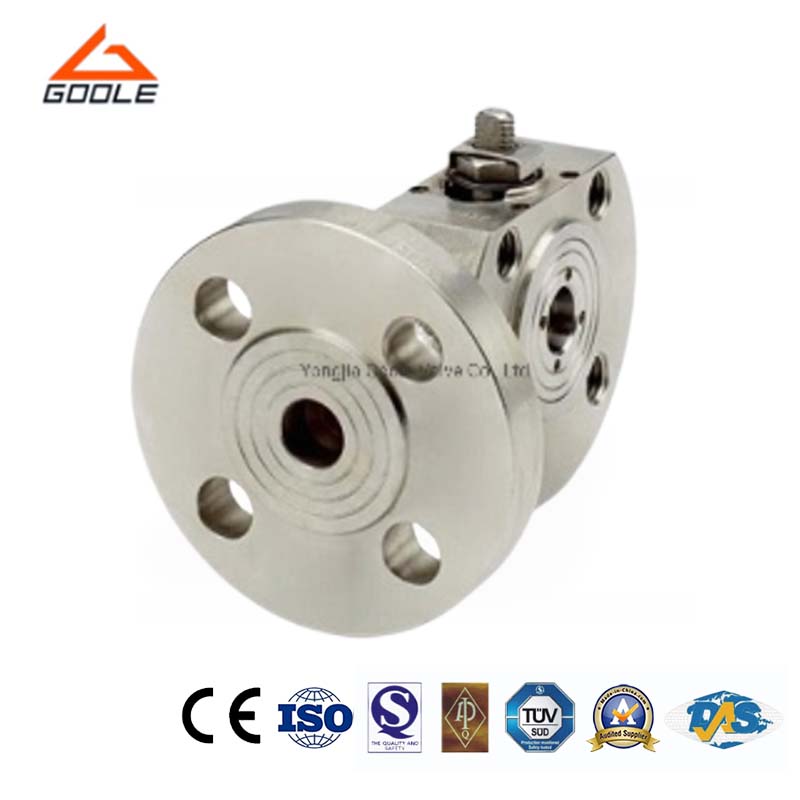

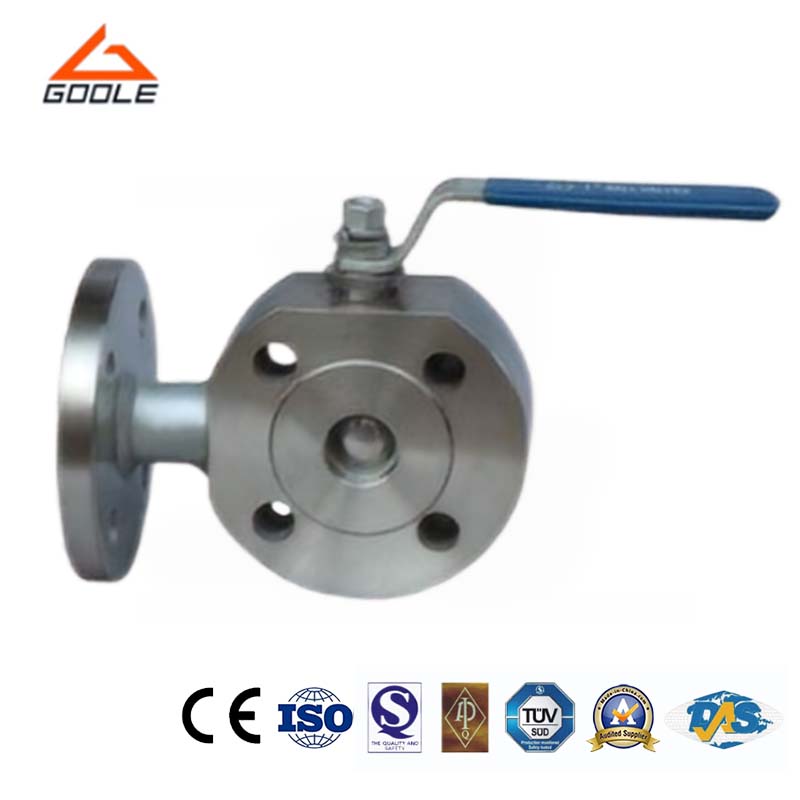

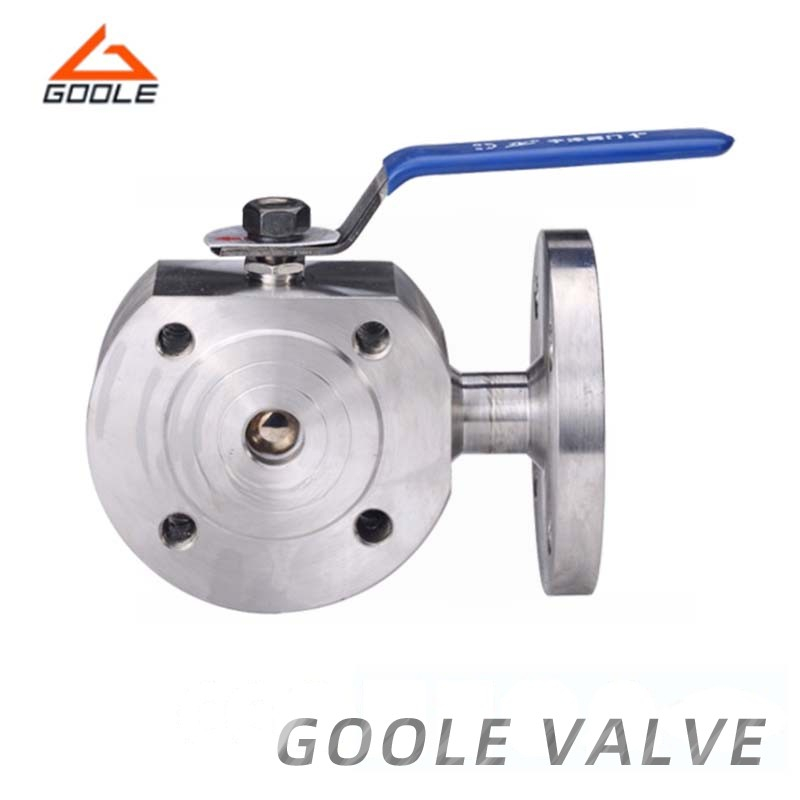

The opening and closing part (ball) of Q74F clamp type three-way ball valve is driven by the valve stem and rotates around the ball valve shaft. It can also be used for fluid regulation and control, where the V-shaped core of the hard sealed V-shaped ball valve and the metal seat welded with hard alloy have strong shear force, making it particularly suitable for media containing fibers and micro solid particles. Multi port ball valves can not only flexibly control the convergence, diversion, and flow direction switching of media, but also close any channel to connect the other two channels. These types of valves should usually be installed horizontally in pipelines. Ball valves are divided into pneumatic ball valves, electric ball valves, and manual ball valves according to their driving methods.
● Compact Structure: With low flow resistance characteristics, it operates efficiently within the range of fluid control systems, thereby minimizing energy loss to the greatest extent possible.
● Easy to Operate: The switch features a unique spherical design that allows for quick opening and closing. Only a 90 degree rotation can significantly improve work efficiency.
● Good Sealing Performance: Advanced sealing materials and structures are used to ensure reliable sealing under various working conditions and prevent fluid leakage.
| DN(mm) | Dimension(mm) | |||||||
| G | A | D | K | H | C | 1 | n-d | |
| 15 | 85 | 35 | 95 | 65 | 45 | 14 | 2 | 4-414 |
| 20 | 90 | 38 | 105 | 75 | 55 | 16 | 2 | 4-414 |
| 25 | 99 | 50 | 115 | 85 | 65 | 16 | 2 | 4-414 |
| 32 | 122 | 60 | 135/140 | 100 | 78 | 18 | 2 | 4-φ18 |
| 40 | 127 | 68 | 145/150 | 110 | 85 | 18 | 3 | 4-418 |
| 50 | 135 | 108 | 160/165 | 125 | 100 | 20 | 3 | 4-418 |
| 65 | 146 | 112 | 180/185 | 145 | 120 | 20 | 3 | 4-418 |
| 80 | 175 | 122 | 195/200 | 160 | 135 | 20 | 3 | 8-418 |
| 100 | 185 | 153 | 215/220 | 180 | 155 | 22 | 3 | 8-φ18 |
| Type | Ball valve |
| Body Material | SS316/304,Carbon steel |
| Port Size | 1/4"~1" |
| Connection Size | MALE/FEMALE/TUBE FITTING |
| Work Preasure | 2000psi |
| Work Temperature | 50ºC~150ºC |
| Thread | NPT BSPP BSPT |
| Medium | Gas, Water, Oil |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valve is made of high-quality materials, ensuring excellent durability and reliability. Its innovative design enables more precise and efficient fluid control, meeting the needs of various industrial applications. We provide comprehensive after-sales service to ensure that any problems encountered during use can be promptly and effectively resolved. By choosing our three-way ball valve, you will experience excellent product performance and worry free user experience.
