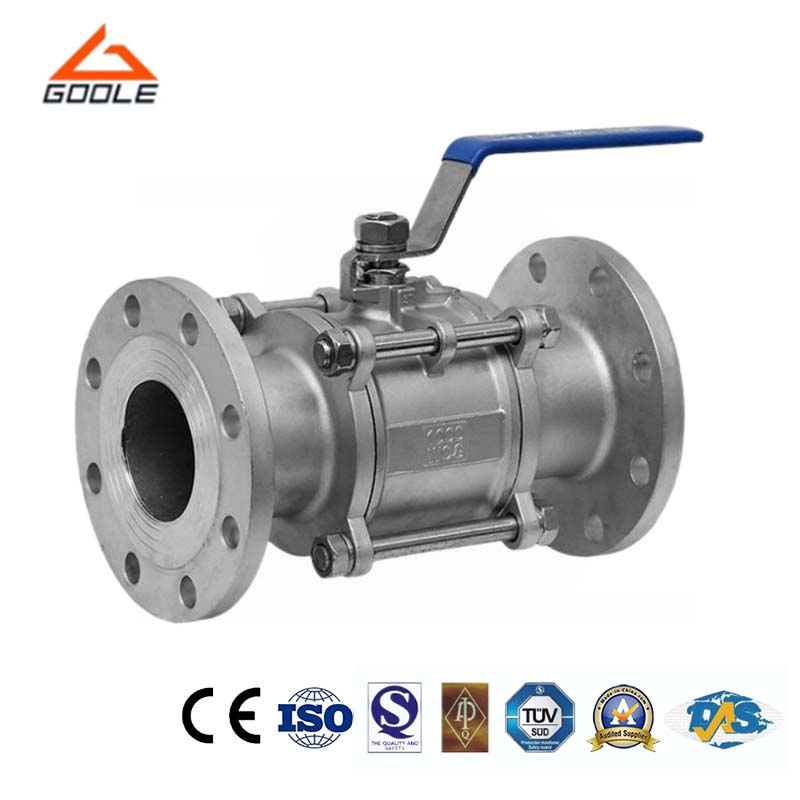

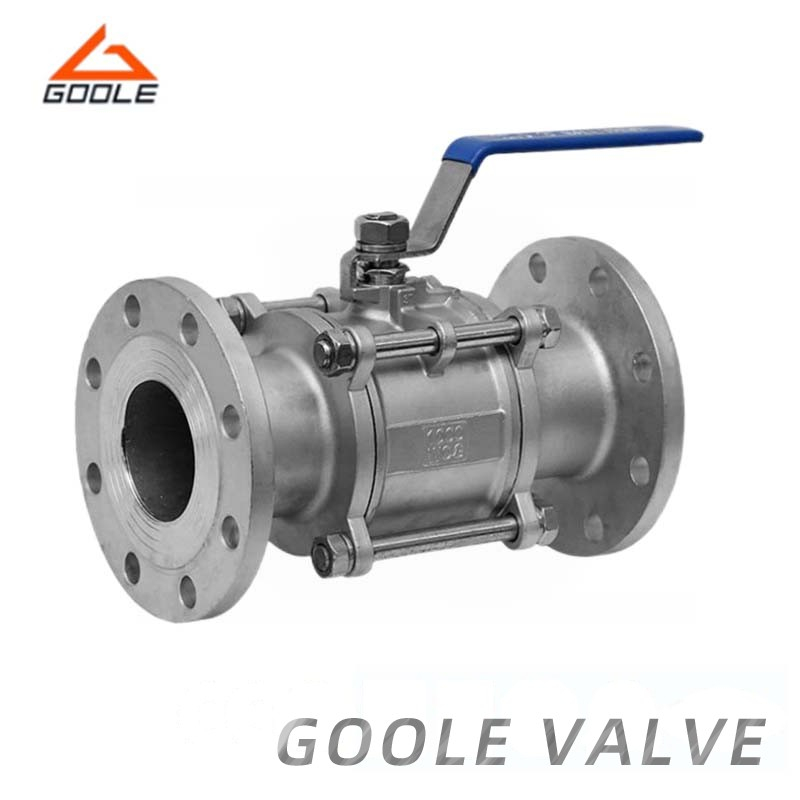

Three-way flange ball valves and gate valves are both types of valves; however, they differ in that ball valves utilize a ball that rotates on its central axis to open and close. Ball valves are primarily used in pipelines to cut off, distribute, and redirect the flow of media.
● Reasonable Design: The structure is compact, effectively reducing installation space and allowing the valve to be flexibly used in various pipeline systems.
● Corrosion Resistance: This valve is constructed from high-quality materials, which offer excellent wear resistance and ensure a long service life.
● Flange Connection: This connection method ensures a secure fit between the valve and the pipeline, minimizing the likelihood of leakage and enhancing the system's sealing and safety.
| Serial number | Part Name | Material | |
| - | - | Stainless steel | carbon steel |
| 1 | bolt | Stainless steel SS304 | carbon steel |
| 2 | spring washer | Stainless steel SS304 | Stainless steel SS304 |
| 3 | nut | Stainless steel SS304 | carbon steel |
| 4 | cap | Stainless steel CF8/CF8M | Carbon SteelWCB |
| 5 | valve body | Stainless steel CF8/CF8M | Carbon SteelWCB |
| 6 | sphere | Stainless steel CF8 | Stainless steel CF8 |
| 7 | sealing ring | Polytetrafluoroethylene/PTFE | PolytetrafluoroethylenePTFE |
| 8 | Stem | Stainless steel SS316 | Stainless steel SS304 |
| 9 | filler | PolytetrafluoroethylenePTFE | PolytetrafluoroethylenePTFE |
| 10 | Compression nut | Stainless steel SS304 | Stainless steel SS304 |
| 11 | spring washer | Stainless steel SS304 | Stainless steel SS304 |
| 12 | nut | Stainless steel SS304 | Stainless steel SS304 |
| 13 | handle | Stainless steel SS304 | Stainless steel SS304 |
| SIZE | 1/2″ | 3/4″ | 1" | 1 1/4″ | 1 1/2″ | 2" | 2 1/2″ | 3″ | 4″ |
| d | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 100 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 |
| D | 95 | 105 | 115 | 135 | 145 | 160 | 180 | 195 | 230 |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 190 |
| D2 | 45 | 55 | 65 | 78 | 85 | 100 | 120 | 135 | 160 |
| b | 14 | 16 | 16 | 18 | 18 | 20 | 22 | 24 | 24 |
| f | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 |
| H | 75 | 95 | 90 | 110 | 130 | 140 | 140 | 180 | 250 |
| W | 130 | 140 | 140 | 170 | 200 | 220 | 220 | 350 | 550 |
| n-do | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-22 |
| Nominal Size | 1/2"-4" |
| Nominal pressure | 1.6Mpa-25Mpa |
| Temperature | -20ºC~220ºC |
| Medium | water, oil, gas and some corrosive mediun |
| Connection type | Flange, butt welded, threaded |
| Operation | manual, electric, pneumatic |
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our three-piece flange-welded ball valve is crafted from high-quality materials, ensuring durability and reliability. Its unique design eases installation and maintenance, significantly enhancing work efficiency. Ball valves boast excellent sealing performance, effectively preventing leakage and ensuring the safe and stable operation of the system. Finally, we offer comprehensive after-sales service to ensure that customers receive timely technical support and solutions during use.
