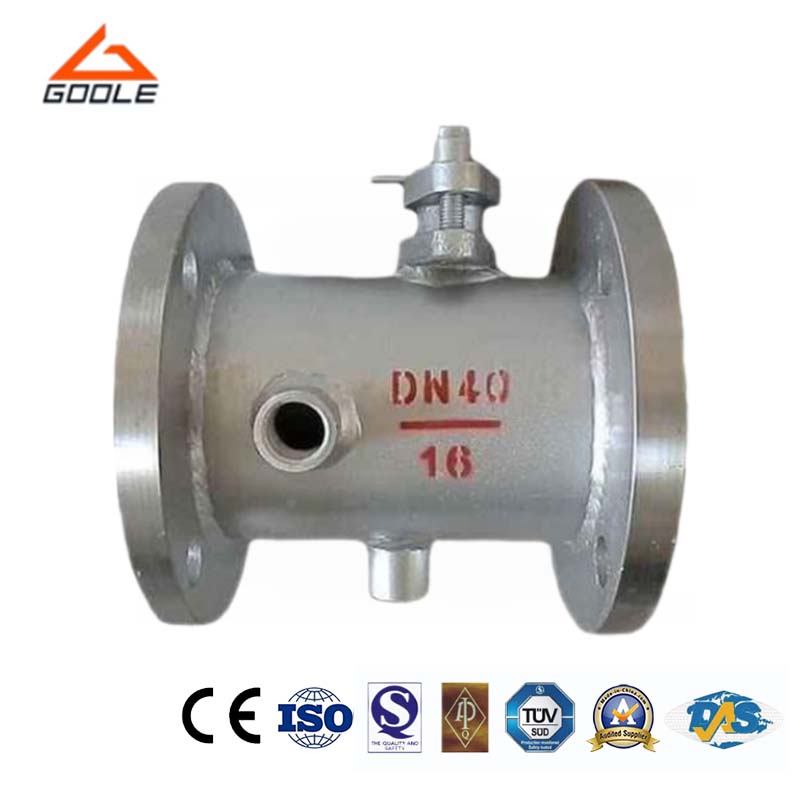

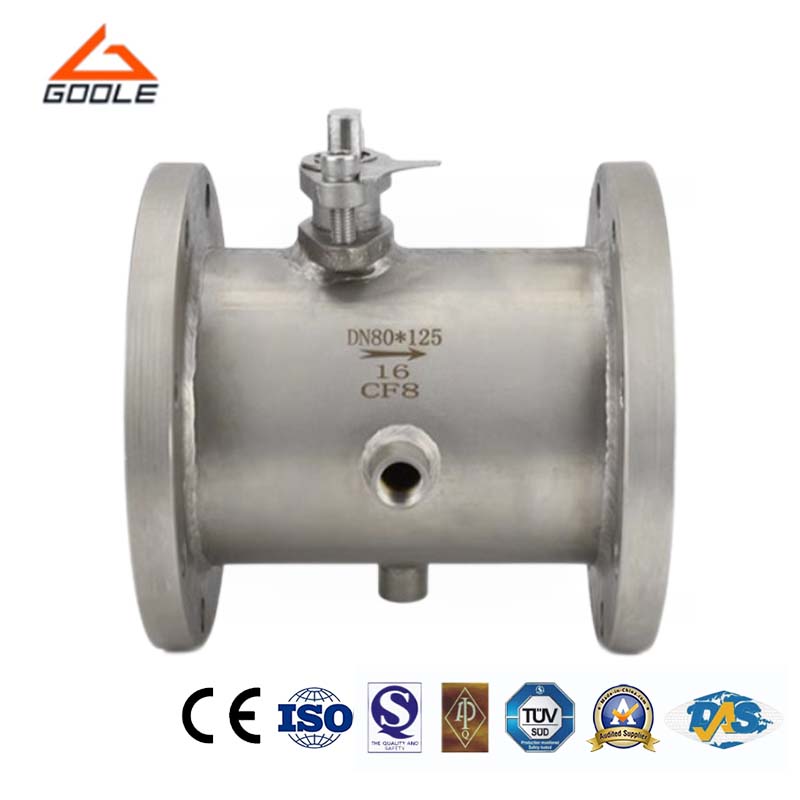

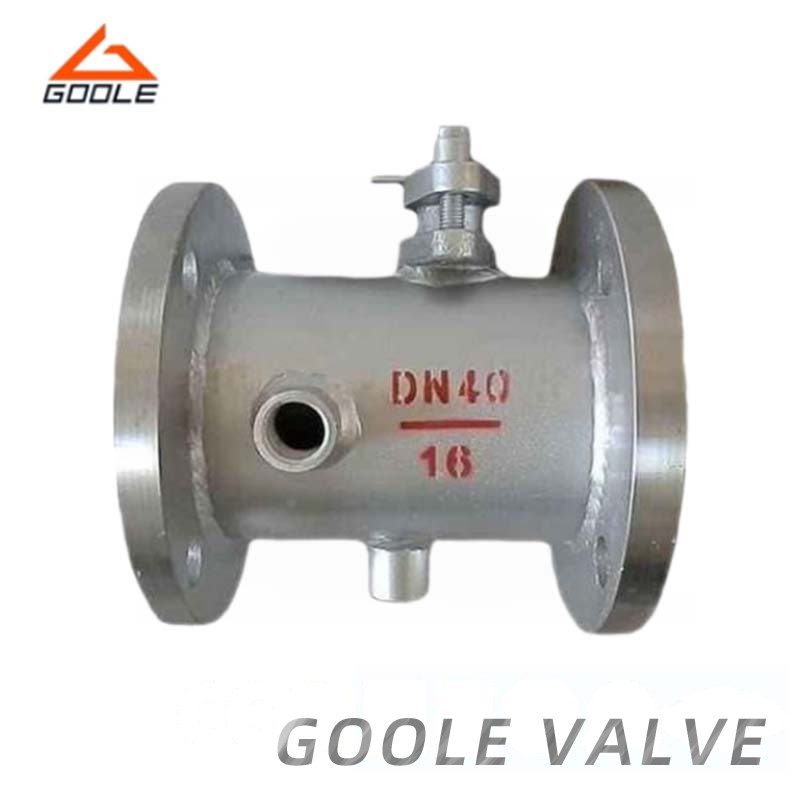

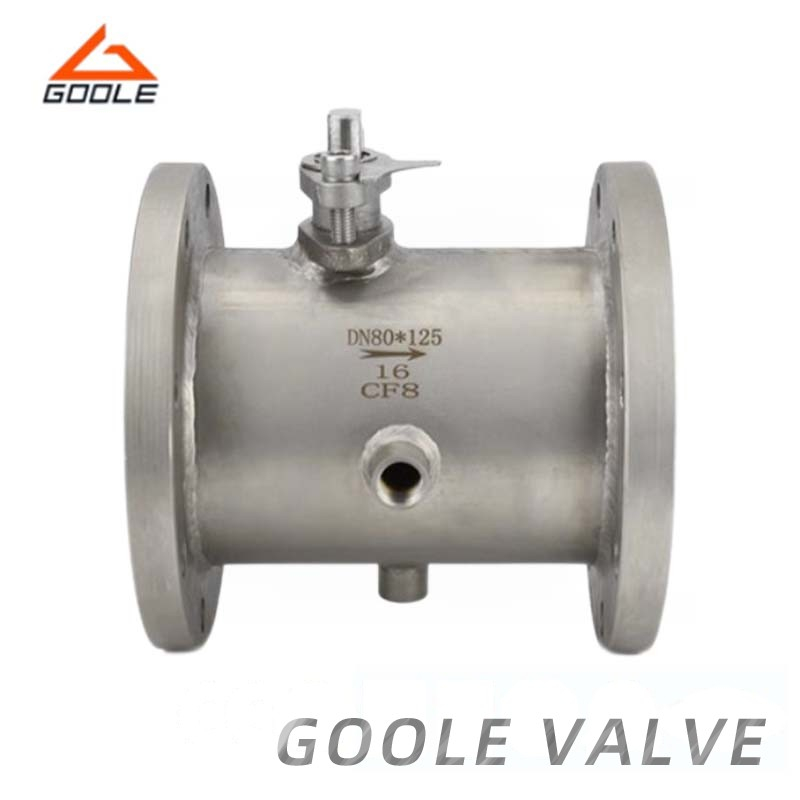

BQ41F is a specialized type of insulated ball valve, falling within the same category as flanged gate valves. Its distinctiveness lies in its closure mechanism, which facilitates opening and closing by rotating the ball around the valve body's centerline. Ball valves are primarily utilized for isolating, distributing, and altering the direction of media flow within pipelines. In recent years, two-piece and three-piece ball valves have been widely adopted as innovative products. These valves are typically installed horizontally within pipelines.
● High Thermal Insulation Performance: Its unique, integrated thermal insulation sleeve design effectively reduces heat loss during the transmission process of the medium, thereby improving energy utilization efficiency. It is particularly suitable for applications that require maintaining the temperature of the medium.
● Easy Installation: The integrated design minimizes the number of connectors, resulting in a more streamlined overall structure. This not only reduces the required installation space but also simplifies the installation process and decreases installation costs.
● Reliable Sealing Performance: The sealing surface of the float valve is typically crafted from high-quality materials and precision processing to ensure effective sealing when the valve is closed, preventing medium leakage and thereby enhancing system safety.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |

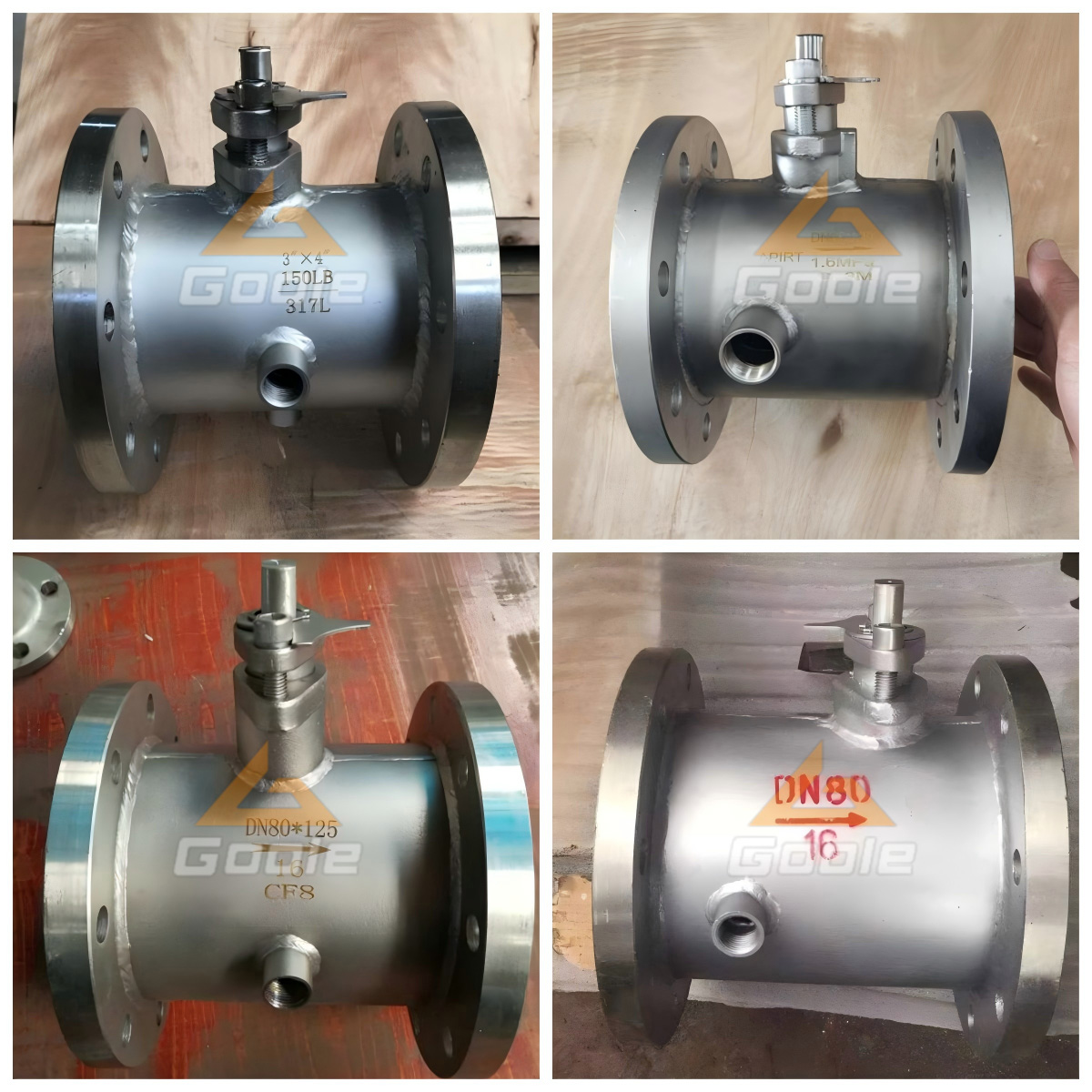

Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our integral insulated sleeve flanged ball valve is crafted from high-quality materials to ensure its exceptional durability and reliability. The valve features a unique internal insulated sleeve design that effectively prevents heat loss during the medium transfer process, thereby enhancing energy efficiency. Our flanged ball valve is easy to operate and maintain, significantly reducing operational costs for users. We offer comprehensive after-sales service to ensure customers receive timely technical support and solutions during use. Choosing our integral insulated sleeve flanged ball valve is a wise decision.
