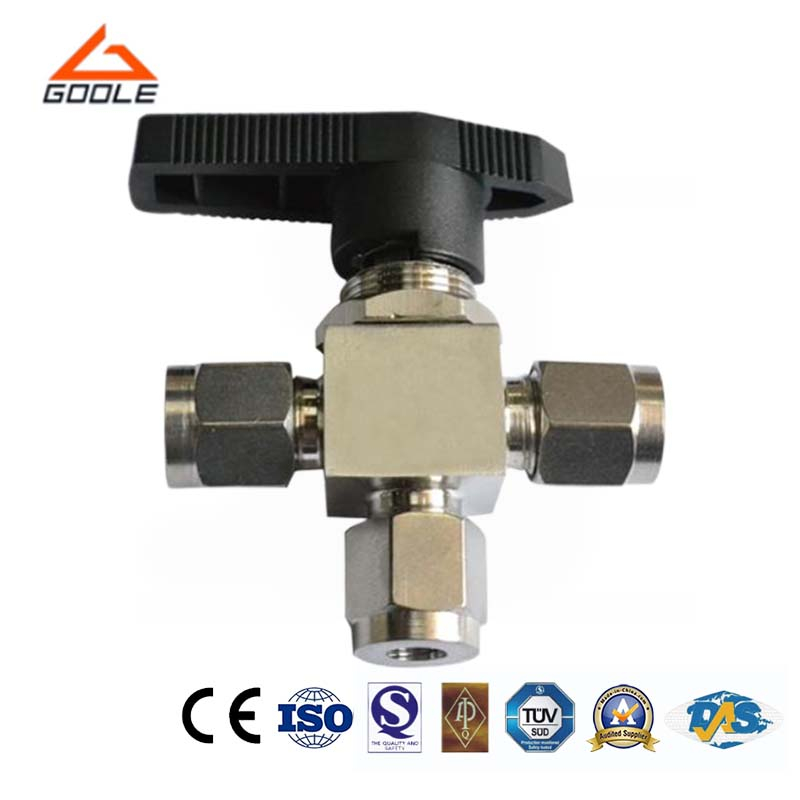

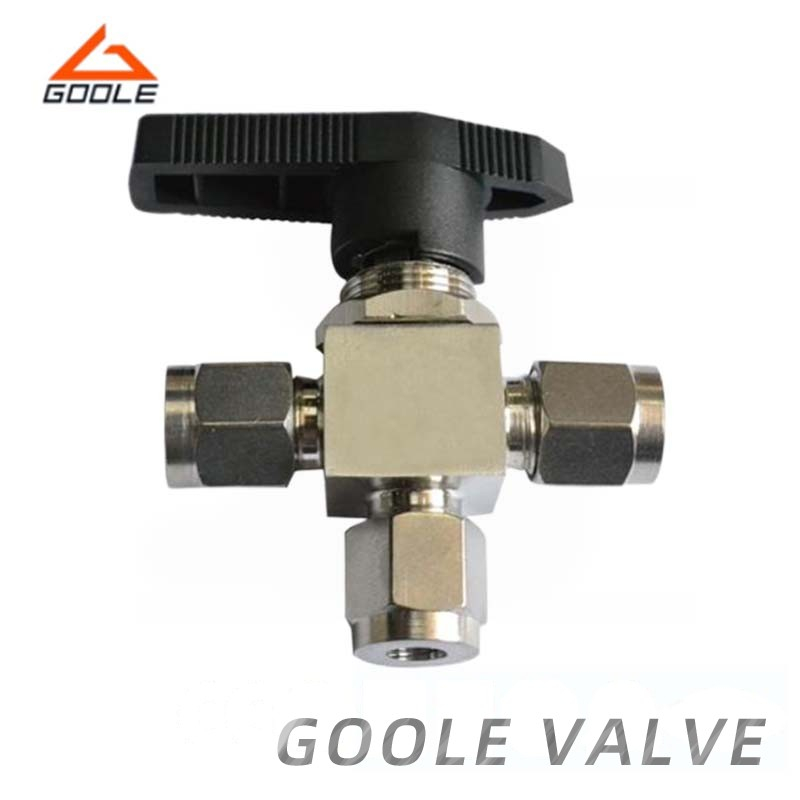

The three-way ball valve features a sleeve design with a top-mounted structure. This design not only reduces the number of connecting bolts required for the valve body under high-pressure and large-diameter conditions, thereby enhancing the valve's reliability, but also effectively mitigates the impact of system weight on the valve's normal operation. The valve is used to change, converge, or switch the direction of fluid flow.
● Compact Structure: With low flow resistance, it can operate efficiently within the fluid control system, thus minimizing energy loss.
● Easy to Operate: The switch adopts a unique spherical design, which can achieve quick opening and closing. Only 90 degrees of rotation is needed to significantly improve work efficiency.
● Good Sealing Performance: Advanced sealing materials and structures are used to ensure reliable sealing under various working conditions and prevent fluid leakage.
Size Table
| Type | Ball valve |
| Body Material | SS316/304,Carbon steel |
| Port Size | 1/4"~1" |
| Connection Size | MALE/FEMALE/TUBE FITTING |
| Work Preasure | 2000psi |
| Work Temperature | 50ºC~150ºC |
| Thread | NPT BSPP BSPT |
| Medium | Gas, Water, Oil |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valve is crafted from premium materials, ensuring exceptional durability and reliability. Its innovative design enables more precise and efficient fluid control, meeting the needs of a wide range of industrial applications. We offer comprehensive after-sales service to ensure that any issues encountered during use are promptly and effectively resolved. By choosing our three-way ball valve, you will enjoy superior product performance and a worry-free user experience.
