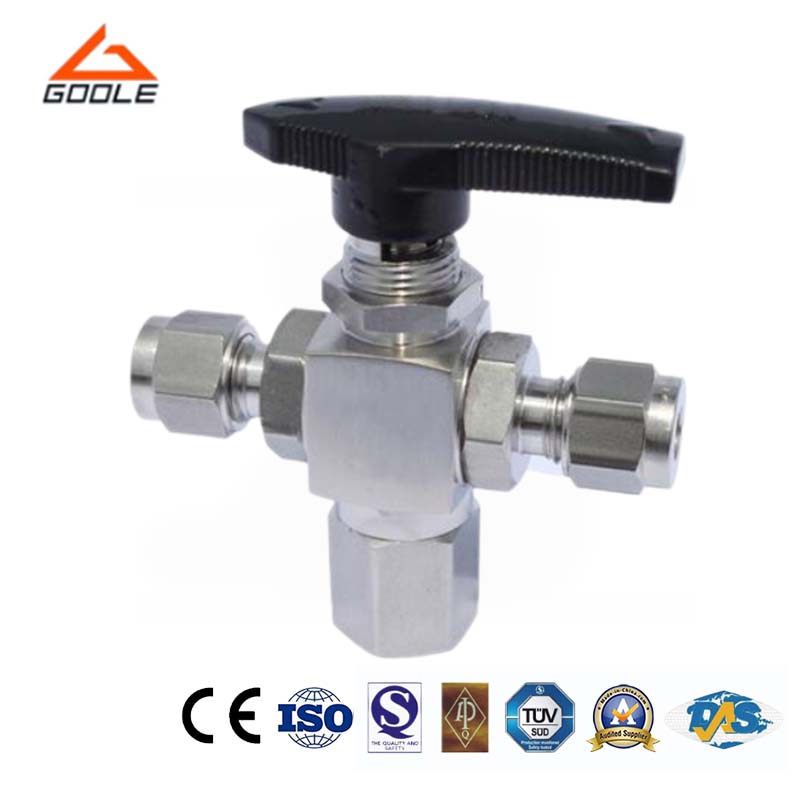

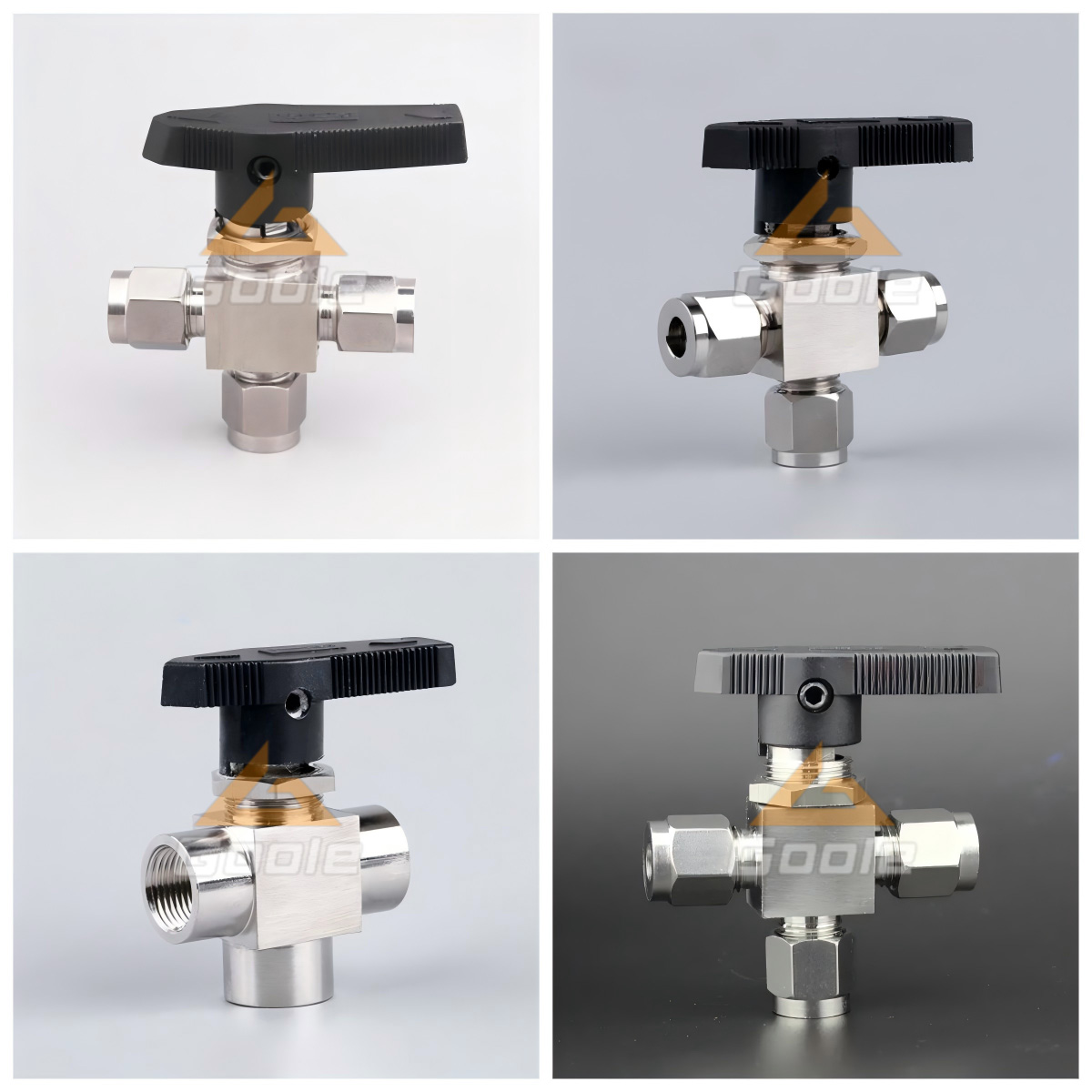

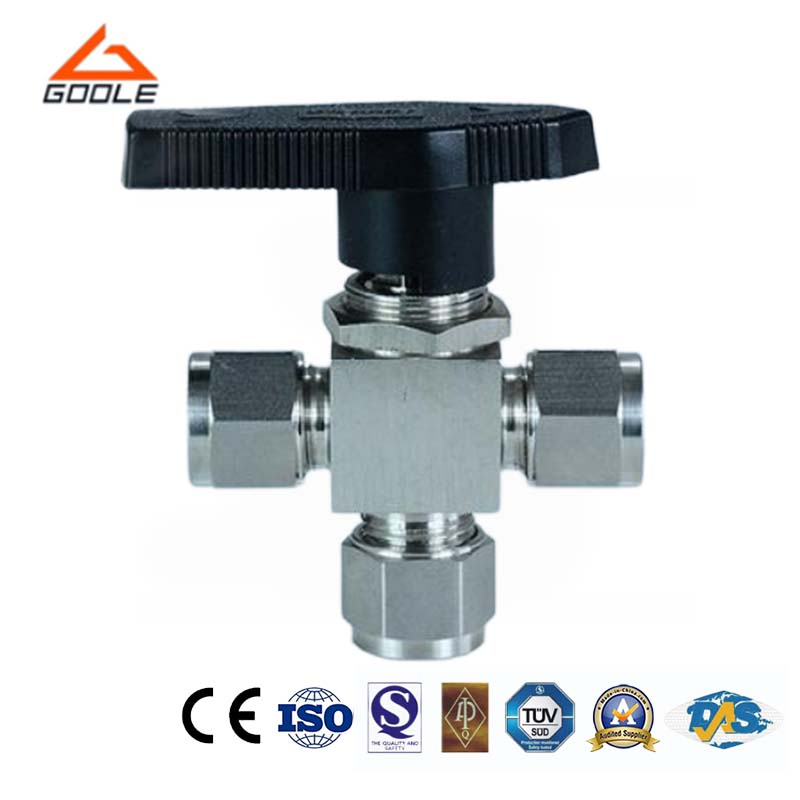

The three-way ball valve with a sleeve type features a top installation structure. This design not only reduces the number of connecting bolts required for the valve body under high-pressure and large-diameter conditions, thereby enhancing the valve's reliability, but also effectively mitigates the impact of system weight on the valve's normal operation. The valve is utilized for diverting, converging, or switching the direction of fluid flow.
● Compact Structure: Featuring low flow resistance, it operates efficiently within the fluid control system range, thereby minimizing energy loss.
● Easy to Operate: The switch boasts a unique spherical design that enables quick opening and closing. A mere 90-degree rotation significantly boosts work efficiency.
● Good Sealing Performance: By employing advanced sealing materials and structures, it ensures reliable sealing under various working conditions, preventing fluid leakage.
Size Table
| Type | Ball valve |
| Body Material | SS316/304,Carbon steel |
| Port Size | 1/4"~1" |
| Connection Size | MALE/FEMALE/TUBE FITTING |
| Work Preasure | 2000psi |
| Work Temperature | 50ºC~150ºC |
| Thread | NPT BSPP BSPT |
| Medium | Gas, Water, Oil |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valve is crafted from premium materials, ensuring exceptional durability and reliability. Its innovative design allows for more precise and efficient fluid control, catering to the needs of a wide range of industrial applications. We provide comprehensive after-sales service to ensure that any issues encountered during use are promptly and effectively resolved. By choosing our three-way ball valve, you will experience superior product performance and a worry-free user experience.
