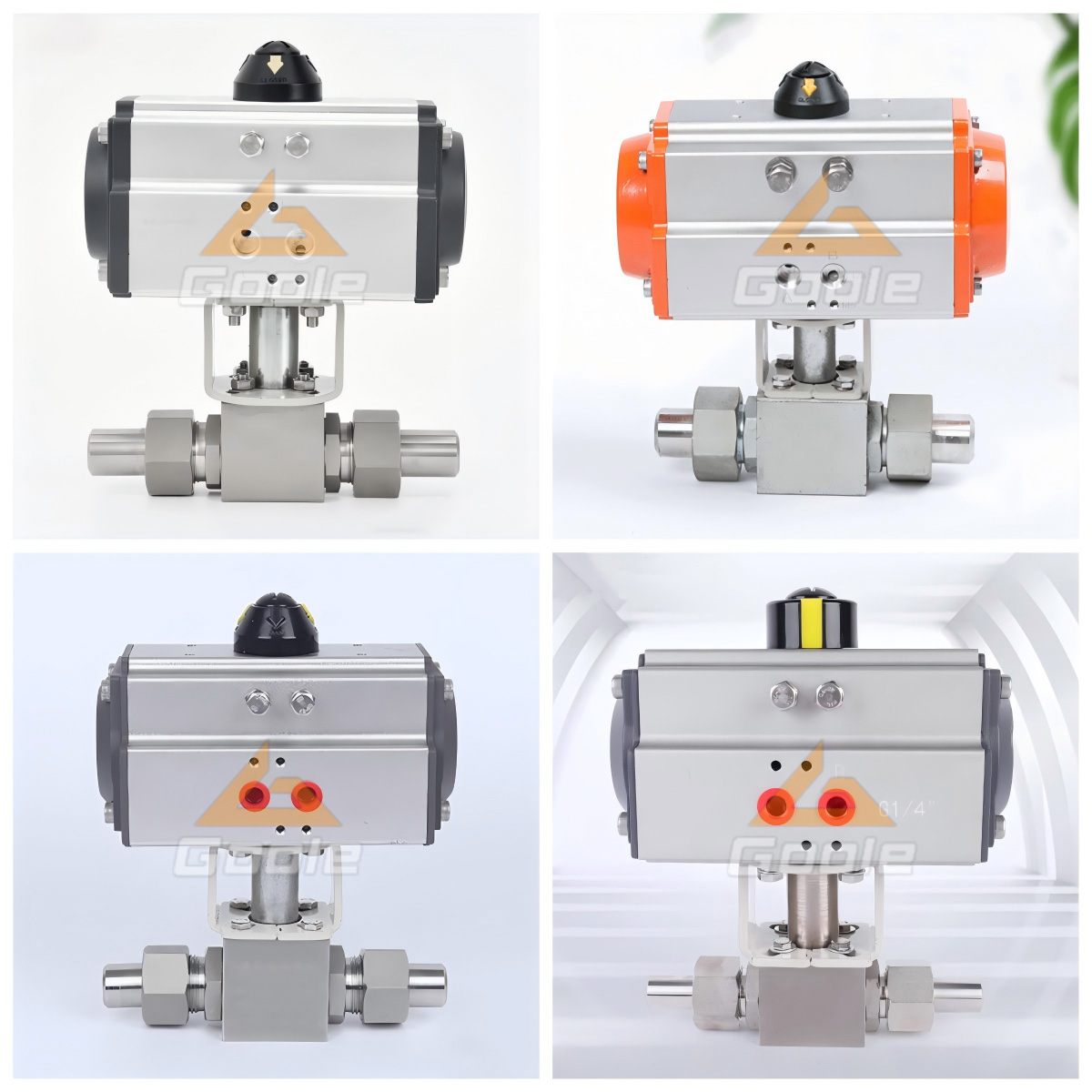

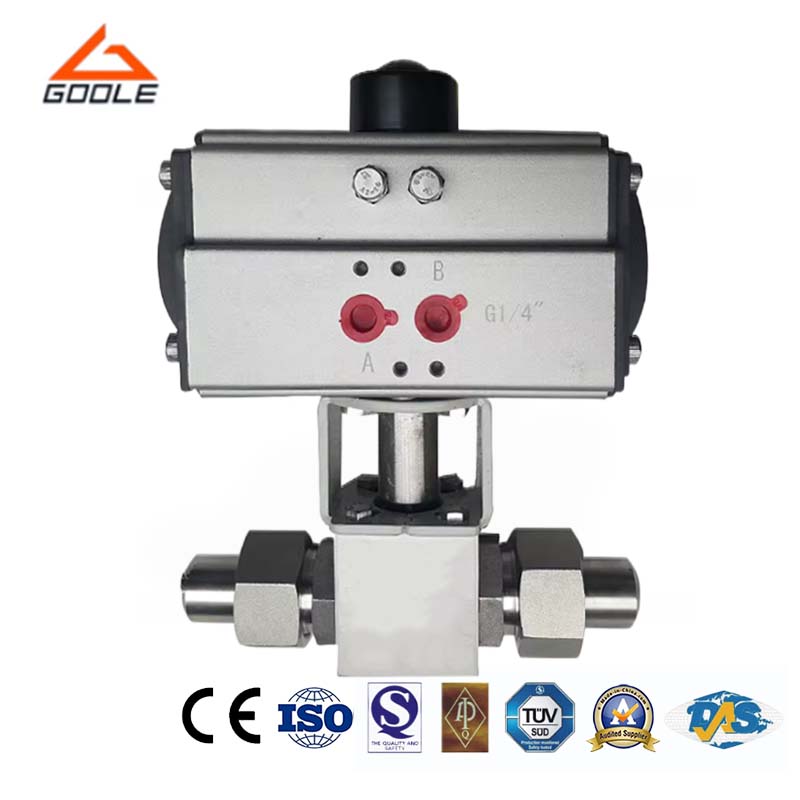

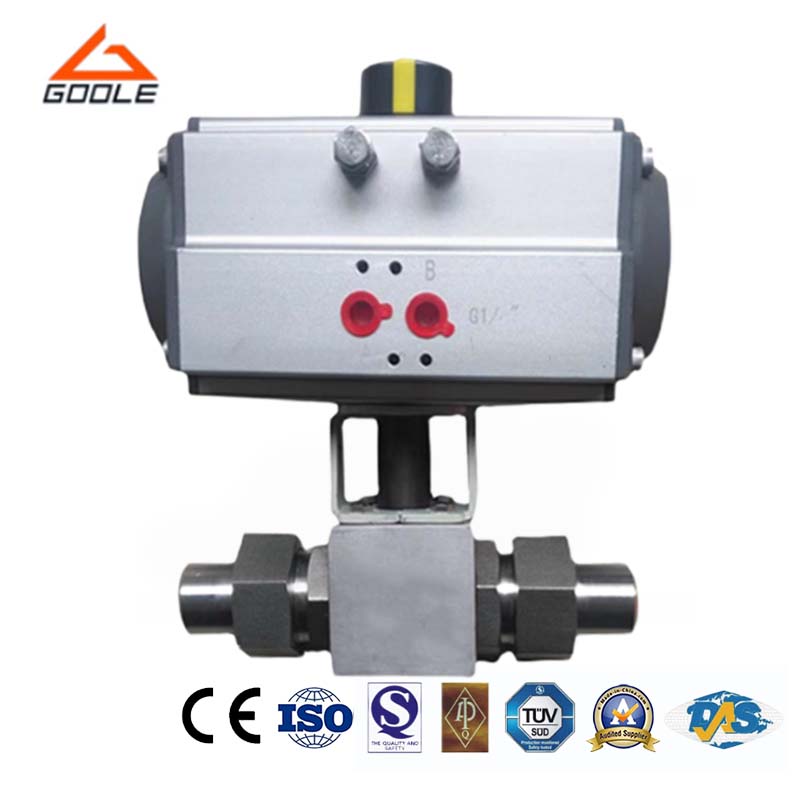

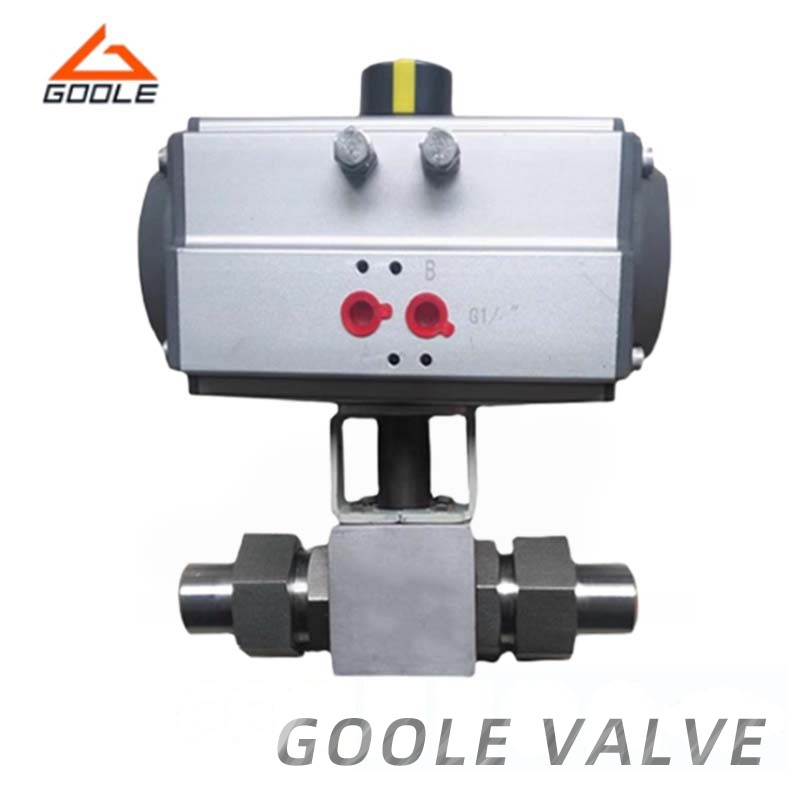

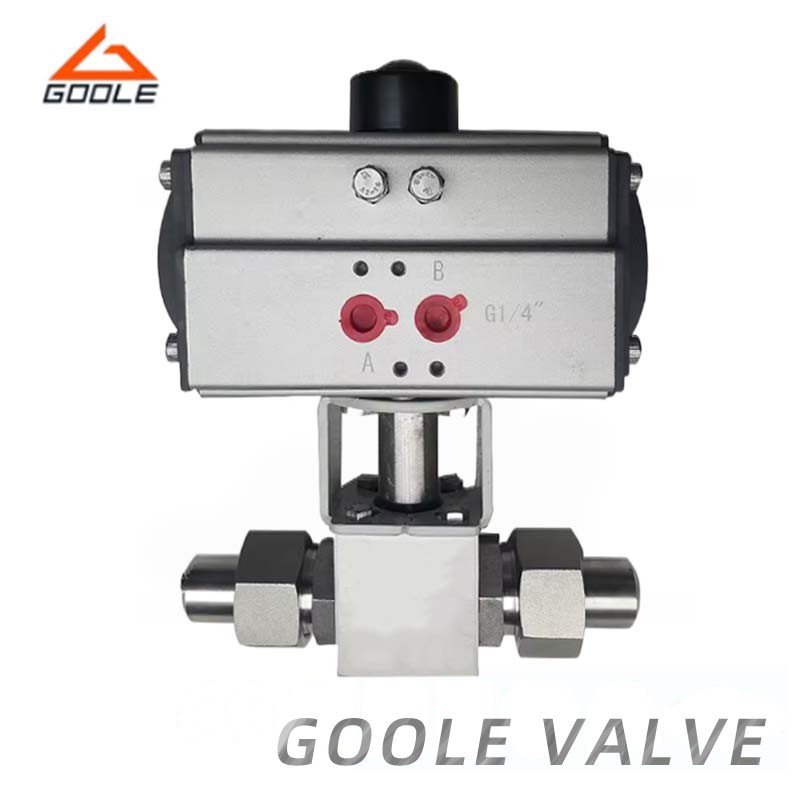

The cross-section of the high-pressure pneumatic welded ball valve is perpendicular to the axis of the passage, and the valve body is divided into three parts at the two valve seat positions. The entire valve exhibits perfect symmetry on both sides of the center axis of the stem. It is mainly used in pipeline systems to achieve the cutting, distribution, and redirection of media flow. In high-pressure environments, its rotating mechanism can accurately position the center of the ball, ensuring smooth operation of the valve. The electric actuator uses an integrated design, allowing direct connection to a 220V power source to adjust the on-off state. Additionally, it can be equipped with an internal servo module for remote operation through control signals and single-phase power.
● Unique Design: This valve is known for its symmetry along the central axis of the valve stem and is mainly used to cut, distribute, and change the flow direction in pipelines.
● Excellent Operating Performance: Thanks to its large pivot structure, the ball can maintain precise center position even in high-pressure environments, ensuring excellent operational performance of the valve.
● Spring Structure: The standard valve seat is designed with a spring that can push the valve seat towards the ball, ensuring excellent bidirectional sealing performance at the inlet and outlet.
● Anti-leakage Design: The inner cavity of the valve body can be discharged to the outside through the built-in discharge valve; At the same time, the valve body shaft is designed with explosion-proof protection, effectively avoiding leakage problems.
DN | Pipe Thread | size(mm) | Pipe Thread | size(mm) | |||||||
d | L | H | W | E | H | W | SW | L | |||
6 | 1/4 | 11 | 70 | 43 | 108 | 42.5 | - | - | - | - | 70 |
10 | 3/8 | 11 | 70 | 43 | 108 | 42.5 | - | - | - | - | - |
15 | 1/2 | 11 | 85 | 43 | 108 | 42.5 | 1/2 | 68 | 130 | 41 | 85 |
20 | 3/4 | 14 | 95 | 45.5 | 146 | 47.5 | 3/4 | 77 | 180 | 46 | 95 |
25 | 1 | 21 | 105 | 59.5 | 146 | 52.5 | 1 | 82 | 180 | 55 | 105 |
32 | 1 1 /4 | 25 | 120 | 64.5 | 146 | 60 | 1 1 /4 | 115 | 300 | 70 | 120 |
40 | 1 1 /2 | 32 | 130 | 76 | 254 | 65 | 1 1 /2 | 120 | 300 | 80 | 130 |
50 | 2 | 38 | 150 | 81 | 254 | 75 | 2 | 130 | 300 | 100 | 150 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The core component of the valve is a sphere with a central through-hole. The precise rotation of the sphere can accurately align or misalign the through-hole with the inlet and outlet channels of the valve, thereby controlling the fluid state to achieve the opening or closing function of the valve. It is driven by a pneumatic actuator, which opens, closes, and regulates the fluid flow through the rotation of the sphere. Additionally, the internal threaded connection effectively enhances the system's sealing performance.
We use carefully selected high-quality materials to manufacture pneumatic high-pressure welded ball valves, ensuring their long-term durability and reliability. The innovative design of the ball valve guarantees excellent sealing performance, effectively preventing leaks and enhancing system safety. Due to its ease of operation, pneumatic drive enables quick opening and closing, significantly improving work efficiency. We offer a variety of specifications and models to meet the specific needs of different customers. Choosing our pneumatic high-pressure welded ball valve is undoubtedly a wise decision.
