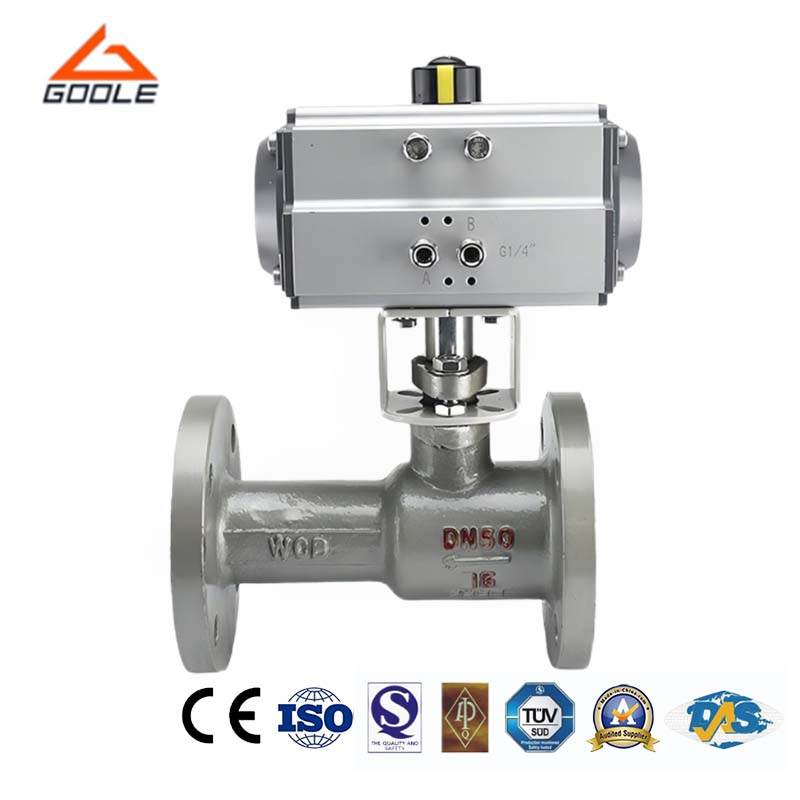

Pneumatic Integrated Body High Temperature Ball Valve

Pneumatic Integrated Body High Temperature Ball Valve

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Introduction

The integrated high-temperature ball valve is a type of valve that evolved from a plug valve. Its opening and closing component is a sphere that rotates 90 degrees around the valve stem to achieve the opening and closing function. This valve has a compact structure, integrating the valve body, seat, and ball into one unit, hence it is called an integrated type.

Product Features

● Strong High Temperature Tolerance: Made of special high-temperature resistant materials, it can withstand the working pressure in high-temperature environments, ensuring stable operation of the valve under high temperature conditions.

● Compact Structure and Easy Installation: Pneumatic integrated design integrates key components such as actuators and balls, with a compact structure, small space occupation, and simple and fast installation process.

● Superior Sealing Performance: The ball and valve seat are sealed with metal hard or soft sealing structures to ensure good sealing performance of the valve in the closed state, effectively preventing medium leakage.

● Flexible and Reliable Operation: Pneumatic actuators provide stable driving force, enabling valves to quickly respond to control signals, achieve quick opening and closing, and operate flexibly and reliably.

Product Details

No.	Parts Name	Material
1	Body	A105+ENP, A182 F6, F304, F304L, F316, F316L, F51
2	Seat	PTFE, R-PTFE, PEEK, PPL
3	Anti-static Spring	Stainless Steel
4	Stem	A105+ENP, A182 F6, F304, F304L, F316, F316L, F51
5	O-ring	NBR,
6	Limited Plate	1015+Cr, Carbon Steel+Cr
7	Lever	A216 WCB, 1025+Cr
8	Fix Nut	Stainless Steel
9	Backup Ring	A182 F304, F316
10	Packing	PTFE, Graphite
11	Positioning Pin	Stainless Steel
12	Thrust Washer	PTFE
13	Gasket	PTFE, Graphite
14	Ball	A105+ENP, A182 F6, F304, F304L, F316, F316L, F51
15	Bonnet	A105+ENP, A182 F6, F304, F304L, F316, F316L, F51
16	O-ring	NBR,
17	Stud	A193 B7, B7M, B8, B8M
18	Nut	A194 2H, 2HM, 8, 8M

Main External Dimensions.
Pneumatic Actuated Forged 1 PC Integrated Floating Ball Valve

Model	Size(mm)		Dimensions(mm)
Q941F	inch	DN	L	D	D1	D2	b	Z-Φd	H	W
	3/4″	20	117	98	70	43	12	4-Φ15	75	130
	1″	25	127	108	79.5	51	12	4-Φ15	85	150
	11/4″	32	140	117	89	64	13	4-Φ15	96	190
	11/2″	40	165	127	98.5	73.2	15	4-Φ15	107	230
	2″	50	178	152	120.7	92	16	4-Φ19	118	240
	21/2″	65	190	177.8	139.7	104.7	18	4-Φ19	145	280
	3″	80	203	190.5	152.4	127	19	4-Φ19	160	310
	4″	100	229	229	190.5	157	24	8-Φ19	185	330
	5″	125	356	254	216	185.7	26	8-Φ22	230	600
	6″	150	394	279	241.3	216	26	8-Φ22	260	800
	8″	200	457	343	298.5	270	29	8-Φ22	310	1000
	10″	250	533	406	362	324	31	12-Φ25	350	1200

Model	Size(mm)		Dimensions(mm)
Q941F	inch	DN	L	D	D1	D2	b	Z-Φd	H	W
	1/2″	15	140	95	66.5	35	15	4-Φ15	72	115
	3/4″	20	152	117	82.5	43	16	4-Φ19	75	130
	1″	25	165	124	89	51	18	4-Φ19	85	150
	11/4″	32	178	133	98.5	64	19.5	4-Φ19	95	180
	11/2″	40	190	156	114.3	73.2	21	4-Φ22	110	230
	2″	50	216	165	127	92	23	8-Φ19	120	240
	21/2″	65	241	190.5	149.4	104.7	26	8-Φ22	150	280
	3″	80	283	210	168.5	127	29	8-Φ22	165	310
	4″	100	305	254	200.2	157	32	8-Φ22	190	330
	5″	125	381	279	235	185.7	35	8-Φ22	240	600
	6″	150	403	318	270	216	37	12-Φ22	270	800
	8″	200	502	381	330	270	42	12-Φ25	315	1000
	10″	250	568	445	387.5	324	48	16-Φ29	380	1200

Technical Parameters

Pressure Test.

Test Item		Shell Test		Sealing Test		Back Seal Test		Air Test
Medium		Water						Air
Unit		MPa	Lbf/in2	MPa	Lbf/in2	MPa	Lbf/in2	MPa	Lbf/in2
Test Pressure	150	3.1	450	2.2	315	2.2	315	0.5-0.7	60-100
	300	7.8	1125	5.6	815	5.6	815
	400	10.3	1500	7.6	1100	7.6	1100
	600	15.3	2225	11.2	1630	11.2	1630
	900	23.1	3350	16.8	2440	16.8	2440

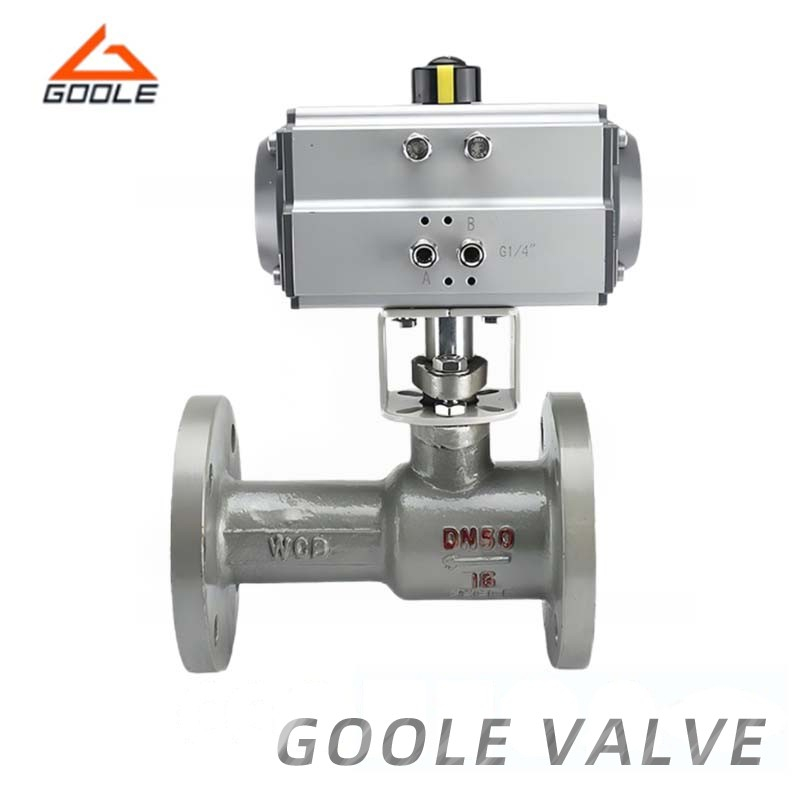

Product Display

Frequently Asked Questions（FAQs）

Q1:What is the main suitable of this valve?

This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.

Q2:What mechanical principle is used?

When the pneumatic device receives a control signal, it generates power through mechanisms such as cylinders or pistons to drive the valve stem to rotate. The valve stem is connected to the ball valve core, so the rotation of the valve stem also drives the rotation of the ball valve core. When the passage of the ball valve core aligns with the direction of the pipeline, the medium can flow smoothly; when the passage of the ball valve core is perpendicular to the direction of the pipeline, the medium is cut off. A sealing system is installed to ensure the valve's seal performance in high-temperature environments. The sealing material is typically made of heat-resistant and wear-resistant materials, which can maintain stable sealing effects at high temperatures. At the same time, the structural design of the valve also takes into account factors such as thermal expansion to ensure the stability and reliability of the valve at high temperatures.

Why Choose Us?

Our pneumatic integrated high-temperature ball valve is made from premium materials, ensuring stable operation even in high-temperature environments, with excellent heat resistance and corrosion resistance. The valve design is ingenious, compact, and easy to install and maintain, while effectively reducing fluid resistance and improving system efficiency. We offer a variety of specifications and configurations to meet the needs of different application scenarios, ensuring that customers can find the most suitable solution for their systems. Our professional technical team and comprehensive after-sales service system provide full technical support and timely maintenance services, ensuring a smooth production process without any obstacles.
