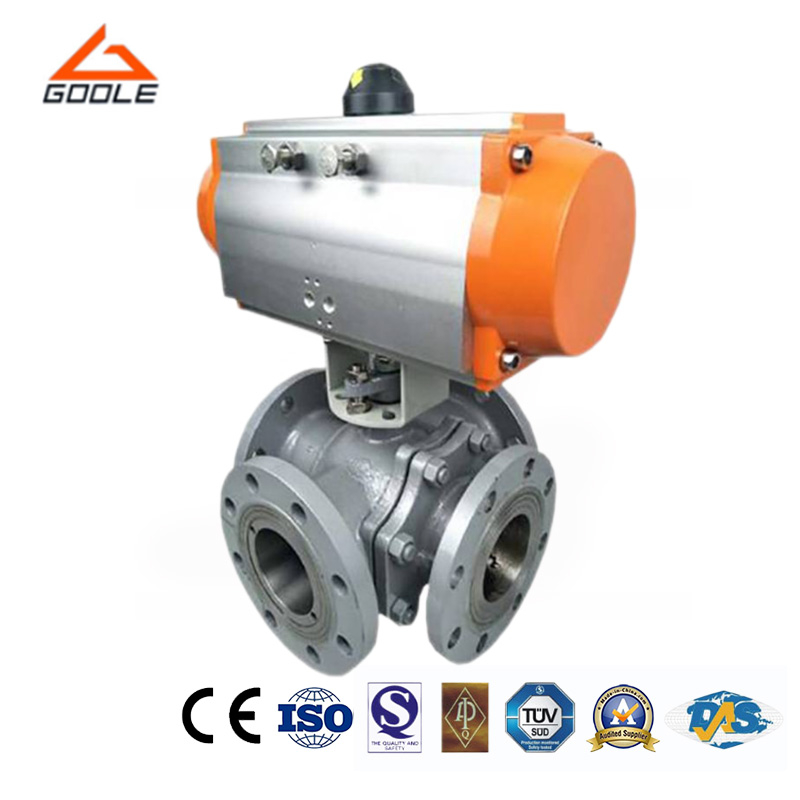

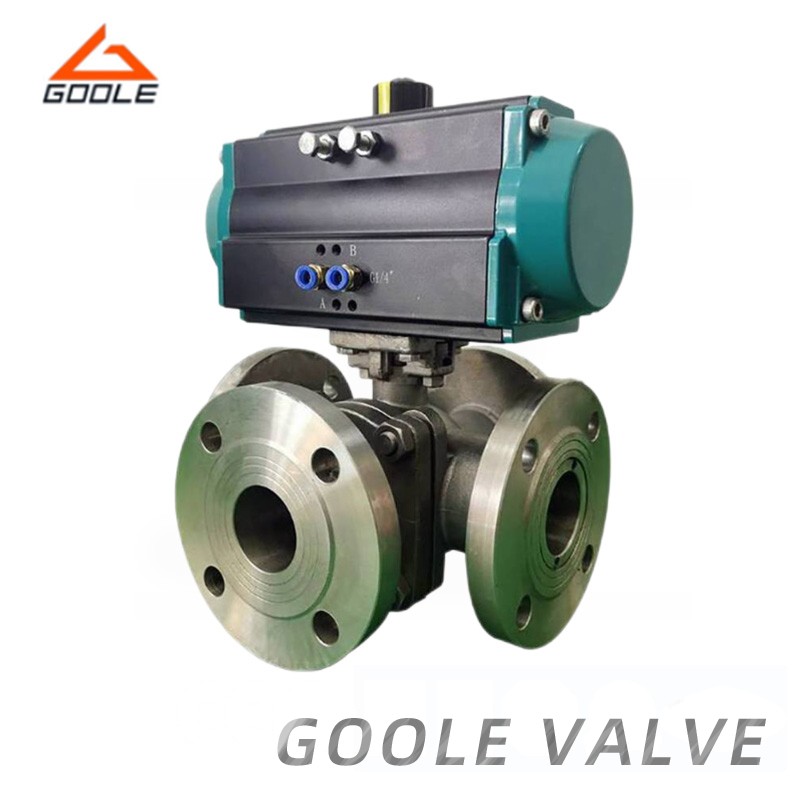

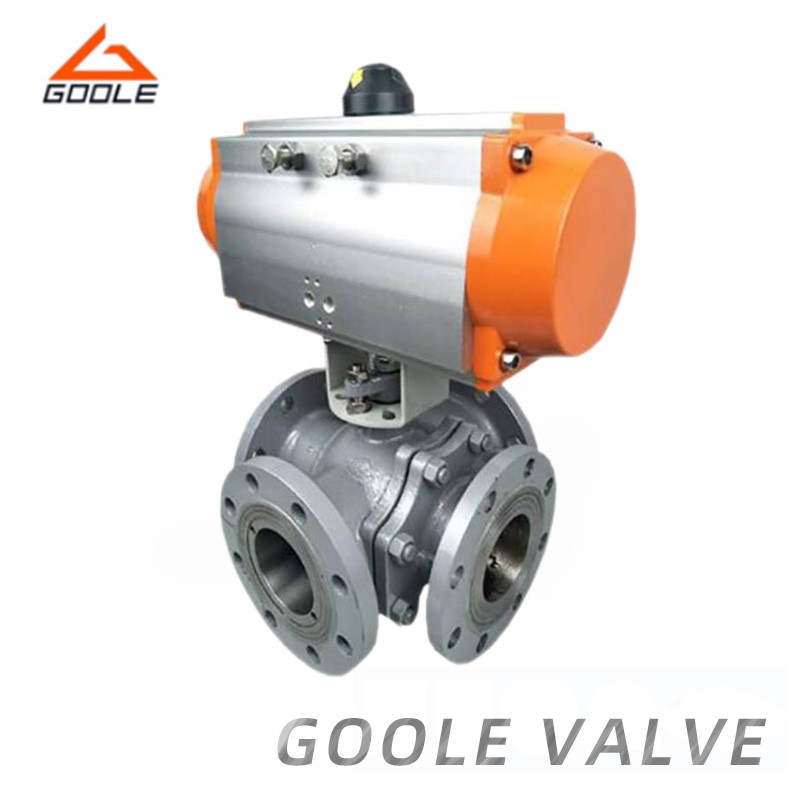

The pneumatic four-way flange ball valve is designed for efficient multi-directional fluid control in complex pipeline systems. Made from high-quality stainless steel, it offers excellent corrosion resistance, making it ideal for applications that require fluid redirection or distribution along different paths. The four-way configuration provides flexibility in fluid routing, making it an ideal choice for petrochemical, water treatment, and natural gas systems.
● Valve Handle With A Limit Structure: This handle is made of die-cast steel or cast stainless steel and features an internal limit structure. It clearly indicates the valve's open and closed states and includes a locking hole to prevent accidental operation in critical systems. Clear on/off markings ensure easy operation.
● Multi-Functional Valve Stem Connection: The valve stem is connected to the handle through flat key, spline or square slot, which has a high degree of versatility and is easy to disassemble. In addition, the valve stem is also designed with anti-stab function, further enhancing safety.
● Anti-Static Design: To improve the safety of critical applications, valves can be equipped with anti-static features. These features include conductive springs that connect the ball, stem, and body to prevent static electricity from causing flammable materials to burn.
| No. | Parts Name | Material | ||
| Carbon steel | Stainless steel | Low temperature steel | ||
| 1 | Body | A216 WCB | A351 CF8M | A352 LCB |
| 2 | Insert | A105+ENP | A182 F316 | A350 LF3 |
| 3 | O-ring | PTFE | ||
| 4 | Screw | A193 B7 | A193 B8 | A320 L7 |
| 5 | End plate | A105+ENP | A182 F316 | A350 LF3 |
| 6 | Gasket | Flexible graphite+ss | ||
| 7 | Lower stem | A182 F6A | A182 F316 | A182 F316 |
| 8 | Ball | A105+ENP | A182 F316/A351 CF8M | A350 LF3/A352 LCB |
| 9 | Seat ring | PTFE/R.PTFE | ||
| 10 | Seat retainer | A105+ENP | A182 F316 | A350 LF3 |
| 11 | O-ring | PTFE | ||
| 12 | Bolt | A193 B7 | A193 B8 | A320 L7 |
| 13 | Gasket | Flexible graphite+SS | ||
| 14 | Bonnet | A216 WCB | A351 CF8M | A352 LCB |
| 15 | Stem | A182 F6A | A182 F316 | A182 F316 |
| 16 | Thrust washer | PTFE+SS | ||
| 17 | Gasket | A182 F6A | / | A182 F6A |
| 18 | Stem packing | Flexible graphite/PTFE | ||
| 19 | Pin | A182 F6A | ||
| 20 | Eyebolt | A193 B7 | A193 B8 | A320 L7 |
| 21 | Eyebolt | A194 2H | A194 8 | A194 4 |
| 22 | Packing gland | A216 WCB | A351 CF8M | A352 LCB |
| 23 | Key | ANSI 1215 | ||
Main External Dimensions(mm)
| 150 LB | ||||||||||||
| DN | NPS | L | do | H | A1 | H1 | A2 | H2 | Bo | B1 | B2 | Weight(Kg) |
| G.O | ||||||||||||
| 50 | 2 | 265 | 51 | 390 | 433 | 217 | 405 | 200 | 250 | 106 | 52 | 28.5 |
| 65 | 2 1/2 | 280 | 64 | 420 | 433 | 248 | 405 | 260 | 250 | 106 | 52 | 49 |
| 80 | 3 | 350 | 76 | 490 | 520 | 335 | 574 | 320 | 250 | 106 | 52 | 87 |
| 100 | 4 | 420 | 102 | 570 | 520 | 412 | 574 | 400 | 300 | 143 | 80 | 139 |
| 125 | 5 | 490 | 127 | 680 | 520 | 495 | 756 | 500 | 300 | 143 | 80 | 240 |
| 150 | 6 | 580 | 152 | 830 | 896 | 613 | 756 | 600 | 400 | 200 | 108 | 270 |
| 200 | 8 | 640 | 203 | 1020 | 896 | 824 | 756 | 800 | 400 | 200 | 108 | 585 |
| 250 | 10 | 740 | 250 | 1140 | 896 | 1025 | 1060 | 1000 | 600 | 200 | 108 | 765 |
| 300 | 12 | 820 | 305 | 1220 | 896 | 1176 | 1060 | 1200 | 600 | 200 | 108 | 1125 |
| 350 | 14 | 910 | 337 | 1390 | 910 | 1239 | 1360 | 1225 | 800 | 330 | 140 | 1455 |
| 400 | 16 | 1000 | 387 | 1580 | 910 | 1388 | 1360 | 1350 | 800 | 330 | 140 | 1785 |
| 450 | 18 | 1150 | 438 | 1790 | 910 | 1596 | 1360 | 1575 | 800 | 330 | 140 | 2467 |
| 500 | 20 | 1300 | 489 | 1960 | 936 | 1725 | 2910 | 1750 | 1000 | 370 | 220 | 3150 |
| PN1.0/1.6 | ||||||||||||
| DN | NPS | L | do | H | A1 | H1 | A2 | H2 | Bo | B1 | B2 | Weight(Kg) |
| G.O | ||||||||||||
| 50 | 2 | 265 | 51 | 220 | 433 | 217 | 405 | 200 | 250 | 106 | 52 | 28 |
| 65 | 2 1/2 | 280 | 64 | 295 | 433 | 248 | 405 | 260 | 250 | 106 | 52 | 48 |
| 80 | 3 | 310 | 76 | 367 | 433 | 335 | 574 | 320 | 250 | 106 | 52 | 87 |
| 100 | 4 | 370 | 102 | 440 | 520 | 412 | 574 | 400 | 300 | 143 | 80 | 137 |
| 125 | 5 | 440 | 127 | 535 | 520 | 495 | 756 | 500 | 300 | 143 | 80 | 240 |
| 150 | 6 | 510 | 152 | 660 | 520 | 613 | 756 | 600 | 400 | 200 | 108 | 270 |
| 200 | 8 | 580 | 203 | 870 | 520 | 824 | 756 | 800 | 400 | 200 | 108 | 585 |
| 250 | 10 | 665 | 250 | 1080 | 896 | 1025 | 1060 | 1000 | 600 | 200 | 108 | 1121 |
| 300 | 12 | 760 | 305 | 1200 | 896 | 1176 | 1060 | 1160 | 600 | 200 | 108 | 1121 |
| 350 | 14 | 850 | 337 | 1250 | 896 | 1239 | 1360 | 1225 | 800 | 330 | 140 | 1450 |
| 400 | 16 | 940 | 387 | 1420 | 910 | 1388 | 1360 | 1350 | 800 | 330 | 140 | 1780 |
| 450 | 18 | 1050 | 438 | 1610 | 910 | 1596 | 1360 | 1575 | 800 | 330 | 140 | 2435 |
| 500 | 20 | 1180 | 489 | 1830 | 910 | 1725 | 2910 | 1750 | 1000 | 370 | 220 | 3108 |
| Type | Ball valve |
| Body Material | SS316/304,Carbon steel |
| Port Size | 1/4"~1" |
| Connection Size | MALE/FEMALE/TUBE FITTING |
| Work Preasure | 2000psi |
| Work Temperature | 50ºC~150ºC |
| Thread | NPT BSPP BSPT |
| Medium | Gas, Water, Oil |
Q1:What is the main benefit of the four-way design?
The four-way design allows for fluid distribution in multiple directions, providing flexibility in fluid routing within a piping system.
Q2:What material is used for the valve body?
The valve body is made from high-quality stainless steel, providing excellent strength and resistance to corrosion, ensuring durability over time.
Our pneumatic four-way flange ball valve is crafted from corrosion-resistant stainless steel, ensuring a long service life even under the harshest conditions. Its versatile design supports flexible fluid path configurations, making it an ideal choice for a variety of pipeline systems. We also offer customized solutions to meet your specific needs, whether it's for specific materials, custom designs, or special functions. Our professional engineering team will work closely with you to develop the most efficient solutions, ensuring your system achieves optimal performance.
