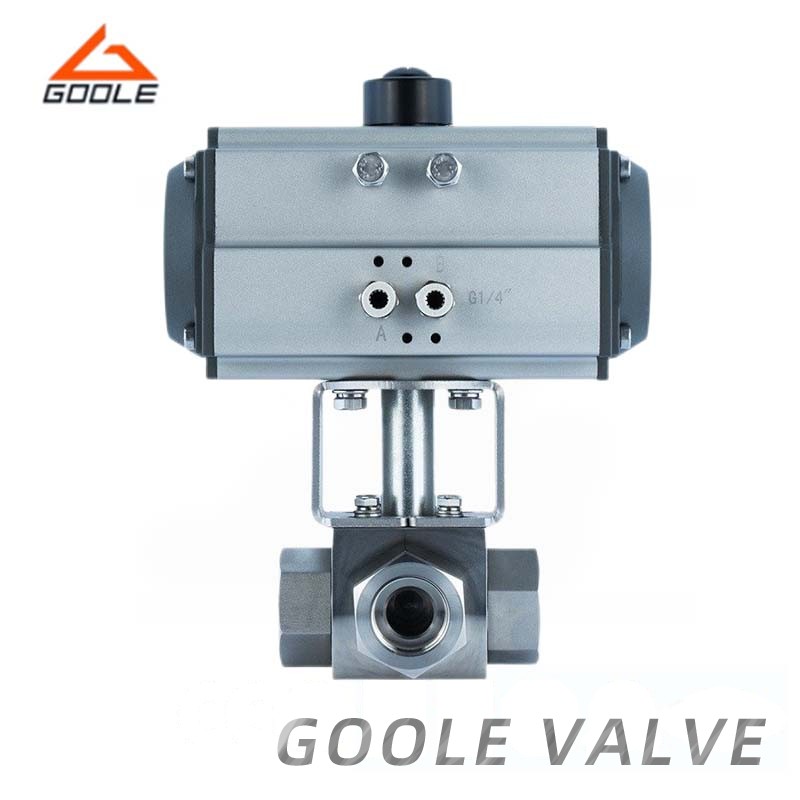

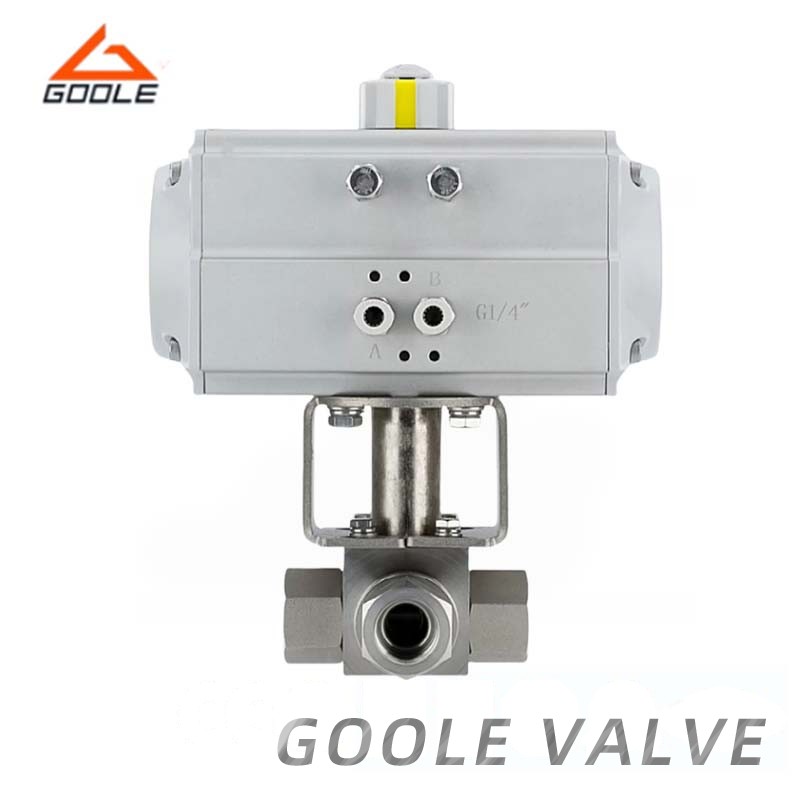

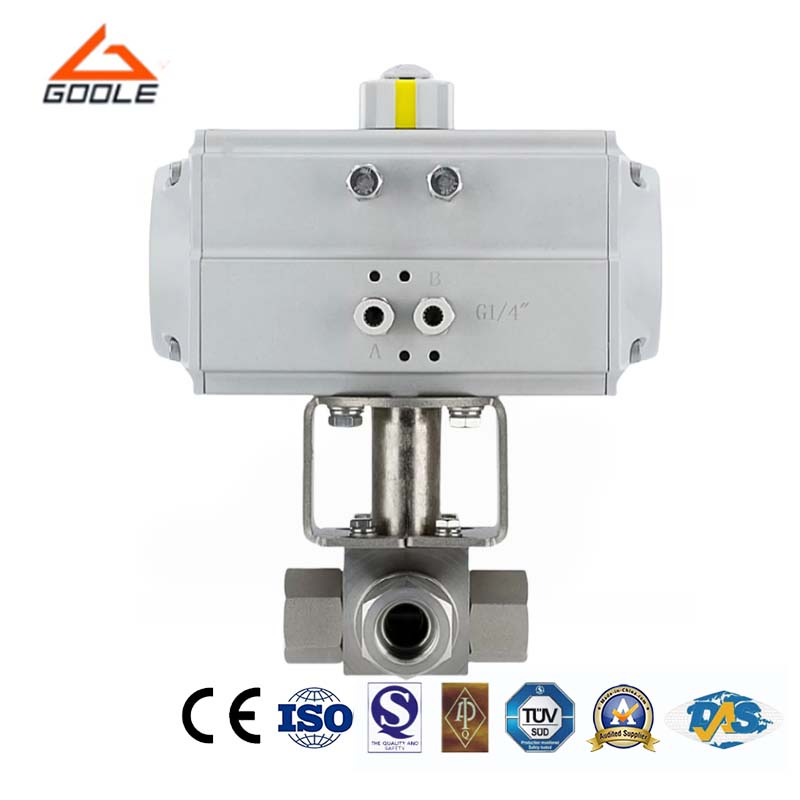

The pneumatic high-pressure three-way ball valve divides the valve body into three parts along a cross-section perpendicular to the valve channel axis at two valve seat positions. The entire valve is symmetrical along the central axis of the valve stem. It is mainly used to cut off, distribute, and change the direction of medium flow in pipelines. Its pivot structure accurately locates the center of the sphere under high pressure, and the valve has good operational performance. The electric actuator adopts an integrated structure and can directly adjust the switch value by inputting a 220V power supply. It can also be equipped with a built-in servo module, which can control operation by inputting control signals (4-20mADC or 1-5VDC) and single-phase power supply.
● Compact Structure: With low flow resistance, it operates efficiently in fluid control systems, thereby minimizing energy loss to the greatest extent possible.
● Easy to Operate: The switch features a unique spherical design that allows for quick opening and closing. Only a 90 degree rotation can significantly improve work efficiency.
● Good Sealing Performance: Advanced sealing materials and structures are used to ensure reliable sealing under various working conditions and prevent fluid leakage.
DN | Pipe Thread | size(mm) | Pipe Thread | size(mm) | |||||||
d | L | H | W | E | H | W | SW | L | |||
6 | 1/4 | 11 | 70 | 43 | 108 | 42.5 | - | - | - | - | 70 |
10 | 3/8 | 11 | 70 | 43 | 108 | 42.5 | - | - | - | - | - |
15 | 1/2 | 11 | 85 | 43 | 108 | 42.5 | 1/2 | 68 | 130 | 41 | 85 |
20 | 3/4 | 14 | 95 | 45.5 | 146 | 47.5 | 3/4 | 77 | 180 | 46 | 95 |
25 | 1 | 21 | 105 | 59.5 | 146 | 52.5 | 1 | 82 | 180 | 55 | 105 |
32 | 1 1 /4 | 25 | 120 | 64.5 | 146 | 60 | 1 1 /4 | 115 | 300 | 70 | 120 |
40 | 1 1 /2 | 32 | 130 | 76 | 254 | 65 | 1 1 /2 | 120 | 300 | 80 | 130 |
50 | 2 | 38 | 150 | 81 | 254 | 75 | 2 | 130 | 300 | 100 | 150 |
| STANDARD PRESSURE | 1000PSI |
SHELL PRESSURE TESTING | 10.4Mpa |
WATER SEAL TESTING | 7.6Mpa |
AIR SEAL TESTING | 0.4-0.7Mpa |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valve is made of high-quality materials, ensuring excellent durability and reliability. Our innovative design ensures precise and efficient fluid control, meeting the diverse needs of industrial applications. We are committed to providing comprehensive after-sales service to ensure that any problems you encounter during use can be promptly and effectively resolved. By choosing our three-way ball valve, you will experience excellent performance and worry free user experience.
