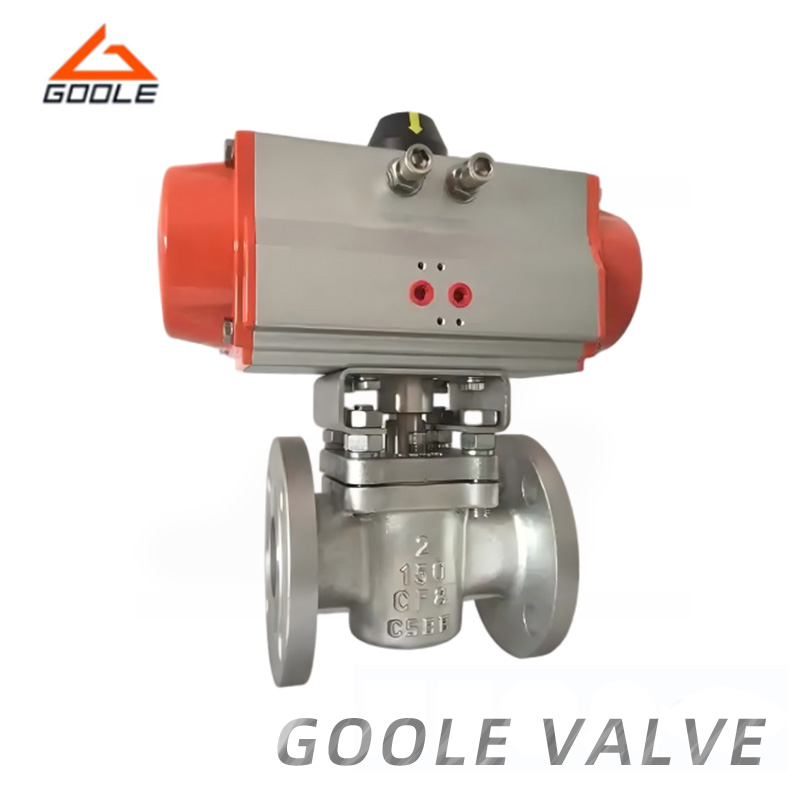

X643F plug valve is a rotary valve with a closure or plunger shape. It is a type of valve that opens or closes by rotating 90 degrees to make the channel port on the valve plug the same or separate from the channel port on the valve body. The shape of the valve plug of a rotary valve can be cylindrical or conical. In a cylindrical valve plug, the channel is generally rectangular; In a conical valve, the channel is trapezoidal. These shapes make the structure of the plug valve lightweight, but at the same time, they also result in certain losses. Plug valves are most suitable for cutting off and connecting media, as well as for diverting flow, but depending on their properties and the erosion resistance of the sealing surface, they can sometimes also be used for throttling.
A. The product has reasonable structure,reliable sealing,excelient performance and beautiful appearance
F. The materials of the parts and sizes of flanges can be reasonabnly configured according the actual operation aondition of the requirements of the customers,so as to meet the various needs of engineering.
Main Parts Material |
No. | Parts | Material |
1 | Body | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
2 | Ferrule Sealing | PTFE |
3 | Plug | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
4 | Gasket | Flexible Graphite + S.S. |
5 | Adjusting Gasket | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
6 | Bonnet | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
7 | Adjusting Bolt | ASTM A193-B7,A320-B8,A193-B8M |
8 | Hex Nut | ASTM A194-2H,A194-8,A194-8M |
9 | Bolt | ASTM A193-B7,A320-B8,A913-B8M |
10 | Lever | ASTM A105-WCB |
| DN(mm) | DN(mm) | ||||
| L | D | D1 | D2 | z-φd | |
| 15 | 80 | 80 | 55 | 40 | 4*12 |
| 20 | 90 | 90 | 65 | 50 | 4*12 |
| 25 | 100 | 100 | 75 | 60 | 4*12 |
| 32 | 115 | 120 | 90 | 70 | 4*14 |
| 40 | 130 | 130 | 100 | 80 | 4*14 |
| 50 | 145 | 140 | 110 | 90 | 4*14 |
| 65 | 160 | 160 | 130 | 110 | 4*14 |
| 80 | 200 | 185 | 150 | 125 | 4*18 |
| 100 | 230 | 205 | 170 | 145 | 4*18 |
| 125 | 250 | 235 | 200 | 175 | 8*18 |
| 150 | 320 | 260 | 225 | 200 | 8*18 |
| 200 | 350 | 315 | 280 | 255 | 8*18 |
Q:When should a plug valve be used?
The application scenarios of plug valves are well-defined, primarily occurring in situations where rapid on/off control of fluid pipelines is required or periodic flushing of pipeline impurities is necessary.
Q:What specific areas are involved?
For instance, pipelines in the petroleum and chemical industries that transport corrosive oils/gases or chemical slurries, as well as sewage conveyance lines handling wastewater containing sediment impurities, all require flushable plug valves with excellent sealing performance and erosion resistance for effective control.
The core advantage lies in its robust performance in adapting to complex working conditions. On the one hand, the pneumatic actuator has a fast response time, capable of completing switching actions within a short period of time, accurately matching the rapid control requirements for flow regulation and path on/off in industrial production. Furthermore, it can operate without continuous manual supervision, adapting to remote automation control scenarios and helping enterprises reduce labor operation costs. On the other hand, the plug structure has excellent sealing performance, and the valve body structure is simple and compact. Compared to other types of valves, it is less prone to being blocked by impurities in the fluid, and has good resistance to corrosive and particulate media. The maintenance and disassembly are simple, which can help enterprises extend equipment maintenance cycles, reduce additional losses from downtime maintenance, and achieve lower overall usage costs.
