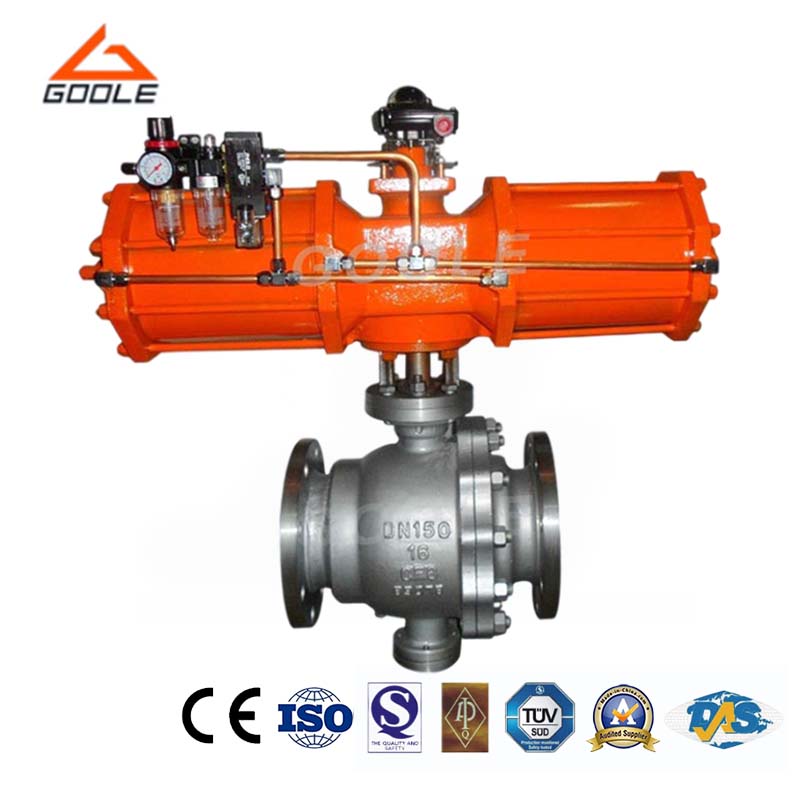

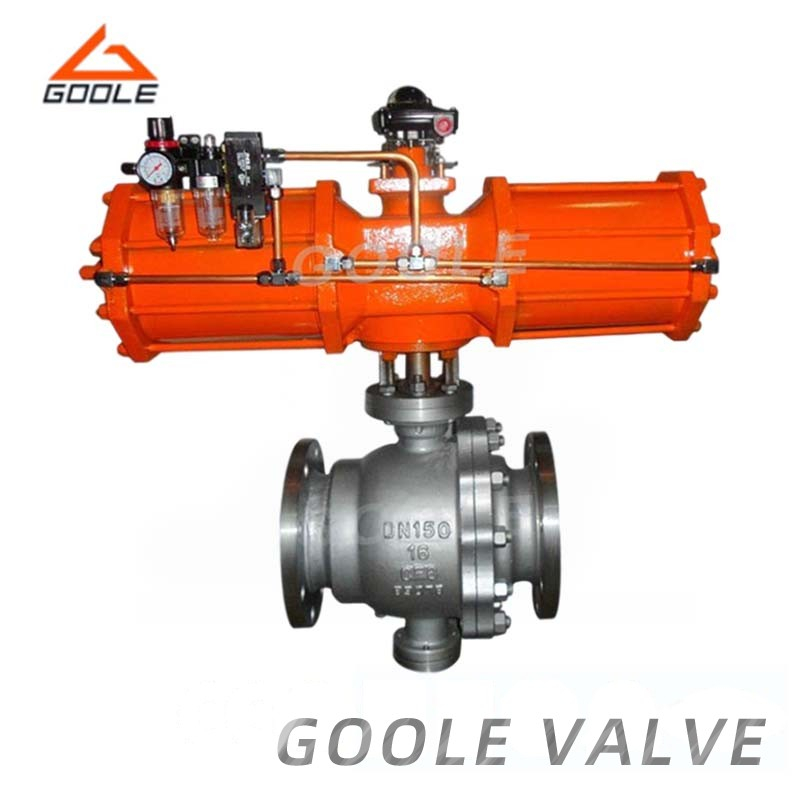

3 PCS pneumatic drive forged steel ball valve combines the durability of forged steel and the precise control of pneumatic drive, which is suitable for reliable flow management requirements in high pressure environment. The valve adopts float ball design, which can be automatically adjusted according to the medium flow to ensure consistent sealing performance and stable operation process without fluctuation.
The pneumatic actuator enables automatic and precise control of fluid flow, significantly reducing the demand for manual operation, thus improving the operation efficiency of the pipeline system. In addition, valves have rapid and reliable opening and closing capabilities, especially suitable for industries that need rapid regulation of fluid flow, such as chemical treatment, water treatment and oil and gas fields.
● Pneumatic Actuation:Allow precise, automatic control of fluid flow, reduce the need for manual intervention and improve system automation.
● Shear Force Resistance:The V-incision metal seat design allows the valve to handle fiber and small solid particles, such as pulp, without compromising sealing performance, ensuring smooth operation even with challenging media.
● Precise Flow Control:Providing precise conditioning and reliable positioning, the valve features approximately the same flow percentage, enabling precise control of flow with an impressive adjustable ratio of 100:1 for versatile applications.
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC |
| Soft Seal | -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on. |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Nominal diameter DN, Rated flow coefficient Kv, Allowable pressure difference.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| TYPE | TRUNNION BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500(1.6MPa--42.0MPa) |
| CONNECTION | THREADED, WELDED,FLANGE END | FUCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL,PNEUMATIC,ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| PRODUCTION CAPACITY | 1000000PCSNEAR | PACKAGE | PLYWOOD CASE |
| WARRANTY PERIOD | 12 MONTHS | TRADE MARK | GOOLE,OEM |
| ORIGIN | WENZHOU ZHEJIANG | HS CODE | 84819090 |
Q:What is the advantage of bi-directional sealing?
Bidirectional sealing ensures that the valve can operate effectively under both forward and reverse flow conditions, preventing fluid leakage and ensuring system safety.
Q:What are the actuation options available for this valve?
The valve can be equipped with pneumatic, electric, or manual actuators, offering flexibility depending on your application needs.
Q:How does the floating ball design improve the valve’s performance?
The float design can automatically adjust the flow rate to ensure optimal sealing and smooth operation, preventing leakage under fluctuating pressure conditions.
Three piece pneumatic forged steel ball valve is an ideal choice for high-pressure pipeline systems, which can achieve efficient fluid regulation and precise flow control. This valve adopts a pneumatic drive mechanism, which can quickly open and close, and has bidirectional sealing function, providing excellent performance and flexibility for various industrial applications. Our team is committed to providing customized solutions for your specific needs, ensuring that your pipeline system achieves optimal performance and maintains long-term reliability.
