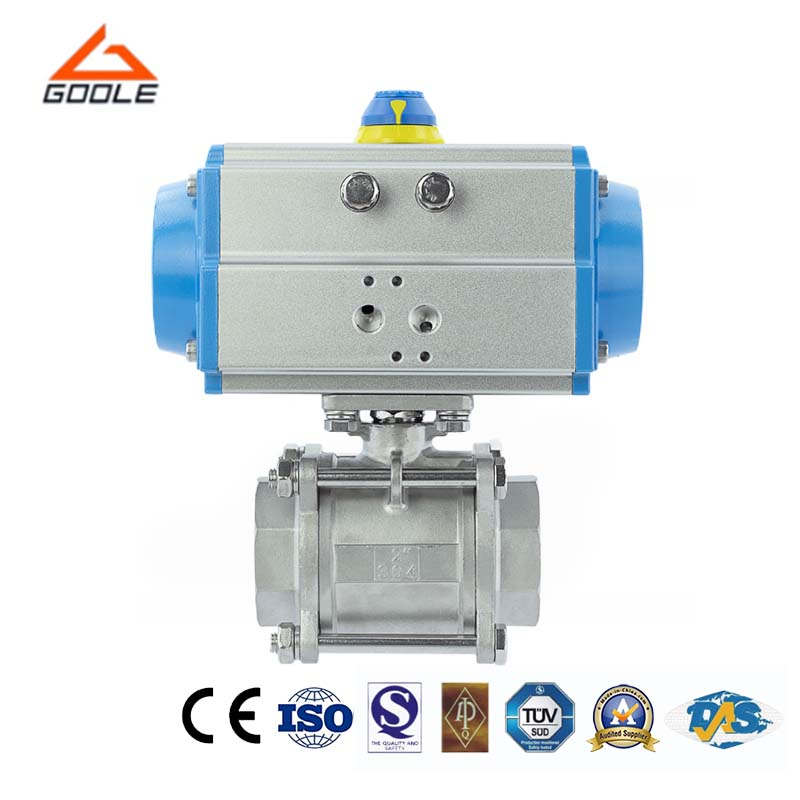

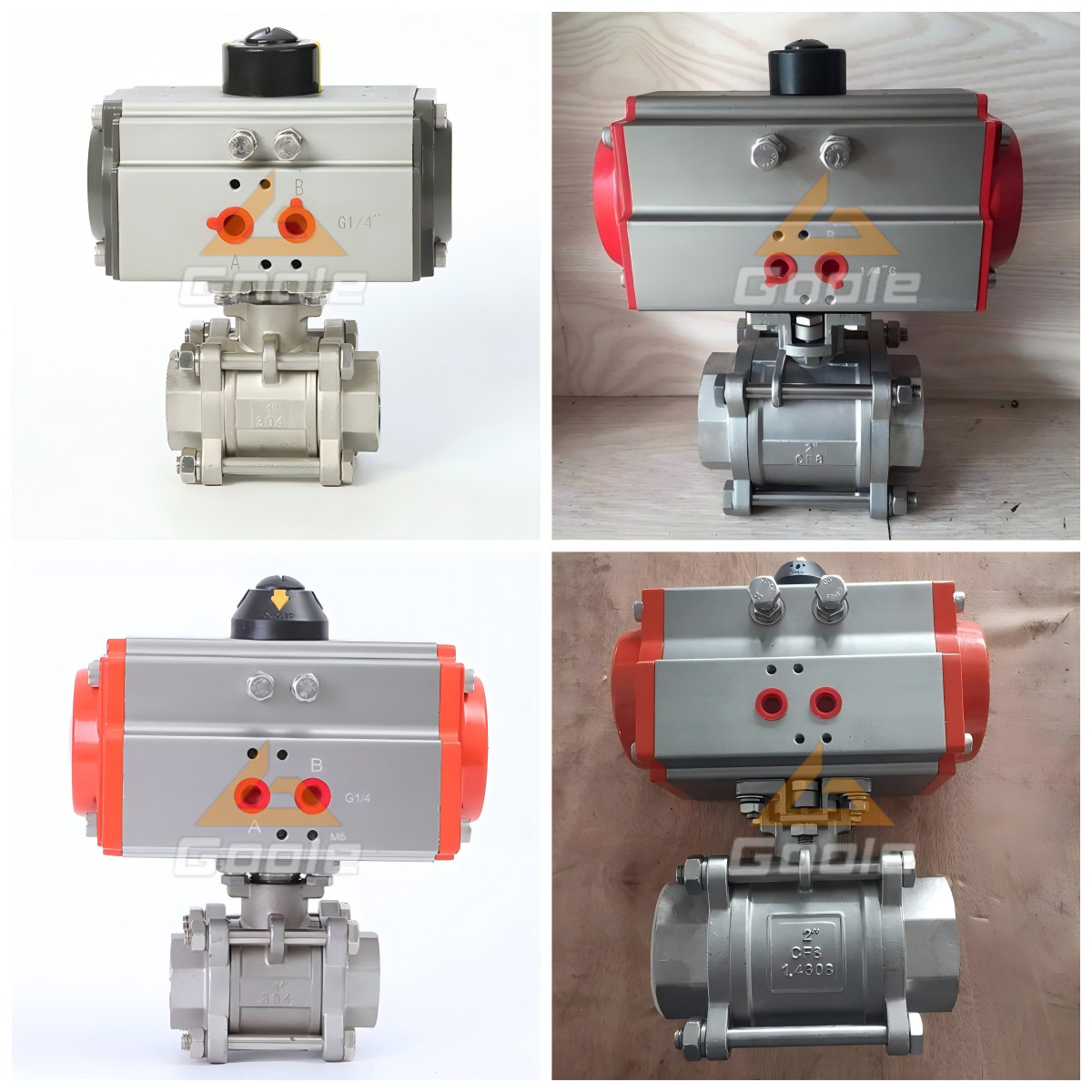

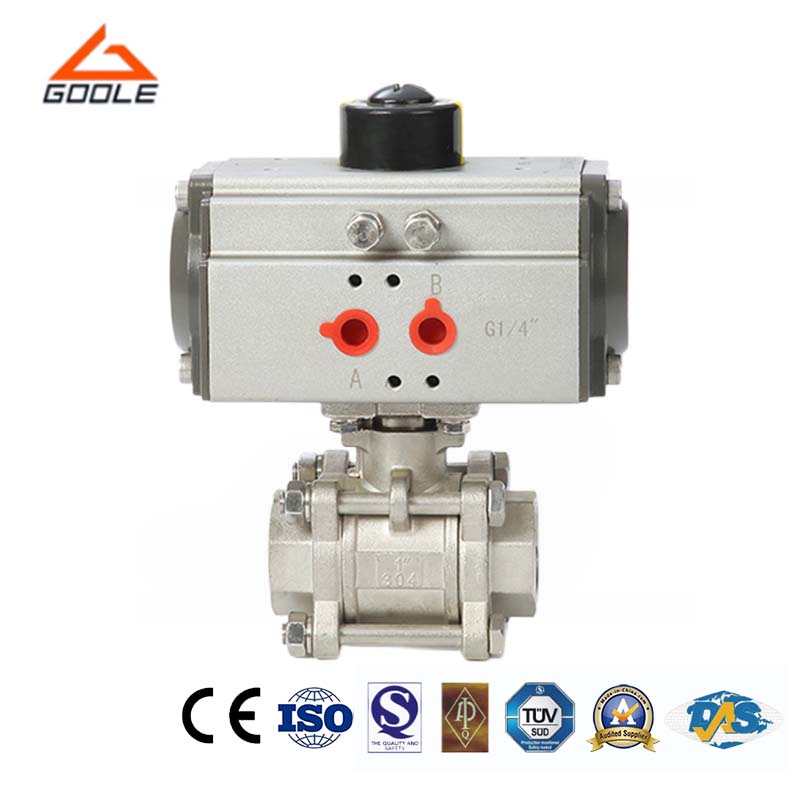

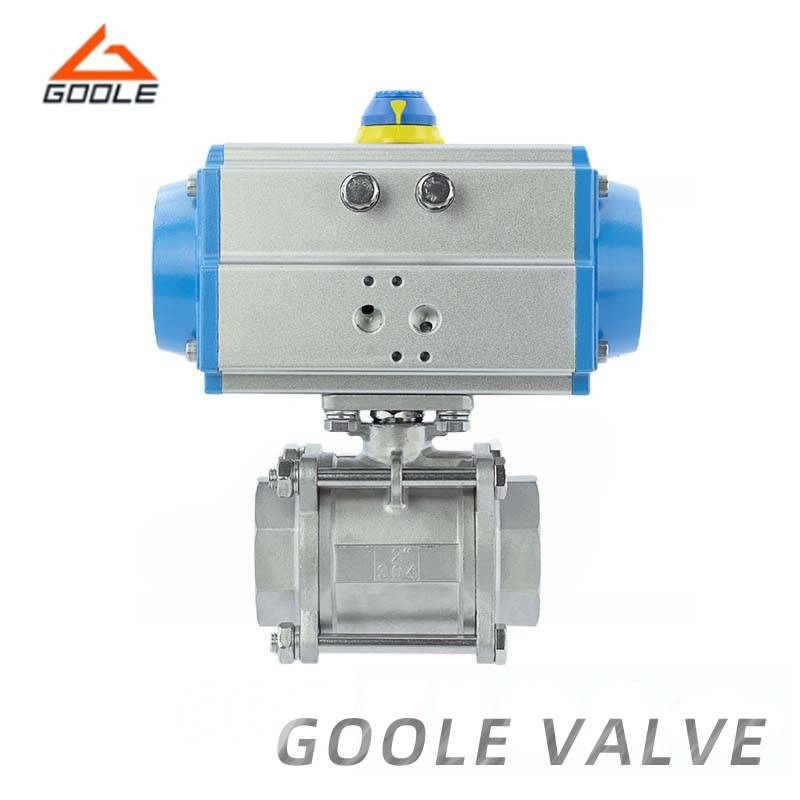

Pneumatic threaded ball valve is a type of ball valve controlled by pneumatic actuators, which is suitable for regulating and controlling media in pipelines. Its uniqueness lies in the use of external threaded connections, which are typically suitable for low-pressure and small-diameter pipeline environments. This valve consists of key components such as a ball, valve seat, sealing ring, valve stem, and pneumatic actuator. The spherical part has excellent sealing performance, which can ensure the sealing of the medium during transmission and prevent leakage.
● High Efficiency: Our pneumatic internal thread ball valve adopts advanced design to ensure fast and accurate fluid control, improving production efficiency.
● High Quality Materials: Made of high-quality stainless steel and alloy materials, the valve ensures stable operation in various harsh environments and extends its service life.
● Easy to Maintain: The structural design is reasonable, easy to disassemble and clean, reducing maintenance costs and downtime.
● Safe and Reliable: Through strict testing and quality control, the valve is ensured to be safe and reliable in high-pressure and high-temperature environments, ensuring production safety.
| NO. | PART NAME. | MATERIAL | QTY. |
| 1 | BODY | CF8M | 1 |
| 2 | BONNET | CF8M | 1 |
| 3 | BALL | SS316 | 1 |
| 4 | SEAT | PTFE/RPTFE | 2 |
| 5 | GASKET | PTFE | 2 |
| 6 | STEAM SEAL | PTFE/RPTFE | 1 |
| 7 | STEM | SS316 | 1 |
| 8 | PACKING | PTFE | 1 |
| 9 | PACKING GLAND | SS304 | 1 |
| 10 | BELLEVILE WASHER | SS301 | 2 |
| 11 | SPRING WASHER | SS301 | 1 |
| 12 | PIN NUT | SS304 | 2 |
| 13 | HANDLE SLEEVE | SS304 | 1 |
| 14 | SPRING WASHER | SS301 | 1 |
| 15 | HANDLE | SS304 | 1 |
| 16 | STOP PIN | SS304 | 1 |
| 17 | NUT | SS304 | 1 |
| 18 | LOCKING DEVICE | SS304 | 1 |
Dimension List.
| NPS | d | E | d1 | d2 | F | G | H | H1 | H2 | L | W | ISO5211(K/1) |
| 1/4" | 11.5 | 139 | 6 | 6 | 9 | 1/4"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 3/8" | 12.5 | 139 | 6 | 6 | 9 | 3/8"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 1/2" | 15 | 139 | 6 | 6 | 9 | 1/2"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 16 | F03/F04 |
| 3/4" | 20 | 139 | 6 | 6 | 9 | 3/4"NPT/BSP | 46.15 | 7.1 | 80.15 | 74.6 | 17 | F03/F04 |
| 1" | 25 | 165 | 6 | 7 | 11 | 1"NPT/BSP | 56.6 | 10.9 | 95.4 | 88.5 | 21 | F04/F05 |
| 1-1/4" | 32 | 165 | 6 | 7 | 11 | 1-1/4"NPT/BSP | 61.0 | 10.9 | 99.8 | 102 | 22 | F04/F05 |
| 1-1/2" | 38 | 215 | 7 | 9 | 14 | 1-1/2"NPT/BSP | 77.5 | 13.9 | 126.3 | 110 | 22.5 | F05/F07 |
| 2" | 49 | 215 | 7 | 9 | 14 | 2"NPT/BSP | 85.2 | 139.9 | 134 | 125 | 24 | F05/F07 |
| 2-1/2" | 65 | 263 | 10 | 12 | 17 | 2-1/2"NPT/BSP | 108.7 | 16.8 | 166.7 | 160.6 | 31 | F07/F10 |
| 3" | 80 | 263 | 10 | 12 | 17 | 3"NPT/BSP | 117.4 | 18.1 | 175.4 | 178 | 34 | F07/F10 |
| Nominal Diameter | 1/2"-8" |
| Nominal pressure | Class 150 ~ 600 LB |
| Temperature | -20ºC~250ºC |
| Connecting type | flange , wafer |
| Material | SS, CS |
| Driving means | manual, pneumatic, wore gear, electric |
| Applicable medium | Heavy oil , glue and other easy-clotting medium |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The design of valves is based on their unique structure and actuator. The core component is a ball with holes that can rotate freely inside the valve body. When the pneumatic actuator receives a control signal, it uses the power provided by the air source to drive the rotation of the ball. The rotation angle of the ball is usually 90 degrees. Once the ball rotates to align with the valve channel, the valve will fully open, ensuring smooth fluid flow; On the contrary, when the ball rotates perpendicular to the valve channel, the valve is completely closed, effectively blocking the flow of fluid.
Our pneumatic internally threaded ball valve boasts superior flow control performance, capable of meeting the stringent requirements for precise fluid control in various process flows, thereby enhancing product quality. Through optimized design, we have significantly reduced fluid resistance, lowered energy consumption, and met environmental standards, supporting companies in their transition to green production. We offer a variety of specifications and configuration options to suit different application scenarios and provide customized solutions. Additionally, we have a professional technical team that can offer comprehensive pre-sales consultation, installation and commissioning, as well as after-sales service, ensuring customers use our products with peace of mind.
