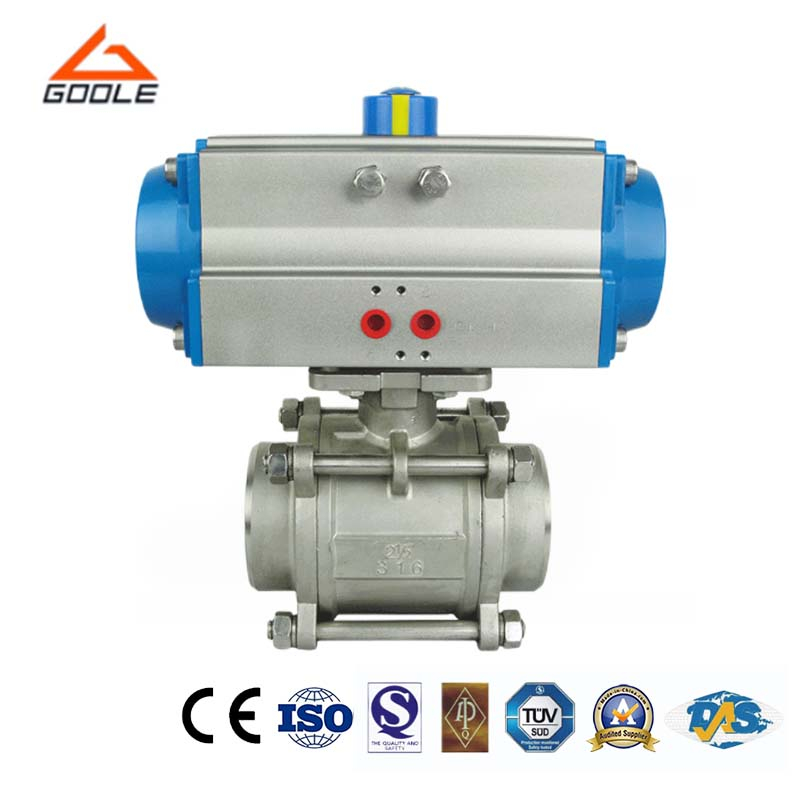

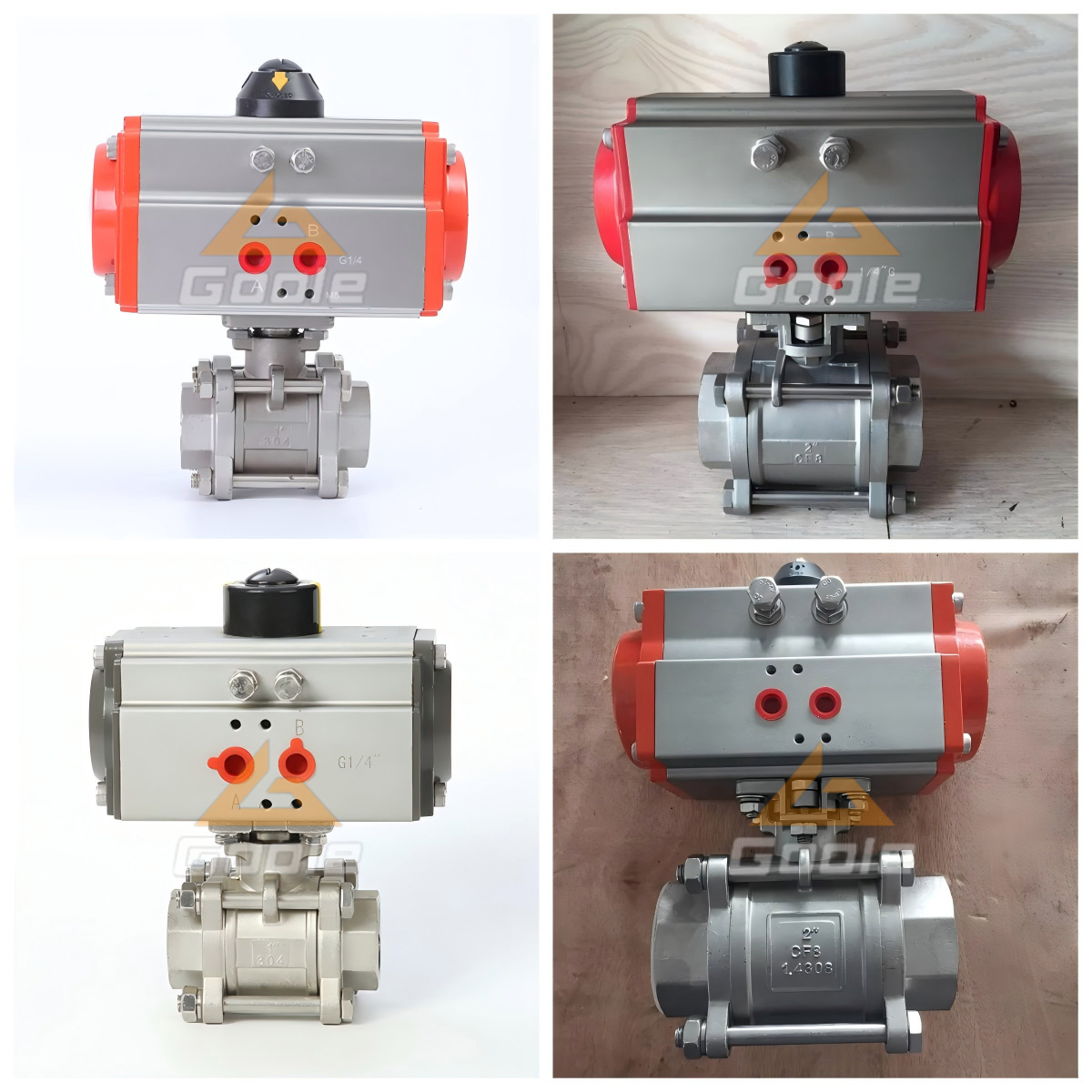

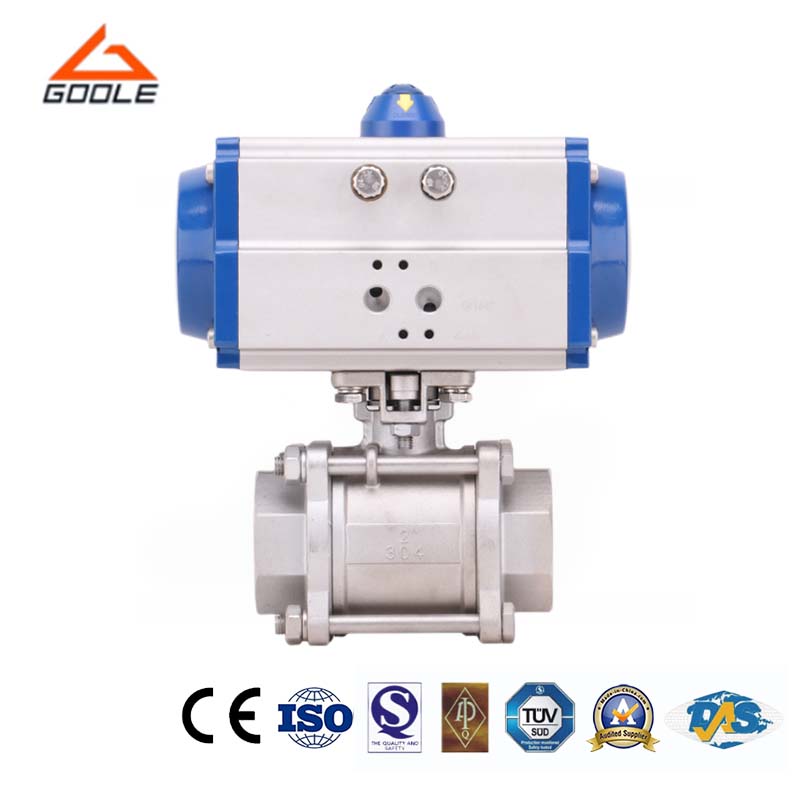

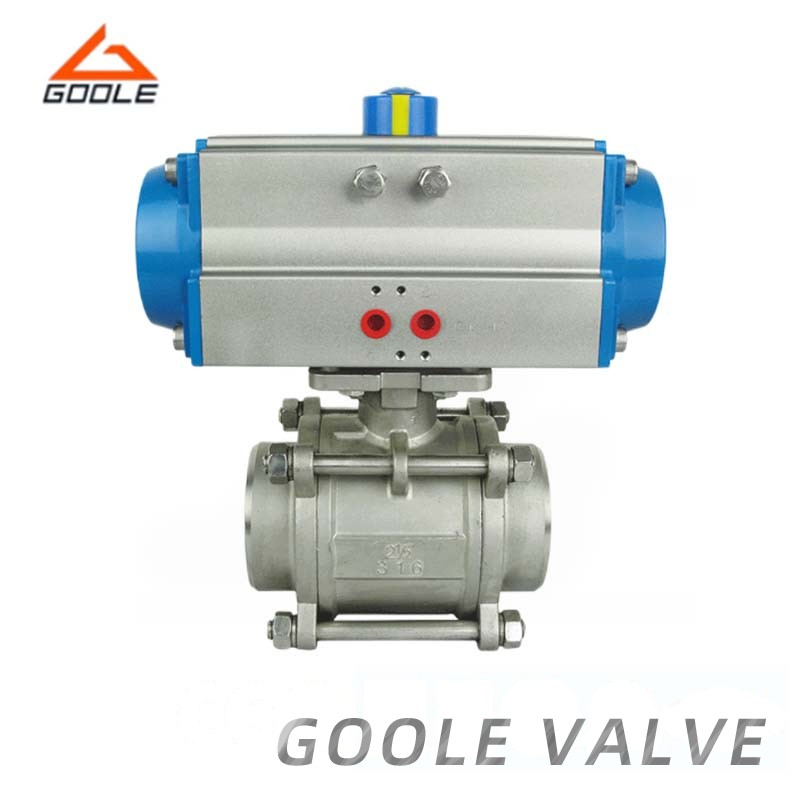

The pneumatic 3PCS forged stainless steel threaded ball valve is an automatic on-off control valve driven by pneumatic actuator. Adopting integrated three-piece forged split structure, it adopts NPT or BSP internal thread connection, designed for small-bore, low-pressure industrial pipeline working conditions.
The whole valve is made of anti-corrosion stainless steel material, equipped with wear-resistant PTFE series sealing parts, which can realize tight medium sealing without leakage. Relying on air source power, the valve core rotates 90° to complete fast opening and closing, which can stably transport and control heavy oil, glue, tiny solid particles, coal ash, petroleum gas and easy-clotting mixed medium. It is applicable for chemical, petroleum, textile and metallurgy pipeline automatic control systems.
● High Efficiency Control: Pneumatic air-driven design realizes fast 90° switch, accurate fluid cut-off and adjustment, greatly improving pipeline operation efficiency.
● Premium Forged Material: Forged CF8M/316 stainless steel body, anti-rust, anti-corrosion, adapt to harsh wet chemical working environment.
● Easy Maintenance: 3PCS split detachable structure, convenient to disassemble, clean internal dirt and replace sealing parts, lower downtime cost.
● Stable Safety Performance: Finished valve passed high-pressure air tightness test, stable operation under high temperature and rated pressure, safe for flammable oily medium.
● Diversified Connection & Drive: Support thread/flange connection; match pneumatic, electric, manual and worm gear driving modes for option.
| NO. | PART NAME. | MATERIAL | QTY. |
| 1 | BODY | CF8M | 1 |
| 2 | BONNET | CF8M | 1 |
| 3 | BALL | SS316 | 1 |
| 4 | SEAT | PTFE/RPTFE | 2 |
| 5 | GASKET | PTFE | 2 |
| 6 | STEAM SEAL | PTFE/RPTFE | 1 |
| 7 | STEM | SS316 | 1 |
| 8 | PACKING | PTFE | 1 |
| 9 | PACKING GLAND | SS304 | 1 |
| 10 | BELLEVILE WASHER | SS301 | 2 |
| 11 | SPRING WASHER | SS301 | 1 |
| 12 | PIN NUT | SS304 | 2 |
| 13 | HANDLE SLEEVE | SS304 | 1 |
| 14 | SPRING WASHER | SS301 | 1 |
| 15 | HANDLE | SS304 | 1 |
| 16 | STOP PIN | SS304 | 1 |
| 17 | NUT | SS304 | 1 |
| 18 | LOCKING DEVICE | SS304 | 1 |
| NPS | d | E | d1 | d2 | F | G | H | H1 | H2 | L | W | ISO5211(K/1) |
| 1/4" | 11.5 | 139 | 6 | 6 | 9 | 1/4"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 3/8" | 12.5 | 139 | 6 | 6 | 9 | 3/8"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 1/2" | 15 | 139 | 6 | 6 | 9 | 1/2"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 16 | F03/F04 |
| 3/4" | 20 | 139 | 6 | 6 | 9 | 3/4"NPT/BSP | 46.15 | 7.1 | 80.15 | 74.6 | 17 | F03/F04 |
| 1" | 25 | 165 | 6 | 7 | 11 | 1"NPT/BSP | 56.6 | 10.9 | 95.4 | 88.5 | 21 | F04/F05 |
| 1-1/4" | 32 | 165 | 6 | 7 | 11 | 1-1/4"NPT/BSP | 61.0 | 10.9 | 99.8 | 102 | 22 | F04/F05 |
| 1-1/2" | 38 | 215 | 7 | 9 | 14 | 1-1/2"NPT/BSP | 77.5 | 13.9 | 126.3 | 110 | 22.5 | F05/F07 |
| 2" | 49 | 215 | 7 | 9 | 14 | 2"NPT/BSP | 85.2 | 139.9 | 134 | 125 | 24 | F05/F07 |
| 2-1/2" | 65 | 263 | 10 | 12 | 17 | 2-1/2"NPT/BSP | 108.7 | 16.8 | 166.7 | 160.6 | 31 | F07/F10 |
| 3" | 80 | 263 | 10 | 12 | 17 | 3"NPT/BSP | 117.4 | 18.1 | 175.4 | 178 | 34 | F07/F10 |
| Nominal Diameter | 1/2"-8" |
| Nominal pressure | Class 150 ~ 600 LB |
| Temperature | -20ºC~250ºC |
| Connecting type | flange , wafer |
| Material | SS, CS |
| Driving means | manual, pneumatic, wore gear, electric |
| Applicable medium | Heavy oil , glue and other easy-clotting medium |
Forged Integrated Body: One-piece forged molding, higher density than cast valve, pressure-resistant and crack-proof for long-term pipeline use.
3PCS Split Detachable Structure: No need to remove whole pipeline, directly disassemble valve body to clean dirt, greatly save maintenance time.
Universal Pneumatic Mounting: Standard ISO5211 actuator bracket, compatible with mainstream pneumatic actuator, easy replacement.
Anti-blocking Flow Passage: Straight-through flow channel design, low fluid resistance, not easy to jam for sticky and clotting medium.
Full Corrosion Resistance: 316 ball and stem match PTFE seal, resist weak acid, alkali and oily medium corrosion, extend service life.
This pneumatic threaded ball valve is widely used in petrochemical plants, textile factories, metallurgical workshops, sewage treatment stations and small-bore oil-gas pipelines. It is specially customized for automatic on-off control of easy-clotting, granular, oily and corrosive mixed medium, ideal for low-pressure small caliber pipeline automation projects.
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
The design of the valve is based on its unique structure and the drive mechanism of the pneumatic actuator. Its core component is a sphere with holes that can rotate freely inside the valve body. When the pneumatic actuator receives a control signal, it uses the power supplied by an air source to drive the rotation of the sphere. The rotation angle of the sphere is typically 90 degrees. Once the sphere rotates to align with the valve passage, the valve opens fully, ensuring smooth fluid flow; conversely, when the sphere rotates to be perpendicular to the valve passage, the valve closes completely, effectively blocking the flow of fluid.
Three-piece split body can be disassembled without removing pipeline, convenient to clean sticky medium residue, lower later maintenance cost than two-piece valve.
Yes. Adopt high temperature resistant PTFE sealing parts, it can operate stably under max 250℃ medium temperature within rated pressure.
Our pneumatic internal thread ball valve boasts superior flow control performance, capable of meeting the stringent requirements for precise fluid control in various process flows, thereby enhancing product quality. Through optimized design, we have significantly reduced fluid resistance, lowered energy consumption, and met environmental standards, supporting companies on their journey towards green production. We offer a variety of specifications and configuration options to meet the needs of different application scenarios, providing customized solutions. Additionally, we have a professional technical team that can offer comprehensive pre-sales consultation, installation and commissioning, as well as after-sales service, ensuring worry-free use for our customers.
