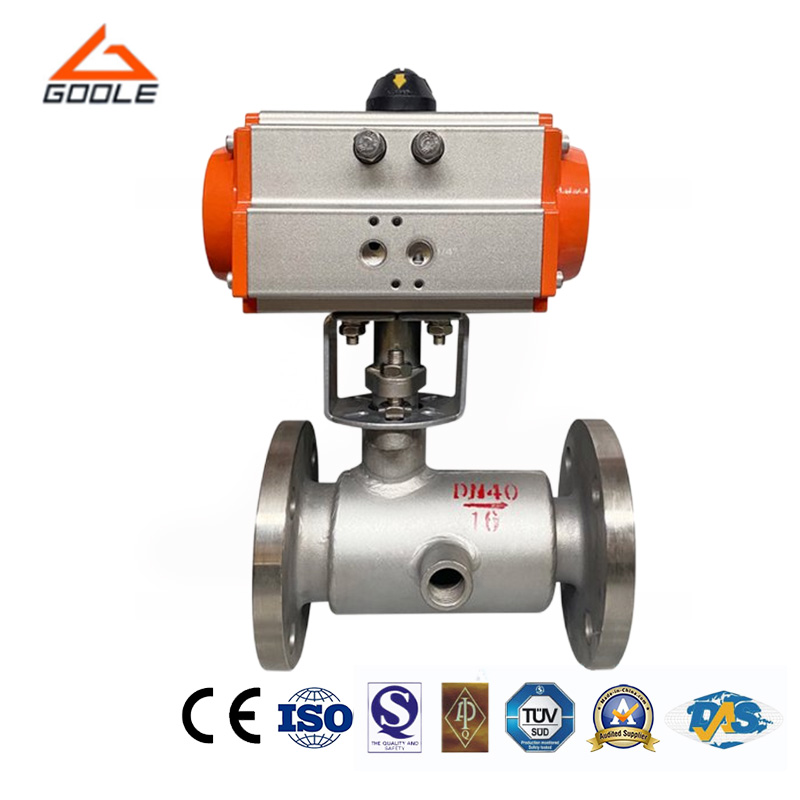

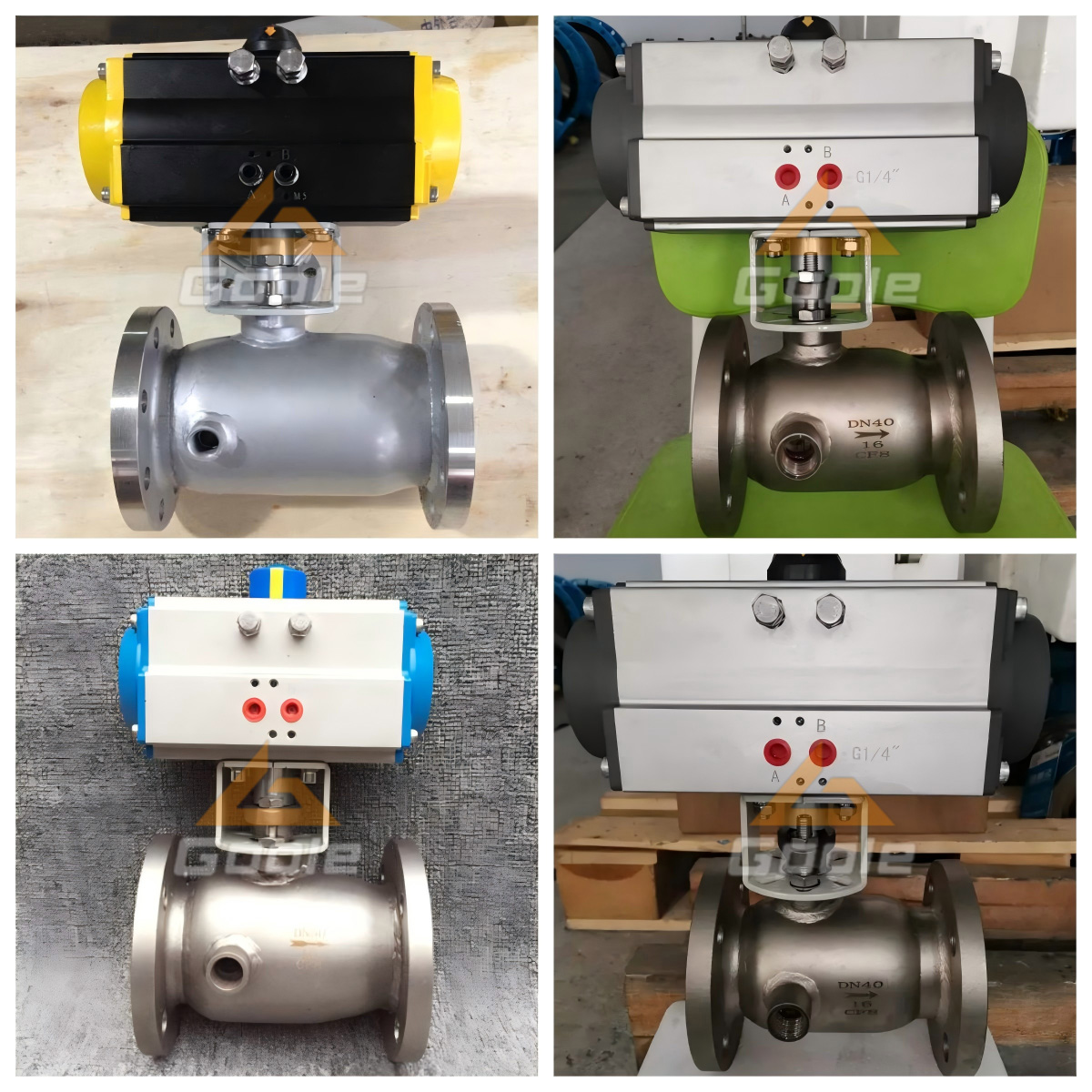

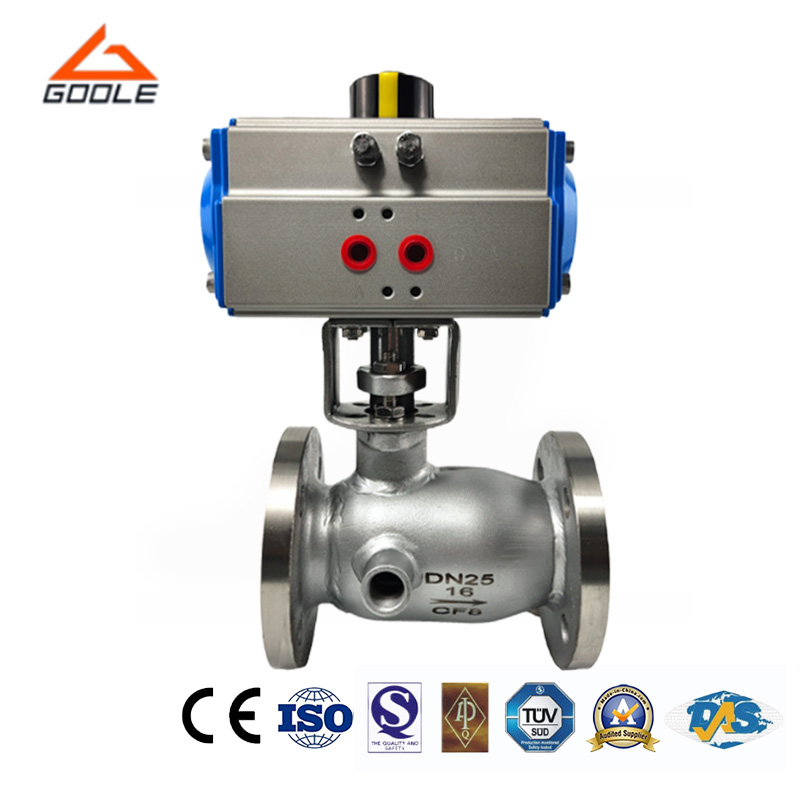

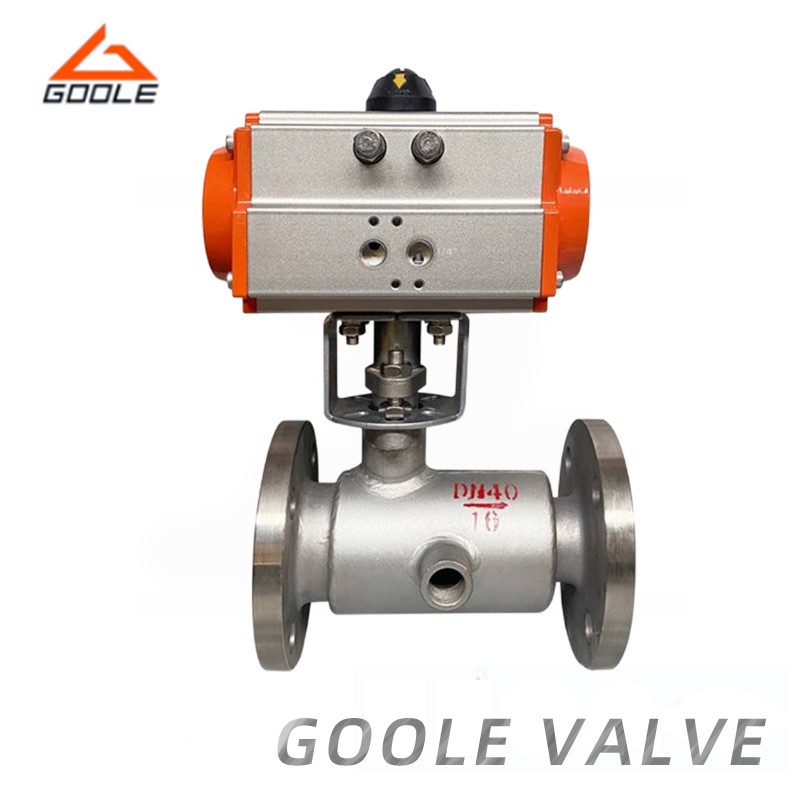

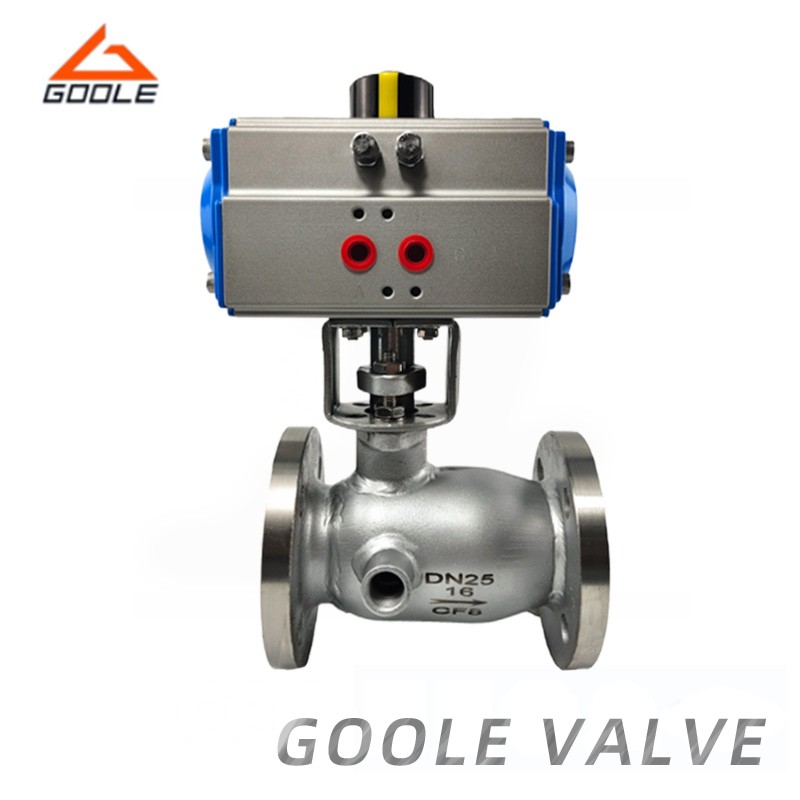

Pneumatic 1PC Integrated Body Flanged Ends Insulation Jacketed Ball valve is a special type of insulated ball valve, belonging to the same category as flange gate valve. Its uniqueness lies in its closing mechanism, which uses a sphere to rotate around the centerline of the valve body to complete the opening and closing actions. Ball valves are mainly used in pipeline systems to achieve isolation, distribution, and redirection of medium flow. In recent years, two-piece and three piece ball valves have been widely used as new types of valves. These valves are usually recommended to be installed horizontally in pipelines.
● Small Flow Resistance: The flow resistance is small, and its resistance coefficient is equal to the resistance coefficient of the same length of pipe section.
● Tight and Reliable: Currently, plastic is widely used as the sealing surface material for ball valves, with good sealing performance, and is also widely used in vacuum systems.
● Easy to Operate: Quickly open and close, only 90 degrees from fully open to fully closed, easy to remotely control.
● Easy Maintenance: The ball valve has a simple structure, a movable sealing ring, and is easy to disassemble and install.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The valve is driven by a pneumatic actuator and achieves the flow or cutoff of the medium through the rotation of a ball. Upon receiving an air signal, the internal piston or diaphragm generates thrust, pushing the ball to rotate within a 90-degree range. When the ball rotates perpendicular to the pipeline axis, the valve closes, thus cutting off the medium; when the ball rotates parallel to the pipeline axis, the valve opens, allowing the medium to flow. Additionally, it is equipped with an insulation sleeve.
The pneumatic integrated insulated sleeve ball valve is made from high-quality materials to ensure its excellent durability and reliability. Its unique design guarantees stable performance even under extreme temperature conditions, effectively preventing the medium from freezing or vaporizing due to temperature differences, thus ensuring smooth operation of production lines. The valve is equipped with an integrated pneumatic actuator, making it easy and quick to operate, significantly improving work efficiency. Both manual and automatic control can be easily achieved, meeting the needs of different users. By choosing our pneumatic integrated insulated sleeve ball valve, you will obtain a high-performance, easy-to-operate, and energy-saving ideal valve product.
