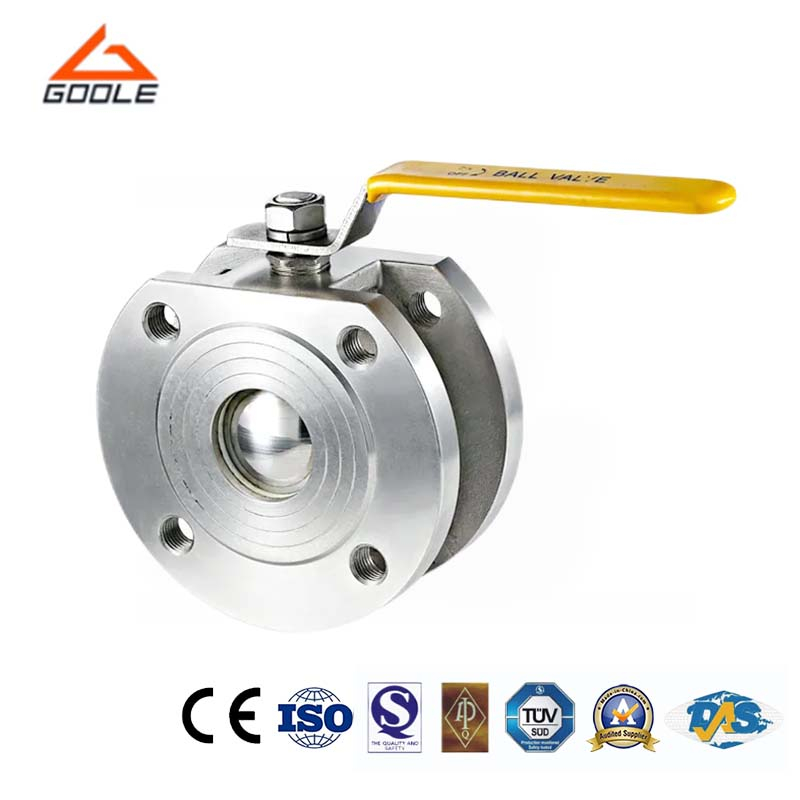

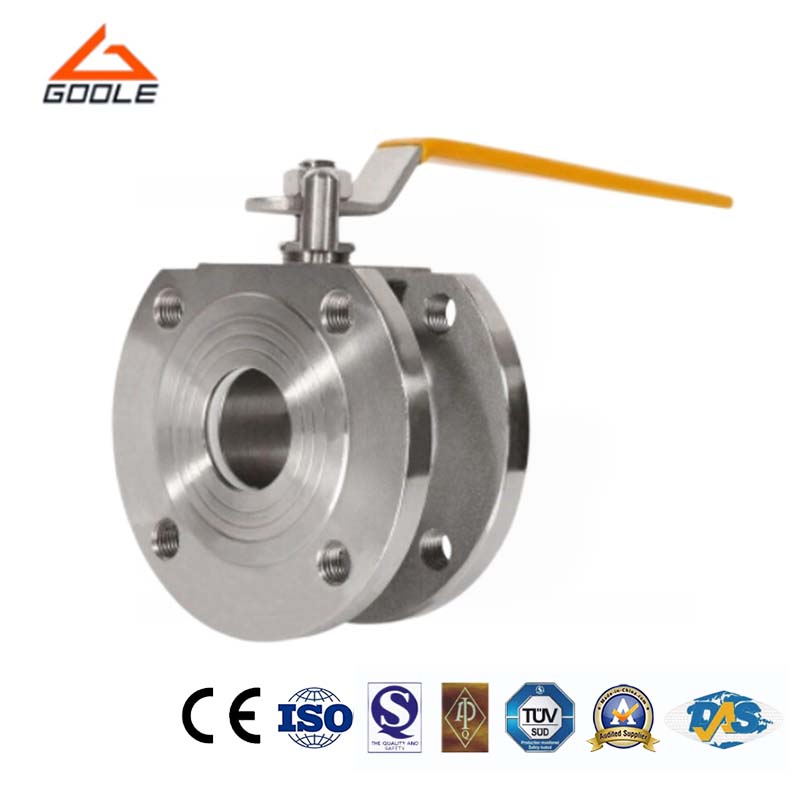

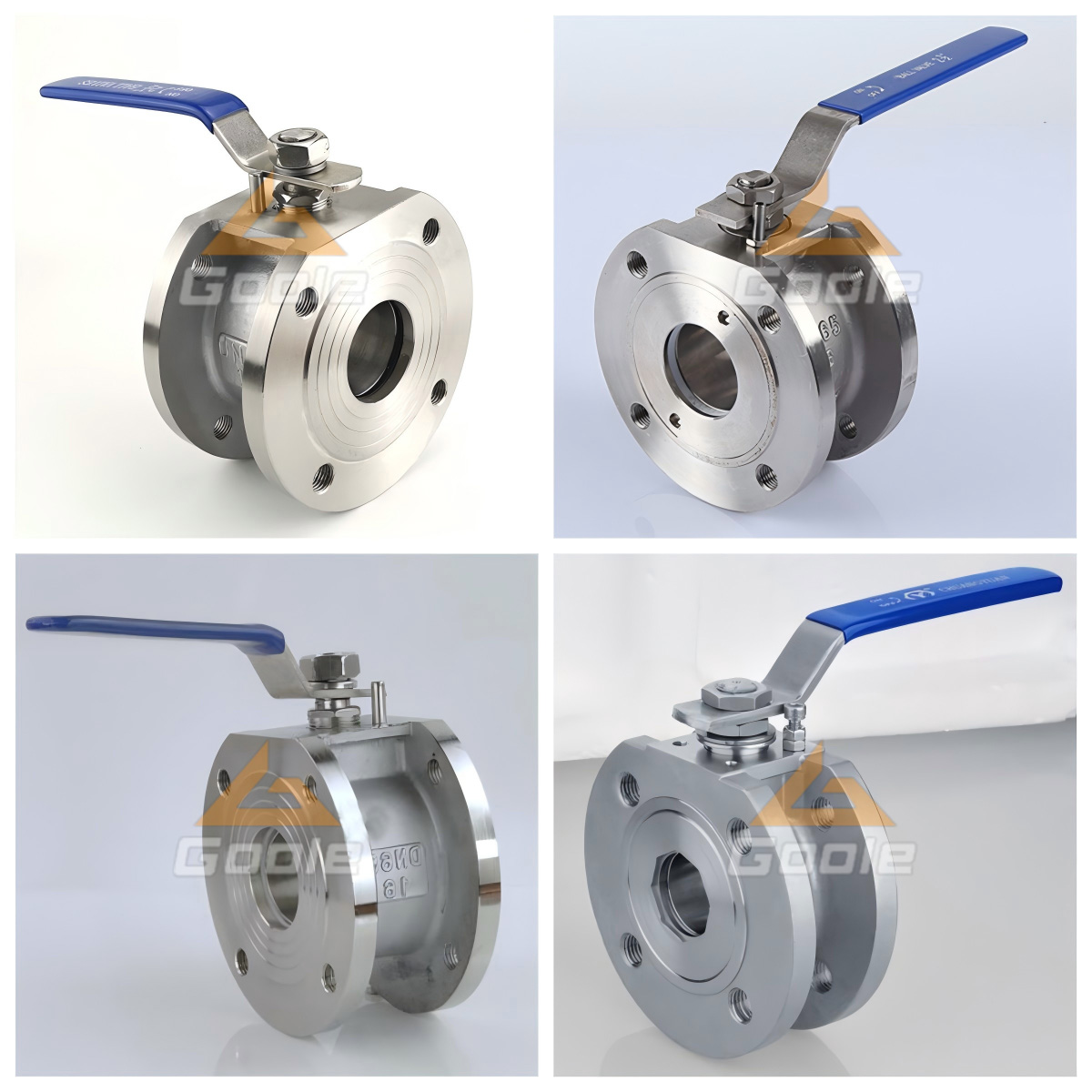

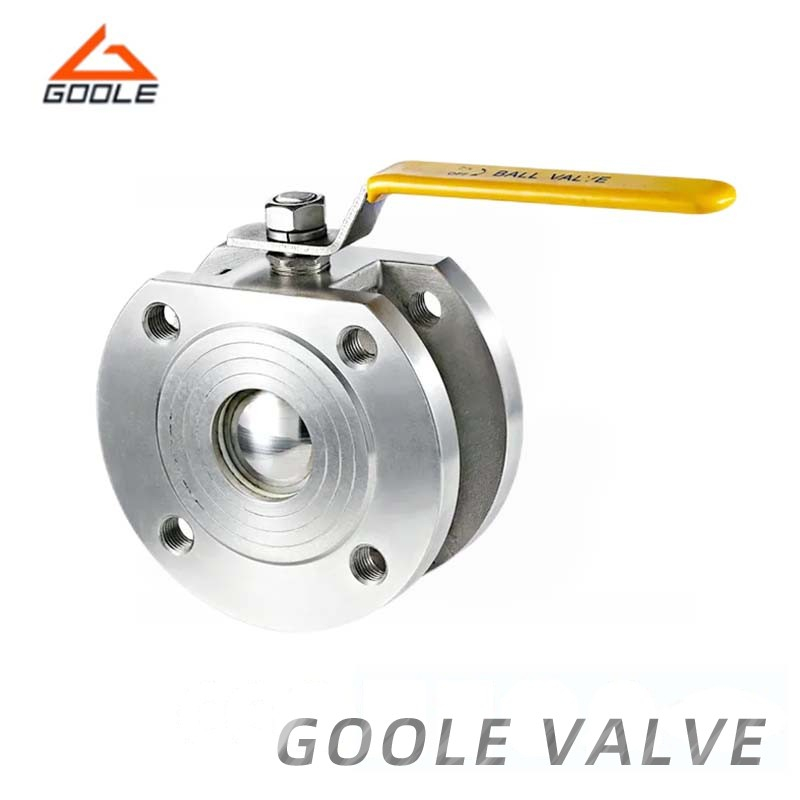

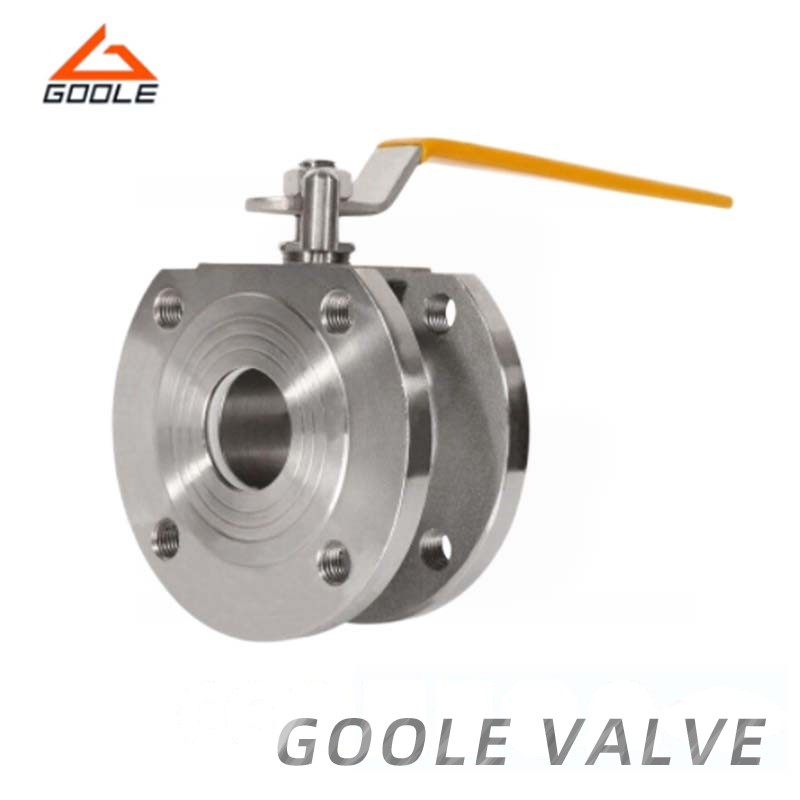

The Wafer ball valve has a simple structure, small volume, and light weight, and is only composed of a few parts. And it can be quickly opened and closed by rotating 90 °, with simple operation, and the valve has good fluid control characteristics.
● Compact Structure: Wafer type ball valves with a compact structure, small volume, light weight, good sealing performance, flexible open and close.
● Easy Operation: Wafer type ball valve can be installed on the corresponding electric and pneumatic devices to achieve remote or automatic control.
● Wide Application: Widely Used in petroleum, chemical, metallurgy, pharmaceutical, food and other types of systems.

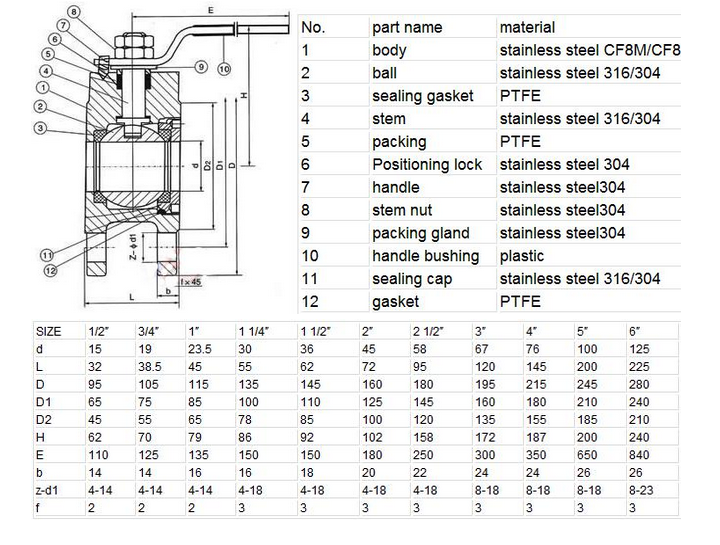

| Model | GAQ71F |
| Nominal diameter | DN15-DN150 |
| Nominal pressure | 1.6Mpa - 2.5Mpa |
| Working temperature | -20~232 ~350 degree Celsius |
| Connection type | wafer type |
| Material | CF8, CF8M, CF3, CF3M, WCB, etc |
| Applicable medium | water, oil, steam, Nitric acid, Acetate acid and some corrosive liquids |
| Driving means | manual ,electric, pneumatic |
| Design Standard | ANSI, JIS, DIN |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
We manufacture high-quality stainless steel for the clamp ball valve to ensure its durability and reliability. The product is uniquely designed, compact in structure, and easy to install, significantly saving installation time and space. Our ball valves have excellent sealing performance, effectively preventing medium leakage and ensuring safe system operation. We offer comprehensive after-sales service, providing timely responses and professional solutions for both technical support and maintenance.
