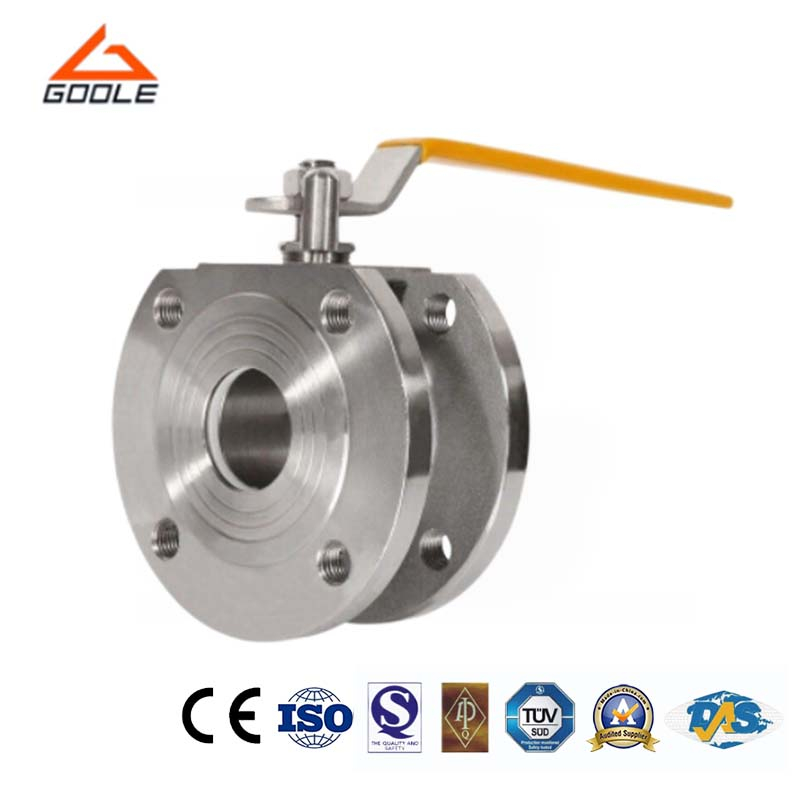

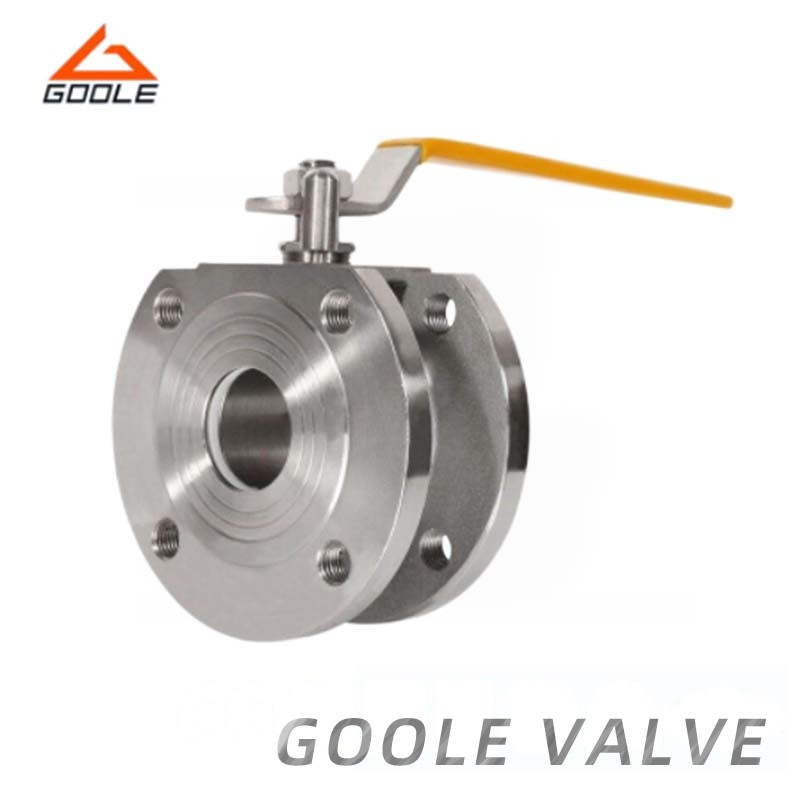

The wafer ball valve has a simple structure, small volume, light weight, and is composed of only a few parts. The valve can be quickly opened and closed by rotating 90 °, with simple operation and good fluid control characteristics.
● Compact Structure: Wafer type ball valve has a compact structure, small volume, light weight, good sealing performance, and flexible opening and closing.
● Easy Operation: Wafer type ball valve can be installed on the corresponding electric and pneumatic devices to achieve remote or automatic control.
● Wide Application: Widely used in various systems such as petroleum, chemical, metallurgical, pharmaceutical, food, etc.
| Model | GAQ71F |
| Nominal diameter | DN15-DN150 |
| Nominal pressure | 1.6Mpa - 2.5Mpa |
| Working temperature | -20~232 ~350 degree Celsius |
| Connection type | wafer type |
| Material | CF8, CF8M, CF3, CF3M, WCB, etc |
| Applicable medium | water, oil, steam, Nitric acid, Acetate acid and some corrosive liquids |
| Driving means | manual ,electric, pneumatic |
| Design Standard | ANSI, JIS, DIN |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
We manufacture high-quality stainless steel for wafer ball valves to ensure their durability and reliability. This product has a unique design, compact structure, and is easy to install, greatly saving installation time and space. Our ball valves have excellent sealing performance, effectively preventing medium leakage and ensuring the safe operation of the system. We provide comprehensive after-sales service, providing timely response and professional solutions for technical support and maintenance.
