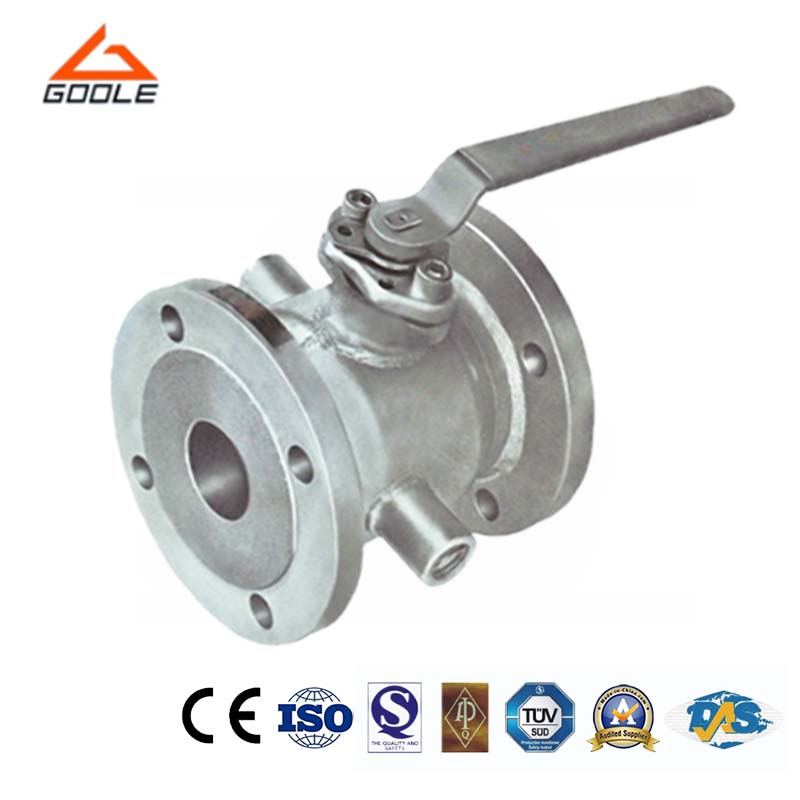

BQ41F is a special type of insulated ball valve, falling under the same category as flanged gate valves. However, its unique feature lies in its closing mechanism, which is a ball that rotates around the centerline of the valve body to open and close. Ball valves are primarily used for cutting off, distributing, and changing the direction of media flow in pipelines. In recent years, double-piece and triple-piece ball valves have been widely adopted as innovative products. These valves are typically installed horizontally inside the pipeline.
● High Thermal Insulation Performance: Its unique integrated thermal insulation sleeve design effectively reduces the heat loss of the medium in the transmission process, thus improving energy utilization efficiency, especially suitable for applications that need to maintain medium temperature.
● Easy Installation: The integrated design reduces the number of connectors, making the overall structure more simple. This not only reduces the required installation space, but also simplifies the installation process and reduces the installation cost.
● Reliable Sealing Performance: The sealing surface of the float valve is usually made of high quality materials and precision processing to ensure effective sealing when the valve is closed, prevent medium leakage, so as to improve the safety of the system.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |

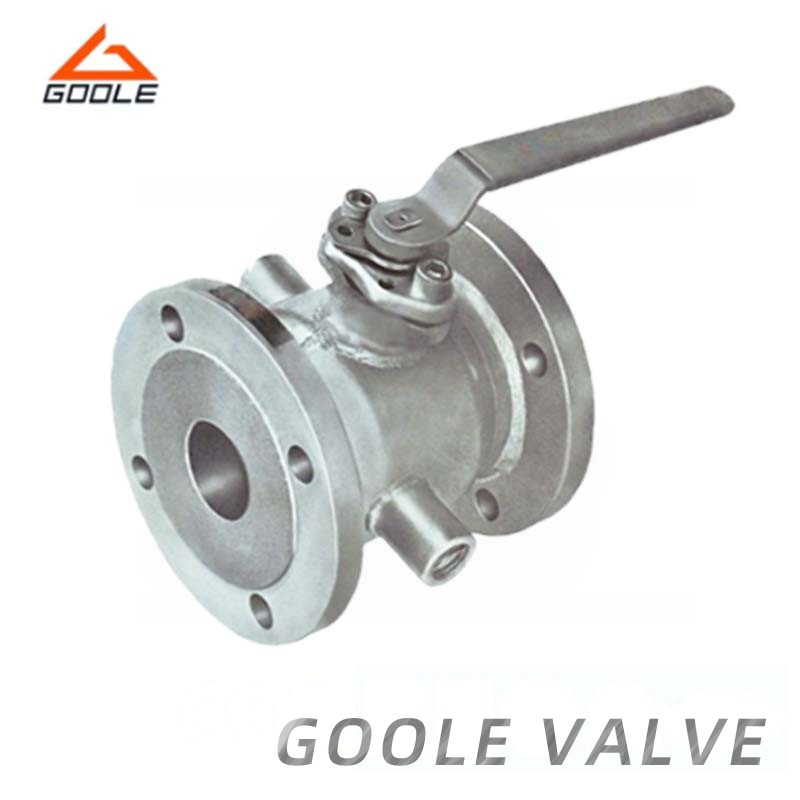

Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our integral insulated sleeve flanged ball valve is made from high-quality materials to ensure its exceptional durability and reliability. The valve features a unique internal insulated sleeve design that effectively prevents heat loss during the medium transfer process, enhancing energy efficiency. Our flanged ball valve is easy to operate and maintain, significantly reducing operational costs for users. We offer comprehensive after-sales service to ensure customers receive timely technical support and solutions throughout their use. Choosing our integral insulated sleeve flanged ball valve is a wise decision.
