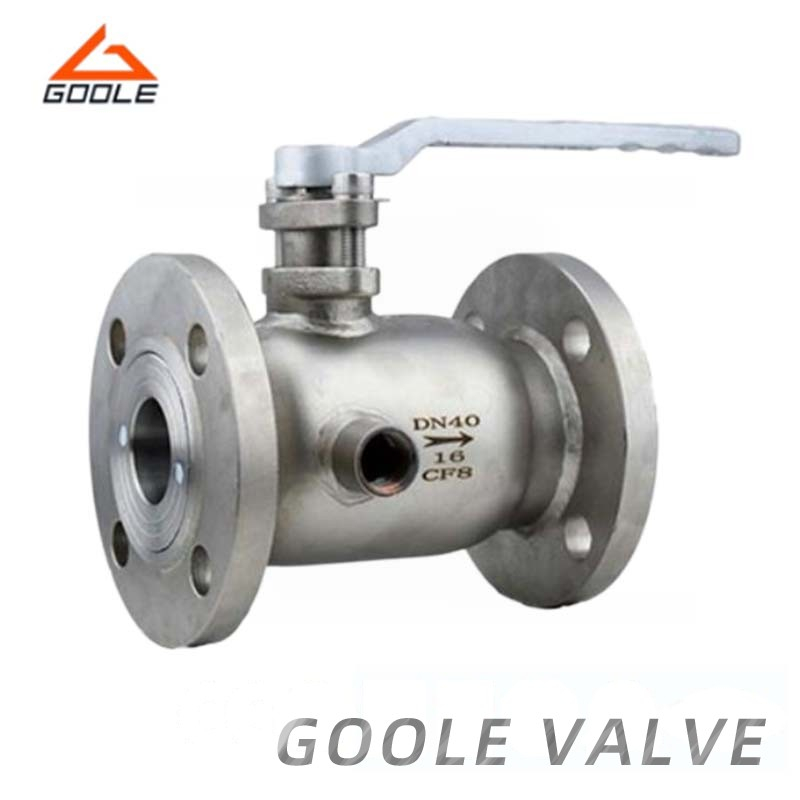

BQ41F is a specific type of insulated ball valve, which falls into the same category as flanged gate valves. However, it differs in that its closure mechanism is a sphere that rotates around the valve body's centerline to open and close. Ball valves are primarily utilized for shutting off, distributing, and altering the direction of media flow within pipelines. Double-piece and triple-piece ball valves are innovative types that have gained widespread use in recent years. These valves are generally installed horizontally within pipelines.
● High Thermal Insulation Performance: Its unique, integrated thermal insulation sleeve design effectively reduces heat loss of the medium during transmission, thereby enhancing energy utilization efficiency. It is particularly well-suited for applications requiring the maintenance of medium temperature.
● Easy to Install: The integrated design minimizes the number of connectors, resulting in a more streamlined overall structure. This not only reduces the installation space required but also simplifies the installation process and lowers installation costs.
● Reliable Sealing Performance: The sealing surface of the float valve is typically crafted from high-quality materials and precision processing to ensure effective sealing when the valve is closed, preventing medium leakage and thus improving system safety.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |
Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our integral insulated sleeve flanged ball valve is crafted from high-quality materials to ensure its exceptional durability and reliability. The valve features a unique internal insulation sleeve design that effectively prevents heat loss during the medium transfer process, enhancing energy efficiency. Our flanged ball valve is easy to operate and maintain, significantly reducing operational costs for users. We provide comprehensive after-sales service to ensure customers receive timely technical support and solutions during use. Choosing our integral insulated sleeve flanged ball valve is a wise decision.
