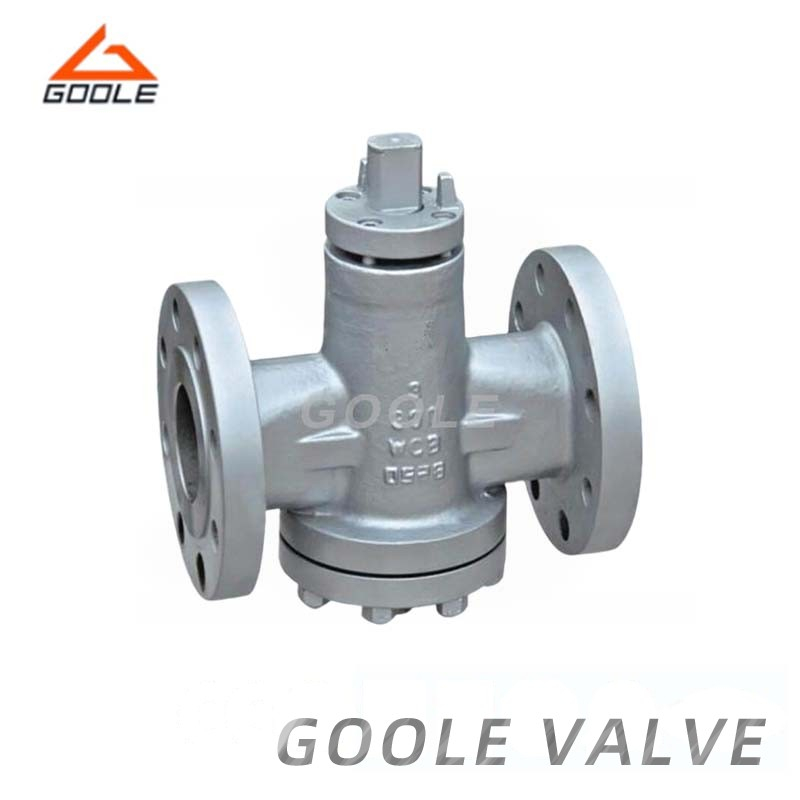

Inverted pressure balance lubricated plug valve according to ANSI is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, electric power industry etc. under nominal pressure of Class 150lb-900Lbs and working temperature of -29-180 Deg C.
1. It has logical structure, reliable seal, excellent performance and nice design.
2. It has the structure of flip-chip balanceable pressure and light on/off operation.
3. An oil groove is set between valve body and seal surface, which may infuse the seal grease to increase the seal capability.
4. The part material and flange dimension may be selected according to current operating condition and users requirement, so that meet the requirements of various engineering.
Main Parts Material |
No. | Parts | Material |
1 | Body | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
2 | Ferrule Sealing | PTFE |
3 | Plug | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
4 | Gasket | Flexible Graphite + S.S. |
5 | Adjusting Gasket | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
6 | Bonnet | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
7 | Adjusting Bolt | ASTM A193-B7,A320-B8,A193-B8M |
8 | Hex Nut | ASTM A194-2H,A194-8,A194-8M |
9 | Bolt | ASTM A193-B7,A320-B8,A913-B8M |
10 | Lever | ASTM A105-WCB |
| DN(mm) | DN(mm) | ||||
| L | D | D1 | D2 | z-φd | |
| 15 | 80 | 80 | 55 | 40 | 4*12 |
| 20 | 90 | 90 | 65 | 50 | 4*12 |
| 25 | 100 | 100 | 75 | 60 | 4*12 |
| 32 | 115 | 120 | 90 | 70 | 4*14 |
| 40 | 130 | 130 | 100 | 80 | 4*14 |
| 50 | 145 | 140 | 110 | 90 | 4*14 |
| 65 | 160 | 160 | 130 | 110 | 4*14 |
| 80 | 200 | 185 | 150 | 125 | 4*18 |
| 100 | 230 | 205 | 170 | 145 | 4*18 |
| 125 | 250 | 235 | 200 | 175 | 8*18 |
| 150 | 320 | 260 | 225 | 200 | 8*18 |
| 200 | 350 | 315 | 280 | 255 | 8*18 |
Q:When should a plug valve be used?
The application scenarios of plug valves are well-defined, primarily occurring in situations where rapid on/off control of fluid pipelines is required or periodic flushing of pipeline impurities is necessary.
Q:What specific areas are involved?
For instance, pipelines in the petroleum and chemical industries that transport corrosive oils/gases or chemical slurries, as well as sewage conveyance lines handling wastewater containing sediment impurities, all require flushable plug valves with excellent sealing performance and erosion resistance for effective control.
Our balanced plug valves have been specifically optimized to address industry challenges throughout their core design and manufacturing processes: The valve's internal cavity features a pressure-balancing structure that effectively counteracts the opening/closing resistance caused by fluid pressure, enabling effortless operation—even under high-pressure conditions without additional effort, thereby reducing operational strain and extending the service life of drive components. The sealing mechanism employs an improved elastic sealing design combined with precision machining, ensuring zero-leakage performance while maintaining stable sealing integrity over prolonged use and minimizing the frequency of seal replacement requirements. Our product range covers diverse application scenarios from low to high pressure, compatible with various media including water, oil, and gases, suitable for municipal pipelines, chemical systems, and industrial production networks. We also provide comprehensive after-sales support spanning selection guidance, installation/commissioning, and ongoing maintenance, delivering timely professional assistance to resolve pipeline control challenges efficiently.
