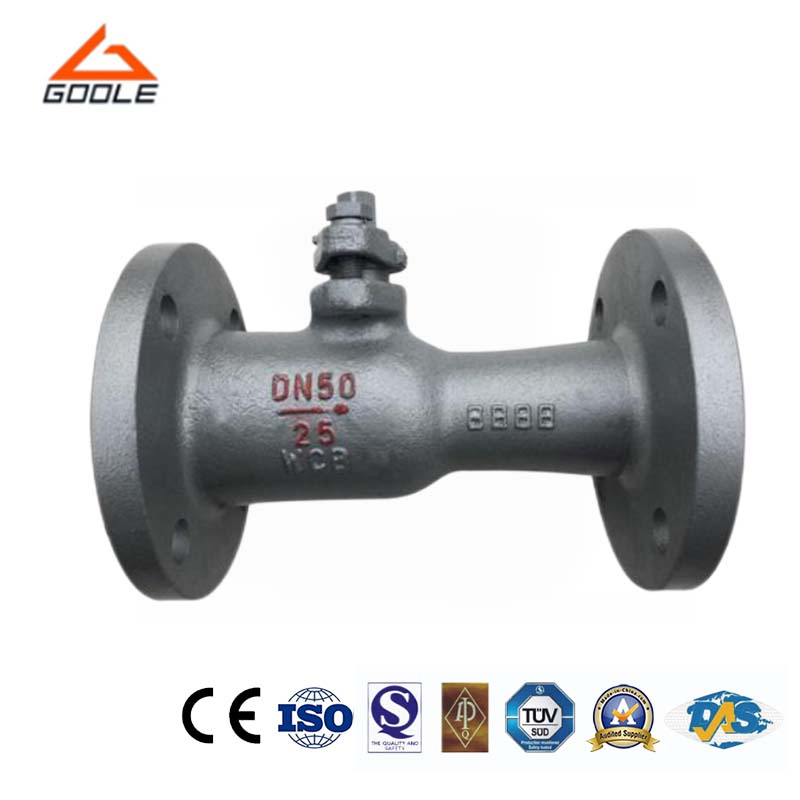

The QJ41M integrated high-temperature ball valve is designed specifically for high-temperature environments. It has the characteristics of high temperature resistance, wear resistance, and corrosion resistance. This valve is suitable for media such as water vapor, oil, hot oil, and acid.
● Easy Operation: Rotating the sphere allows for easy switching of actions without the need for additional tools or complex programs, significantly improving work efficiency.
● High Temperature Resistance: The valve body is usually made of high-grade cast steel, which enables it to work continuously and stably in high temperature, high pressure, and corrosive environments, thereby extending the service life of the equipment.
● Convenience: Compact structure, low installation space requirements, and simple installation process. In addition, maintenance costs are kept at a low level as regular inspection and replacement of seals and other consumable components are sufficient to maintain optimal operation.
| No. | Parts Name | Material |
| 1 | Body | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 2 | Seat | PTFE, R-PTFE, PEEK, PPL |
| 3 | Anti-static Spring | Stainless Steel |
| 4 | Stem | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 5 | O-ring | NBR, PTFE |
| 6 | Limited Plate | 1015+Cr, Carbon Steel+Cr |
| 7 | Lever | A216 WCB, 1025+Cr |
| 8 | Fix Nut | Stainless Steel |
| 9 | Backup Ring | A182 F304, F316 |
| 10 | Packing | PTFE, Graphite |
| 11 | Positioning Pin | Stainless Steel |
| 12 | Thrust Washer | PTFE |
| 13 | Gasket | PTFE, Graphite |
| 14 | Ball | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 15 | Bonnet | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 16 | O-ring | NBR, PTFE |
| 17 | Stud | A193 B7, B7M, B8, B8M |
| 18 | Nut | A194 2H, 2HM, 8, 8M |
Main Dimensions
| Model | Size(mm) | Dimensions(mm) | ||||||||
| QJ41M | inch | DN | L | D | D1 | D2 | b | Z-Φd | H | W |
| 3/4″ | 20 | 117 | 98 | 70 | 43 | 12 | 4-Φ15 | 75 | 130 | |
| 1″ | 25 | 127 | 108 | 79.5 | 51 | 12 | 4-Φ15 | 85 | 150 | |
| 11/4″ | 32 | 140 | 117 | 89 | 64 | 13 | 4-Φ15 | 96 | 190 | |
| 11/2″ | 40 | 165 | 127 | 98.5 | 73.2 | 15 | 4-Φ15 | 107 | 230 | |
| 2″ | 50 | 178 | 152 | 120.7 | 92 | 16 | 4-Φ19 | 118 | 240 | |
| 21/2″ | 65 | 190 | 177.8 | 139.7 | 104.7 | 18 | 4-Φ19 | 145 | 280 | |
| 3″ | 80 | 203 | 190.5 | 152.4 | 127 | 19 | 4-Φ19 | 160 | 310 | |
| 4″ | 100 | 229 | 229 | 190.5 | 157 | 24 | 8-Φ19 | 185 | 330 | |
| 5″ | 125 | 356 | 254 | 216 | 185.7 | 26 | 8-Φ22 | 230 | 600 | |
| 6″ | 150 | 394 | 279 | 241.3 | 216 | 26 | 8-Φ22 | 260 | 800 | |
| 8″ | 200 | 457 | 343 | 298.5 | 270 | 29 | 8-Φ22 | 310 | 1000 | |
| 10″ | 250 | 533 | 406 | 362 | 324 | 31 | 12-Φ25 | 350 | 1200 | |
| Test Item | Shell Test | Sealing Test | Back Seal Test | Air Test | |||||
| Medium | Water | Air | |||||||
| Unit | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
| Test Pressure | 150 | 3.1 | 450 | 2.2 | 315 | 2.2 | 315 | 0.5-0.7 | 60-100 |
| 300 | 7.8 | 1125 | 5.6 | 815 | 5.6 | 815 | |||
| 400 | 10.3 | 1500 | 7.6 | 1100 | 7.6 | 1100 | |||
| 600 | 15.3 | 2225 | 11.2 | 1630 | 11.2 | 1630 | |||
| 900 | 23.1 | 3350 | 16.8 | 2440 | 16.8 | 2440 | |||

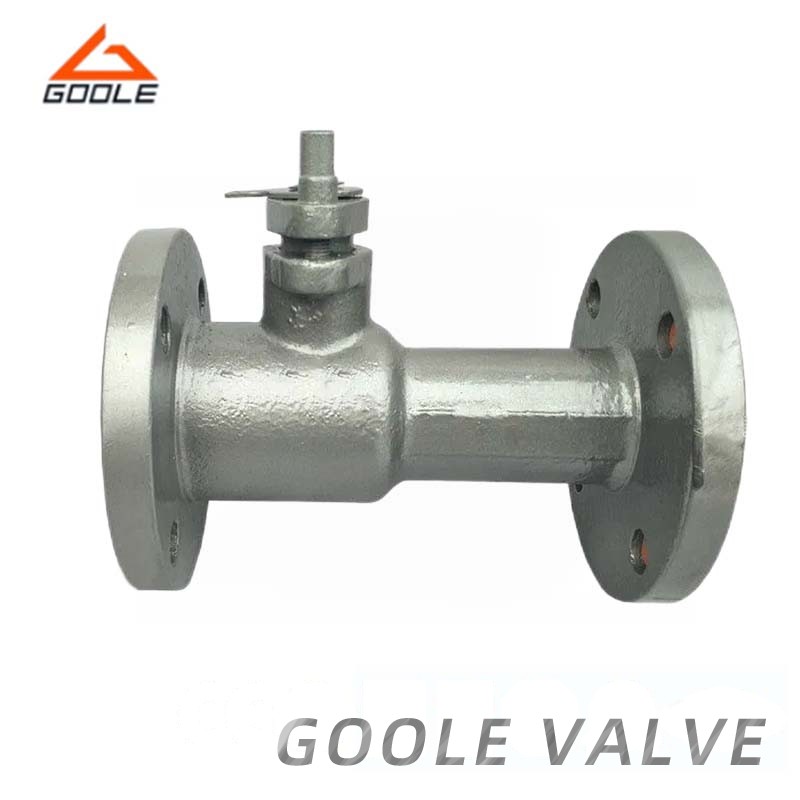

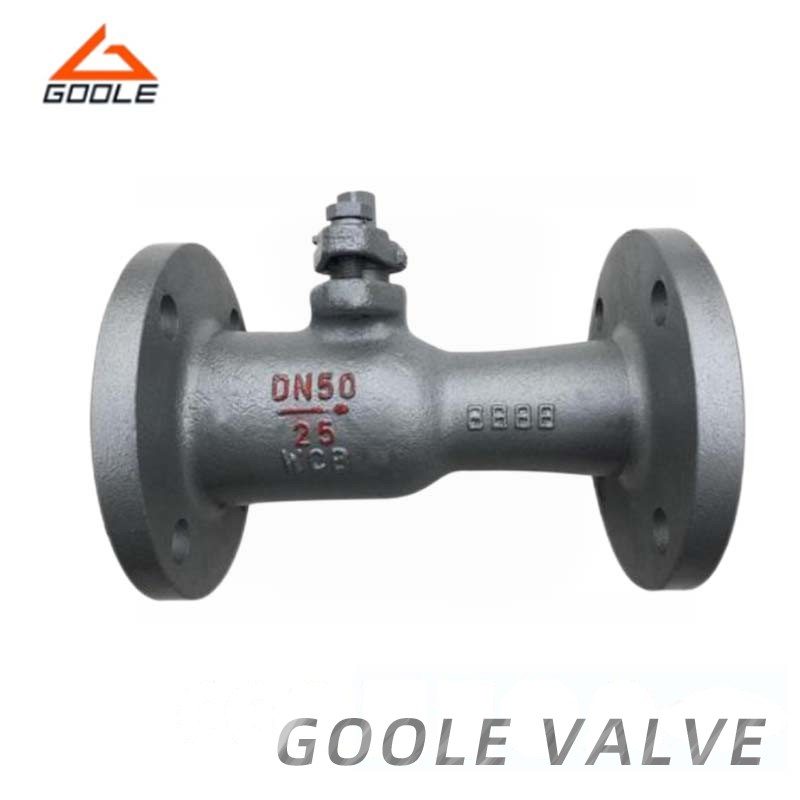

Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our high-temperature ball valves are manufactured using advanced materials and sophisticated technology to ensure excellent heat resistance and extended service life. They are designed to be compact, easy to install, save a lot of space, and reduce time costs. Each product undergoes comprehensive quality testing to meet industry standards and ensure a fault free user experience. We provide comprehensive after-sales support, including technical consultation and repair services, to quickly meet your needs.
