BQ41F is a special thermal insulation ball valve, belonging to the same category as flanged gate valves. The difference lies in its closure part, which is a sphere that rotates around the centerline of the valve body to achieve opening and closing. Ball valves are mainly used for cutting off, distributing, and changing the direction of media flow in pipelines. Two-piece and three-piece ball valves are new types of valves that have been widely used in recent years. These valves should typically be installed horizontally in pipelines.
● High Thermal Insulation Performance: Its unique integrated insulation sheath design can effectively reduce the heat loss of the medium in the transmission process, improve energy utilization efficiency, especially suitable for the need to maintain the temperature of the medium.
● Easy Installation: Due to the integrated design, the number of connectors is reduced, making the overall structure more compact, which not only reduces the installation space, but also simplifies the installation process and reduces the installation cost.
● Reliable Sealing Performance: The sealing surface of the floating ball valve is generally made of high quality materials and precision processing to ensure good sealing when the valve is closed, effectively prevent the leakage of the medium, improve the safety of the system.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |

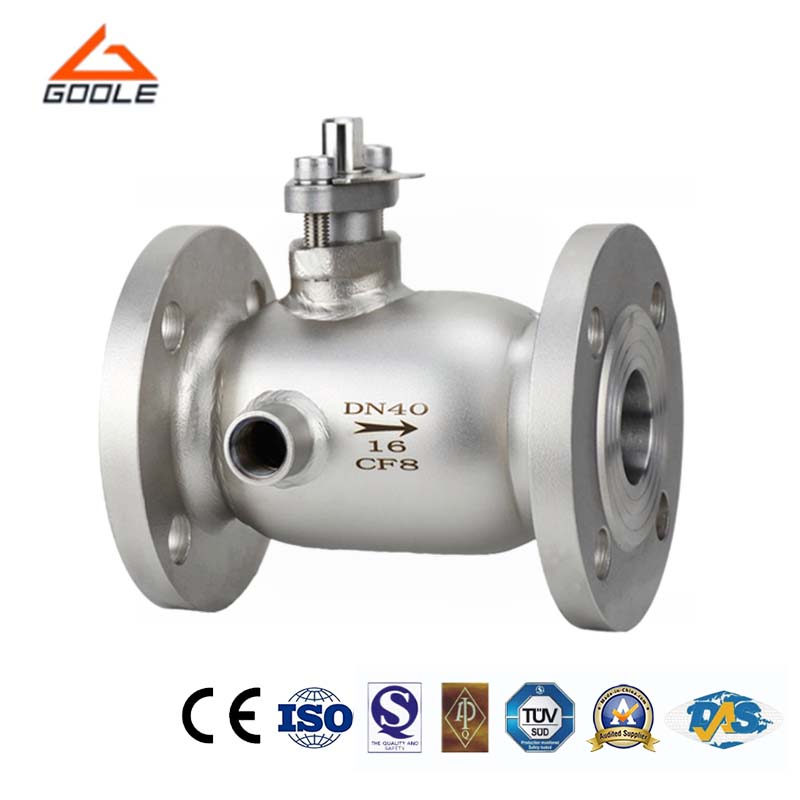

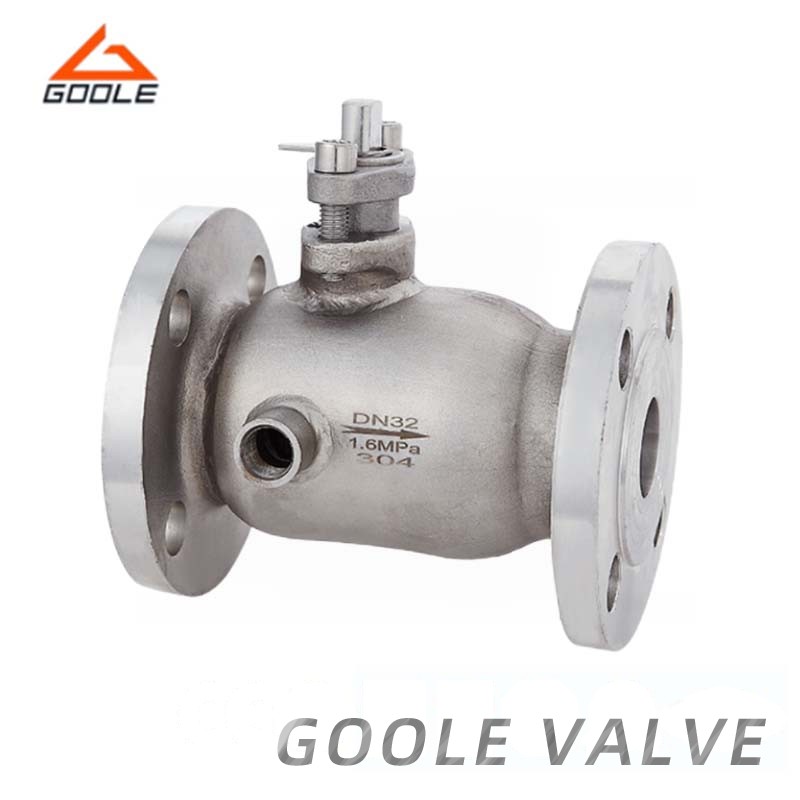

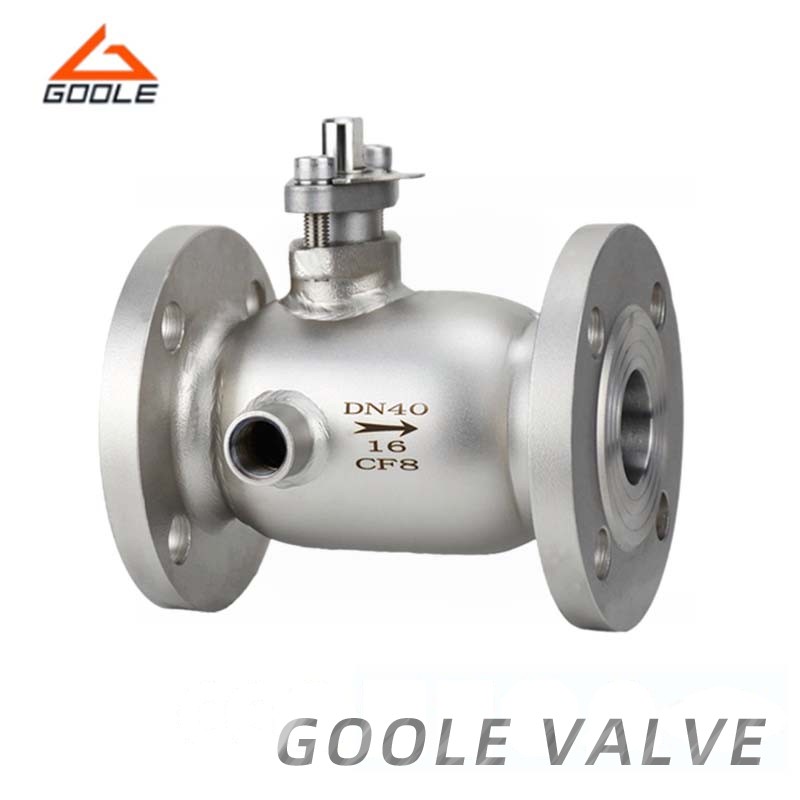

Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our integral insulated sleeve flanged ball valve is made from high-quality materials to ensure its exceptional durability and reliability. The valve features a unique design with an internal insulation sleeve, effectively preventing heat loss during medium transmission and enhancing energy efficiency. Our flanged ball valve is easy to operate and maintain, significantly reducing operational costs for users. We offer comprehensive after-sales service to ensure customers receive timely technical support and solutions during use. Choosing our integral insulated sleeve flanged ball valve is a wise decision.
