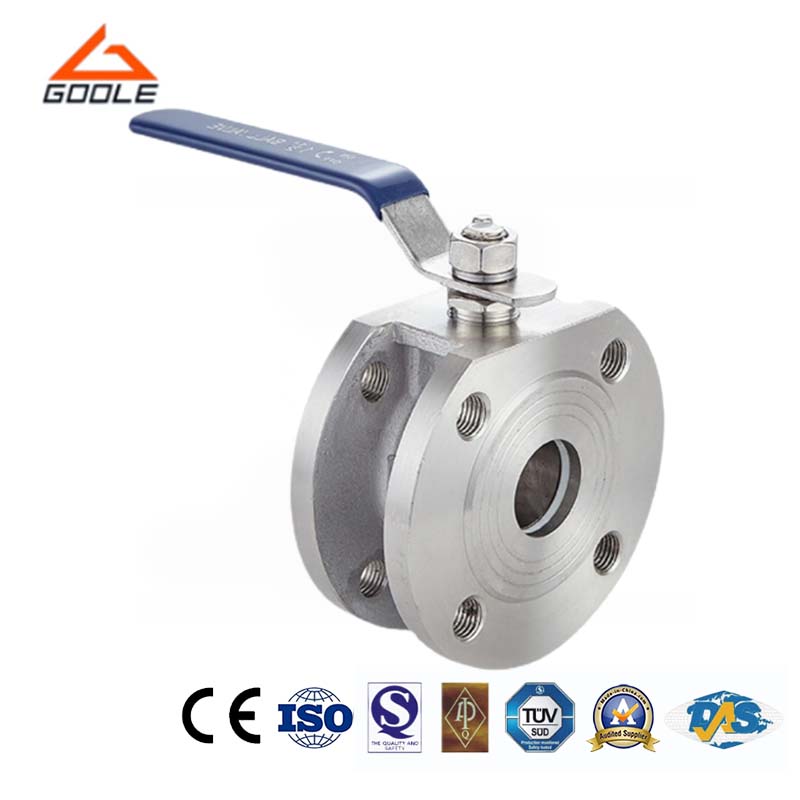

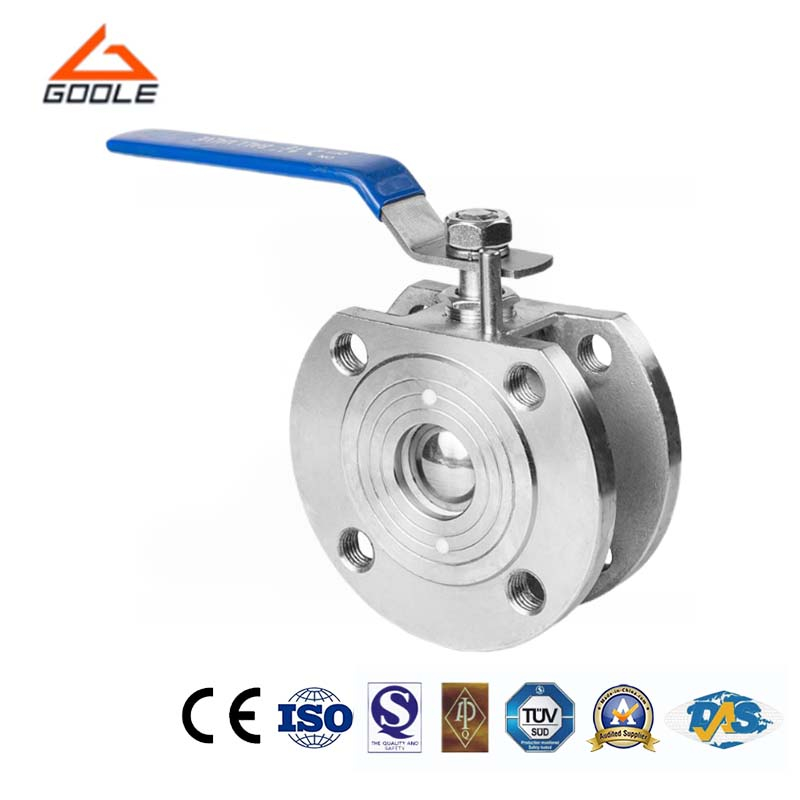

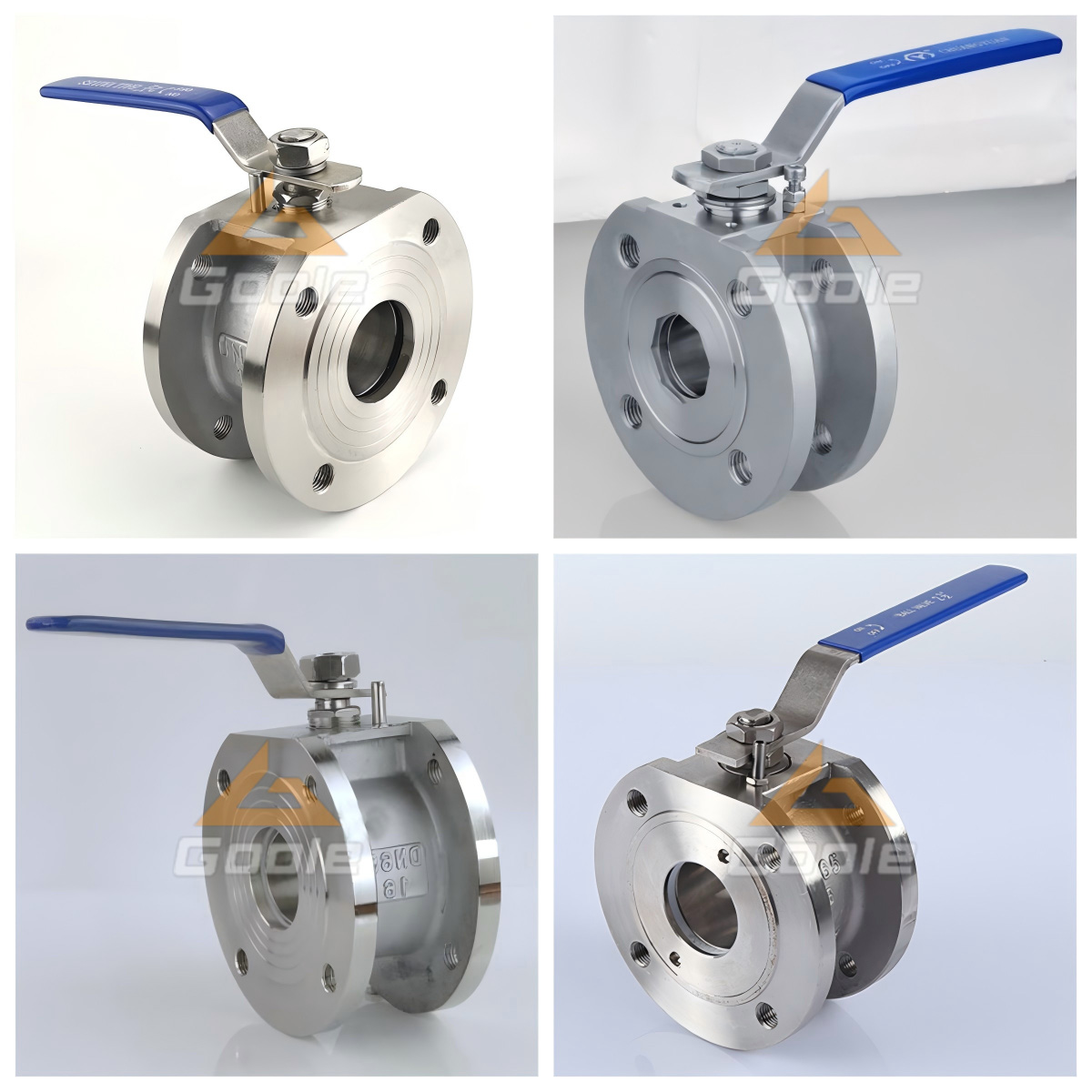

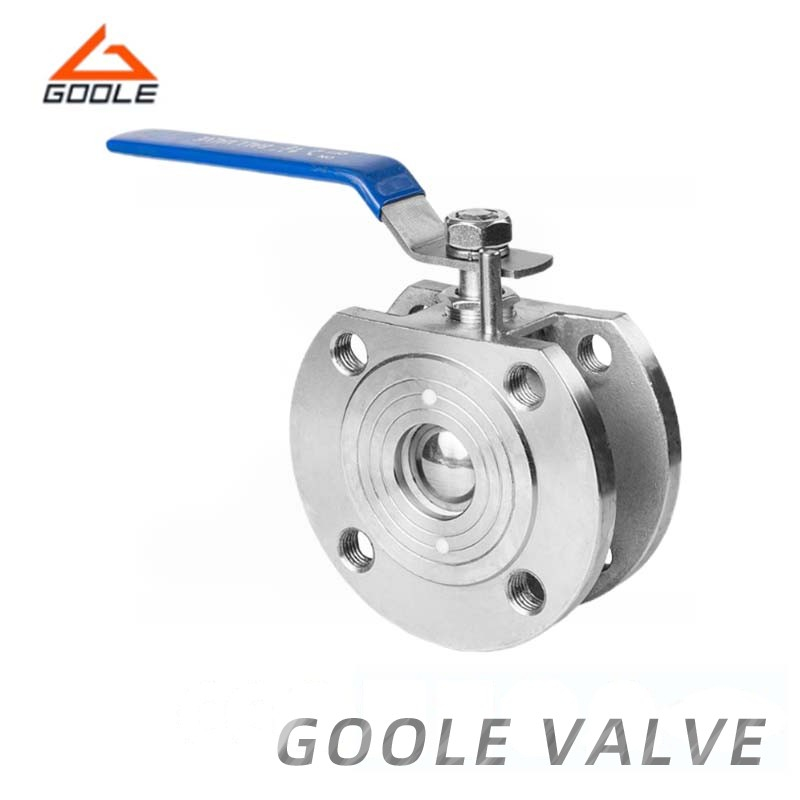

The wafer ball valve has a simple structure, small size and light weight. It is only composed of several components. It can be opened or closed quickly by rotating 90 degrees. It is easy to operate and has excellent fluid control characteristics.
● Compact Structure: The ball valve adopts sheet structure, small volume, light weight, good sealing performance, flexible opening and closing.
● Easy to Operate: The ball valve can be installed on the corresponding electric and pneumatic devices to achieve remote or automatic control.
● Wide Application: These valves are widely used in various systems of petroleum, chemical, metallurgy, pharmaceutical and food industries.
| Model | GAQ71F |
| Nominal diameter | DN15-DN150 |
| Nominal pressure | 1.6Mpa - 2.5Mpa |
| Working temperature | -20~232 ~350 degree Celsius |
| Connection type | wafer type |
| Material | CF8, CF8M, CF3, CF3M, WCB, etc |
| Applicable medium | water, oil, steam, Nitric acid, Acetate acid and some corrosive liquids |
| Driving means | manual ,electric, pneumatic |
| Design Standard | ANSI, JIS, DIN |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
We produce high-quality stainless steel wafer ball valves to ensure their durability and reliability. The product is uniquely designed, compact in structure, and easy to install, significantly saving installation time and space. Our ball valves have excellent sealing performance, effectively preventing medium leakage and ensuring safe system operation. We offer comprehensive after-sales service, timely response, professional technical support, and maintenance solutions.
