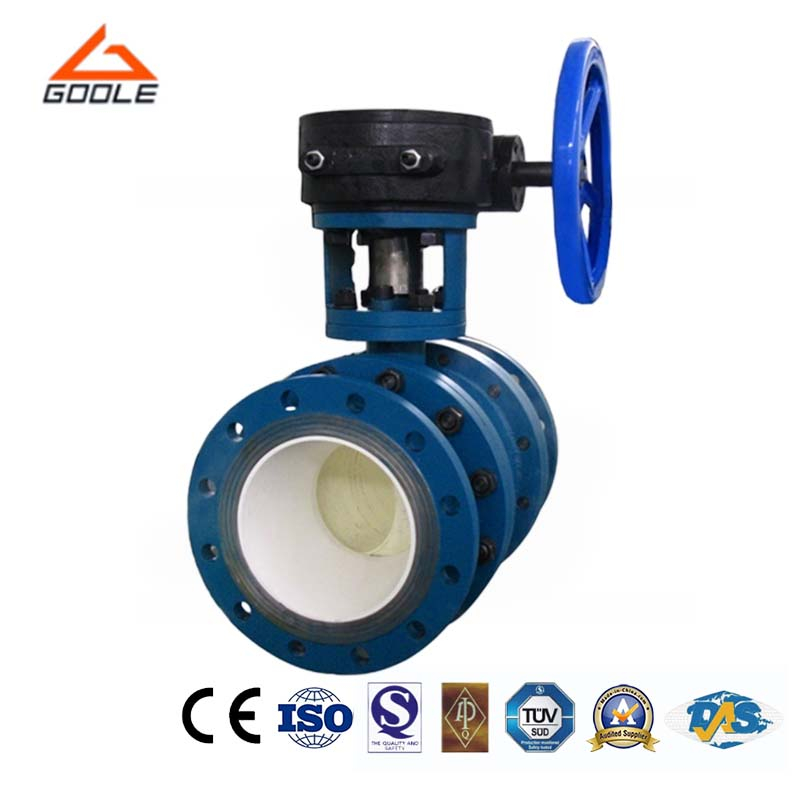

This valve is suitable for switching equipment or pipeline handling high hardness granular materials, soft particles or corrosive media. Its nominal pressure is 1.6 MPa, suitable for temperatures up to 200 degrees Celsius.
All components in contact with the medium are made of structural ceramics, which have excellent chemical stability and hardness (Rockwell hardness HRC90, second only to diamond). Therefore, the valve has excellent wear resistance, corrosion resistance, and erosion resistance, as well as good insulation properties and minimal thermal expansion.
The sphere is manufactured by advanced grinding equipment and process, which ensures the high precision roundness and excellent surface quality of the sphere. When it cooperates with the valve seat, the self-lubricating performance of zirconia ceramic makes the valve have excellent sealing properties.
Because of the excellent wear resistance of ceramics, the valve is not only durable and reliable, but also has a service life of 2-4 times that of titanium alloy or Monel alloy valves.
● Wear resistance: The ball and seat of the ball valve are made of ceramic materials, which have high wear resistance and greatly prolong the service life of the valve.
● Excellent sealing performance: Ceramic materials are hard and not easy to deform, ensuring that the ball valve has excellent sealing effect when closed to prevent leakage.
● Strong corrosion resistance: Ceramic materials have excellent corrosion resistance to a variety of chemicals, so ceramic float valve is an ideal choice for chemical and pharmaceutical applications in corrosive environments.
● Low fluid resistance: When the ball valve is open, the ball aligns with the fluid passage, resulting in minimal fluid flow resistance. This design effectively reduces energy consumption.
| Sr.No. | Part | Material | Sr.No. | Part | Material |
| 1 | Valve Cover | WCB | 12 | Hex Nut | Grade 8 |
| 2 | Middle Body | WCB | 13 | Stud | B7 |
| 3 | Middle Body Sleeve | Ceramic | 14 | Packing Gland | WCB |
| 4 | O-Ring | PTFE | 15 | Spacer | Q235 |
| 5 | Flange Sleeve | Ceramic | 16 | Circlip for Shaft | 65Mn |
| 6 | Ball | Ceramic | 17 | Handle | CS |
| 7 | O-Ring | PTFE | 18 | Gasket | Q235 |
| 8 | Dish Spring | 50CrVA | 19 | Screw | 35# |
| 9 | Washer | 304 | 20 | Hex Bolts | B7 |
| 10 | Stem | 2Cr13 | 21 | Big Washer | PTFE |
| 11 | Packing | PTFE | 22 | Seat | Ceramic |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our ceramic float valve is made from advanced ceramic materials, featuring excellent hardness and wear resistance, effectively extending the service life of the valve. Its unique design allows the ball to float freely in the fluid, ensuring adaptive sealing and significantly enhancing seal performance while minimizing leakage risks to the greatest extent. Our ceramic float valve is designed with user-friendliness at its core, offering the lowest maintenance costs, stable performance, and suitability for various temperature environments. By choosing our ceramic float valve, you will receive a high-quality, high-performance, and reliable valve solution.
