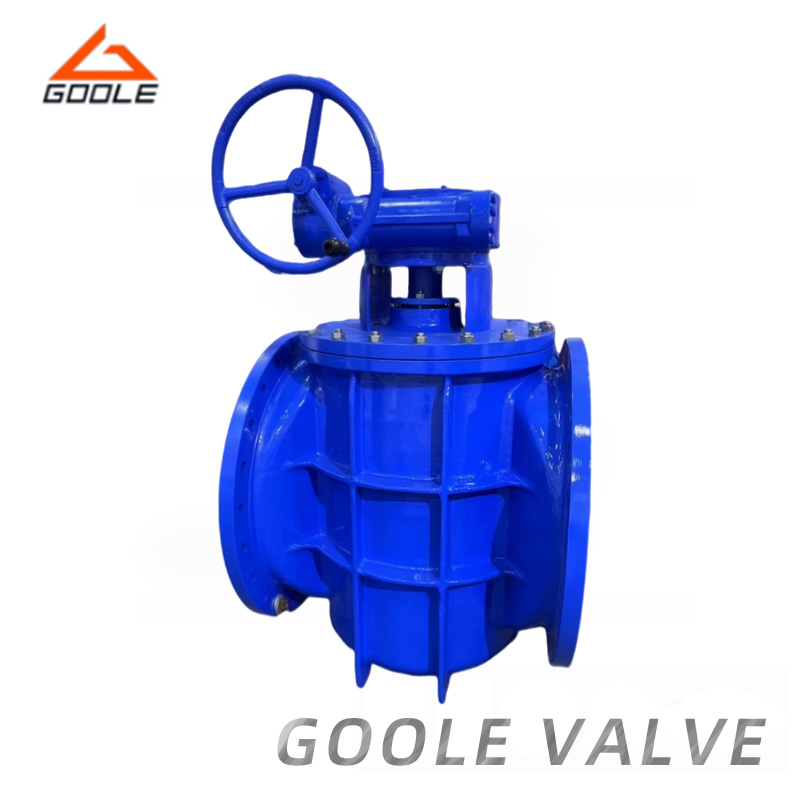

PLVG plug valve is a rotary valve with a closure or plunger shape. It is a type of valve that opens or closes by rotating 90 degrees to make the channel port on the valve plug the same or separate from the channel port on the valve body. The shape of the valve plug of a rotary valve can be cylindrical or conical. In a cylindrical valve plug, the channel is generally rectangular; In a conical valve, the channel is trapezoidal. These shapes make the structure of the plug valve lightweight, but at the same time, they also result in certain losses. Plug valves are most suitable for cutting off and connecting media, as well as for diverting flow, but depending on their properties and the erosion resistance of the sealing surface, they can sometimes also be used for throttling.
A. The product has reasonable structure,reliable sealing,excelient performance and beautiful appearance
Main Parts Material |
No. | Parts | Material |
1 | Body | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
2 | Ferrule Sealing | PTFE |
3 | Plug | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
4 | Gasket | Flexible Graphite + S.S. |
5 | Adjusting Gasket | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
6 | Bonnet | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
7 | Adjusting Bolt | ASTM A193-B7,A320-B8,A193-B8M |
8 | Hex Nut | ASTM A194-2H,A194-8,A194-8M |
9 | Bolt | ASTM A193-B7,A320-B8,A913-B8M |
10 | Lever | ASTM A105-WCB |
| DN(mm) | DN(mm) | ||||
| L | D | D1 | D2 | z-φd | |
| 15 | 80 | 80 | 55 | 40 | 4*12 |
| 20 | 90 | 90 | 65 | 50 | 4*12 |
| 25 | 100 | 100 | 75 | 60 | 4*12 |
| 32 | 115 | 120 | 90 | 70 | 4*14 |
| 40 | 130 | 130 | 100 | 80 | 4*14 |
| 50 | 145 | 140 | 110 | 90 | 4*14 |
| 65 | 160 | 160 | 130 | 110 | 4*14 |
| 80 | 200 | 185 | 150 | 125 | 4*18 |
| 100 | 230 | 205 | 170 | 145 | 4*18 |
| 125 | 250 | 235 | 200 | 175 | 8*18 |
| 150 | 320 | 260 | 225 | 200 | 8*18 |
| 200 | 350 | 315 | 280 | 255 | 8*18 |
Q:When should a plug valve be used?
The application scenarios of plug valves are well-defined, primarily occurring in situations where rapid on/off control of fluid pipelines is required or periodic flushing of pipeline impurities is necessary.
Q:What specific areas are involved?
For instance, pipelines in the petroleum and chemical industries that transport corrosive oils/gases or chemical slurries, as well as sewage conveyance lines handling wastewater containing sediment impurities, all require flushable plug valves with excellent sealing performance and erosion resistance for effective control.
Firstly, it stems from the excellent quality of the product itself: our eccentric plug valve adopts an integrated sealing structure design. When closed, the eccentric force enables the valve core to fully fit with the valve seat, providing sealing performance that far exceeds similar products. It can maintain zero leakage for a long time under complex working conditions of high pressure and high wear, effectively reducing the problems of leakage and spillage during production maintenance. At the same time, the special wedge-shaped opening and closing structure ensures smooth and effortless valve operation, avoiding the issues of jamming and seizure that occur with traditional valves after prolonged use. Its service life is extended by more than 30% compared to ordinary plug valves.
