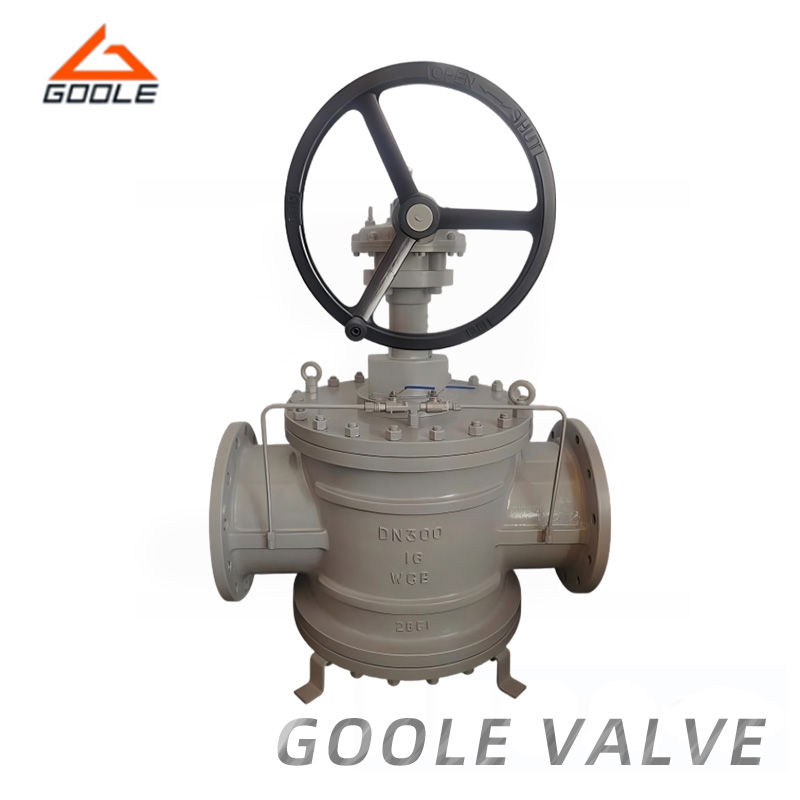

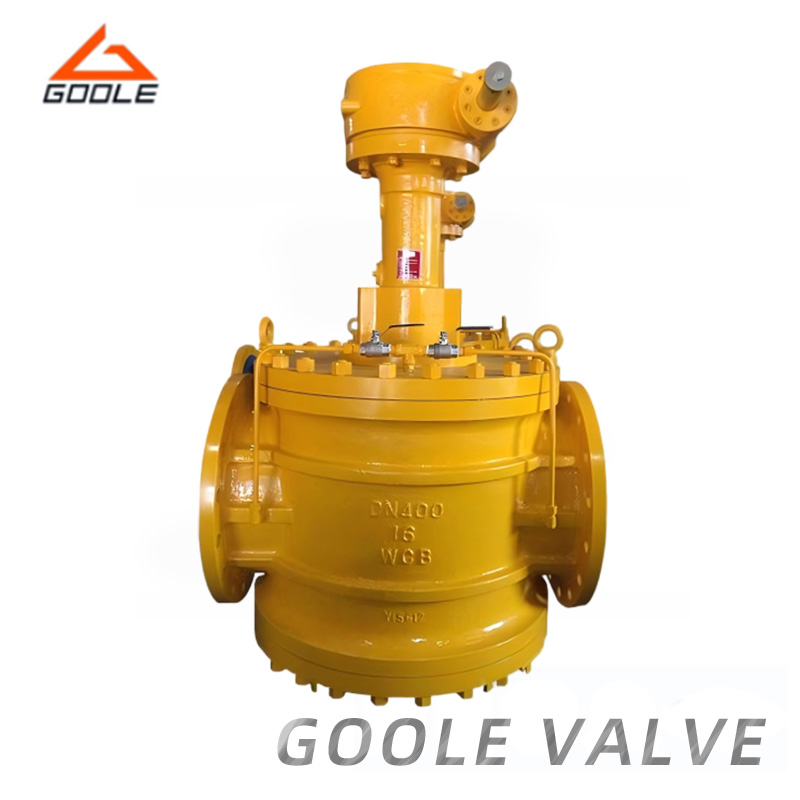

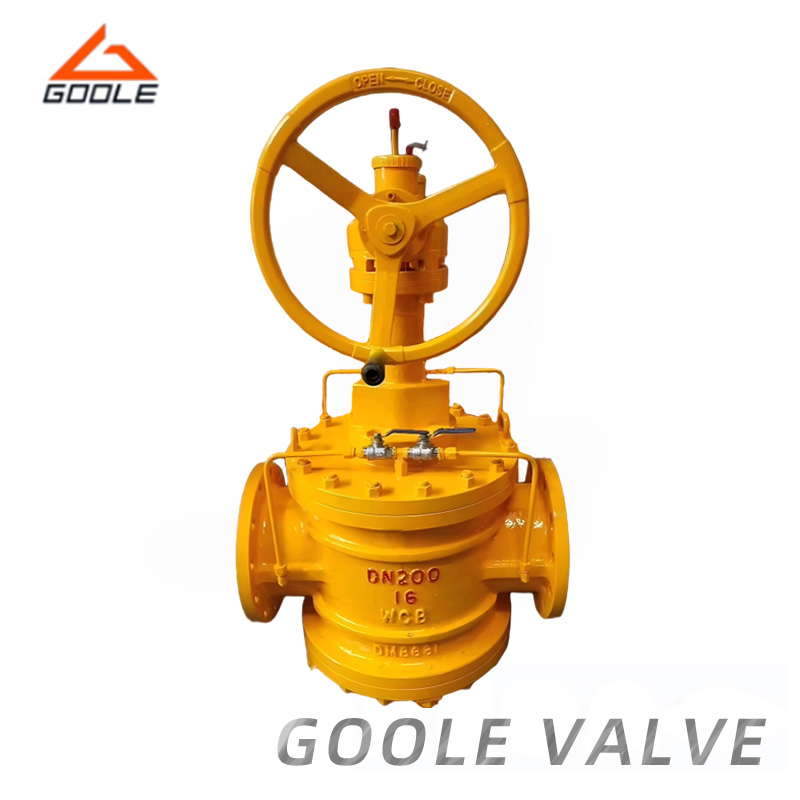

TG34X plug valve is a rotary valve with a closure or plunger shape. It is a type of valve that opens or closes by rotating 90 degrees to make the channel port on the valve plug the same or separate from the channel port on the valve body. The shape of the valve plug of a rotary valve can be cylindrical or conical. In a cylindrical valve plug, the channel is generally rectangular; In a conical valve, the channel is trapezoidal. These shapes make the structure of the plug valve lightweight, but at the same time, they also result in certain losses. Plug valves are most suitable for cutting off and connecting media, as well as for diverting flow, but depending on their properties and the erosion resistance of the sealing surface, they can sometimes also be used for throttling.
A. The product has reasonable structure,reliable sealing,excelient performance and beautiful appearance
F. The materials of the parts and sizes of flanges can be reasonabnly configured according the actual operation aondition of the requirements of the customers,so as to meet the various needs of engineering.
Main Parts Material |
No. | Parts | Material |
1 | Body | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
2 | Ferrule Sealing | PTFE |
3 | Plug | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
4 | Gasket | Flexible Graphite + S.S. |
5 | Adjusting Gasket | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
6 | Bonnet | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
7 | Adjusting Bolt | ASTM A193-B7,A320-B8,A193-B8M |
8 | Hex Nut | ASTM A194-2H,A194-8,A194-8M |
9 | Bolt | ASTM A193-B7,A320-B8,A913-B8M |
10 | Lever | ASTM A105-WCB |
| DN(mm) | DN(mm) | ||||
| L | D | D1 | D2 | z-φd | |
| 15 | 80 | 80 | 55 | 40 | 4*12 |
| 20 | 90 | 90 | 65 | 50 | 4*12 |
| 25 | 100 | 100 | 75 | 60 | 4*12 |
| 32 | 115 | 120 | 90 | 70 | 4*14 |
| 40 | 130 | 130 | 100 | 80 | 4*14 |
| 50 | 145 | 140 | 110 | 90 | 4*14 |
| 65 | 160 | 160 | 130 | 110 | 4*14 |
| 80 | 200 | 185 | 150 | 125 | 4*18 |
| 100 | 230 | 205 | 170 | 145 | 4*18 |
| 125 | 250 | 235 | 200 | 175 | 8*18 |
| 150 | 320 | 260 | 225 | 200 | 8*18 |
| 200 | 350 | 315 | 280 | 255 | 8*18 |
Q:When should a plug valve be used?
The application scenarios of plug valves are well-defined, primarily occurring in situations where rapid on/off control of fluid pipelines is required or periodic flushing of pipeline impurities is necessary.
Q:What specific areas are involved?
For instance, pipelines in the petroleum and chemical industries that transport corrosive oils/gases or chemical slurries, as well as sewage conveyance lines handling wastewater containing sediment impurities, all require flushable plug valves with excellent sealing performance and erosion resistance for effective control.
It features reliable sealing performance; the unique dual-opening/dual-closing structural design ensures bidirectional isolation of the valve chamber, effectively preventing safety hazards caused by internal medium leakage and enabling stable operation even with flammable, explosive, toxic, or hazardous media. Additionally, it offers simple operation – the opening/closing process requires only a single action without multiple adjustments, thereby reducing operational time and minimizing human error risks. Furthermore, it boasts an extended service life due to its compact structure and reduced component wear, resulting in lower maintenance frequency and costs. This design is well-suited for long-term high-load industrial applications, helping enterprises reduce long-term operational and maintenance expenditures.
