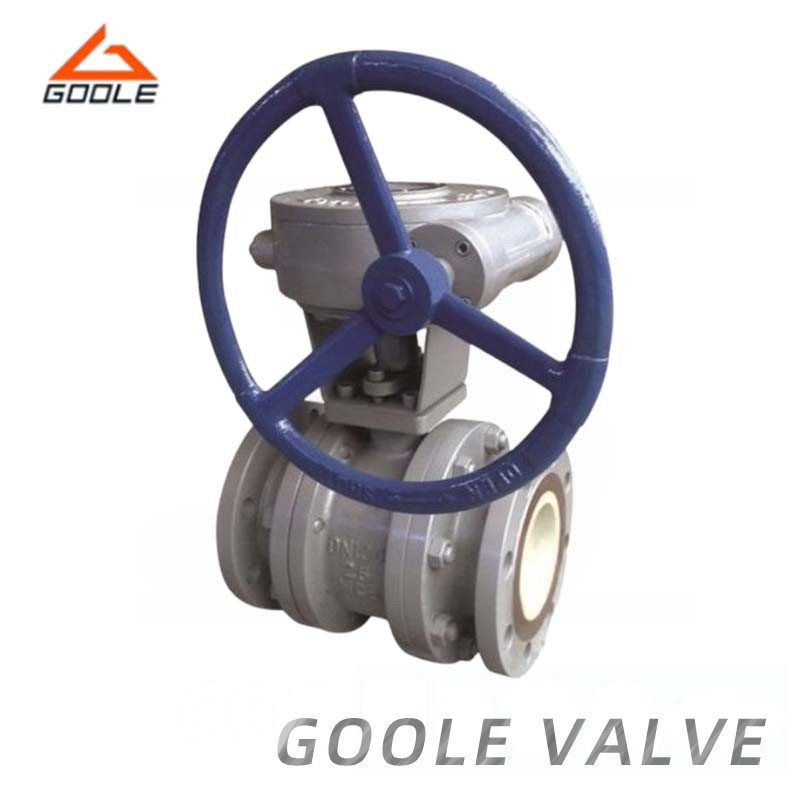

This valve is suitable for use as an on-off device or in pipelines handling high-hardness granular materials, soft grains, or corrosive media. It has a nominal pressure of 1.6 MPa and is applicable for temperatures up to 200 degrees Celsius.
All parts that come into contact with the medium are constructed from structural ceramic, which boasts exceptional chemical stability and hardness (Rockwell Hardness HRC90, second only to diamond). Consequently, the valve exhibits outstanding resistance to wear, corrosion, and erosion, along with good heat insulation properties and minimal thermal expansion.
The ball body is manufactured using advanced grinding equipment and techniques, ensuring high-precision roundness and excellent surface quality. When mated with the valve seat, the ZrO2 ceramic's self-lubricating properties enable the valve to achieve a superior seal.
Owing to the ceramic's exceptional resistance to abrasion, this valve is not only durable and highly reliable but also has a service life that is 2-4 times longer than that of valves made from titanium alloys or Monel.
● Wear Resistance: The ball and seat of the ball valve are constructed from ceramic materials, which boast high wear resistance and significantly extend the valve's service life.
● Excellent Sealing Performance: Ceramic materials are hard and resistant to deformation, ensuring that the ball valve provides an excellent sealing effect when closed, thereby preventing leakage.
● Strong Corrosion Resistance: Ceramic materials exhibit outstanding corrosion resistance to a variety of chemicals, making ceramic floating valves ideal for use in chemical and pharmaceutical applications within corrosive environments.
● Low Fluid Resistance: With the ball valve open, the ball aligns with the fluid passage, resulting in minimal fluid flow resistance. This design effectively reduces energy consumption.
| Sr.No. | Part | Material | Sr.No. | Part | Material |
| 1 | Valve Cover | WCB | 12 | Hex Nut | Grade 8 |
| 2 | Middle Body | WCB | 13 | Stud | B7 |
| 3 | Middle Body Sleeve | Ceramic | 14 | Packing Gland | WCB |
| 4 | O-Ring | PTFE | 15 | Spacer | Q235 |
| 5 | Flange Sleeve | Ceramic | 16 | Circlip for Shaft | 65Mn |
| 6 | Ball | Ceramic | 17 | Handle | CS |
| 7 | O-Ring | PTFE | 18 | Gasket | Q235 |
| 8 | Dish Spring | 50CrVA | 19 | Screw | 35# |
| 9 | Washer | 304 | 20 | Hex Bolts | B7 |
| 10 | Stem | 2Cr13 | 21 | Big Washer | PTFE |
| 11 | Packing | PTFE | 22 | Seat | Ceramic |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our ceramic float valve is crafted from advanced ceramic materials, boasting exceptional hardness and wear resistance, which effectively prolongs the valve's lifespan. Its distinctive design enables the ball to float freely within the fluid, ensuring adaptive sealing and markedly improving seal performance while minimizing leakage risks to the utmost. Our ceramic float valve is designed with user-friendliness in mind, featuring minimal maintenance costs and stable performance across a range of temperatures. By selecting our ceramic float valve, you will obtain a high-quality, high-performance, and dependable valve solution.
