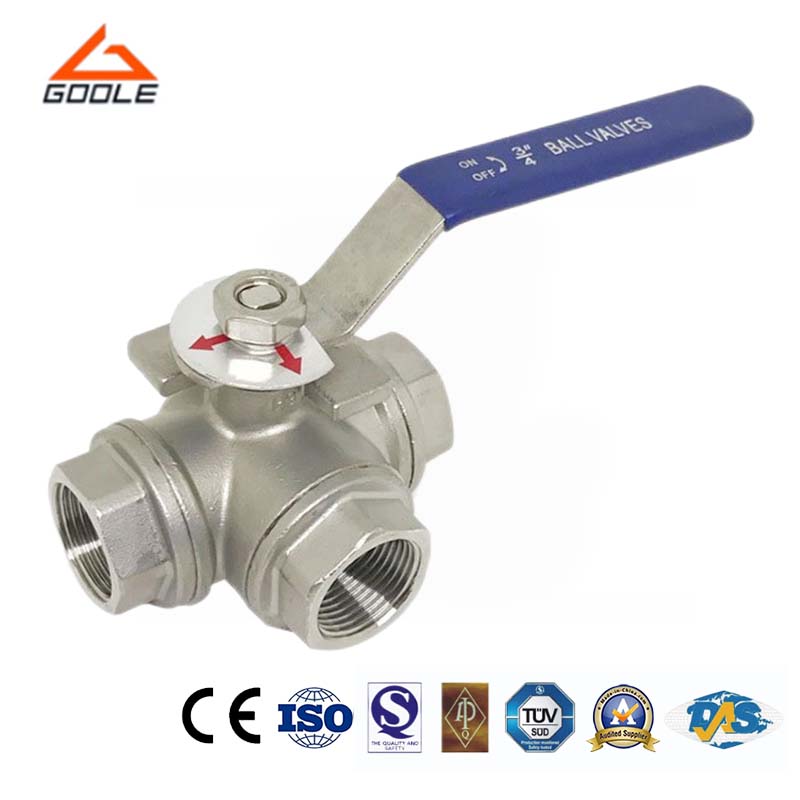

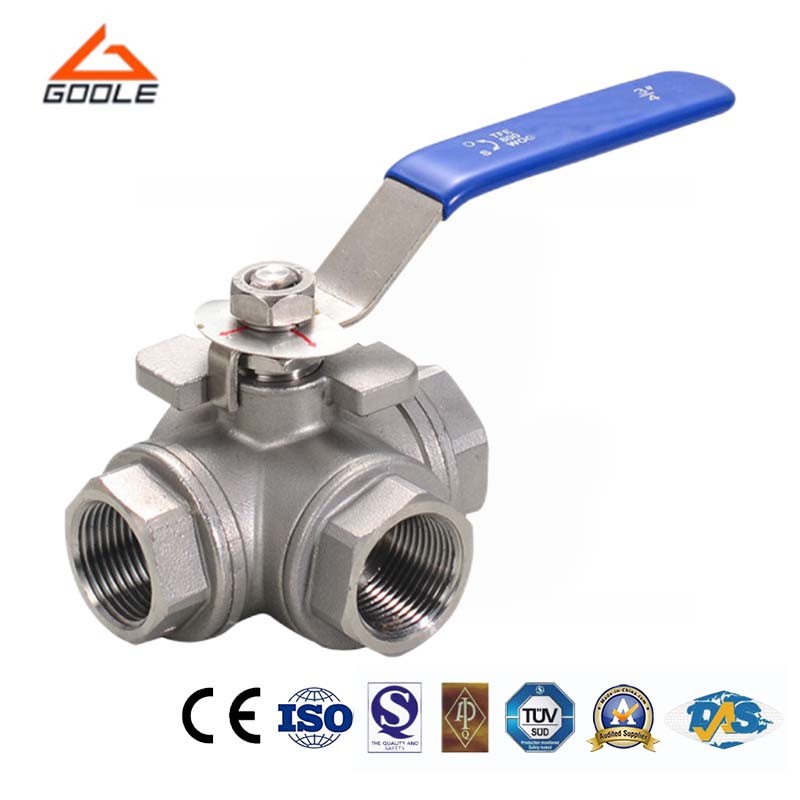

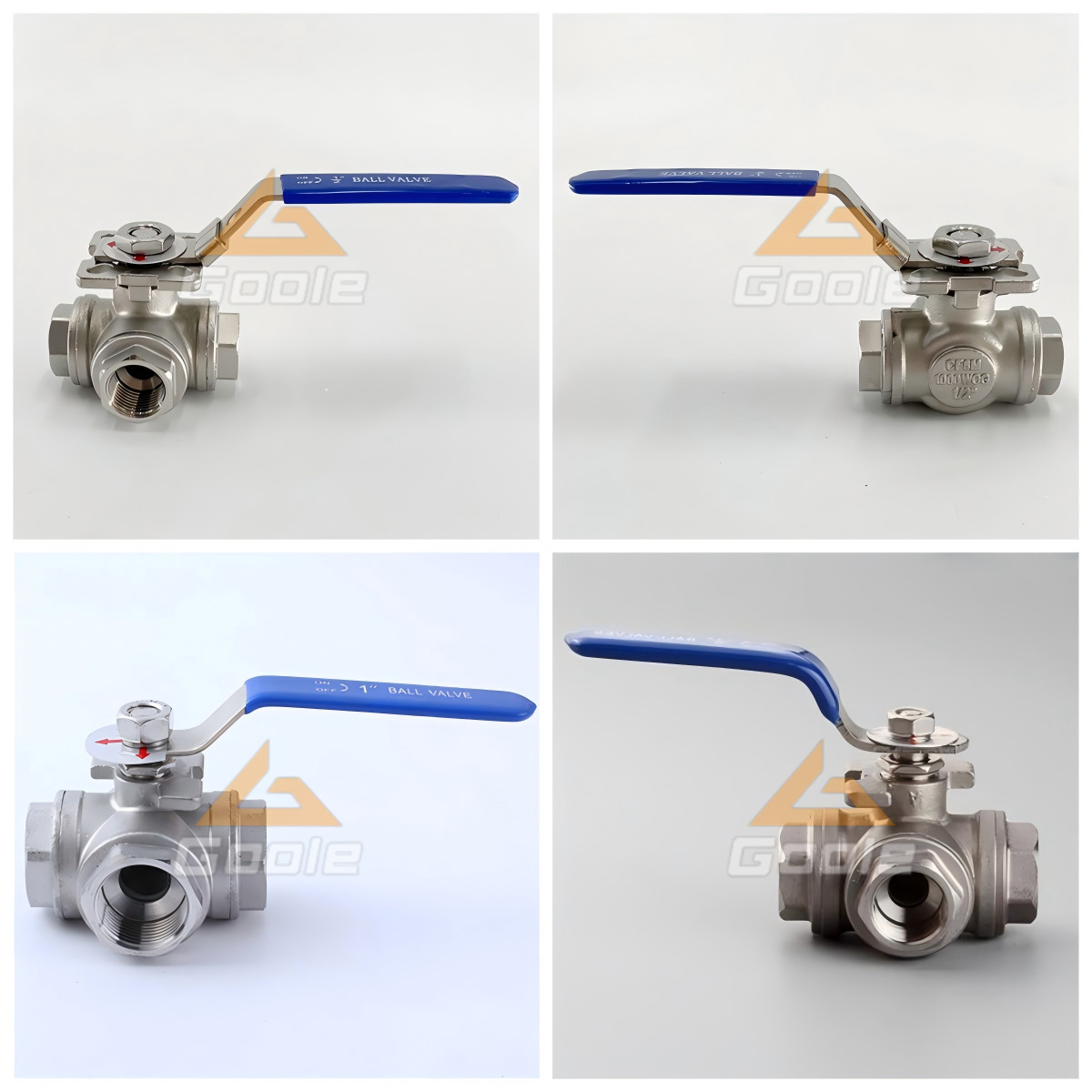

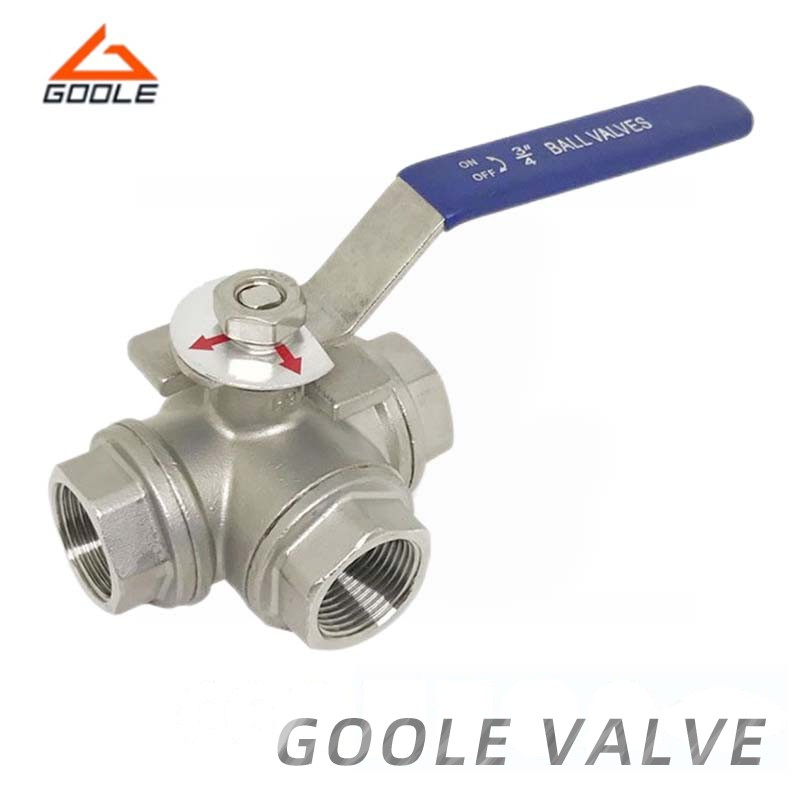

Thread three way ball valve has been widely used in chemical, petroleum, power, pharmaceutical, beer, food, dairy and beverage, cosmetic and engineering supporting industrial piping and other fields.
Reduce Port
Locking Device Handle Upon Request
Blow-Out Proof Stem
Spring Ball Seat for Self-Adjust
Design Standard: AMSE B16.34
ISO5211 Top Flange
L-Port/T-Port/X-Port
Testing Standard: API 598
ITEM | PART NAME | MATERIAL | ||
1 | CAP | CF8M | CF8 | WCB |
2 | THRUST WASHER | PTFE | ||
3 | STEM SEALING | PTFE | ||
4 | STOP NUT | SS304 | ||
5 | STEM NUT | SS304 | ||
6 | HANDLE COVER | PLASTIC | ||
7 | HANDLE | SS304 | ||
8 | STEM | SS316 | SS304 | SS304 |
9 | BODY | CF8M | CF8 | WCB |
10 | BALL SEAT | R-PTFE | PTFE | PTFE |
11 | GASKET | PTFE | ||
12 | BALL | SS316 | SS304 | SS304 |
13 | LOCKING PIN | SS304 | ||
MAIN DIMENSION
SIZE | L | D | W | H | H1 | R | C | TORQUE N.M | CV |
1/2" | 73 | 12 | 110 | 57 | 29 | 36 | M6 | 5 | 1.3 |
3/4" | 80 | 15 | 120 | 61 | 32 | 42 | M6 | 7 | 2 |
1" | 88 | 18 | 145 | 67 | 36.5 | 42 | M6 | 8 | 3.4 |
1-1/4" | 125 | 25 | 145 | 81 | 44 | 42 | M6 | 15 | 7.1 |
1-1/2" | 136 | 32 | 160 | 97 | 52.5 | 50 | M6 | 22 | 12.4 |
2" | 152 | 38 | 170 | 108 | 58.5 | 50 | M6 | 25 | 20.3 |
STANDARD PRESSURE | 1000PSI |
SHELL PRESSURE TESTING | 10.4Mpa |
WATER SEAL TESTING | 7.6Mpa |
AIR SEAL TESTING | 0.4-0.7Mpa |
