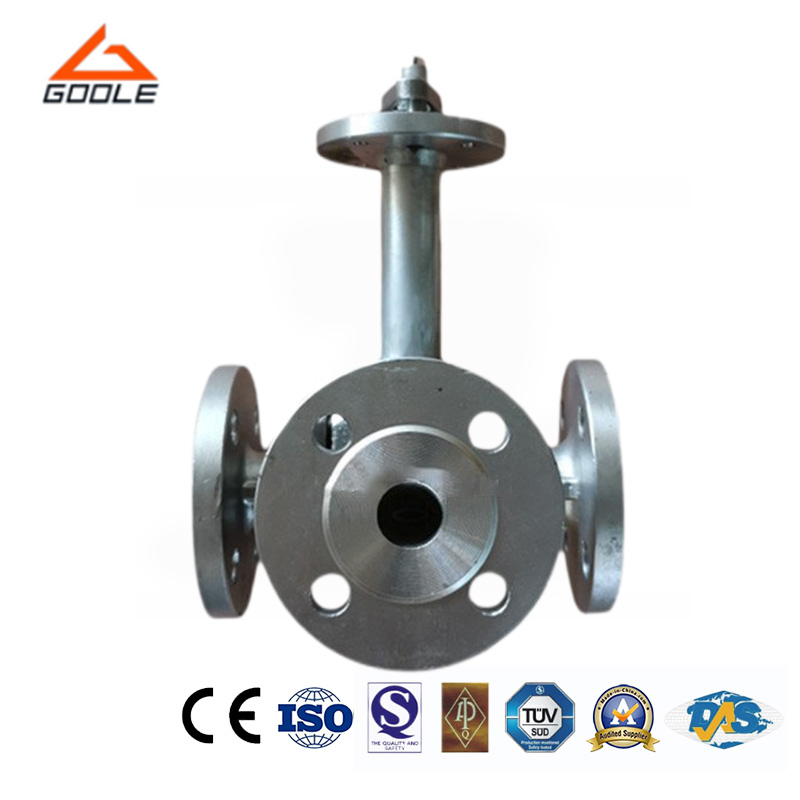

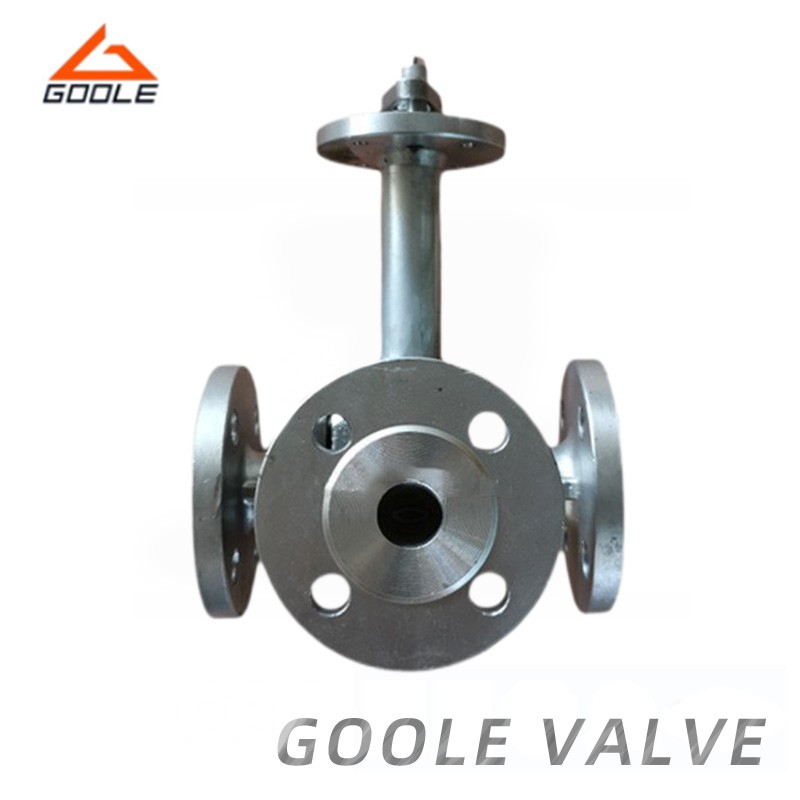

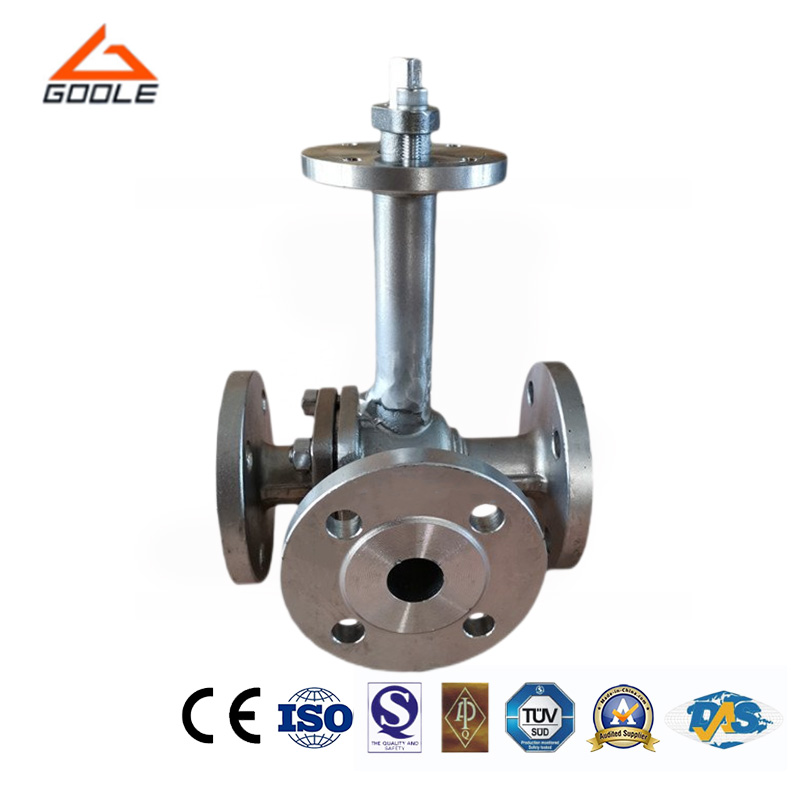

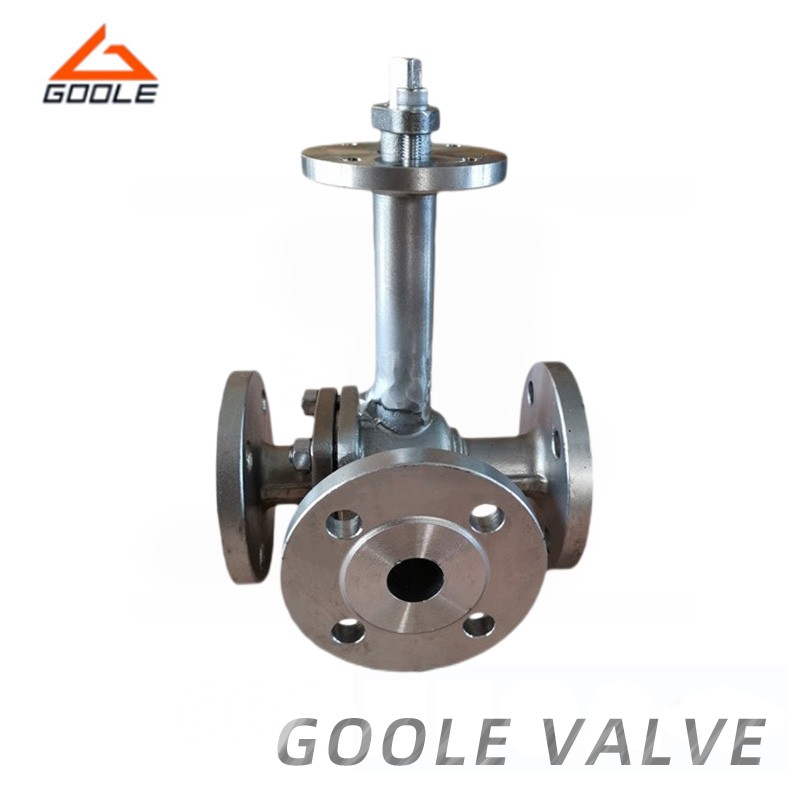

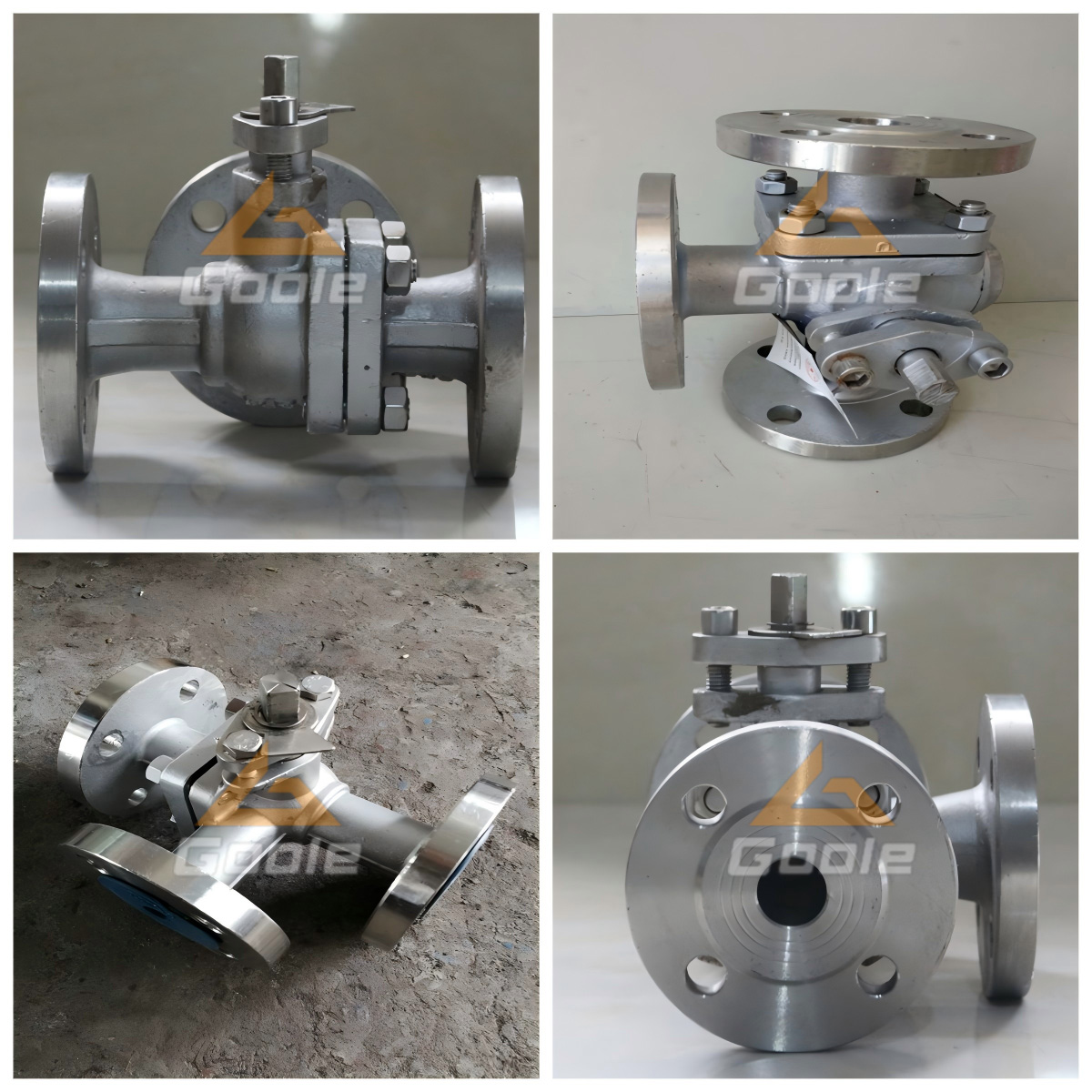

The forged steel extended stem T port low temperature three way ball valve is a professional cryogenic fluid control valve, available in T-port and L-port two flow channel styles. Equipped with customized extended stem, it can isolate low-temperature medium and external operating parts, avoiding stem icing and jamming in ultra-low temperature working environment.
Made of high-strength forged steel and stainless steel raw materials, the valve features integral forging molding, higher structural strength than cast valves. It can realize one-inlet two-outlet fluid diversion, merging and direction switching by 90° spherical rotation.
With standard zero leakage performance conforming to ANSI B16.104, it is widely applied in cryogenic storage tanks, gasification pipelines, petrochemical plants, oil and gas transmission pipelines for long-term stable medium switching operation.
● Compact Low-resistance Structure: Optimized spherical flow channel design, small fluid flow resistance, reduce pipeline medium flow energy loss, energy-saving and efficient operation.
● Fast 90° Switch Operation: Simple spherical core structure, only 90° rotating operation to complete fluid cut-off, diversion and merging, easy operation and high working efficiency.
● Dual Sealing Optional: Support stainless steel movable hard seal and PTFE soft seal, adapt high temperature and low temperature different working conditions separately.
● Anti-icing Extended Stem: Custom lengthened stem design, prevent external water vapor freezing, guarantee flexible valve operation under -40℃ low temperature.
● Diversified Connection Methods: Match RF flange, BW butt welding, RTJ flange three connection standards, meet various on-site pipeline installation demands.
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| L/L1(RF/BW) | in | 17.75 | 20.00 | 22.75 | 26.5 | 36.00 | 40.25 | 50.00 | 56.00 | / | / |
| mm | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | / | / | |
| L2(RTJ) | in | 17.88 | 21.25 | 23.00 | 26.88 | 36.50 | 40.88 | 50.88 | 56.88 | / | / |
| mm | 454 | 540 | 584 | 683 | 927 | 1038 | 1292 | 1445 | / | / | |
| H | in | 7.50 | 9.00 | 11.00 | 14.12 | 15.75 | 18.88 | 20.50 | 26.38 | / | / |
| mm | 190 | 230 | 280 | 360 | 400 | 480 | 520 | 670 | / | / | |
| W | in | 24 | 32 | 32 | 32 | 32 | 40 | 40 | 40 | / | / |
| mm | 600 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | / | / | |
| WT(Kg) | RF/RTJ | 68 | 95 | 120 | 185 | 675 | 1100 | 1650 | 2300 | / | / |
| BW | 54 | 74 | 91 | 122 | 555 | 918 | 1355 | 2950 | / | / |
| Form | Type T,L three way ball valve |
| Inside nominal diameter DN(mm) | DN15-DN300 |
| Nominal pressure | 1.6 2.5 4.0 6.4Mpa |
| Liquid range | Air ,water, gas ,oil and petrochemical products corrosive medium |
| Working temperature | Hard seal:-40 --300 Soft seal:-40 --180 |
| Spillage | 0 conform to ANSIB16.104standard |
| Main material | Valve body : WCB 304 316 316L Spool: 304 316 316L |
| Seat form | Stainless steel movable hard seal, PTFE soft seal |
| Surface preparation | Polishing |
Low Temperature Anti-icing Design: Extended stem separates cryogenic medium and operating parts, avoid stem freezing and stuck, stable operation under -40℃ long-term low temperature.
Integral Forged Body: Forged integrated molding, higher pressure resistance, anti-deformation than cast valve, adapt high pressure 6.4Mpa working pipeline.
T/L Dual Flow Channel Optional: T port for medium diversion & convergence; L port for simple medium switching, meet different pipeline process demands.
Dual Seal Matching: Hard seal for high temp oil medium, soft seal for clean medium, full leakage-proof performance up to ANSI international standard.
Universal Installation Design: Support three connection ends, unified polished valve surface, easy installation, matching global industrial pipeline standards.
This extended stem T port three way ball valve is specially used for cryogenic liquid storage stations, natural gas gasification plants, petrochemical reaction pipelines, oil depot conveying systems, urban gas pipelines and corrosive fluid process pipelines. It is the core control valve for medium diversion, merging and direction switching in low temperature and high pressure industrial piping systems.
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Max pressure reaches 6.4Mpa; Hard seal working range -40℃~300℃, PTFE soft seal working range -40℃~180℃, meet high and low temperature dual working demands.
It supports RF raised face flange, BW butt welding, RTJ ring joint flange three mainstream connection types, customized size is acceptable.
Yes. Its spillage performance is zero leakage, fully conform to ANSI B16.104 industrial valve leakage standard.
Our three-way ball valves are crafted from premium materials, ensuring exceptional durability and reliability. Their innovative design ensures precise and efficient fluid control, meeting the needs of a wide range of industrial applications. We offer comprehensive after-sales service to ensure that any issues encountered during use are promptly and effectively resolved. By choosing our three-way ball valves, you will enjoy superior product performance and a worry-free user experience.
