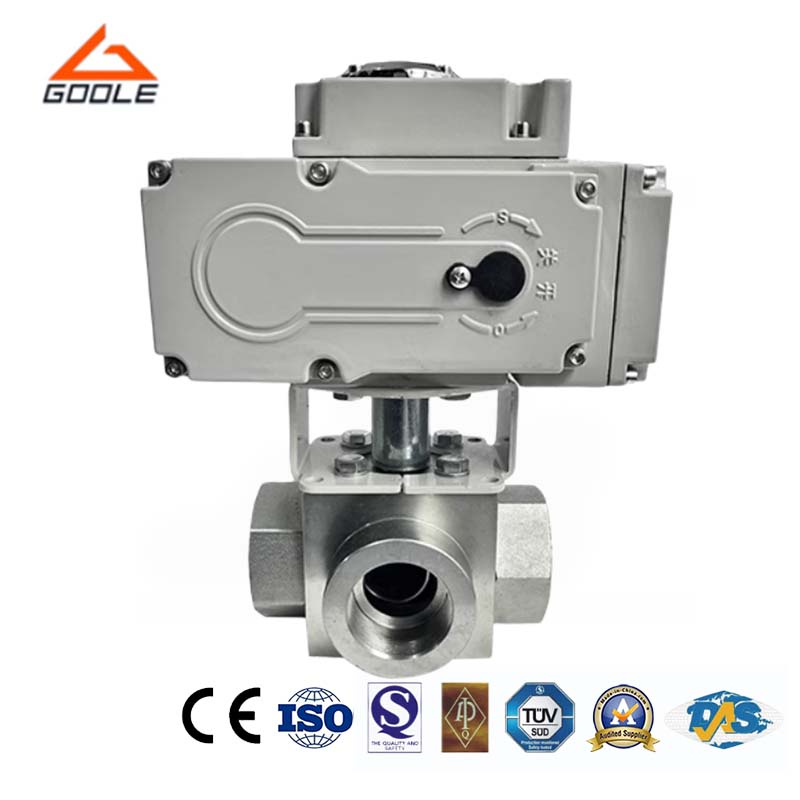

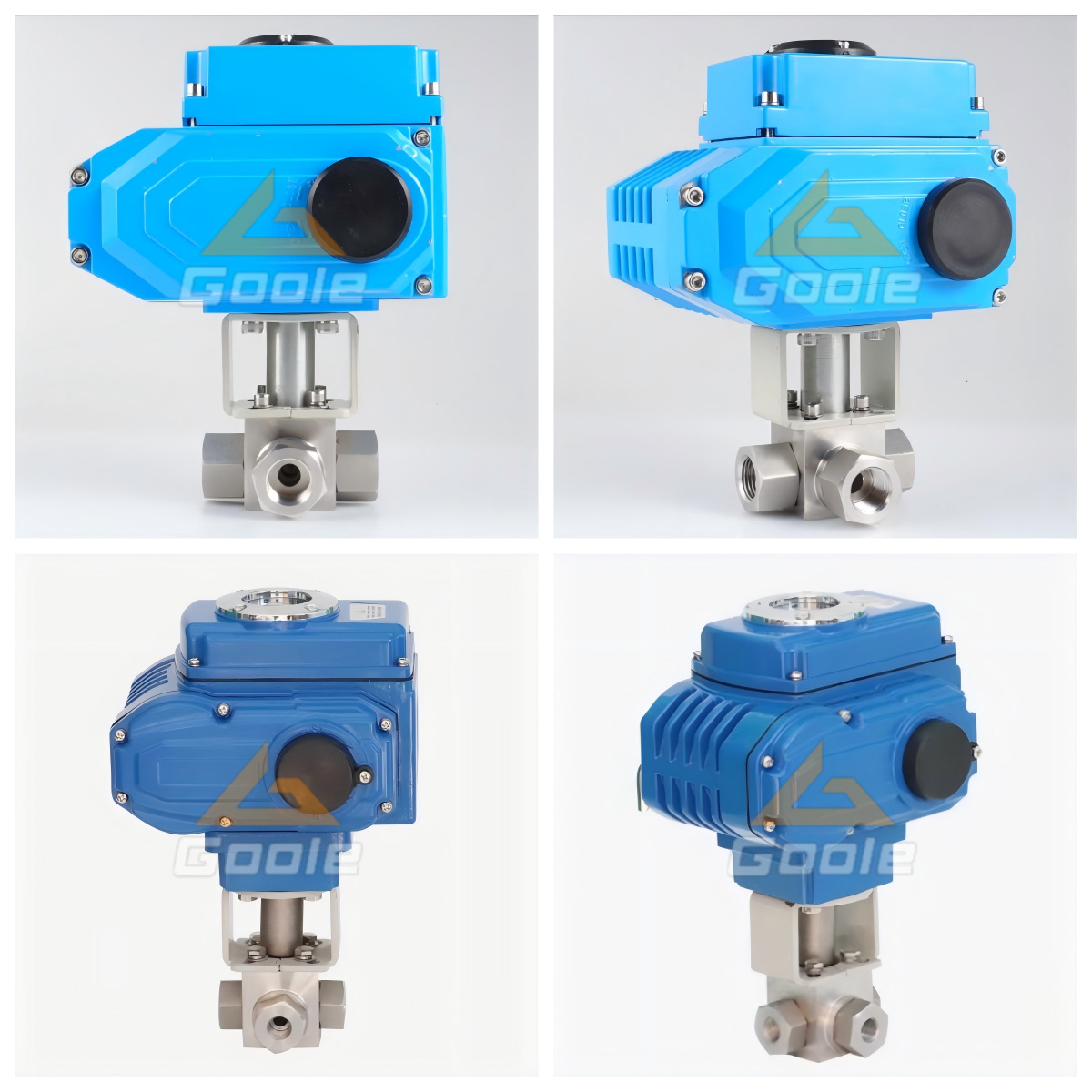

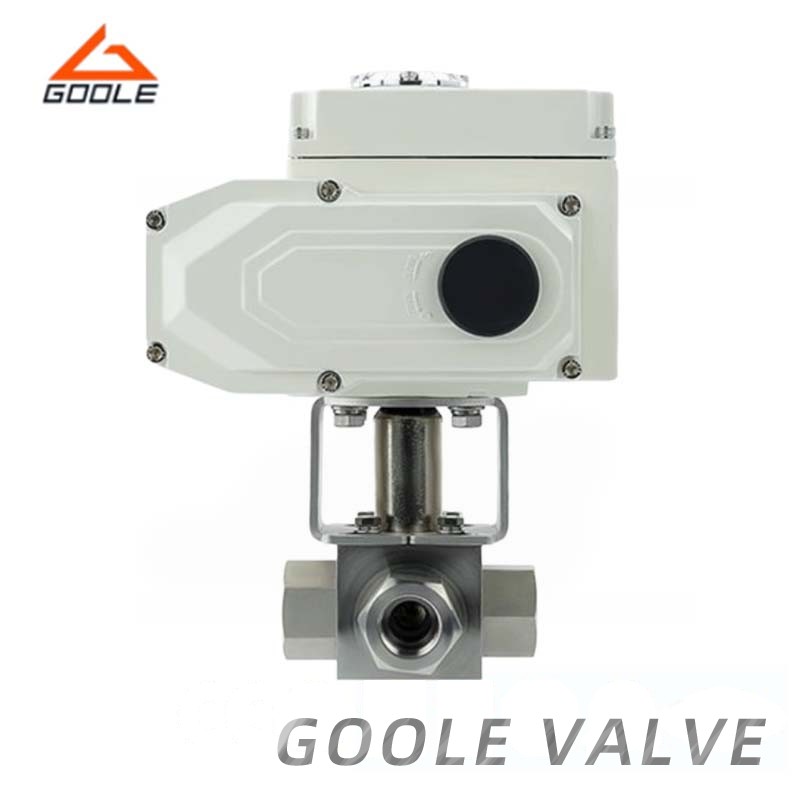

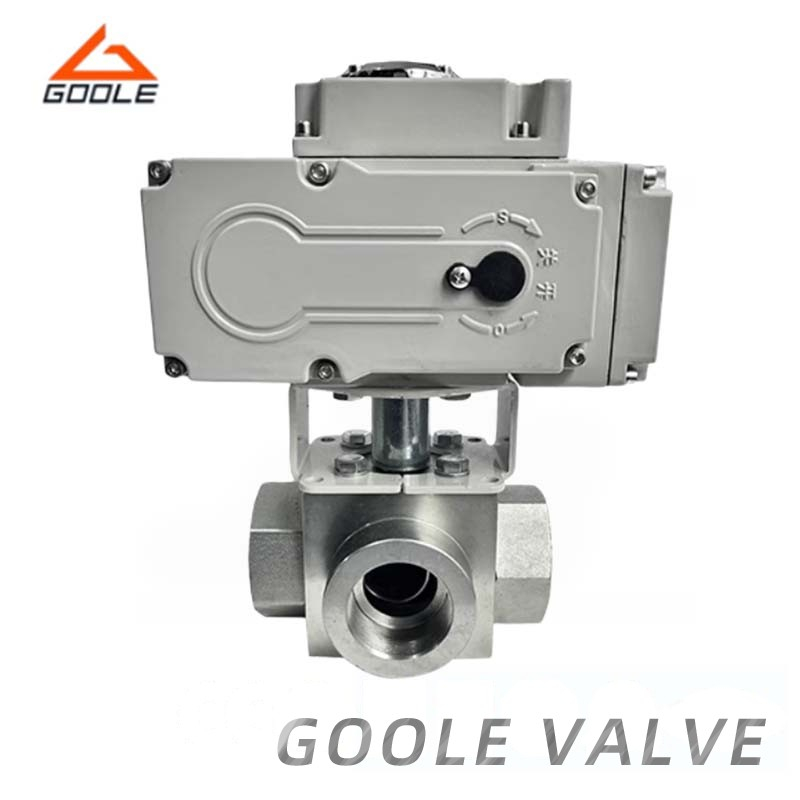

The Electric high-pressure three-way ball valve divides the valve body into three sections along the cross-section perpendicular to the valve passage axis at two seat positions. The entire valve is symmetrical about the center axis of the valve stem. This valve is primarily used for cutting off, distributing, and changing the direction of the medium flow in pipelines. Its pivot structure ensures precise positioning of the ball under high pressure, enhancing the valve's operational performance. The electric actuator is designed with an integrated system, allowing direct adjustment of the switch value by inputting 220V power. Additionally, the valve can be equipped with a built-in servo module to control the valve's operation using input control signals (4-20mA or 1-5V DC) and single-phase power.
● Compact Structure: With low flow resistance, can operate efficiently in the fluid control system, thus minimizing energy loss.
● Easy to Operate: The switch adopts a unique spherical design to achieve quick opening and closing. Only 90 degrees of rotation can significantly improve work efficiency.
● Good Sealing Performance: Advanced sealing materials and structures are used to ensure reliable sealing under various working conditions and prevent fluid leakage.
DN | Pipe Thread | size(mm) | Pipe Thread | size(mm) | |||||||
d | L | H | W | E | H | W | SW | L | |||
6 | 1/4 | 11 | 70 | 43 | 108 | 42.5 | - | - | - | - | 70 |
10 | 3/8 | 11 | 70 | 43 | 108 | 42.5 | - | - | - | - | - |
15 | 1/2 | 11 | 85 | 43 | 108 | 42.5 | 1/2 | 68 | 130 | 41 | 85 |
20 | 3/4 | 14 | 95 | 45.5 | 146 | 47.5 | 3/4 | 77 | 180 | 46 | 95 |
25 | 1 | 21 | 105 | 59.5 | 146 | 52.5 | 1 | 82 | 180 | 55 | 105 |
32 | 1 1 /4 | 25 | 120 | 64.5 | 146 | 60 | 1 1 /4 | 115 | 300 | 70 | 120 |
40 | 1 1 /2 | 32 | 130 | 76 | 254 | 65 | 1 1 /2 | 120 | 300 | 80 | 130 |
50 | 2 | 38 | 150 | 81 | 254 | 75 | 2 | 130 | 300 | 100 | 150 |
| STANDARD PRESSURE | 1000PSI |
SHELL PRESSURE TESTING | 10.4Mpa |
WATER SEAL TESTING | 7.6Mpa |
AIR SEAL TESTING | 0.4-0.7Mpa |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valve is made of high-quality materials, ensuring excellent durability and reliability. Our innovative design ensures precise and efficient fluid control, meeting the diverse needs of industrial applications. We are committed to providing comprehensive after-sales service to ensure that any problems you encounter during use can be promptly and effectively resolved. By choosing our three-way ball valve, you will experience excellent performance and worry free user experience.
