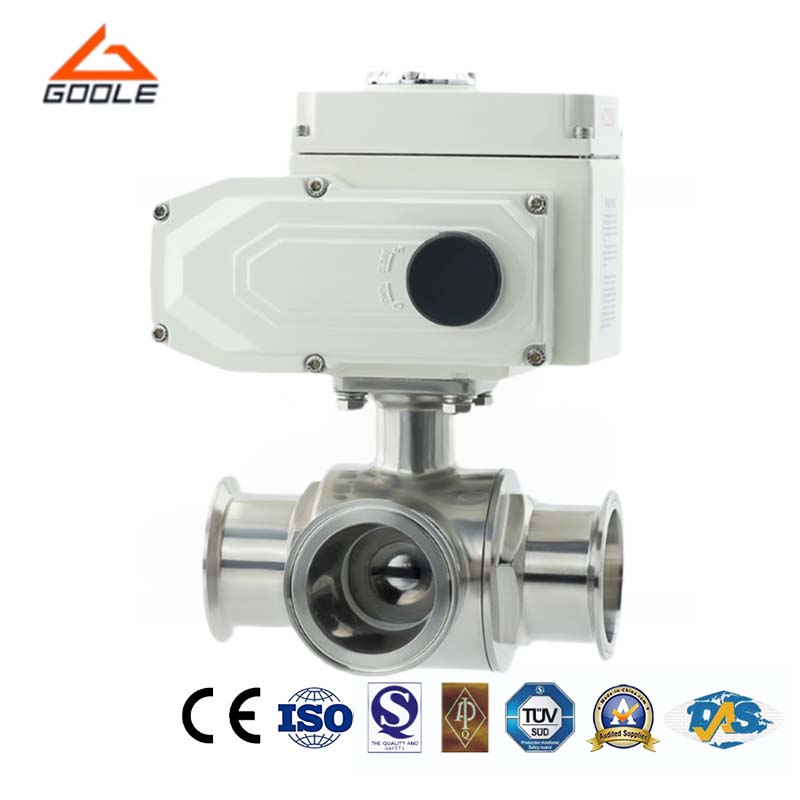

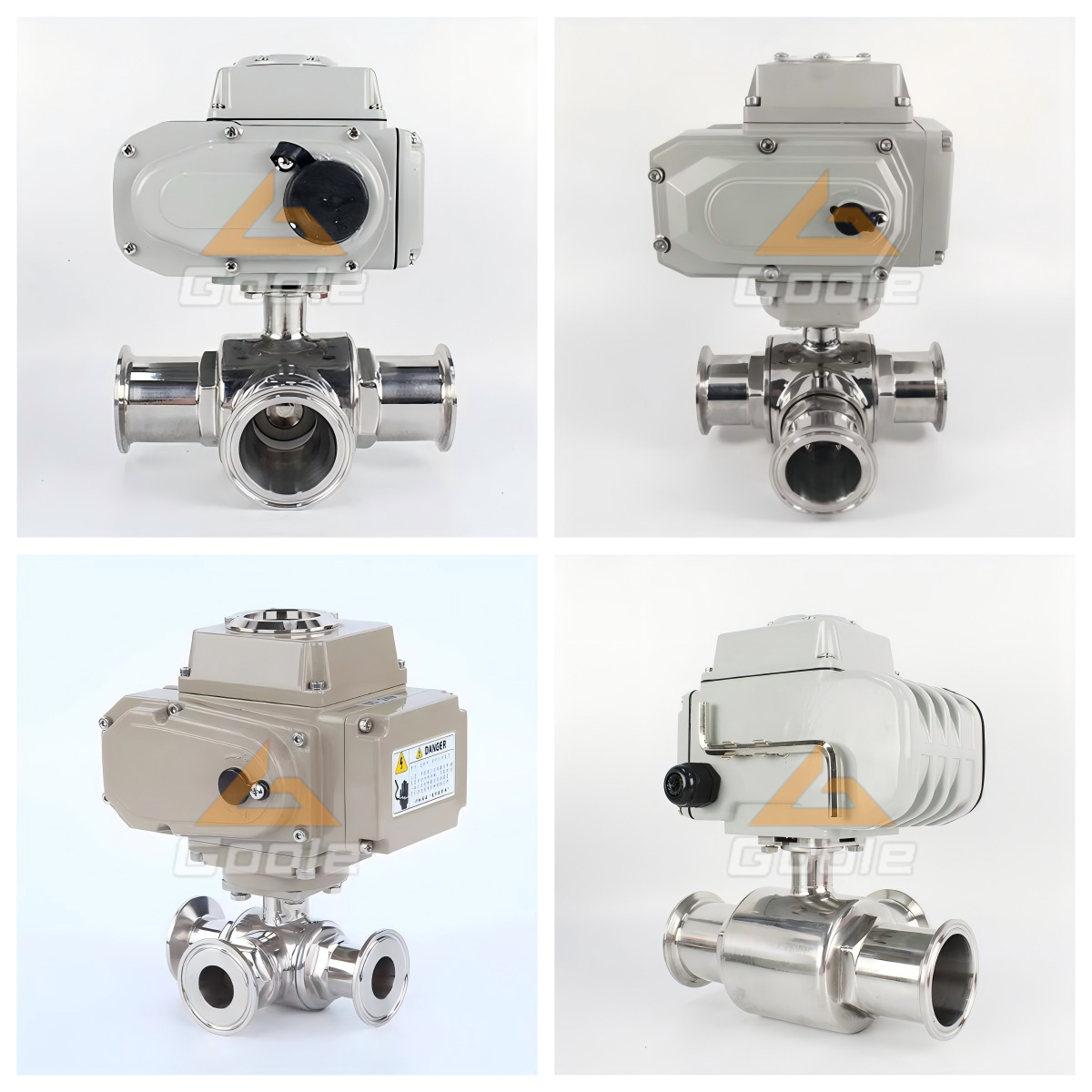

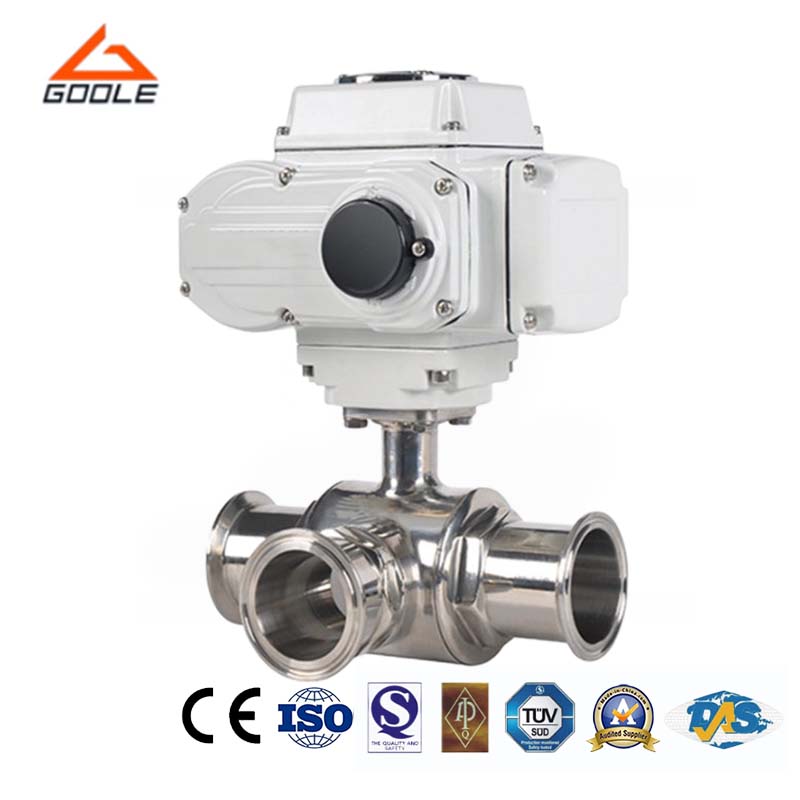

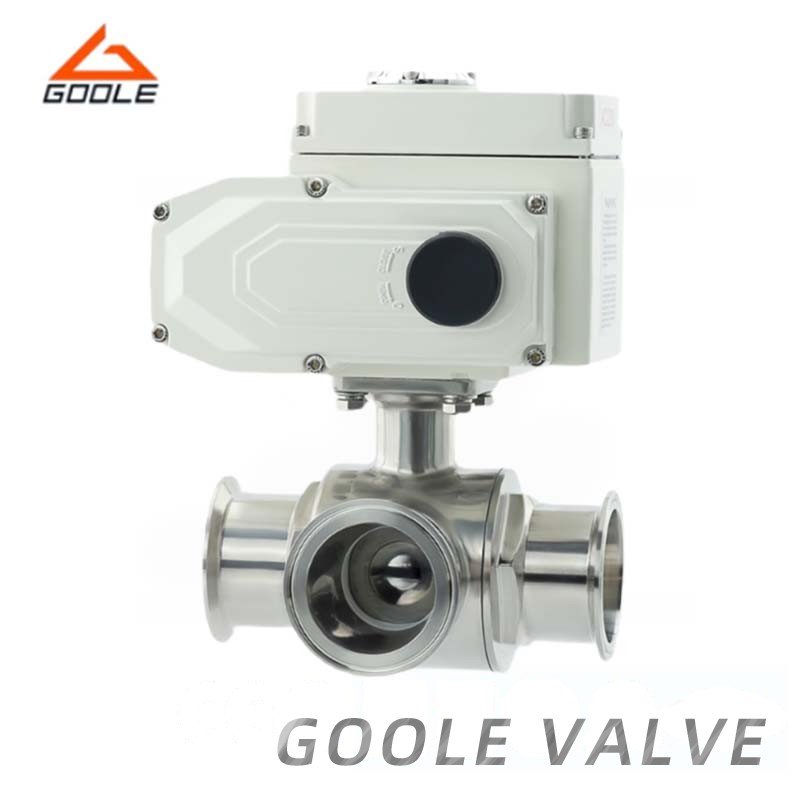

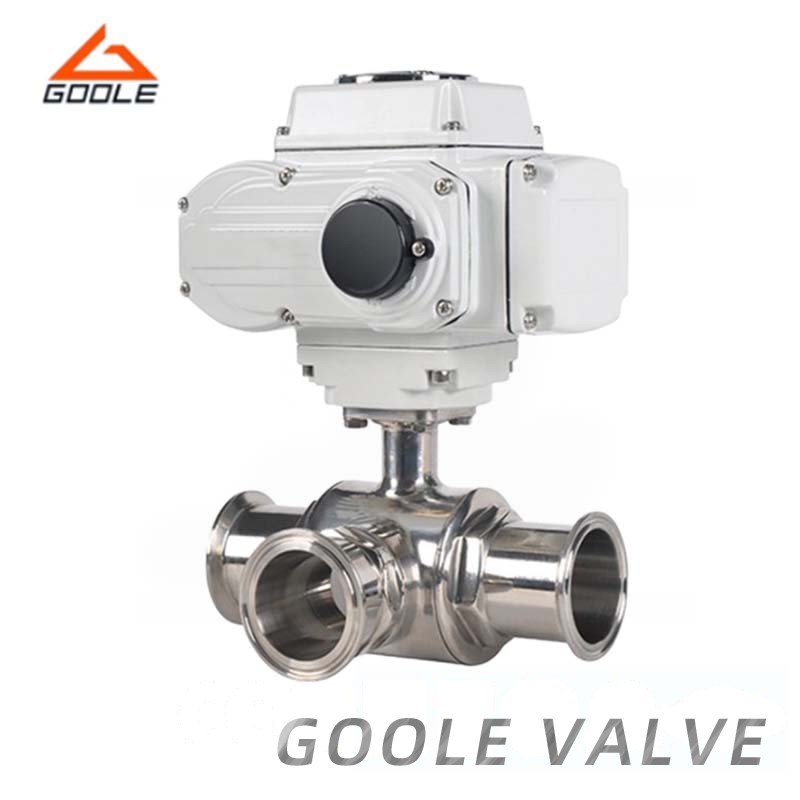

The Electric sanitary ball valve adopts the upper installation structure, which reduces the connecting bolts of the valve body under high pressure and large diameter, improves the reliability of the valve, and overcomes the influence of system weight on the normal operation of the valve.
● Compact Structure: With low flow resistance, can operate efficiently in the fluid control system, and effectively reduce energy loss.
● Convenient Operation: The switch adopts innovative spherical design to achieve quick opening and closing. Only 90 degrees of rotation can significantly improve work efficiency.
● Excellent Sealing Performance: Advanced sealing materials and structural design are adopted to ensure reliable sealing under various working conditions and prevent fluid leakage.
| NO. | PART NAME. | MATERIAL | QTY. |
| 1 | BODY | CF8M | 1 |
| 2 | BONNET | CF8M | 1 |
| 3 | BALL | SS316 | 1 |
| 4 | SEAT | PTFE/RPTFE | 2 |
| 5 | GASKET | PTFE | 2 |
| 6 | STEAM SEAL | PTFE/RPTFE | 1 |
| 7 | STEM | SS316 | 1 |
| 8 | PACKING | PTFE | 1 |
| 9 | PACKING GLAND | SS304 | 1 |
| 10 | BELLEVILE WASHER | SS301 | 2 |
| 11 | SPRING WASHER | SS301 | 1 |
| 12 | PIN NUT | SS304 | 2 |
| 13 | HANDLE SLEEVE | SS304 | 1 |
| 14 | SPRING WASHER | SS301 | 1 |
| 15 | HANDLE | SS304 | 1 |
| 16 | STOP PIN | SS304 | 1 |
| 17 | NUT | SS304 | 1 |
| 18 | LOCKING DEVICE | SS304 | 1 |
Dimension List.
| NPS | d | E | d1 | d2 | F | G | H | H1 | H2 | L | W | ISO5211(K/1) |
| 1/4" | 11.5 | 139 | 6 | 6 | 9 | 1/4"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 3/8" | 12.5 | 139 | 6 | 6 | 9 | 3/8"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 1/2" | 15 | 139 | 6 | 6 | 9 | 1/2"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 16 | F03/F04 |
| 3/4" | 20 | 139 | 6 | 6 | 9 | 3/4"NPT/BSP | 46.15 | 7.1 | 80.15 | 74.6 | 17 | F03/F04 |
| 1" | 25 | 165 | 6 | 7 | 11 | 1"NPT/BSP | 56.6 | 10.9 | 95.4 | 88.5 | 21 | F04/F05 |
| 1-1/4" | 32 | 165 | 6 | 7 | 11 | 1-1/4"NPT/BSP | 61.0 | 10.9 | 99.8 | 102 | 22 | F04/F05 |
| 1-1/2" | 38 | 215 | 7 | 9 | 14 | 1-1/2"NPT/BSP | 77.5 | 13.9 | 126.3 | 110 | 22.5 | F05/F07 |
| 2" | 49 | 215 | 7 | 9 | 14 | 2"NPT/BSP | 85.2 | 139.9 | 134 | 125 | 24 | F05/F07 |
| 2-1/2" | 65 | 263 | 10 | 12 | 17 | 2-1/2"NPT/BSP | 108.7 | 16.8 | 166.7 | 160.6 | 31 | F07/F10 |
| 3" | 80 | 263 | 10 | 12 | 17 | 3"NPT/BSP | 117.4 | 18.1 | 175.4 | 178 | 34 | F07/F10 |
Pressure Test.
| Test Item | Shell Test | Sealing Test | Back Seal Test | Air Test | |||||
| Medium | Water | Air | |||||||
| Unit | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
| Test Pressure | 150 | 3.1 | 450 | 2.2 | 315 | 2.2 | 315 | 0.5-0.7 | 60-100 |
| 300 | 7.8 | 1125 | 5.6 | 815 | 5.6 | 815 | |||
| 400 | 10.3 | 1500 | 7.6 | 1100 | 7.6 | 1100 | |||
| 600 | 15.3 | 2225 | 11.2 | 1630 | 11.2 | 1630 | |||
| 900 | 23.1 | 3350 | 16.8 | 2440 | 16.8 | 2440 | |||
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valves are crafted from premium materials, ensuring exceptional durability and reliability. Their innovative design enables precise and efficient fluid control, meeting the needs of a wide range of industrial applications. We offer comprehensive after-sales service to ensure that any issues you encounter during use are promptly and effectively resolved. By choosing our three-way ball valves, you will enjoy superior product performance and a worry-free user experience.
