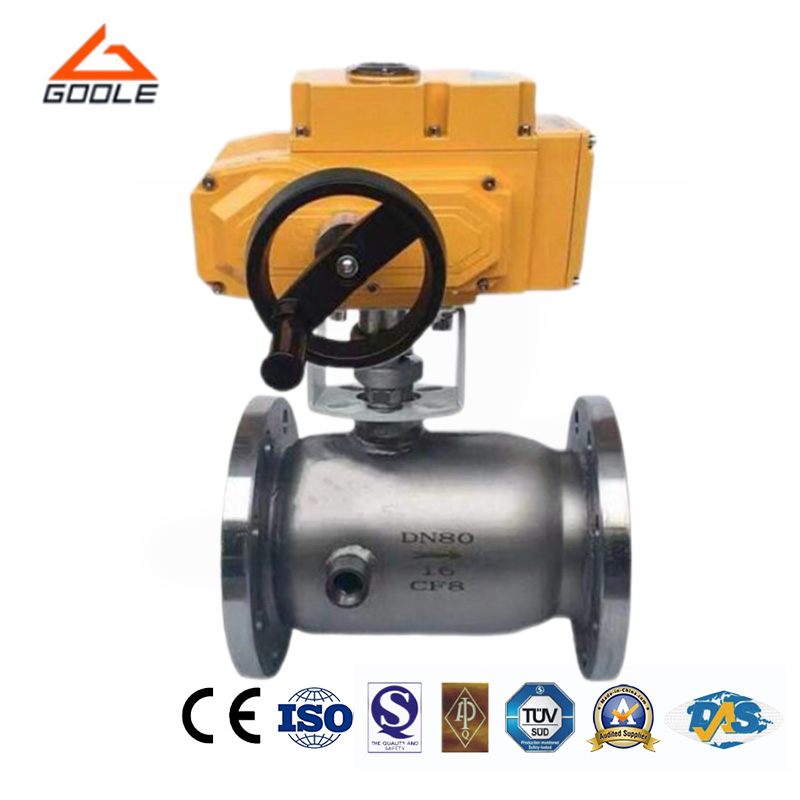

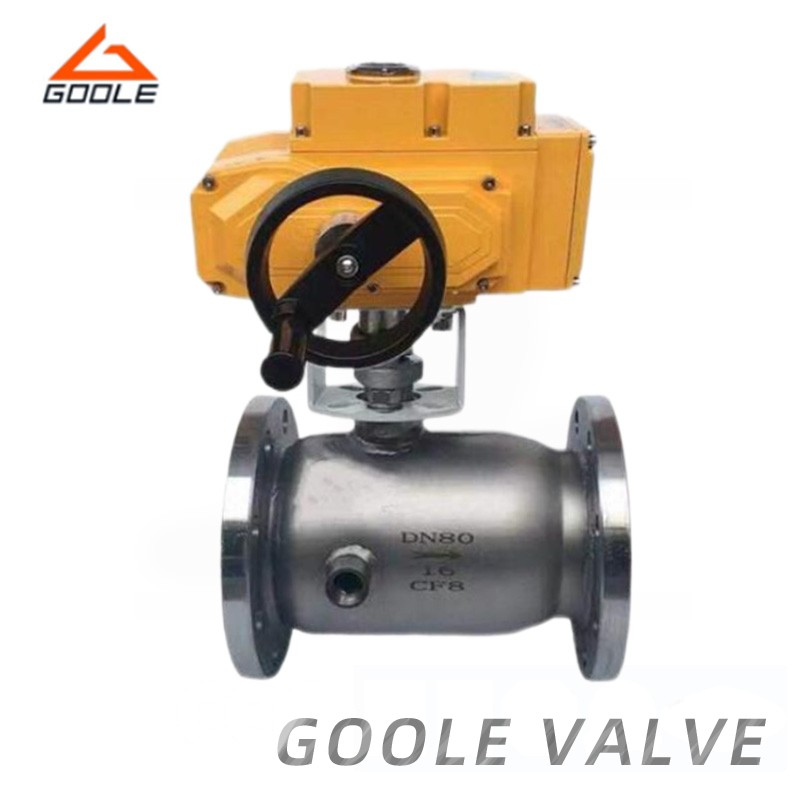

Electric integrated flange insulated jacket ball valve is a special type of insulated ball valve, which belongs to the same type of valve as flange gate valve. Differently, its closing part is a sphere that rotates around the centerline of the valve body to achieve opening and closing. Ball valves are mainly used to cut off, distribute, and change the flow direction of media in pipelines. Two piece ball valves and three piece ball valves are a new type of valve widely used in recent years. These valves should usually be installed horizontally in pipelines.
● Small Fluid Resistance: The fluid resistance is low, and its resistance coefficient is equal to the resistance coefficient of a pipe segment of the same length.
●Tight and Reliable: Currently, plastic is widely used as the sealing surface material for ball valves, with good sealing performance, and has also been widely used in vacuum systems.
● Easy Operation: Quickly open and close, with only a 90 ° rotation from fully open to fully closed, making it convenient for remote control.
● Easy Maintenance: The ball valve has a simple structure, and the sealing ring is generally movable, making disassembly and replacement more convenient.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
This valve is driven by an electric actuator to rotate the ball, thereby achieving the flow or cut-off of the medium. After receiving the signal, the internal piston or diaphragm generates thrust, driving the ball to rotate within a 90 degree range. When the ball rotates perpendicular to the pipeline axis, the valve closes and the medium is cut off; When the ball rotates parallel to the axis of the pipeline, the valve opens, allowing the medium to flow. In addition, the insulation sleeve design effectively prevents the medium from freezing or vaporizing due to temperature changes, ensuring the stable operation of the valve.
Our electric integrated insulated jacket ball valve is made of high-quality materials, ensuring its excellent durability and reliability. Its unique design enables the valve to maintain stable performance even under extreme temperature conditions, effectively preventing the medium from solidifying or vaporizing due to temperature changes, thereby ensuring the smooth operation of the production line. The valve is equipped with an integrated electric actuator, which is easy and fast to operate, greatly improving work efficiency. Both manual and automatic control can be easily implemented to meet the needs of different users. By choosing our electric integrated insulated jacket ball valve, you will receive an ideal valve product with excellent performance, simple operation, and energy-saving and environmental protection.
