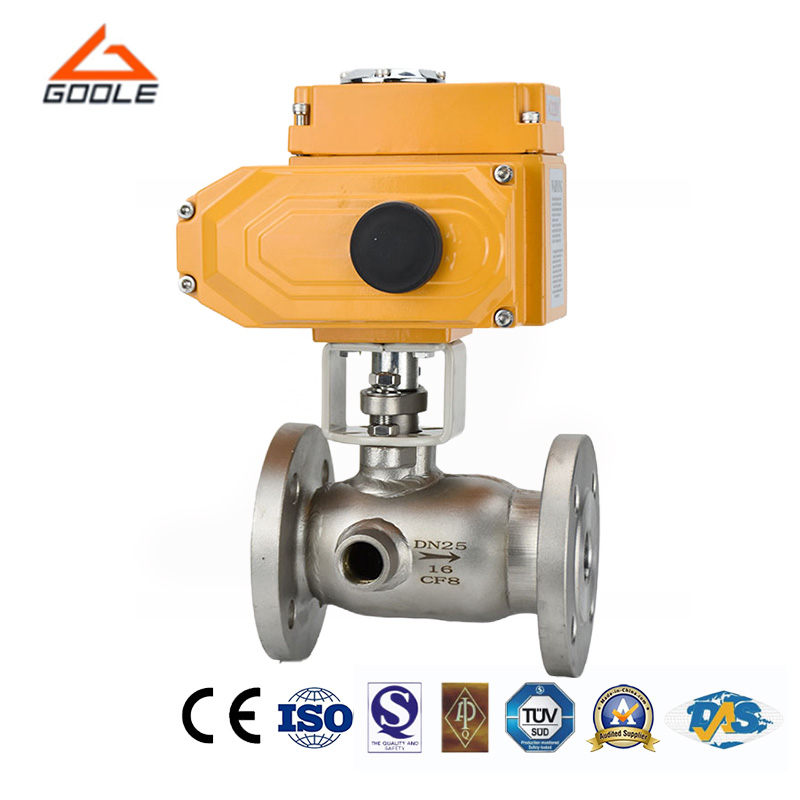

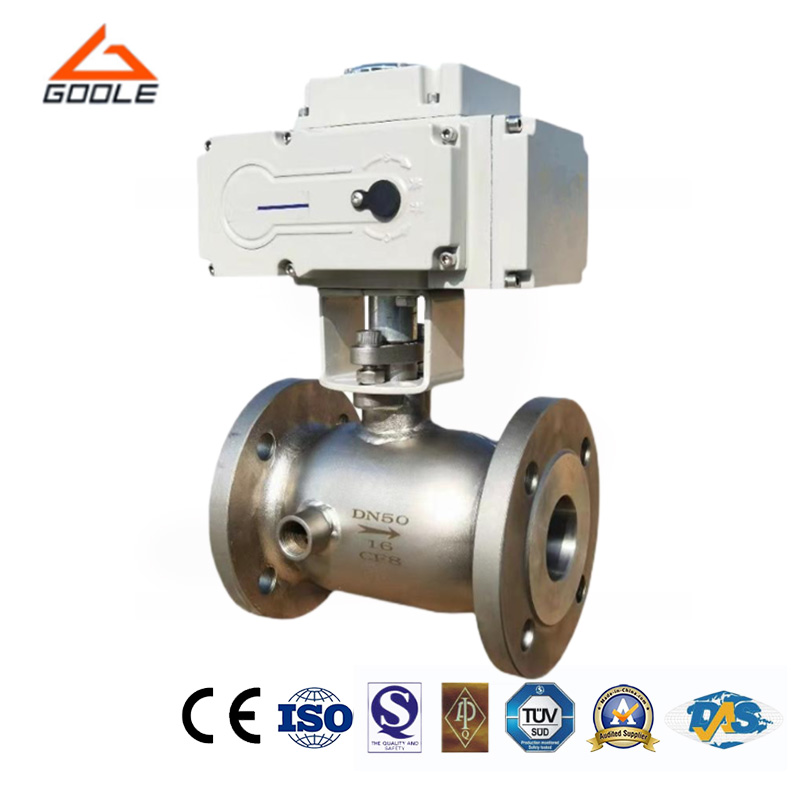

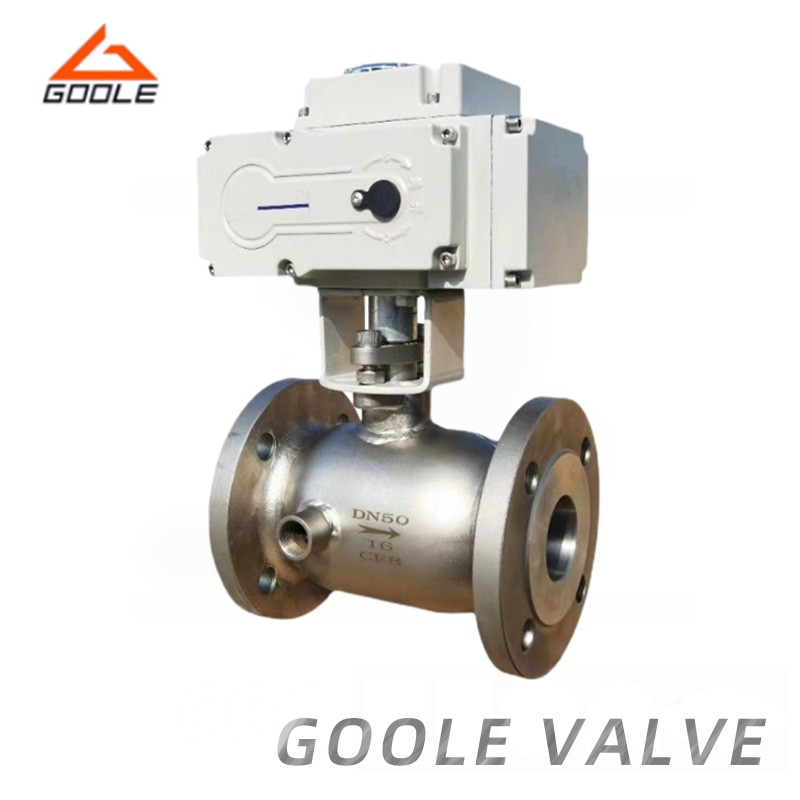

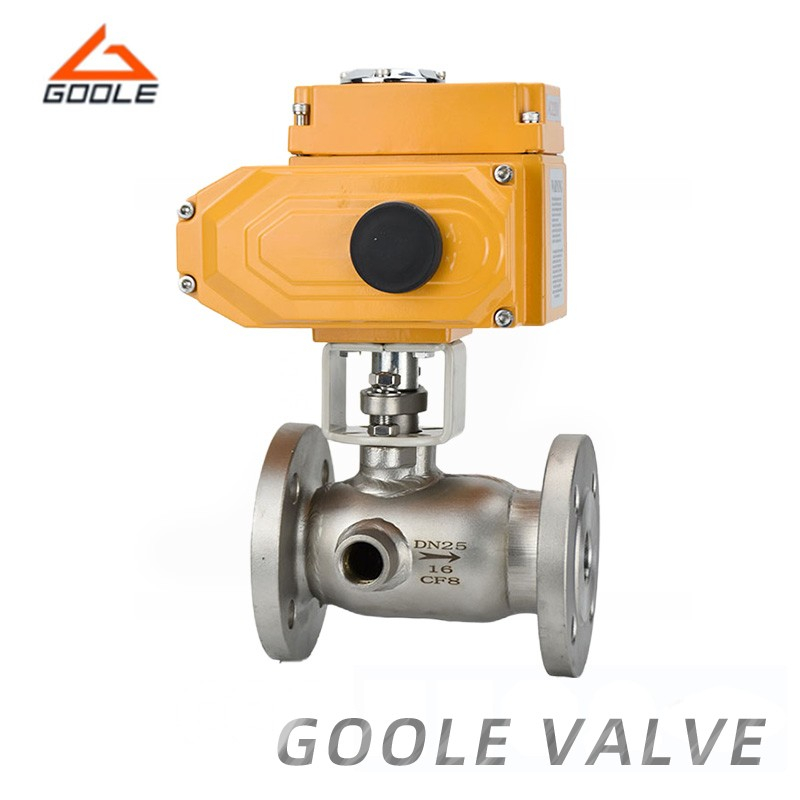

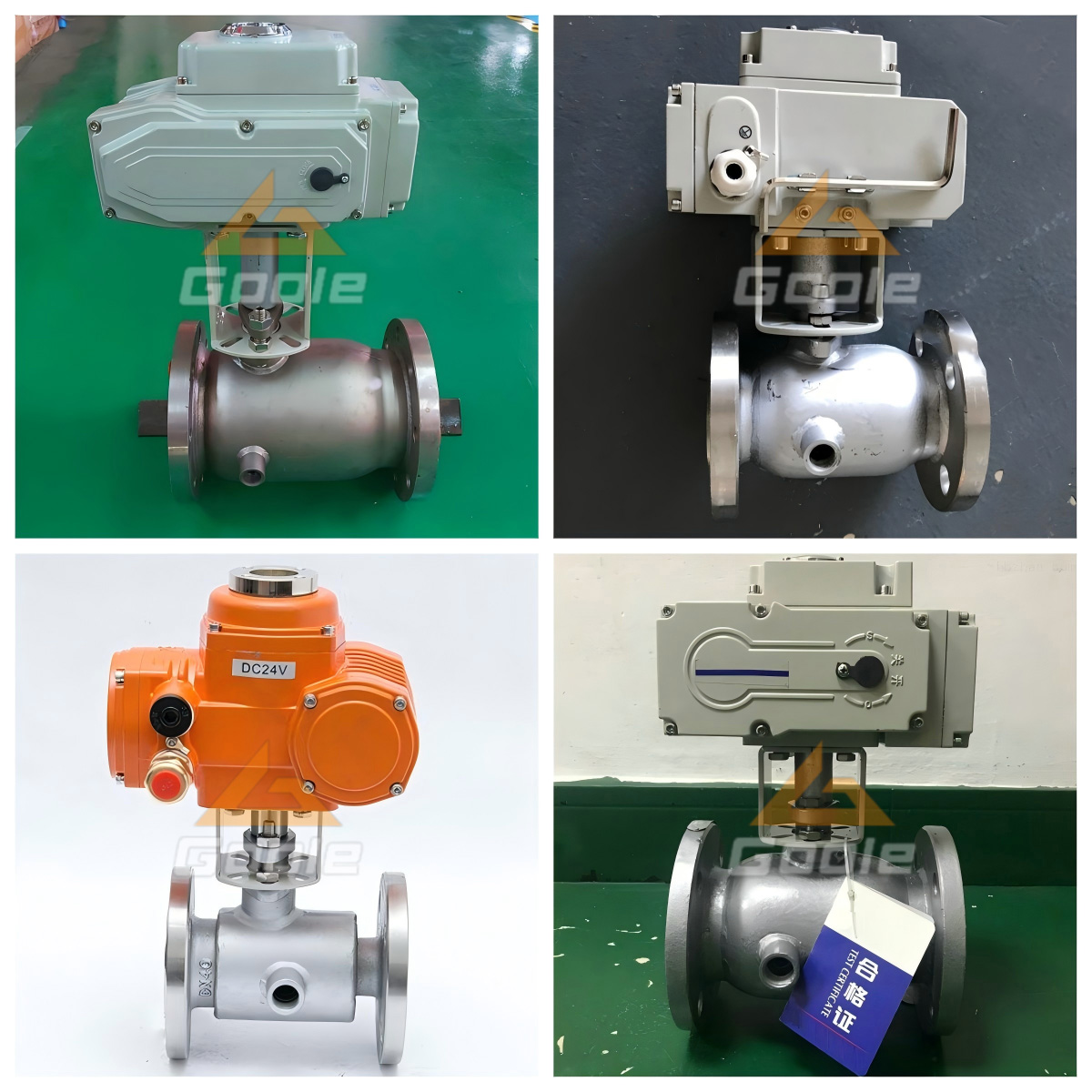

The electric integrated flanged insulated sleeve ball valve is a unique insulated ball valve, belonging to the same category as flanged gate valves. Its uniqueness lies in the closing mechanism, which achieves opening and closing through a sphere that rotates around the centerline of the valve body. The ball valve is primarily used in pipeline systems for cutting off, distributing, and changing the direction of media flow. In recent years, two-piece and three-piece ball valves have been widely adopted as new types of valves. These valves are typically recommended for horizontal installation within pipelines.
● Small Fluid Resistance:The fluid resistance is low, and its resistance coefficient is equal to that of the same length pipe section.
●Tight and Reliable: At present, plastic is widely used as the sealing surface material of ball valves, showing excellent sealing performance, and is also widely used in vacuum systems.
● Easy Operation: Ball valve can be opened and closed quickly. It only needs to rotate 90 degrees from fully open to fully closed, which is convenient for remote control.
● Easy Maintenance: The ball valve structure is simple, the sealing ring can be moved, easy to disassemble and install.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The electric actuator drives the ball to rotate, achieving the flow or cutoff of the medium. Once a signal is received, the internal piston or diaphragm generates thrust, causing the ball to rotate within a 90-degree range. When the ball rotates perpendicular to the pipeline axis, the valve closes, and the medium is cut off; when the ball rotates parallel to the pipeline axis, the valve opens, allowing the medium to flow. Additionally, the design of the thermal insulation sleeve effectively prevents the medium from freezing or vaporizing due to temperature changes, ensuring stable valve operation.
