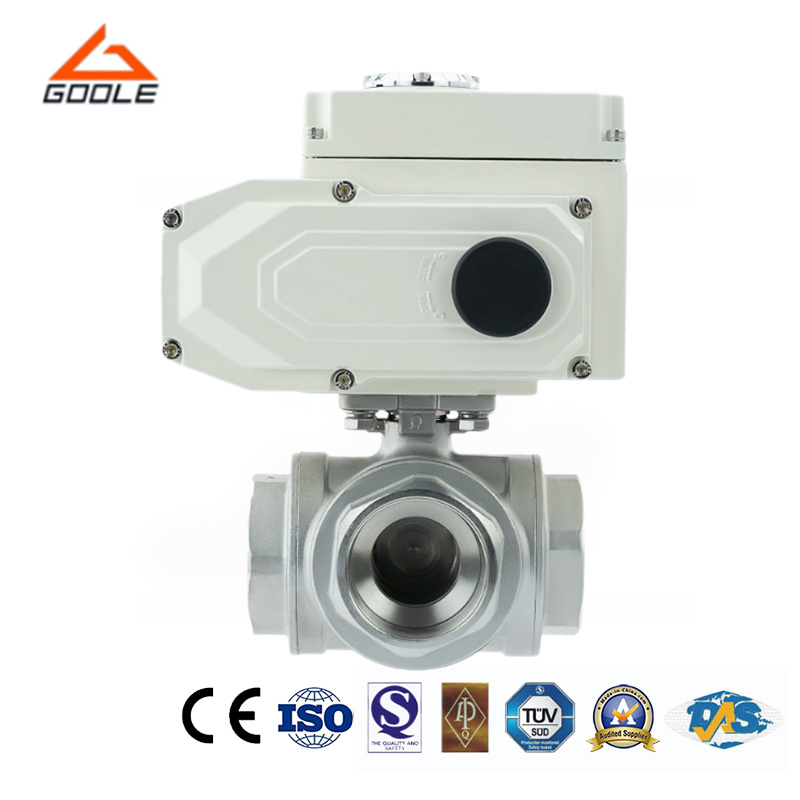

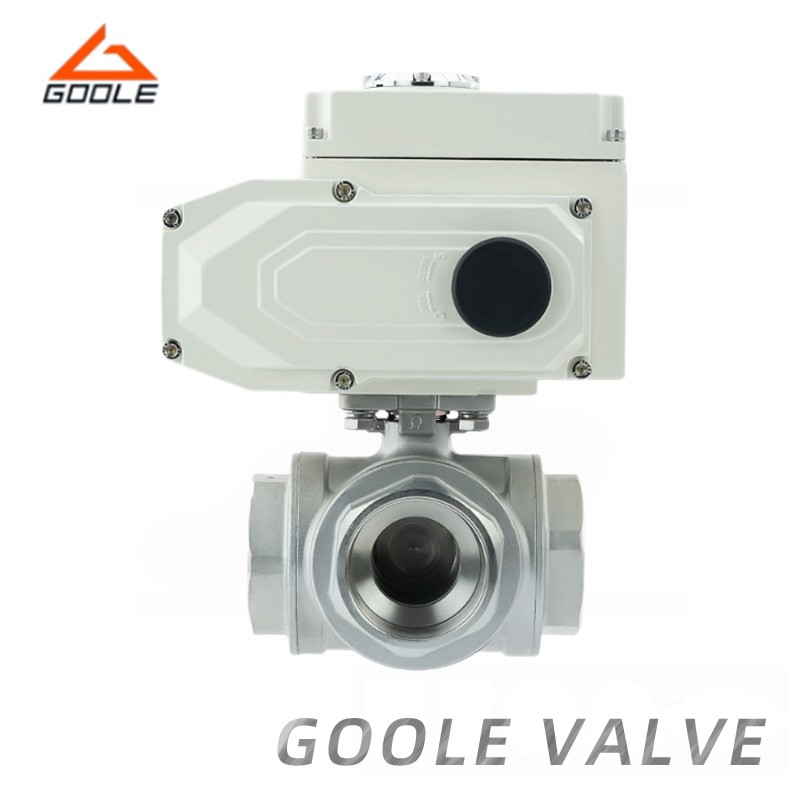

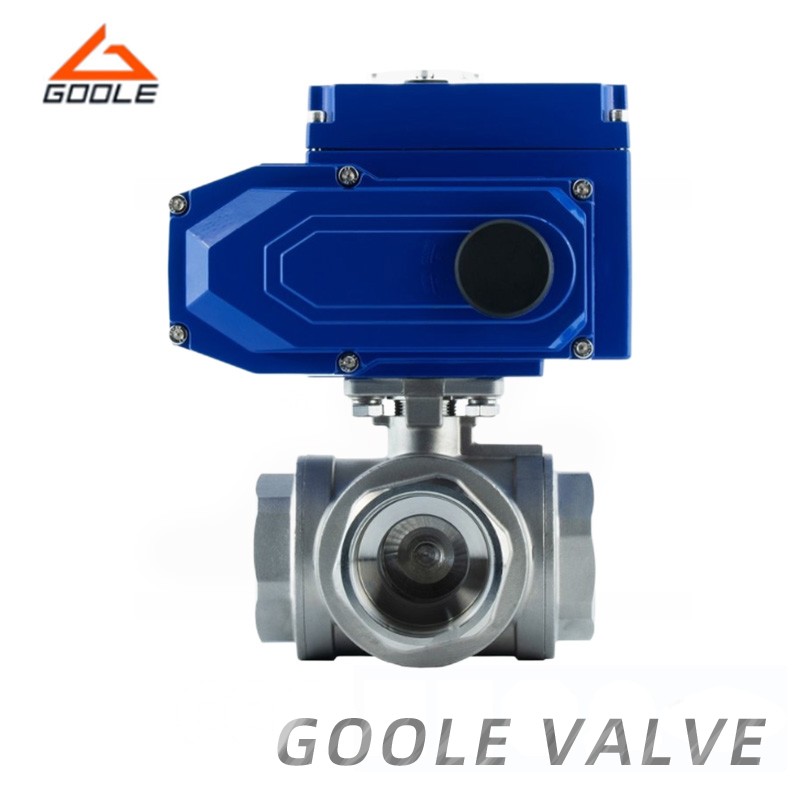

Electric three-way ball valves are widely used in various industrial pipeline sectors, including chemical, petroleum, power, pharmaceutical, beer, food, dairy and beverage, cosmetics, and engineering. Thanks to their unique design and superior performance, they are ideal for a variety of applications. The flexible three-way structure allows for multi-directional fluid control. Additionally, their robust construction ensures long-term reliability and stability, making them suitable for harsh industrial environments.
● Compact Structure: With low flow resistance, can operate efficiently in a variety of fluid control systems, thus reducing energy loss.
● Easy to Operate: The switch adopts a unique spherical design, which can achieve quick opening and closing. It only needs to rotate 90 degrees to complete the operation, which greatly improves work efficiency.
● Good Sealing Performance: Advanced sealing materials and structures are adopted to ensure reliable sealing under various operating conditions and prevent fluid leakage.
ITEM | PART NAME | MATERIAL | ||
1 | CAP | CF8M | CF8 | WCB |
2 | THRUST WASHER | PTFE | ||
3 | STEM SEALING | PTFE | ||
4 | STOP NUT | SS304 | ||
5 | STEM NUT | SS304 | ||
6 | HANDLE COVER | PLASTIC | ||
7 | HANDLE | SS304 | ||
8 | STEM | SS316 | SS304 | SS304 |
9 | BODY | CF8M | CF8 | WCB |
10 | BALL SEAT | R-PTFE | PTFE | PTFE |
11 | GASKET | PTFE | ||
12 | BALL | SS316 | SS304 | SS304 |
13 | LOCKING PIN | SS304 | ||
1000PSI/PN63 DIMENSION
SIZE | L | D | W | H | H1 | R | C | TORQUE N.M | CV |
1/2" | 73 | 12 | 110 | 57 | 29 | 36 | M6 | 5 | 1.3 |
3/4" | 80 | 15 | 120 | 61 | 32 | 42 | M6 | 7 | 2 |
1" | 88 | 18 | 145 | 67 | 36.5 | 42 | M6 | 8 | 3.4 |
1-1/4" | 125 | 25 | 145 | 81 | 44 | 42 | M6 | 15 | 7.1 |
1-1/2" | 136 | 32 | 160 | 97 | 52.5 | 50 | M6 | 22 | 12.4 |
2" | 152 | 38 | 170 | 108 | 58.5 | 50 | M6 | 25 | 20.3 |
| STANDARD PRESSURE | 1000PSI |
SHELL PRESSURE TESTING | 10.4Mpa |
WATER SEAL TESTING | 7.6Mpa |
AIR SEAL TESTING | 0.4-0.7Mpa |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valve is crafted from premium materials, ensuring exceptional durability and reliability. Its innovative design enables precise and efficient fluid control, meeting the diverse needs of various industrial applications. We offer comprehensive after-sales service to ensure that any issues you encounter during use are promptly and effectively resolved. By choosing our three-way ball valve, you will enjoy superior product performance and a worry-free user experience.
