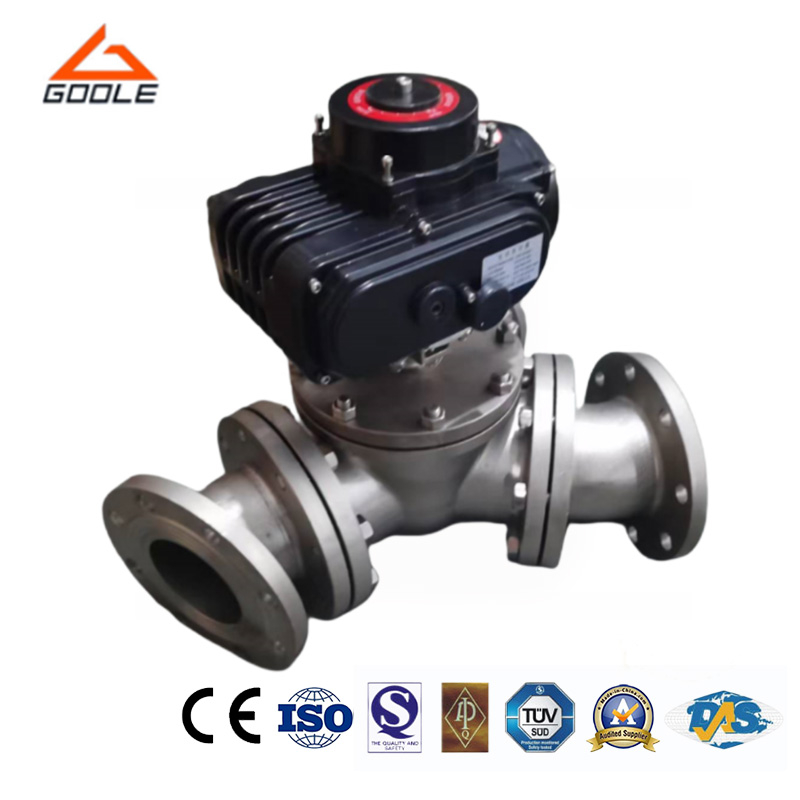

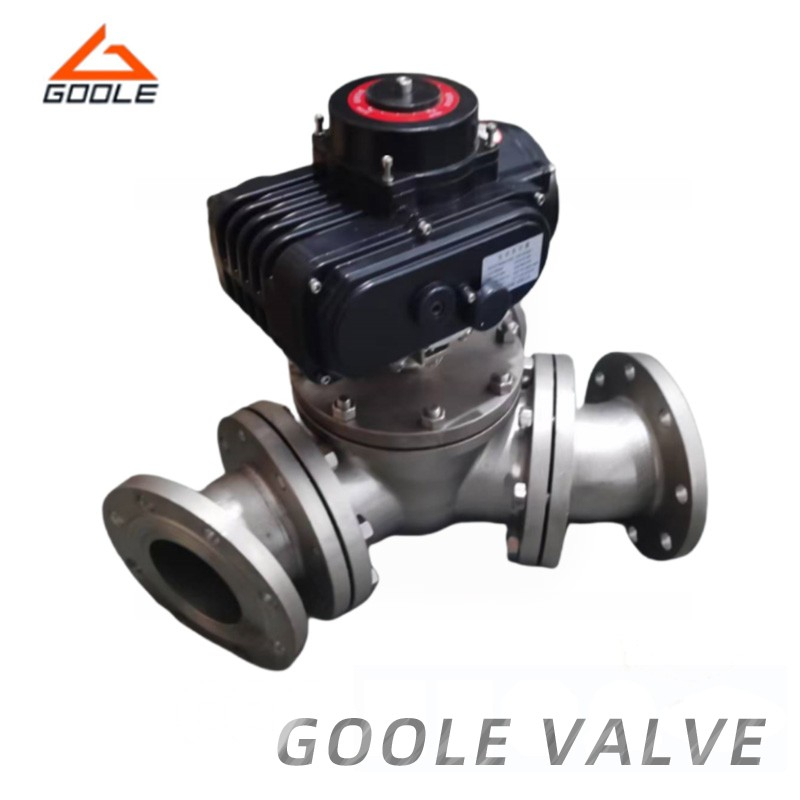

Electric three-way ball valve has a compact structure, beautiful appearance, and good sealing performance. It can switch the flow direction of the medium in the pipeline. It can also connect or close two vertical channels. The four seat sealed three-way ball valve has a beautiful appearance and a compact and reasonable structure.
● Y-Shaped Design: This design enables efficient fluid diversion and distribution between a single inlet and two outlets.
● Multiple Sealing Options: This valve offers multiple functions, including soft sealing, hard sealing, and fire-resistant seat, ensuring that it can meet the unique requirements of various operating conditions. Valves with a diameter less than DN150 use floating balls, while those with a diameter greater than DN150 use fixed balls.
● Emergency Sealing Structure: An auxiliary sealing structure can be added to the valve seat, which is characterized by using a grease injection valve for temporary sealing in emergency situations. In addition, the valve stem can be extended as needed to facilitate underground installation.
| DN | KV | ACTUATOR MODEL | ACTION TIME | |
| FULLY OPEN | FULLY CLOSED | |||
| 15 | 20 | GTX63 | 0.5 | 0.5 |
| 20 | 38 | GTX63 | 0.5 | 0.5 |
| 25 | 72 | GTX63 | 0.5 | 0.5 |
| 32 | 110 | GTX75 | 0.5/0.6 | 0.6/0.8 |
| 40 | 170 | GTX75 | 0.5/0.6 | 0.6/1.0 |
| 50 | 270 | GTX83 | 0.5/0.6 | 0.8/1.2 |
| 65 | 380 | GTX110 | 0.7/1.0 | 0.8/1.2 |
| DN | KV | ACTUATOR MODEL | ACTION TIME | |
| FULLY OPEN | FULLY CLOSED | |||
| 80 | 510 | GTX118 | 0.8/1.0 | 1.0/1.5 |
| 100 | 940 | GTX160 | 1.0/1.2 | 1.0/2.0 |
| 125 | 1400 | GTX210 | 1.1/1.6 | 1.3/2.3 |
| 150 | 2200 | GTX210 | 1.2/2.0 | 1.5/2.5 |
| 200 | 3500 | GTX254 | 3.5/4.5 | 4.5/6.0 |
| 250 | 5200 | GTX254 | 4.0/5.0 | 5.0/6.0 |
| 300 | 8500 | GTX255 | 5.0/6.0 | 5.5/7.0 |
External Dimension and Weight:
| DN | L0 | L | H1 | H2 | H3 | Weight(kg) | ||
| PN16/40 | PN63 | PN16/40 | PN63 | |||||
| 15 | 133 | 130 | 165 | 54 | 177 | 47 | 6.5 | 7.5 |
| 20 | 133 | 130 | 190 | 54 | 177 | 47 | 7 | 8.5 |
| 25 | 133 | 140 | 216 | 60 | 177 | 52 | 9 | 11 |
| 32 | 182 | 165 | 229 | 67 | 198 | 59 | 13.5 | 16 |
| 40 | 182 | 165 | 241 | 78 | 198 | 66 | 18 | 21.5 |
| 50 | 182 | 203 | 292 | 88 | 223 | 78 | 26 | 32 |
| 65 | 222 | 222 | 330 | 98 | 275 | 91 | 33 | 41 |
| 80 | 294 | 241 | 356 | 121 | 275 | 106 | 48 | 58 |
| 100 | 380 | 305 | 406 | 144 | 353 | 130 | 88 | 106 |
| 125 | 450 | 356 | 455 | 148 | 420 | 150 | 115 | 138 |
| 150 | 450 | 394 | 495 | 176 | 420 | 172 | 200 | 240 |
| 200 | 603 | 457 | 597 | 226 | 504 | 215 | 245 | 294 |
| 250 | 603 | 533 | 673 | 281 | 504 | 270 | 340 | 408 |
| 300 | 603 | 610 | 762 | 320 | 515 | 330 | 456 | 548 |
| Form | Type T,L three way ball valve |
| Inside nominal diameter DN(mm) | DN15-DN300 |
| Nominal pressure | 1.6 2.5 4.0 6.4Mpa |
| Liquid range | Air ,water, gas ,oil and petrochemical products corrosive medium |
| Working temperature | Hard seal:-40 --300 Soft seal:-40 --180 |
| Spillage | 0 conform to ANSIB16.104standard |
| Main material | Valve body : WCB 304 316 316L Spool: 304 316 316L |
| Seat form | Stainless steel movable hard seal, PTFE soft seal |
| Surface preparation | Polishing |
| Port Size | 2"--12" |
| Pressure | 150LB--1500LB |
| Temperature of Media | High Temperature |
| Media | gas oil and water ect |
| Drive means | Manual , pneumatic , electric |
| Type of connection | Flange , thread , butt welded |
| Material | SS, CS |
| Packaging & Delivery | Plywood case or buyer request |
Q1：Can this valve be used for both diversion and merging of fluids?
Yes, the Y-shaped design allows the valve to efficiently divert fluid from one inlet to two outlets or merge two fluid flows into a single outlet, making it versatile for various fluid control needs.
Q2:How does the Y-shaped design improve fluid control?
The Y-shaped design allows for seamless diversion and distribution of fluid, ensuring smooth flow and reducing pressure drop, which is ideal for applications requiring flexible flow direction.
Q3:What are the benefits of using this valve in medium mixing or shunting applications?
This valve provides excellent control over fluid flow, allowing for precise mixing or redirection of fluid between multiple paths, enhancing the efficiency of medium mixing or shunting processes in complex systems.
Our Electric Forged Y-shaped Three-way Ball Valve provides excellent flow control with minimal turbulence, ensuring smooth operation. The durable forged steel structure ensures strength and lifespan, making it a reliable choice for various industrial pipeline configurations.
