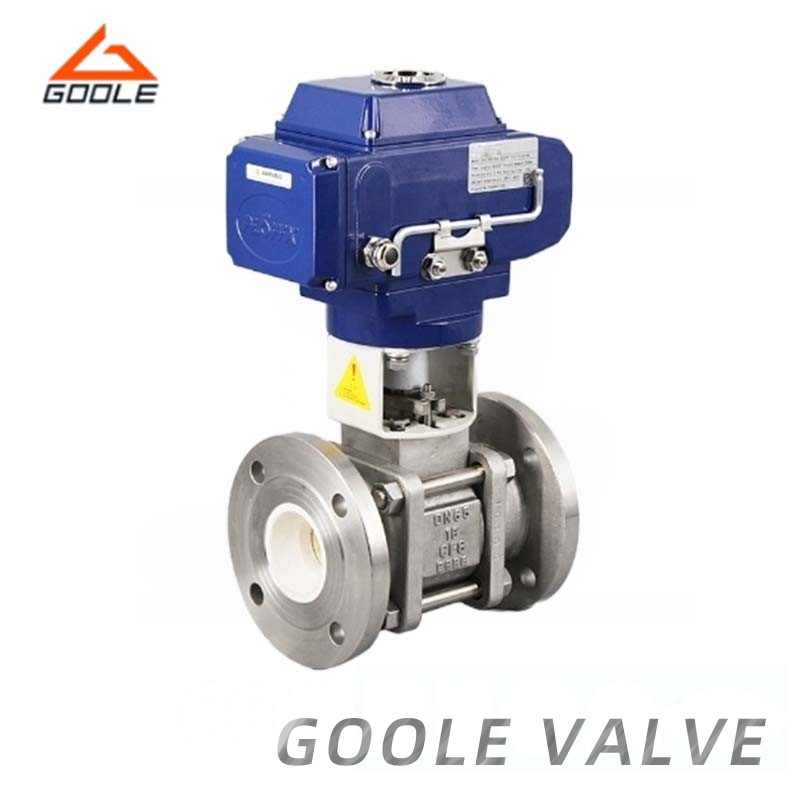

Suitable for switches or pipelines that handle hard or soft particles as well as corrosive fluids. It has a nominal pressure of up to 1.6MPa and can withstand temperatures up to 200 degrees Celsius. All components in contact with the medium are made of structural ceramic materials, which have extremely stable chemical properties and high hardness (Rockwell hardness HRC90, second only to diamond). Therefore, these valves have excellent wear resistance, corrosion resistance, and erosion resistance, as well as excellent insulation and minimal thermal expansion. The ball part adopts advanced grinding technology and equipment manufacturing to ensure high roundness and smooth surface. After precise fitting with the valve seat, excellent sealing performance was achieved through self-lubricating zirconia ceramics. Due to the excellent wear resistance of ceramics, this valve is very durable and reliable, with a service life two to four times that of titanium alloy and Monel alloy valves.
● Excellent Wear Resistance: The ball is made of ceramic material, and even under the erosion of high-speed fluids, the valve can maintain excellent sealing effect, thereby improving its service life.
● Superior Sealing Performance: Can resist corrosion from various chemicals and is suitable for various harsh working conditions.
● Easy Operation: The valve is easy to operate, and the electric actuator can quickly switch, improving work efficiency. In addition, it has a compact structure, small volume, and is easy to install and maintain.
| Sr.No. | Part | Material | Sr.No. | Part | Material |
| 1 | Valve Cover | WCB | 12 | Hex Nut | Grade 8 |
| 2 | Middle Body | WCB | 13 | Stud | B7 |
| 3 | Middle Body Sleeve | Ceramic | 14 | Packing Gland | WCB |
| 4 | O-Ring | PTFE | 15 | Spacer | Q235 |
| 5 | Flange Sleeve | Ceramic | 16 | Circlip for Shaft | 65Mn |
| 6 | Ball | Ceramic | 17 | Handle | CS |
| 7 | O-Ring | PTFE | 18 | Gasket | Q235 |
| 8 | Dish Spring | 50CrVA | 19 | Screw | 35# |
| 9 | Washer | 304 | 20 | Hex Bolts | B7 |
| 10 | Stem | 2Cr13 | 21 | Big Washer | PTFE |
| 11 | Packing | PTFE | 22 | Seat | Ceramic |
| Nominal Diameter | 1/2"-8" |
| Nominal pressure | Class 150 ~ 600 LB |
| Temperature | -20ºC~250ºC |
| Connecting type | flange , wafer |
| Material | SS, CS |
| Driving means | manual, pneumatic, wore gear, electric |
| Applicable medium | Heavy oil , glue and other easy-clotting medium |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
Electric actuators convert electrical signals into mechanical power to drive the valve stem to rotate. The valve stem is tightly integrated with the ceramic ball; When the valve stem rotates, the ceramic ball also rotates, thereby adjusting the opening and closing state of the valve. Ceramic balls are extremely hard and wear-resistant, effectively resisting medium erosion and corrosion, ensuring long-term stable operation of valves. In addition, the compact structure, fast response, and precise control of electric actuators make electric ceramic ball valves widely used in industrial automation control systems.
By choosing our high-quality electric ceramic ball valve, you will experience the outstanding performance brought by high-quality ceramic materials. Even under the erosion of high-speed fluids, it can maintain excellent sealing effect and significantly extend its service life. It has outstanding corrosion resistance and can withstand the erosion of various chemicals, making it suitable for harsh working conditions. Our meticulous design ensures the stability and reliability of the valve, providing you with a worry free operating experience. By choosing our electric ceramic ball valve, you will receive an efficient, durable, and reliable fluid control solution.
