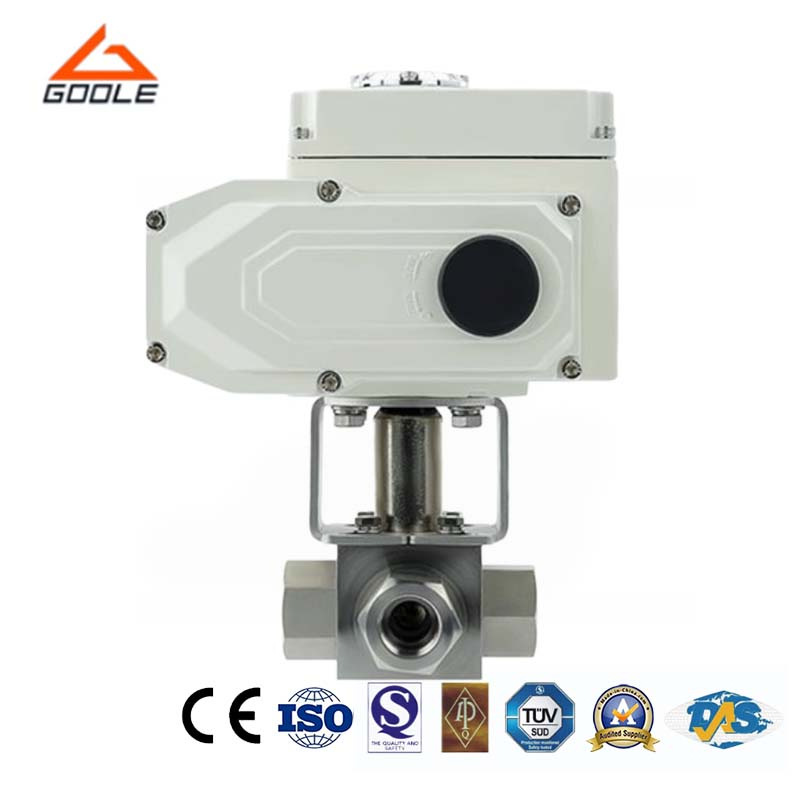

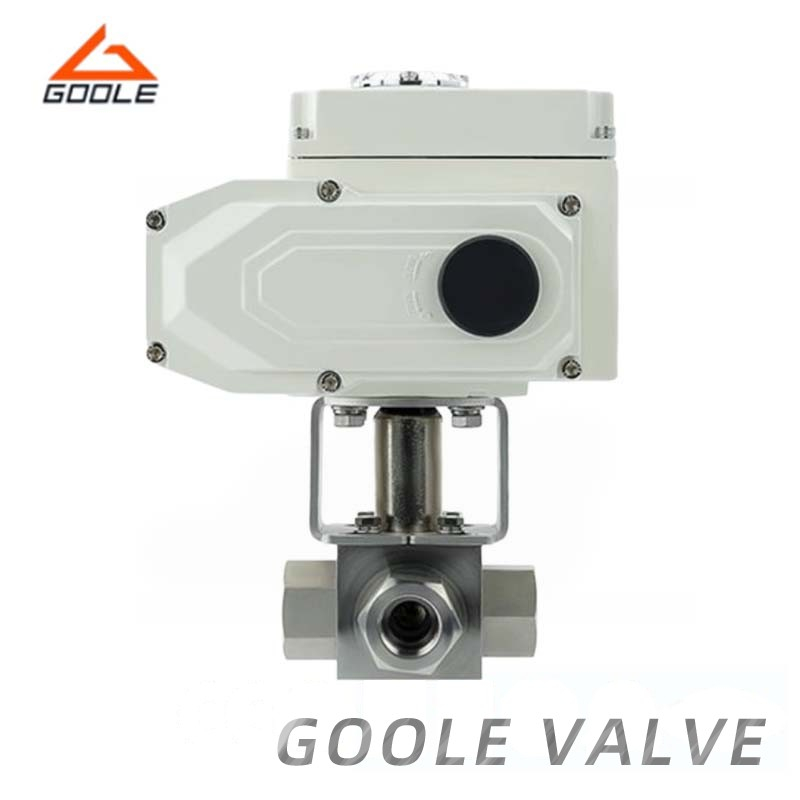

The Electric high-pressure three-way ball valve divides the valve body into three parts along the cross section perpendicular to the valve channel axis at the two seat positions. The entire valve is symmetrical left and right along the central axis of the valve stem. It is mainly used in pipelines to cut off, distribute, and change the direction of medium flow. Its pivot structure accurately positions the center of the sphere under high pressure, and the valve has good operational performance. The electric actuator adopts an integrated structure, which can directly adjust the switch value by inputting 220V power supply. It can also be equipped with a built-in servo module, and can control the operation by inputting control signals (4-20mADC or 1-5VDC) and single-phase power supply.
● Compact Structure: Featuring low flow resistance, it operates efficiently within the fluid control system, thereby minimizing energy loss.
● Easy to Operate: The switch employs a unique spherical design for quick opening and closing. A mere 90-degree rotation significantly enhances work efficiency.
● Good Sealing Performance: Utilizing advanced sealing materials and structures, it ensures reliable sealing across various working conditions, preventing fluid leakage.
DN | Pipe Thread | size(mm) | Pipe Thread | size(mm) | |||||||
d | L | H | W | E | H | W | SW | L | |||
6 | 1/4 | 11 | 70 | 43 | 108 | 42.5 | - | - | - | - | 70 |
10 | 3/8 | 11 | 70 | 43 | 108 | 42.5 | - | - | - | - | - |
15 | 1/2 | 11 | 85 | 43 | 108 | 42.5 | 1/2 | 68 | 130 | 41 | 85 |
20 | 3/4 | 14 | 95 | 45.5 | 146 | 47.5 | 3/4 | 77 | 180 | 46 | 95 |
25 | 1 | 21 | 105 | 59.5 | 146 | 52.5 | 1 | 82 | 180 | 55 | 105 |
32 | 1 1 /4 | 25 | 120 | 64.5 | 146 | 60 | 1 1 /4 | 115 | 300 | 70 | 120 |
40 | 1 1 /2 | 32 | 130 | 76 | 254 | 65 | 1 1 /2 | 120 | 300 | 80 | 130 |
50 | 2 | 38 | 150 | 81 | 254 | 75 | 2 | 130 | 300 | 100 | 150 |
| STANDARD PRESSURE | 1000PSI |
SHELL PRESSURE TESTING | 10.4Mpa |
WATER SEAL TESTING | 7.6Mpa |
AIR SEAL TESTING | 0.4-0.7Mpa |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valves are crafted from premium materials, ensuring exceptional durability and reliability. Our innovative design guarantees precise and efficient fluid control, catering to the diverse needs of industrial applications. We are dedicated to providing comprehensive after-sales service, ensuring that any issues you encounter during use are promptly and effectively resolved. By choosing our three-way ball valves, you will experience superior performance and a worry-free user experience.
