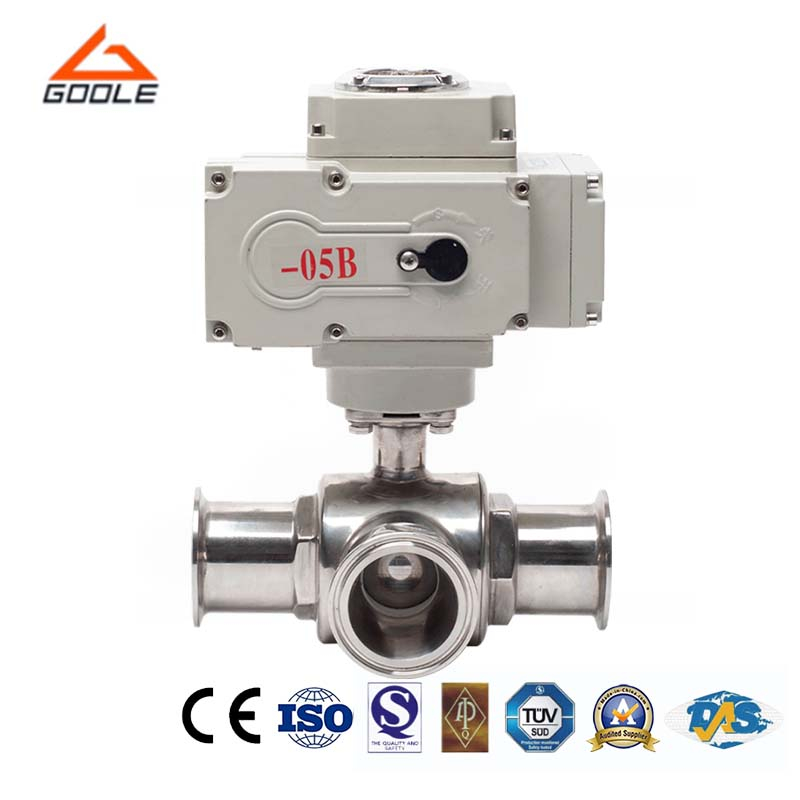

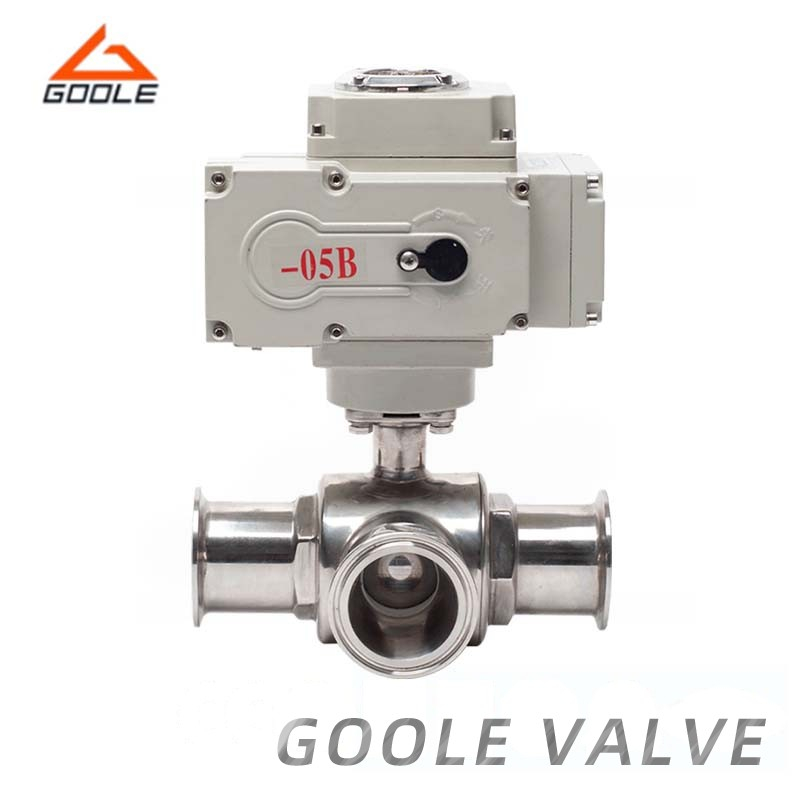

The Electric sanitary ball valve adopts an upper mounted structure, which reduces the connection bolts of the valve body under high pressure and large diameter conditions, enhances the reliability of the valve, and can overcome the influence of system weight on the normal operation of the valve.
● Compact Structure: Featuring low flow resistance, it operates efficiently within the fluid control system and effectively minimizes energy loss.
● Convenient Operation: The switch employs an innovative spherical design for rapid opening and closing. A mere 90-degree rotation significantly enhances work efficiency.
● Excellent Sealing Performance: Utilizing advanced sealing materials and structural design, it ensures reliable sealing across various working conditions, preventing fluid leakage.
| NO. | PART NAME. | MATERIAL | QTY. |
| 1 | BODY | CF8M | 1 |
| 2 | BONNET | CF8M | 1 |
| 3 | BALL | SS316 | 1 |
| 4 | SEAT | PTFE/RPTFE | 2 |
| 5 | GASKET | PTFE | 2 |
| 6 | STEAM SEAL | PTFE/RPTFE | 1 |
| 7 | STEM | SS316 | 1 |
| 8 | PACKING | PTFE | 1 |
| 9 | PACKING GLAND | SS304 | 1 |
| 10 | BELLEVILE WASHER | SS301 | 2 |
| 11 | SPRING WASHER | SS301 | 1 |
| 12 | PIN NUT | SS304 | 2 |
| 13 | HANDLE SLEEVE | SS304 | 1 |
| 14 | SPRING WASHER | SS301 | 1 |
| 15 | HANDLE | SS304 | 1 |
| 16 | STOP PIN | SS304 | 1 |
| 17 | NUT | SS304 | 1 |
| 18 | LOCKING DEVICE | SS304 | 1 |
Dimension List.
| NPS | d | E | d1 | d2 | F | G | H | H1 | H2 | L | W | ISO5211(K/1) |
| 1/4" | 11.5 | 139 | 6 | 6 | 9 | 1/4"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 3/8" | 12.5 | 139 | 6 | 6 | 9 | 3/8"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 1/2" | 15 | 139 | 6 | 6 | 9 | 1/2"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 16 | F03/F04 |
| 3/4" | 20 | 139 | 6 | 6 | 9 | 3/4"NPT/BSP | 46.15 | 7.1 | 80.15 | 74.6 | 17 | F03/F04 |
| 1" | 25 | 165 | 6 | 7 | 11 | 1"NPT/BSP | 56.6 | 10.9 | 95.4 | 88.5 | 21 | F04/F05 |
| 1-1/4" | 32 | 165 | 6 | 7 | 11 | 1-1/4"NPT/BSP | 61.0 | 10.9 | 99.8 | 102 | 22 | F04/F05 |
| 1-1/2" | 38 | 215 | 7 | 9 | 14 | 1-1/2"NPT/BSP | 77.5 | 13.9 | 126.3 | 110 | 22.5 | F05/F07 |
| 2" | 49 | 215 | 7 | 9 | 14 | 2"NPT/BSP | 85.2 | 139.9 | 134 | 125 | 24 | F05/F07 |
| 2-1/2" | 65 | 263 | 10 | 12 | 17 | 2-1/2"NPT/BSP | 108.7 | 16.8 | 166.7 | 160.6 | 31 | F07/F10 |
| 3" | 80 | 263 | 10 | 12 | 17 | 3"NPT/BSP | 117.4 | 18.1 | 175.4 | 178 | 34 | F07/F10 |
Pressure Test.
| Test Item | Shell Test | Sealing Test | Back Seal Test | Air Test | |||||
| Medium | Water | Air | |||||||
| Unit | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
| Test Pressure | 150 | 3.1 | 450 | 2.2 | 315 | 2.2 | 315 | 0.5-0.7 | 60-100 |
| 300 | 7.8 | 1125 | 5.6 | 815 | 5.6 | 815 | |||
| 400 | 10.3 | 1500 | 7.6 | 1100 | 7.6 | 1100 | |||
| 600 | 15.3 | 2225 | 11.2 | 1630 | 11.2 | 1630 | |||
| 900 | 23.1 | 3350 | 16.8 | 2440 | 16.8 | 2440 | |||
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valves are crafted from high-quality materials, ensuring exceptional durability and reliability. Their innovative design provides precise and efficient fluid control, meeting the needs of various industrial applications. We offer comprehensive after-sales service to ensure that any issues you encounter during use are promptly and effectively resolved. By choosing our three-way ball valves, you will experience superior product performance and worry-free use.
