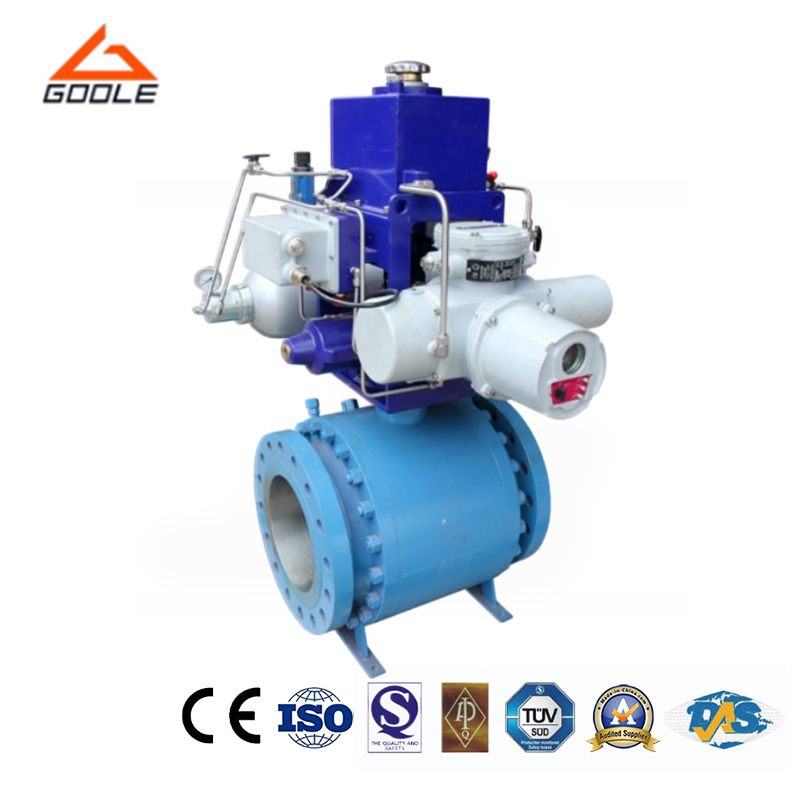

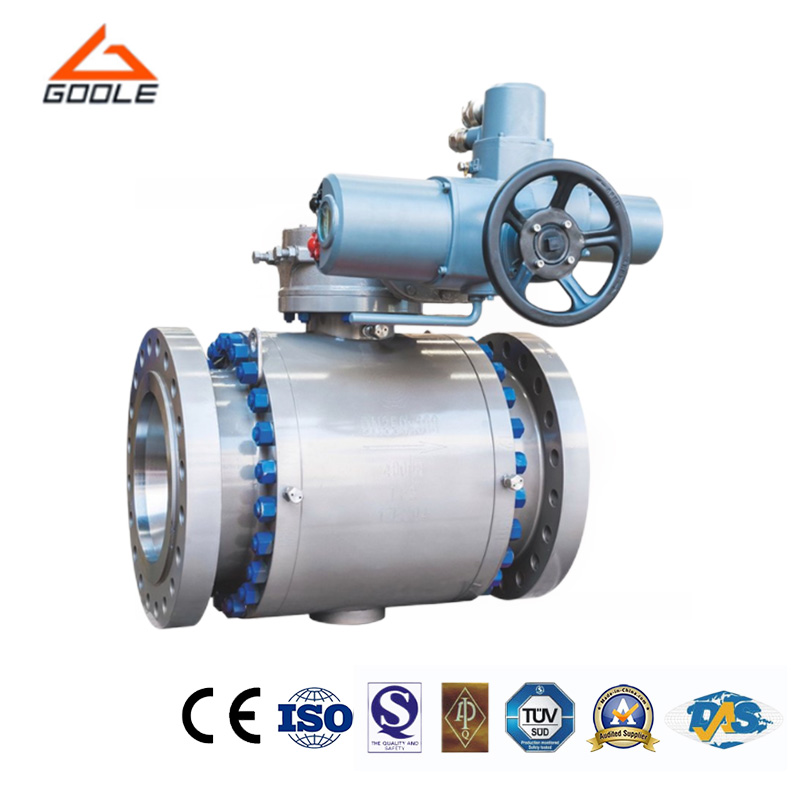

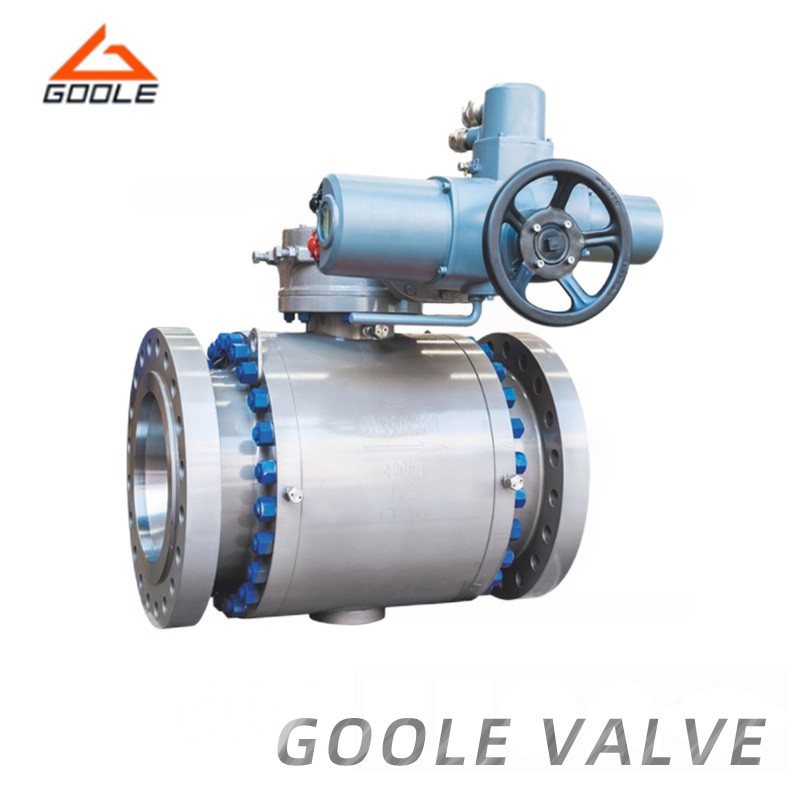

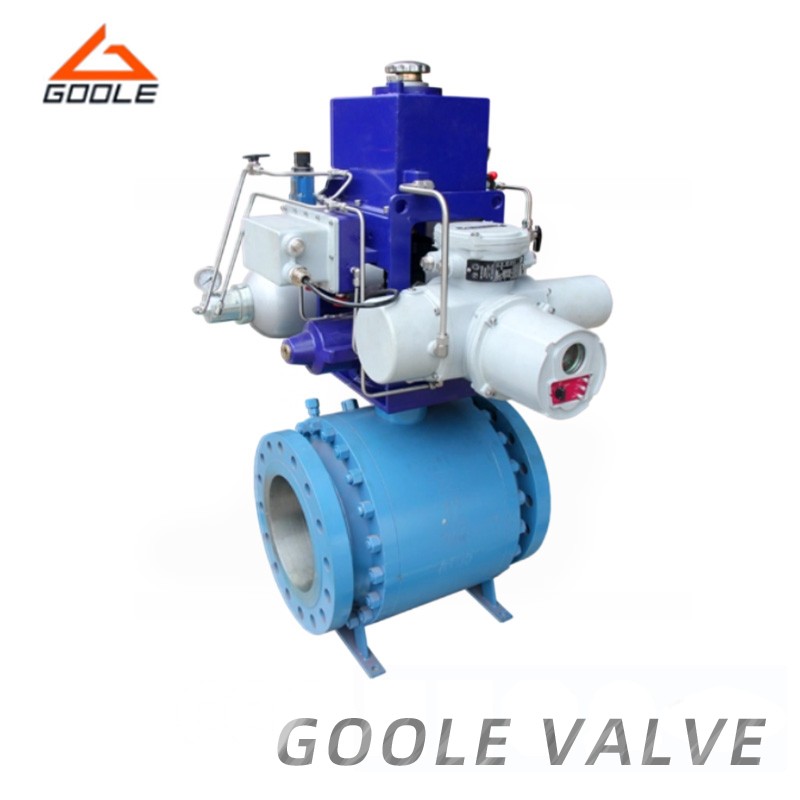

The Electric Actuated Forged Steel Trunnion Ball Valve is designed to meet the needs of high-efficiency fluid control in industrial systems that require electric actuation. With its electric actuator, this valve offers precise control, ensuring automated and hands-free operation for fluid regulation, even in high-pressure and high-flow environments.
| Quantity: | |
|---|---|
The Electric Actuated Forged Steel Trunnion Ball Valve incorporates electric actuation to provide reliable and automated fluid control in pipeline systems. The electric actuator facilitates remote operation, making it ideal for automated industrial processes. This feature reduces the need for manual intervention and ensures consistent, accurate control of the flow.
With the electric actuation, operators benefit from the ease of control, as the valve can be operated without manual input, making it an excellent choice for high-demand applications. The electric actuator also allows for remote monitoring and control, contributing to more efficient and streamlined operations.
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC |
| Soft Seal | -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on. |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Nominal diameter DN, Rated flow coefficient Kv, Allowable pressure difference.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| TYPE | TRUNNION BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500(1.6MPa--42.0MPa) |
| CONNECTION | THREADED, WELDED,FLANGE END | FUCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL,PNEUMATIC,ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| PRODUCTION CAPACITY | 1000000PCSNEAR | PACKAGE | PLYWOOD CASE |
| WARRANTY PERIOD | 12 MONTHS | TRADE MARK | GOOLE,OEM |
| ORIGIN | WENZHOU ZHEJIANG | HS CODE | 84819090 |
Q:Why is electric actuation beneficial for this valve?
Electric actuation allows for remote control and precise fluid regulation, ideal for automated industrial systems, reducing the need for manual operation and improving system efficiency.
Q:How does the electric actuator improve system control?
The electric actuator allows for automated and remote control, offering precise fluid flow regulation without the need for manual intervention.
Our Electric Actuated Forged Steel Trunnion Ball Valve provides exceptional automated fluid control with electric actuation for remote operation. The trunnion-mounted design ensures stable performance, while spring-loaded seats guarantee reliable sealing even under high-pressure conditions. With a focus on customized solutions, we ensure that our valves meet the specific needs of your industrial applications, delivering optimal performance and efficient operation. Furthermore, our strict quality control adheres to the highest industry standards, with comprehensive testing procedures including API 607, API 6D, and ISO 9001 certifications, ensuring that every valve meets international standards for safety, reliability, and performance.
