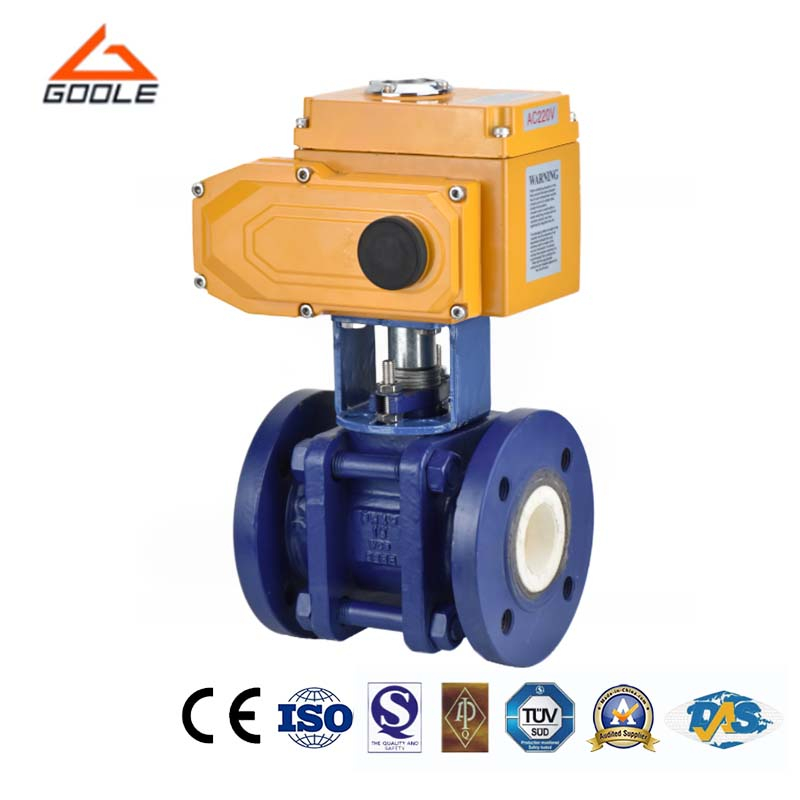

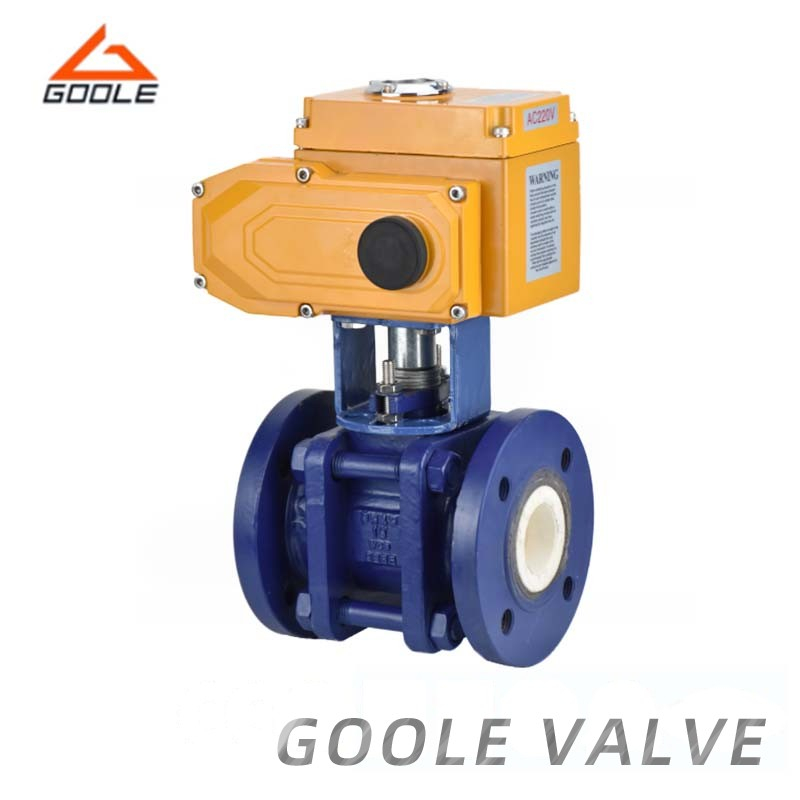

Suitable for switches or pipes handling hard or soft particles and corrosive fluids. It has a nominal pressure of up to 1.6MPa and can withstand temperature environments not exceeding 200 degrees Celsius. All components in contact with the medium are made of structural ceramic materials, which are extremely chemically stable and have very high hardness (Rockwell hardness HRC90, second only to diamond). Therefore, these valves exhibit excellent wear resistance, corrosion resistance, and erosion resistance, while also providing superior insulation and minimal thermal expansion. The ball section is manufactured using advanced grinding techniques and equipment, ensuring high roundness and a smooth surface. After precise mating with the valve seat, it achieves excellent sealing performance through self-lubricating zirconia ceramics. Thanks to the superior wear resistance of ceramics, this type of valve is highly durable and reliable, with a service life two to four times longer than that of titanium alloy and Monel alloy valves.
● Excellent Wear Resistance: The ball is made of ceramic material, and even under the erosion of high-speed fluid, the valve can still maintain excellent sealing effect, thus improving its service life.
● Superior Sealing Performance: Can resist the corrosion of a variety of chemicals, suitable for a variety of harsh working conditions.
● Easy Operation: The valve is easy to operate, and the electric actuator can quickly complete the switching, increasing the work efficiency. In addition, its compact structure and small size facilitate installation and maintenance.
| Sr.No. | Part | Material | Sr.No. | Part | Material |
| 1 | Valve Cover | WCB | 12 | Hex Nut | Grade 8 |
| 2 | Middle Body | WCB | 13 | Stud | B7 |
| 3 | Middle Body Sleeve | Ceramic | 14 | Packing Gland | WCB |
| 4 | O-Ring | PTFE | 15 | Spacer | Q235 |
| 5 | Flange Sleeve | Ceramic | 16 | Circlip for Shaft | 65Mn |
| 6 | Ball | Ceramic | 17 | Handle | CS |
| 7 | O-Ring | PTFE | 18 | Gasket | Q235 |
| 8 | Dish Spring | 50CrVA | 19 | Screw | 35# |
| 9 | Washer | 304 | 20 | Hex Bolts | B7 |
| 10 | Stem | 2Cr13 | 21 | Big Washer | PTFE |
| 11 | Packing | PTFE | 22 | Seat | Ceramic |
| Nominal Diameter | 1/2"-8" |
| Nominal pressure | Class 150 ~ 600 LB |
| Temperature | -20ºC~250ºC |
| Connecting type | flange , wafer |
| Material | SS, CS |
| Driving means | manual, pneumatic, wore gear, electric |
| Applicable medium | Heavy oil , glue and other easy-clotting medium |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The electric actuator converts electrical signals into mechanical power, driving the valve stem to rotate. The valve stem is tightly combined with the ceramic ball; when the valve stem rotates, the ceramic ball also turns, thereby adjusting the opening and closing state of the valve. The ceramic ball is extremely hard and wear-resistant, effectively resisting media erosion and corrosion, ensuring the valve operates stably over time. Additionally, the electric actuator has a compact structure, quick response, and precise control, making the electric ceramic ball valve widely used in industrial automation control systems.
Choose our high-quality electro-ceramic ball valves, and you will experience the superior performance brought by premium ceramic materials. Even in the erosion of high-speed fluids, it can maintain excellent sealing effects, significantly extending its service life. Its corrosion resistance is outstanding, capable of withstanding the erosion of various chemicals, making it suitable for harsh working conditions. Our meticulous design ensures the stability and reliability of the valve, providing you with a worry-free operating experience. By choosing our electro-ceramic ball valves, you will receive an efficient, durable, and reliable fluid control solution.
