Switches or pipes for hard or soft particles and corrosive media. Nominal pressure is 1.6MPa and suitable for temperatures below 200 degrees Celsius.
All media contact parts are made of structural ceramics, which have extremely high chemical stability and hardness (Rockwell hardness (HRC90), second only to diamond). Therefore, this type of valve has extremely high wear resistance, corrosion resistance and erosion resistance, as well as good insulation and minimal thermal expansion.
The sphere is manufactured by advanced grinding equipment and process, with high roundness and good surface quality. After alignment with the valve seat, a good seal can be achieved through self-lubricating zirconia ceramic.
Because of the strong wear resistance of ceramics, this valve is durable and reliable, and its service life is 2-4 times that of titanium alloy and Monel alloy valves.
● Excellent Wear Resistance: Because the ball is made of ceramic material, even under high speed fluid flushing, the valve can still maintain good sealing performance, thus extending the service life.
● Superior Sealing Performance: Can resist the erosion of various chemical media, suitable for a variety of harsh working environment.
● Easy Operation: The valve is easy to operate and can be quickly switched through the electric actuator to improve work efficiency. At the same time, the structure is compact, small in size, and easy to install and maintain.
| Sr.No. | Part | Material | Sr.No. | Part | Material |
| 1 | Valve Cover | WCB | 12 | Hex Nut | Grade 8 |
| 2 | Middle Body | WCB | 13 | Stud | B7 |
| 3 | Middle Body Sleeve | Ceramic | 14 | Packing Gland | WCB |
| 4 | O-Ring | PTFE | 15 | Spacer | Q235 |
| 5 | Flange Sleeve | Ceramic | 16 | Circlip for Shaft | 65Mn |
| 6 | Ball | Ceramic | 17 | Handle | CS |
| 7 | O-Ring | PTFE | 18 | Gasket | Q235 |
| 8 | Dish Spring | 50CrVA | 19 | Screw | 35# |
| 9 | Washer | 304 | 20 | Hex Bolts | B7 |
| 10 | Stem | 2Cr13 | 21 | Big Washer | PTFE |
| 11 | Packing | PTFE | 22 | Seat | Ceramic |
| Nominal Diameter | 1/2"-8" |
| Nominal pressure | Class 150 ~ 600 LB |
| Temperature | -20ºC~250ºC |
| Connecting type | flange , wafer |
| Material | SS, CS |
| Driving means | manual, pneumatic, wore gear, electric |
| Applicable medium | Heavy oil , glue and other easy-clotting medium |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?

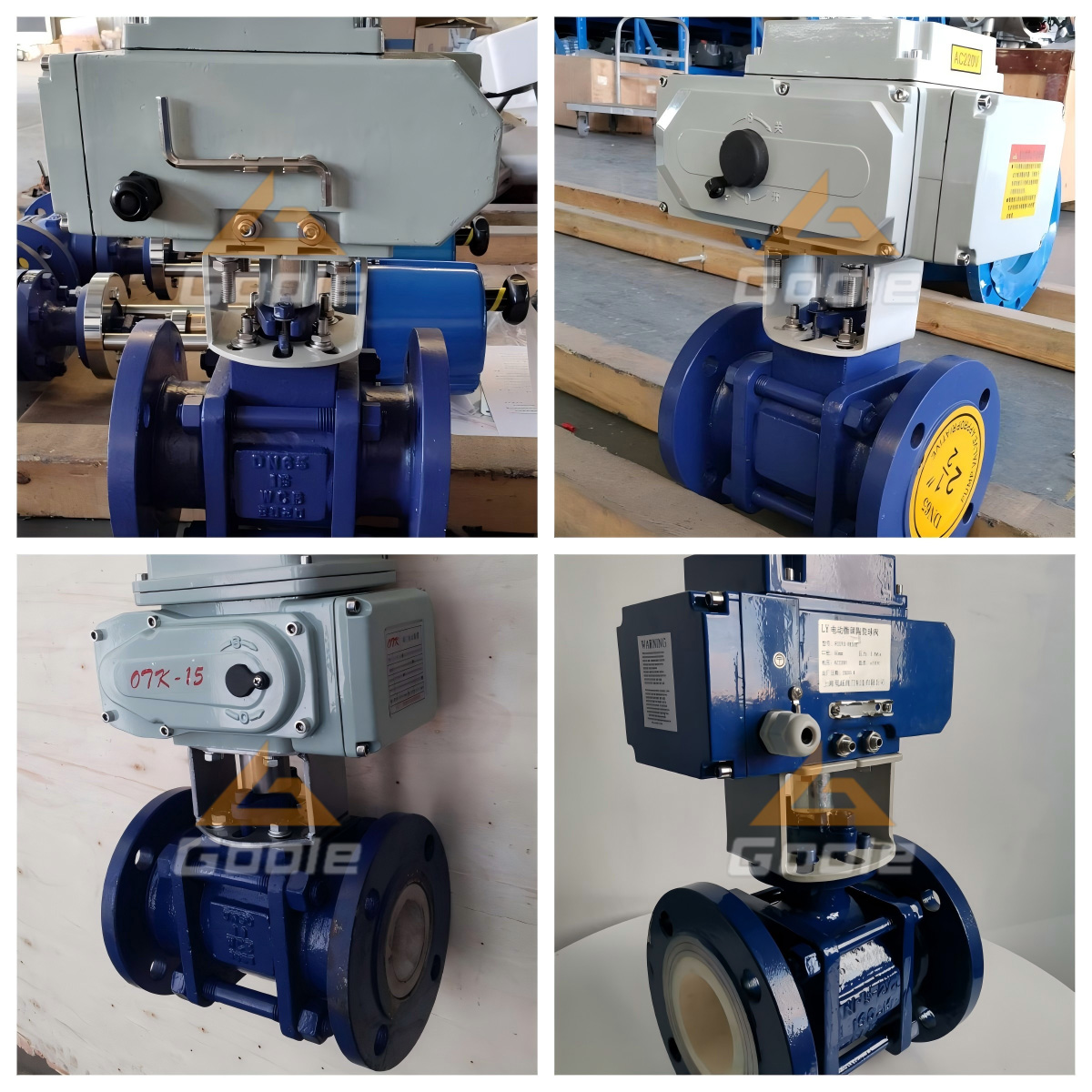

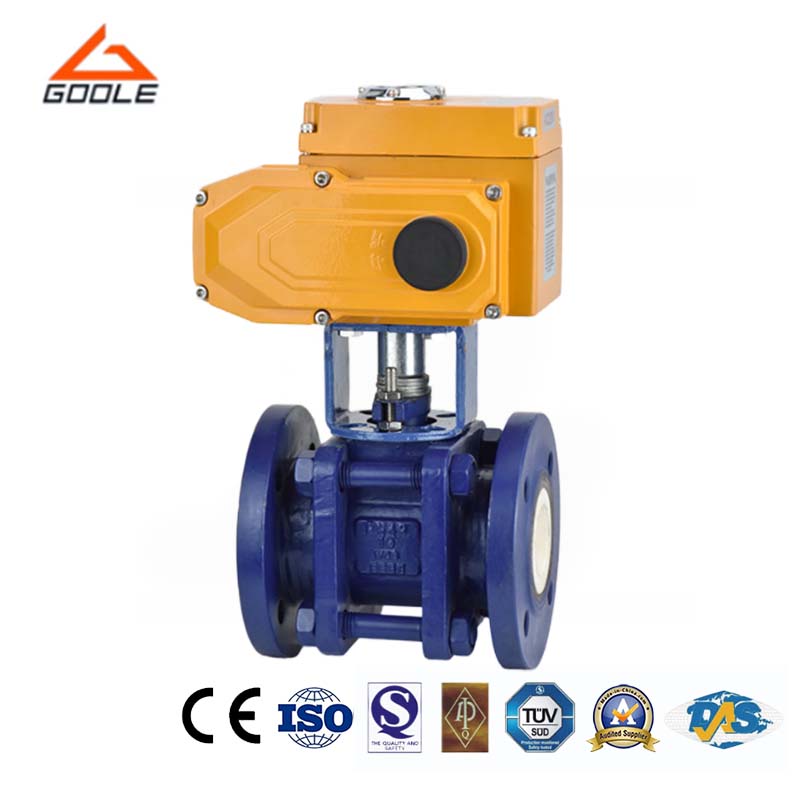

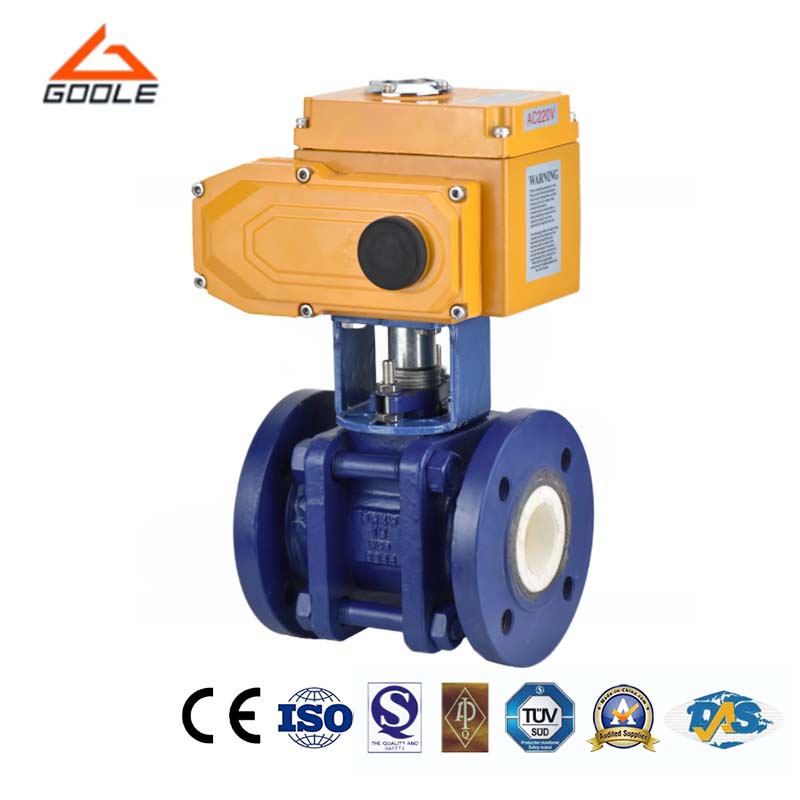

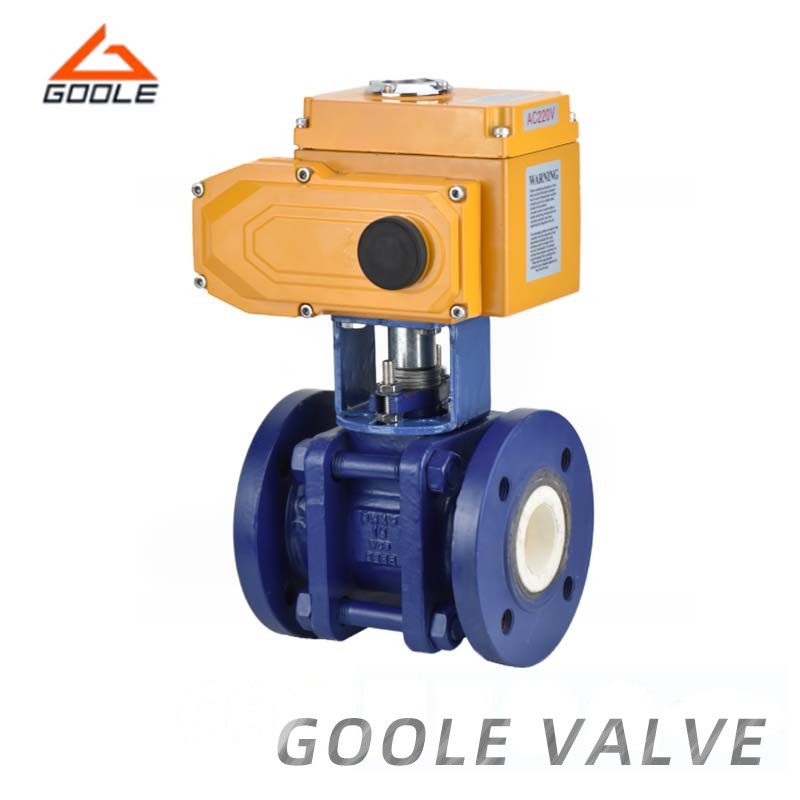

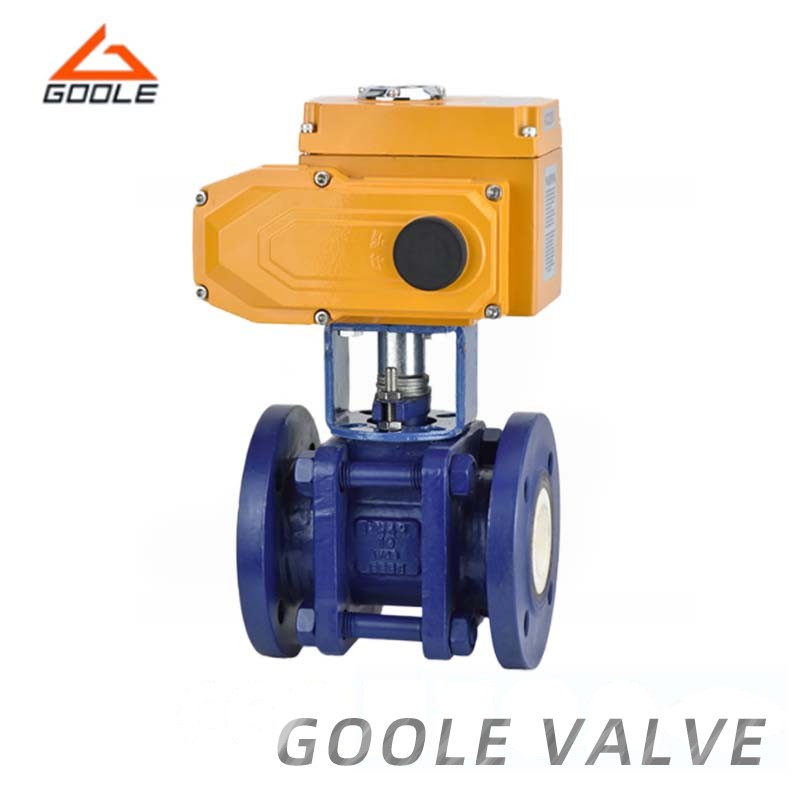

The electric actuator converts electrical signals into mechanical energy, driving the valve stem to rotate. The valve stem is tightly connected to the ceramic ball; when the valve stem rotates, the ceramic ball also rotates, thereby changing the open or closed state of the valve. The ceramic ball has extremely high hardness and wear resistance, effectively resisting erosion and corrosion from the medium, ensuring long-term stable operation of the valve. Additionally, the electric actuator is compact, has a fast response time, and precise control, making the electric ceramic ball valve widely used in industrial automation control systems.
Our electro-ceramic ball valves are made from high-quality ceramic materials, ensuring excellent sealing performance even under high-speed fluid erosion, effectively extending their service life. Their superior corrosion resistance allows them to withstand the erosion of various chemical media, making them suitable for harsh working environments. We pay attention to detailed design to ensure the stability and reliability of the valve, providing users with a worry-free experience. By choosing our electro-ceramic ball valves, you will receive an efficient, durable, and reliable fluid control solution.
