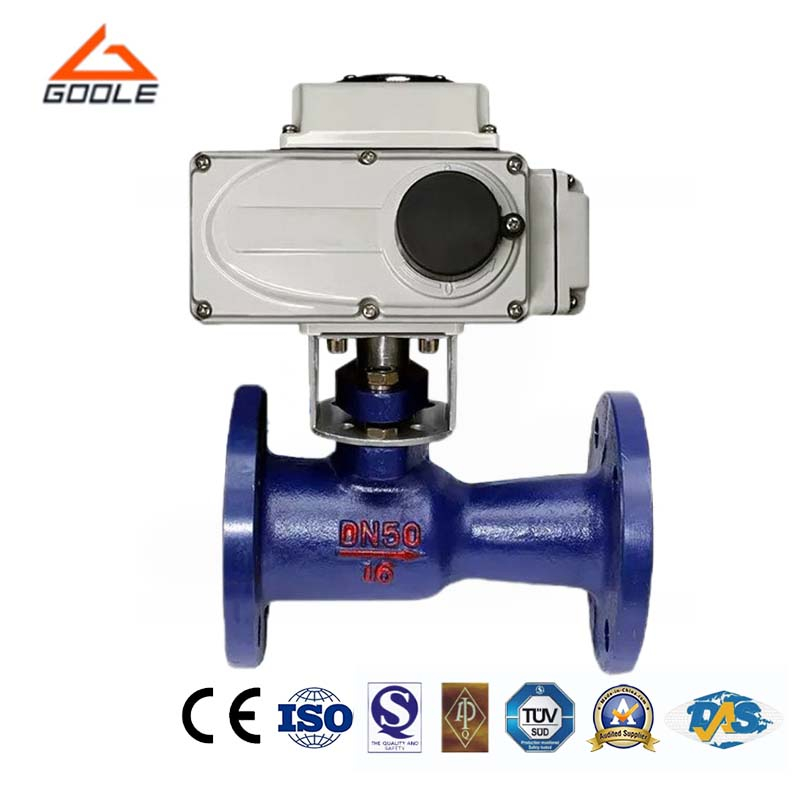

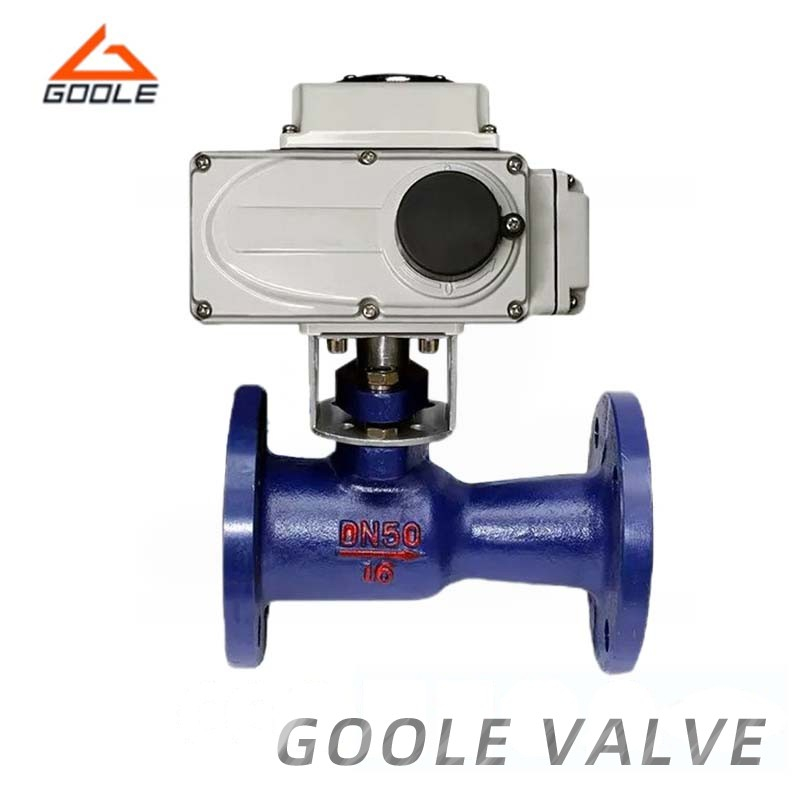

Electric 1PC Integrated High Temperature Ball Valve

Product Introduction

Integrated high-temperature ball valve is a type of valve that evolved from a plug valve. The opening and closing component is a sphere that rotates 90 degrees around the valve stem to achieve the opening and closing function. The valve has a compact structure, integrating the valve body, seat, and sphere into a single unit. The ball in the integrated high-temperature ball valve is usually made of high-temperature alloy material, which can withstand the working environment of high temperature and high pressure, ensuring the stability and reliability of the valve under high temperature conditions. In addition, its sealing performance is excellent; The valve seat is made of special materials, effectively preventing medium leakage and ensuring the safe operation of the system.

Product Features

● Strong High Temperature Tolerance: Using high temperature resistant materials, it can cope with the working pressure in high temperature environments, ensuring stable operation of the valve in high temperature environments.

● Compact Structure and Easy Installation:The electrical integration design integrates the main components of the actuator and ball head together. The structure is small, takes up less space, and the installation process is simple and fast.

● Superior Sealing Performance: The ball and valve seat are sealed by metal hard or soft, ensuring that the valve has excellent sealing effect when closed, effectively avoiding medium leakage.

Product Details

Main External Dimensions.

Technical Parameters

Pressure Test.

Product Display

Frequently Asked Questions（FAQs）

Q1:What is the main suitable of this valve?

This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.

Q2:What mechanical principle is used?

Once the electrical equipment receives a control signal, it will generate power through mechanical devices such as pistons, which in turn rotates the valve stem. The valve stem is connected to the ball valve core, so its rotation also causes the ball valve core to turn. If the passage of the ball valve core aligns with the direction of the pipeline, the medium can flow freely; if the passage is perpendicular to the pipeline direction, the flow of the medium will be blocked. The valve is equipped with a sealing system designed to ensure its sealing performance under high-temperature conditions. The sealing material typically uses heat-resistant and wear-resistant materials to ensure good sealing performance in high-temperature environments. Additionally, the structural design of the valve also takes into account the effects of thermal expansion to ensure stability and reliability at high temperatures.

Why Choose Us?

We produce electronically controlled high-temperature ball valves made from premium materials, ensuring stable operation even under extreme high-temperature conditions. These valves boast excellent heat resistance and corrosion resistance. They are meticulously designed with a compact structure, making installation and maintenance simple. At the same time, they effectively reduce fluid resistance, enhancing system efficiency. We offer a variety of specifications and configurations to meet different application scenarios, helping customers find the most suitable solution for their systems. Our professional technical team and comprehensive after-sales service system provide full technical support and timely maintenance services, ensuring smooth production processes.
