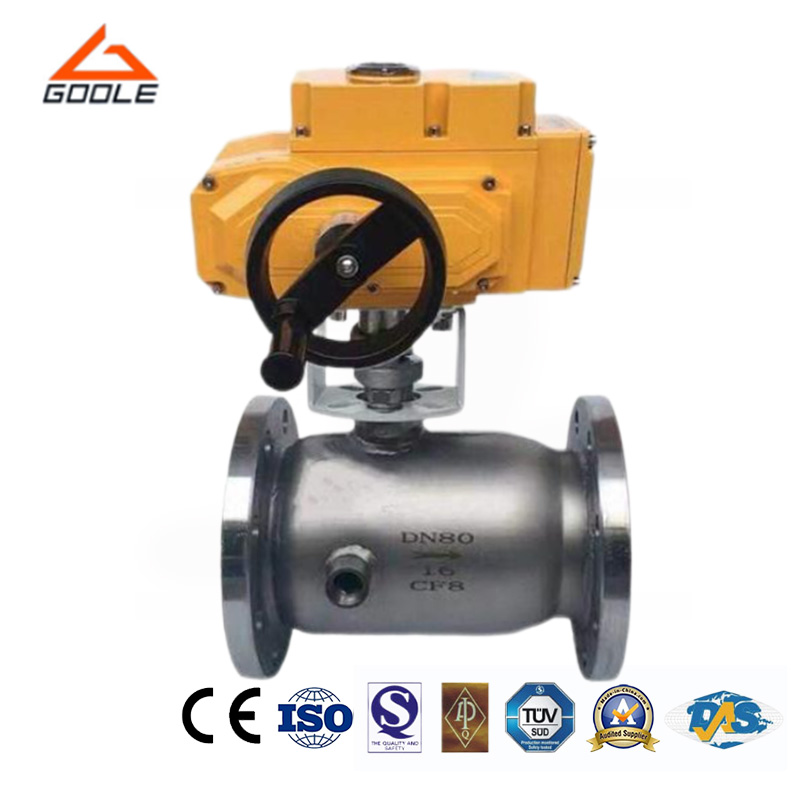

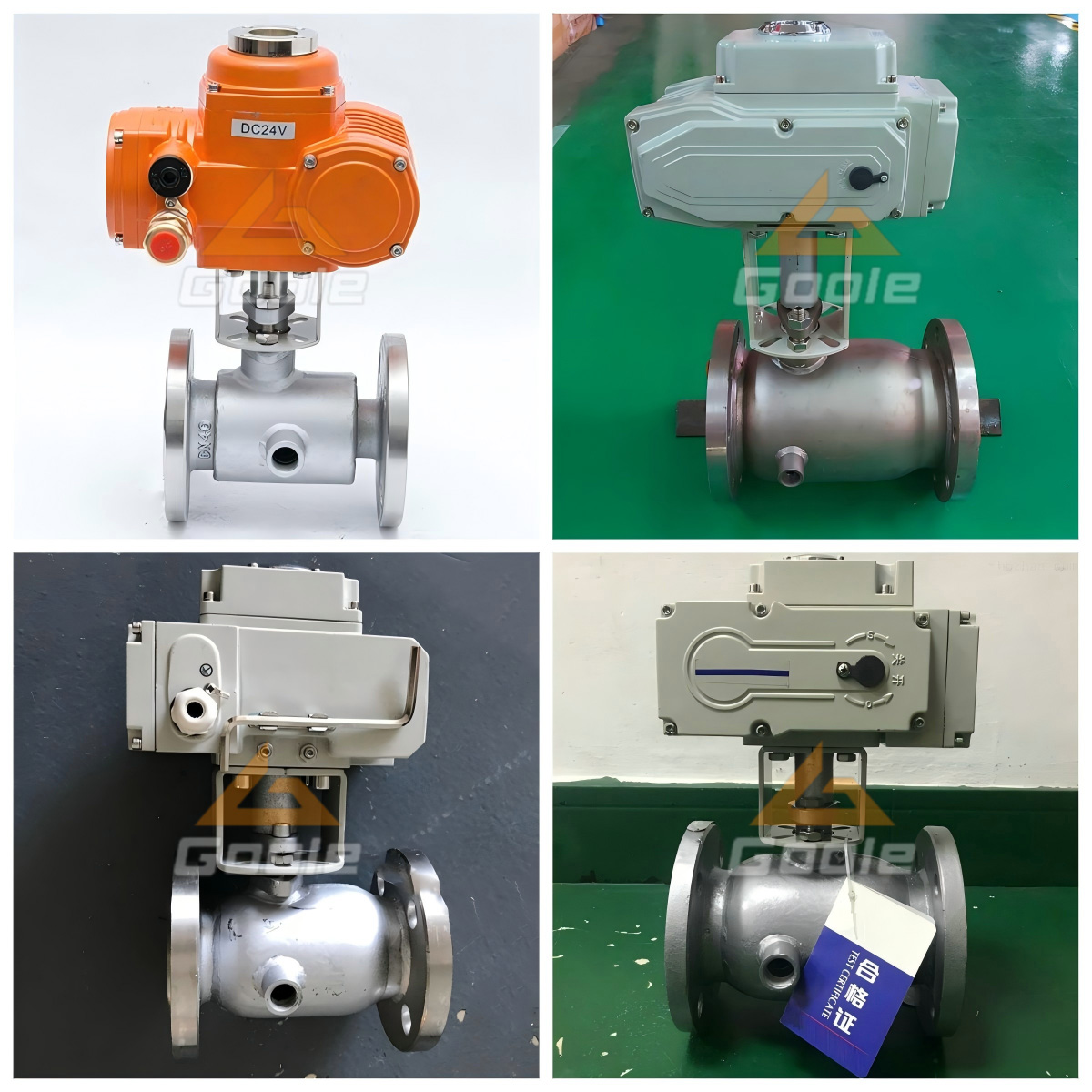

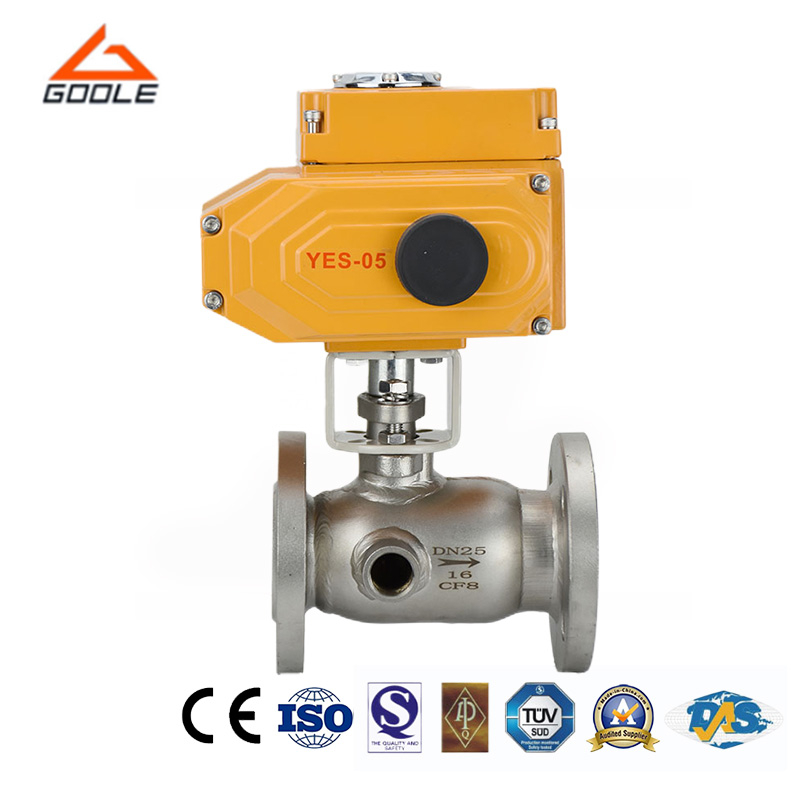

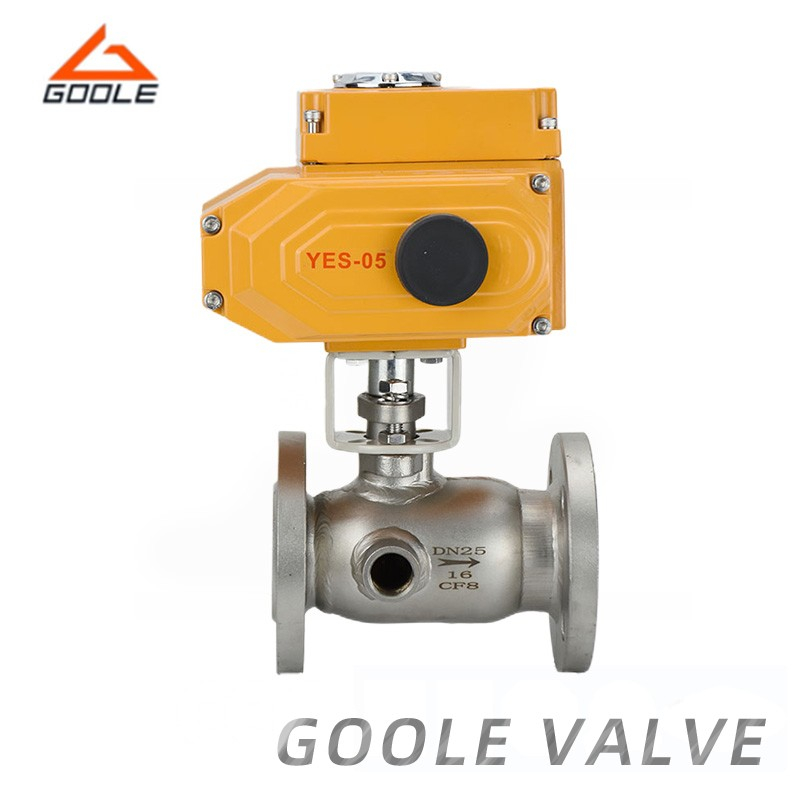

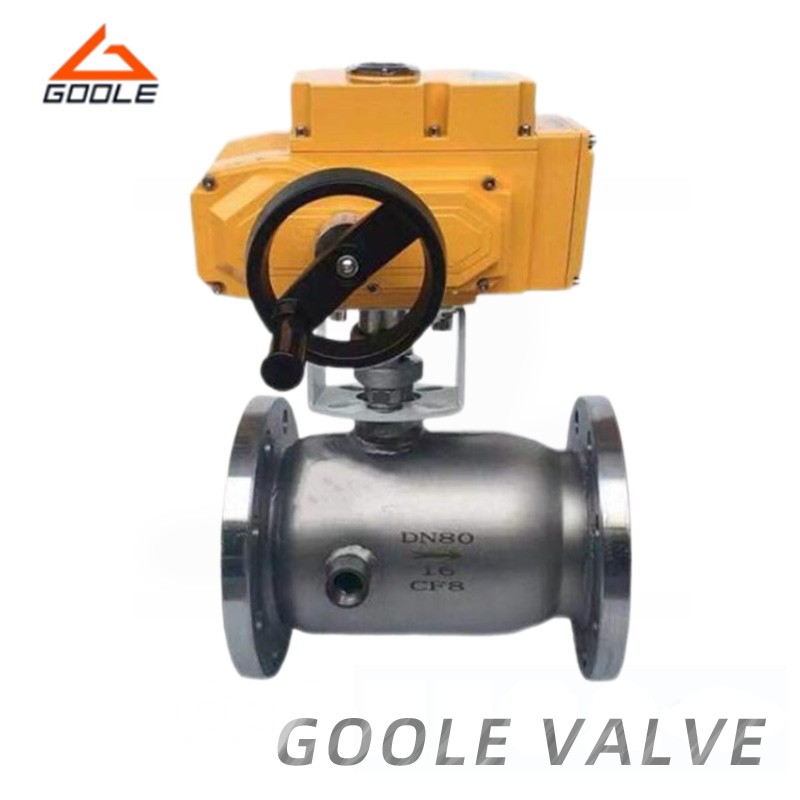

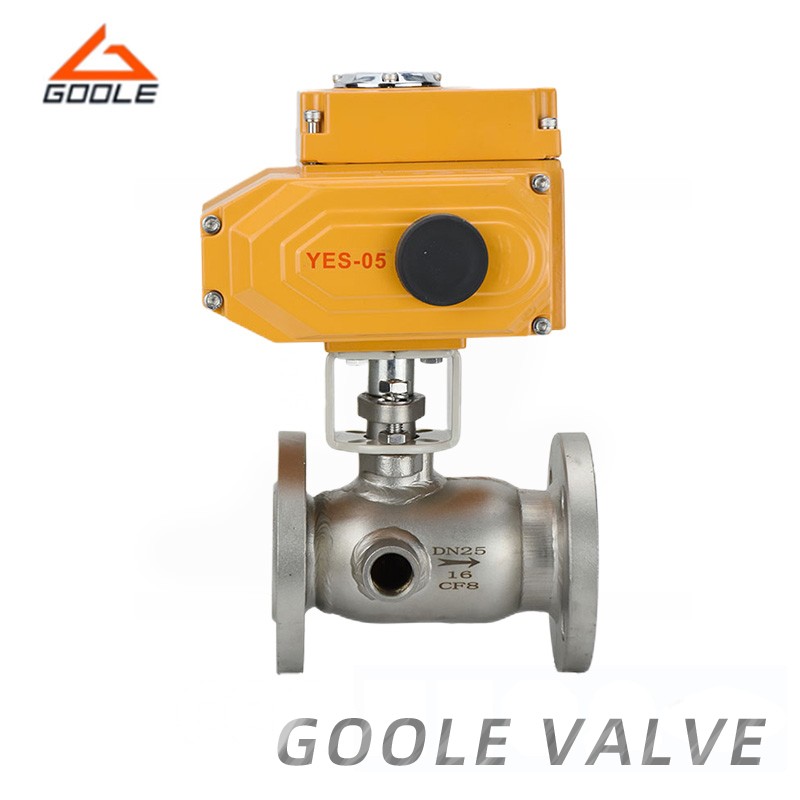

Electric Integrated Body Flanged Insulation Jacketed Ball Valve is a specific model of insulated ball valve, which belongs to the same type of valve as flange gate valve. The difference is that its closing part is a sphere, which rotates around the centerline of the valve body to achieve opening and closing. Ball valves are mainly used in pipelines to cut off, distribute, and change the flow direction of the medium. Two piece ball valve and three piece ball valve are a new type of valve widely used in recent years. These valves should generally be installed horizontally in pipelines.
● Small Fluid Resistance: The fluid resistance is small, and its resistance coefficient is equal to that of a pipe segment of the same length.
●Tight and Reliable: Currently, plastic is widely used as the sealing surface material for ball valves with good sealing performance, and it has also been widely used in vacuum systems.
● Easy Operation: Quick to open and close, with only a 90 ° rotation from full open to full close, facilitating remote control.
● Easy Maintenance: The ball valve has a simple structure, and the sealing ring is generally movable, making disassembly and replacement more convenient.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The valve is driven by a electric actuator to rotate the ball, enabling the flow or cutoff of the medium. After receiving the signal, the internal piston or diaphragm generates thrust, driving the ball to rotate within a 90-degree range. When the ball rotates to be perpendicular to the pipeline axis, the valve closes, and the medium is cut off; when the ball rotates to be parallel to the pipeline axis, the valve opens, allowing the medium to flow. Additionally, the thermal insulation jacket design effectively prevents the medium from freezing or vaporizing due to temperature changes, ensuring stable valve operation.
Our electric integrated insulated jacket ball valve is made of high-quality materials, ensuring its excellent durability and reliability. Its unique design enables the valve to maintain stable performance even under extreme temperature conditions, effectively preventing the medium from solidifying or vaporizing due to temperature changes, thereby ensuring the smooth operation of the production line. The valve is equipped with an integrated electric actuator, which is easy and fast to operate, greatly improving work efficiency. Both manual and automatic control can be easily achieved, meeting the needs of different users. By choosing our electric integrated insulated jacket ball valve, you will receive an ideal valve product with excellent performance, easy operation, energy saving and environmental protection.
